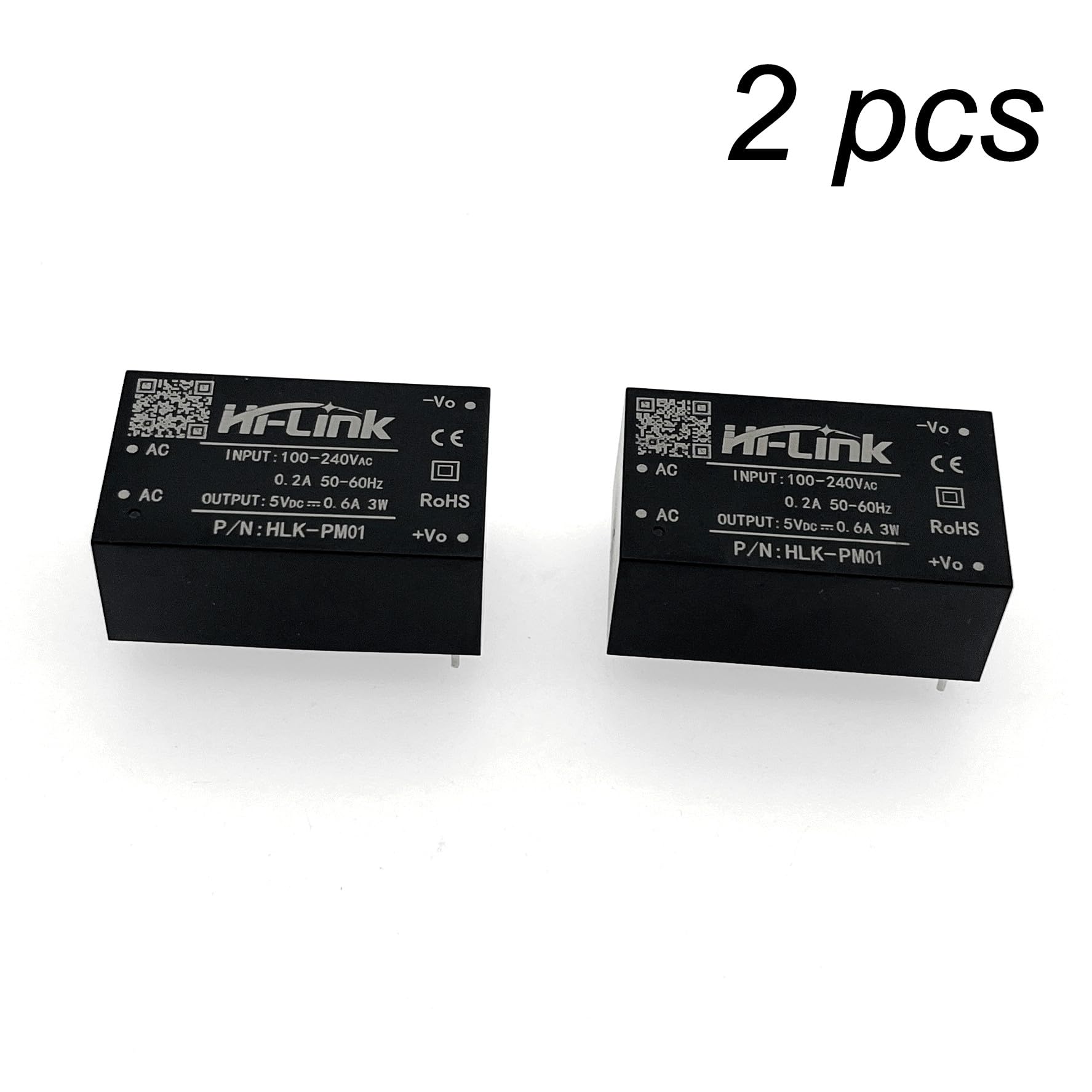

JZK 2 pcs HLK-PM01 AC DC 220V to 5V Step Down Power Supply Module Isolated Power Supply Module

• * Rated input voltage: AC 100-240 V, 0.1A, 50-60 Hz. * Full voltage input (90 ~ 264 V AC). * Output: 5V DC, 0.6A. * P/N: HLK-PM01, 3W.
• JZK 2 x HLK-PM01 DC Power Supply Module DC 220V to 5V, Isolated Power Supply Module.
• The latest Hi-Link power module, suitable for intelligent switch control device, small volume, low current, input voltage range, is the best choice for smart home.
• Low ripple and low noise. Output overload short circuit protection function. High efficiency and power density. Low energy consumption. 100% load test.
• Meet the requirements of UL, CE, EMC and safety testing requirements; Quality guarantee of at least 10 years.

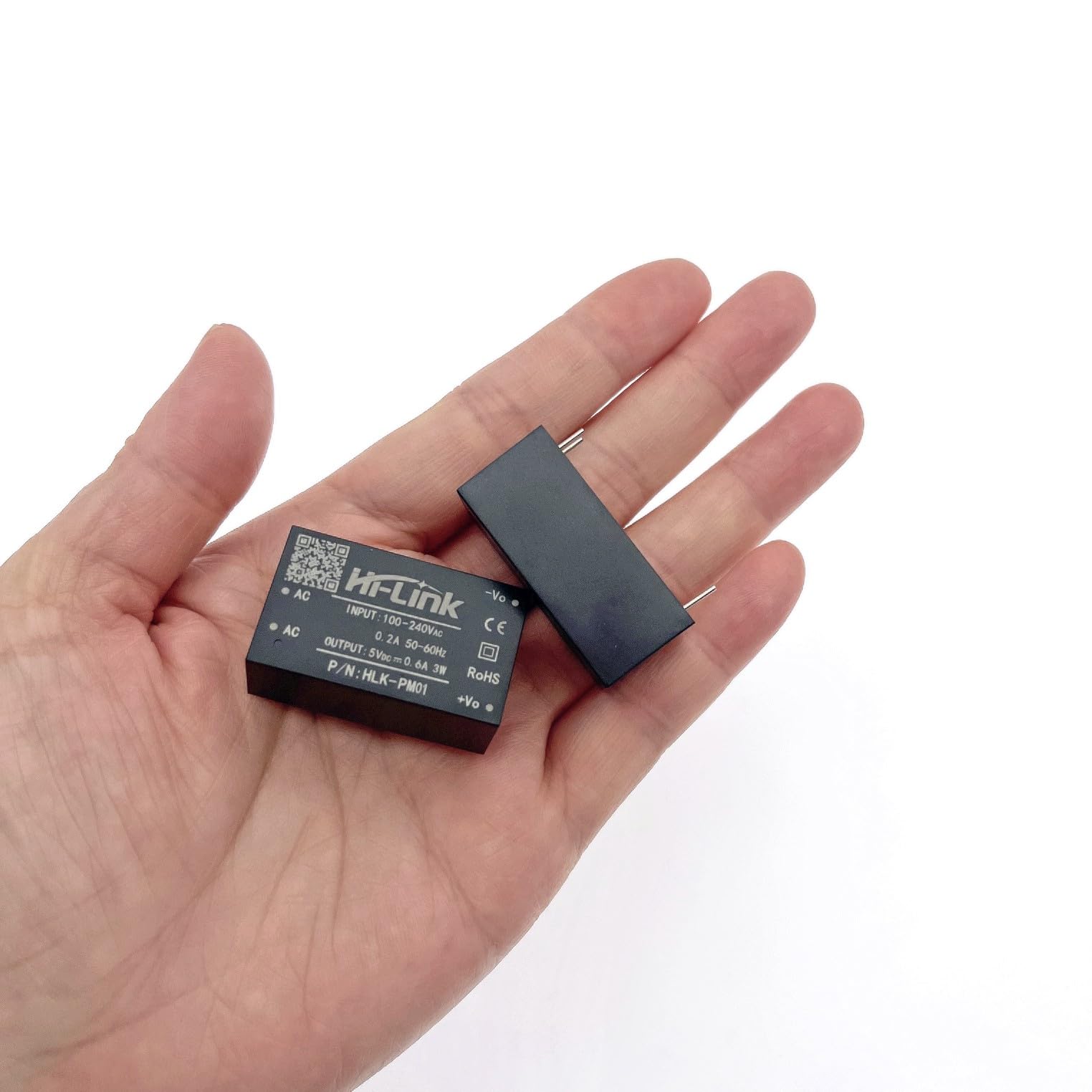

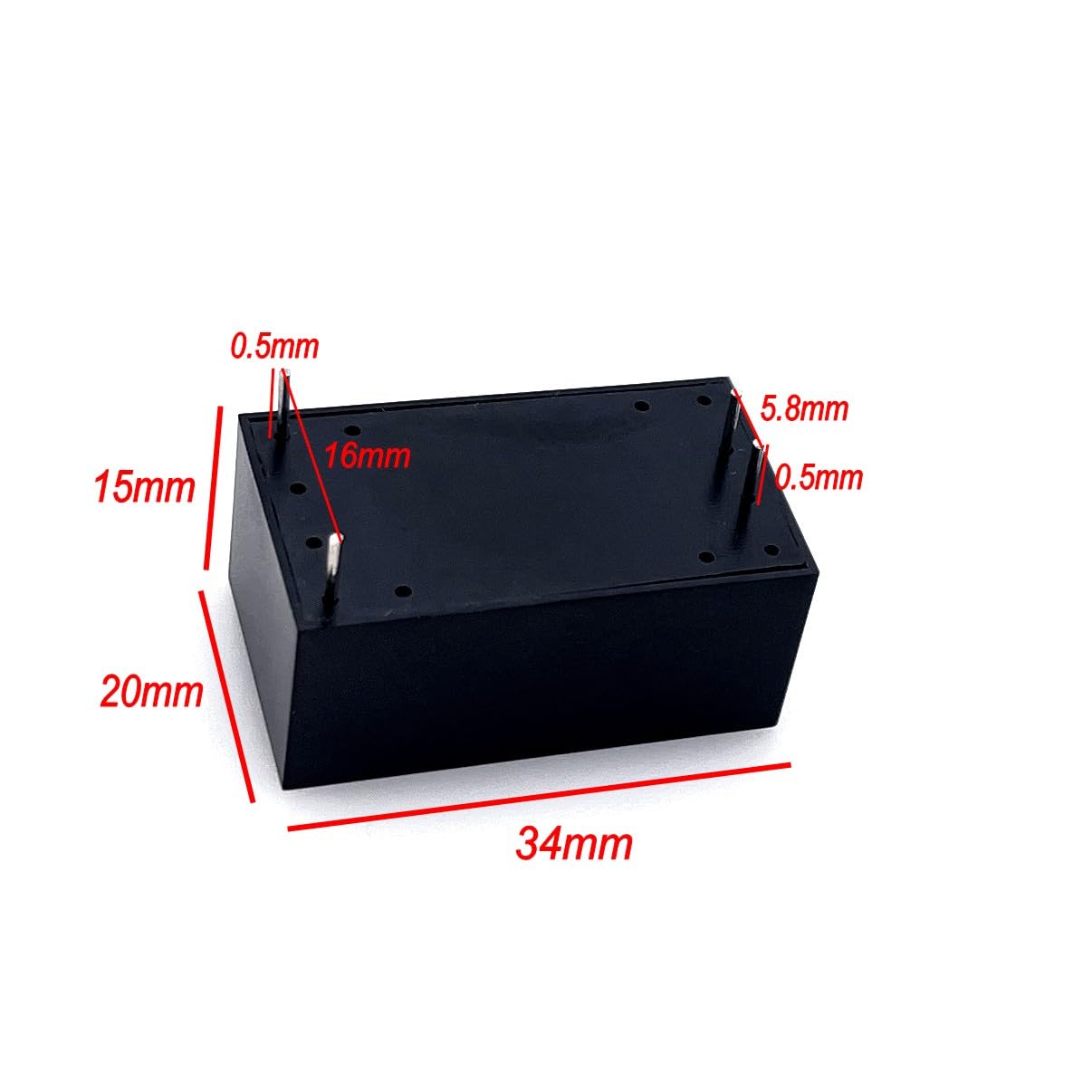

JZK 2 x HLK-PM01 DC 220V to 5V DC Power Module Insulated Power Module HLK-PM01 Mini size: 3.2 x 2 x 1.5 cm (length x width x height). Weight: 21 g Nominal input voltage: 100-240 V AC Input Voltage Range: 90~264V AC Maximum input current: ≤ 0.2 A Input inrush current: ≤ 10 A Maximum input voltage: ≤ 270 V AC Slow Start Input: ≤ 50 mS Input low voltage efficiency: Wine = 110V AC, the output full load ≥ 69% Input high voltage efficiency: Wine = 220VAc, output full load ≥ 70% Long-term reliability: MTBF ≥ 100,000 H Rated output voltage without load: 5±0.1V DC Output voltage at full load: 5 ± 0.2 V DC Short current maximum output current: ≥ 1000 MA Long time maximum output current: ≥ 600 MA Voltage regulation: ± 0.2% Load regulation: ± 0.5% Inverter and output noise: (MVp-p) ≤ 50 MV. - Rated input voltage, output full load. With a 20 MHz bandwidth oscilloscope, the load side is tested with capacitors of 10 uF and 0.1 μF. Machine overrun: (Nominal input voltage, output plus 10% load) ≤ 5% VO Output over-current protection - Maximum load output of 150-200% A Output short circuit protection. ** NOTICE: Temperature rise rule: At room temperature, the supply capacitor, main transformer and other internal surface temperature rise shall not exceed 90°C; The rise in the temperature of the shell surface cannot exceed 60 ° C; Package contains: 2 x HLK-PM01 Power Module
