DollaTek 1117-3.3 DC Voltage Regulator Step Down Power Supply Module 4.75V-12V to 3.3V 800mA - 10pcs

• 1117-3.3 is a positive Voltage Regulator Step Down Power Supply Module, support DC 4.75-12V input and 3.3V fixed voltage and 0.8A current output.

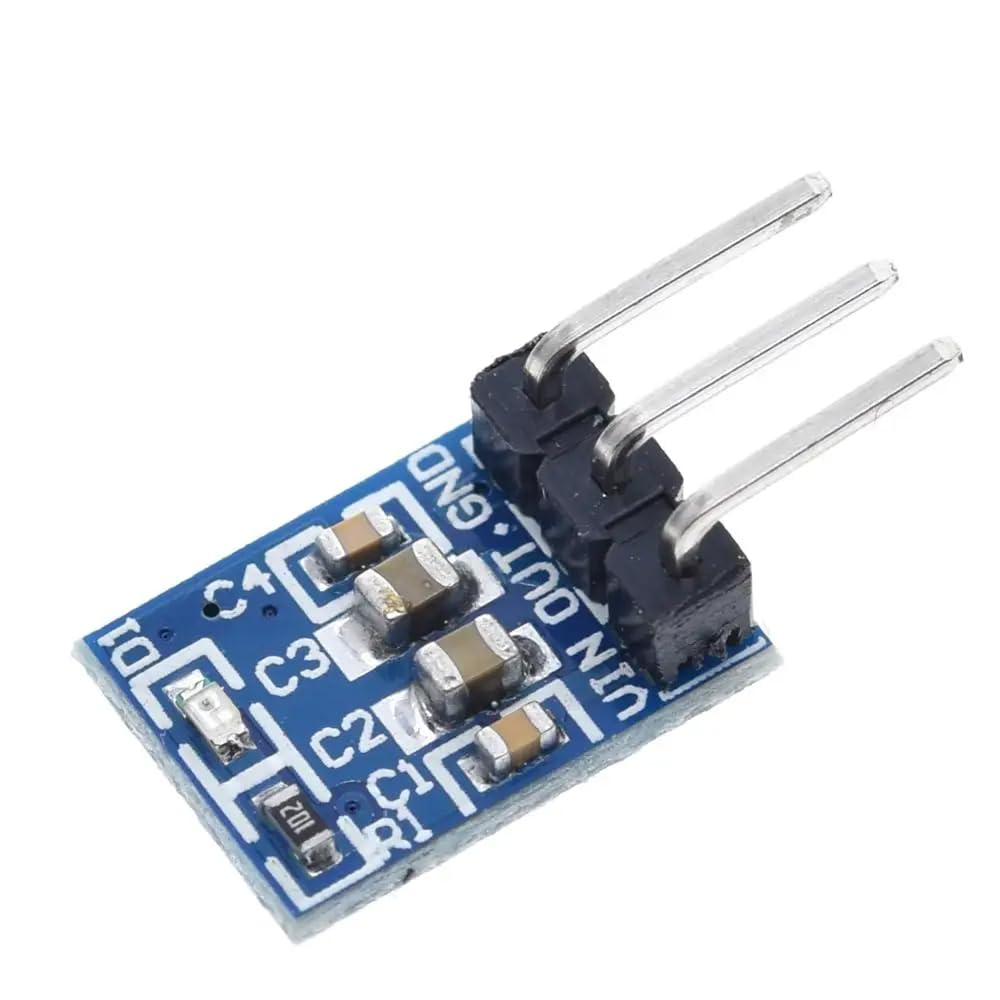

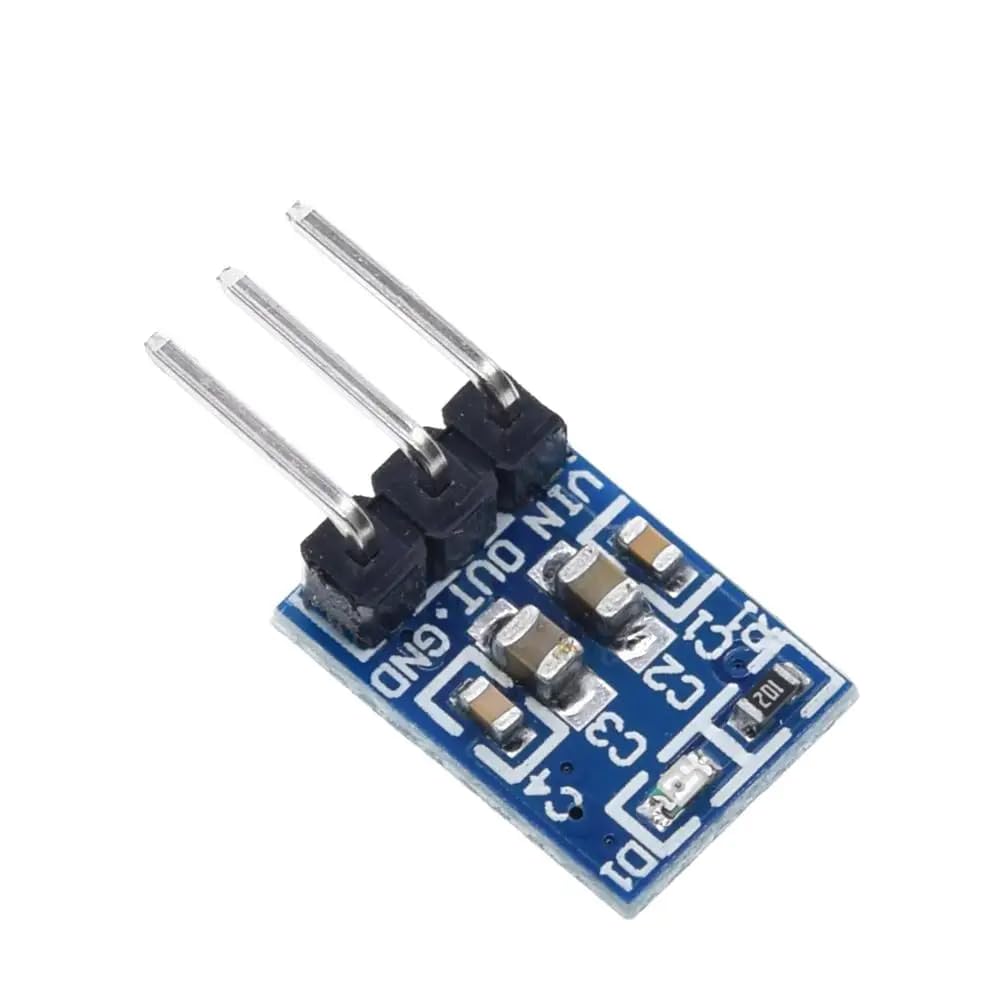

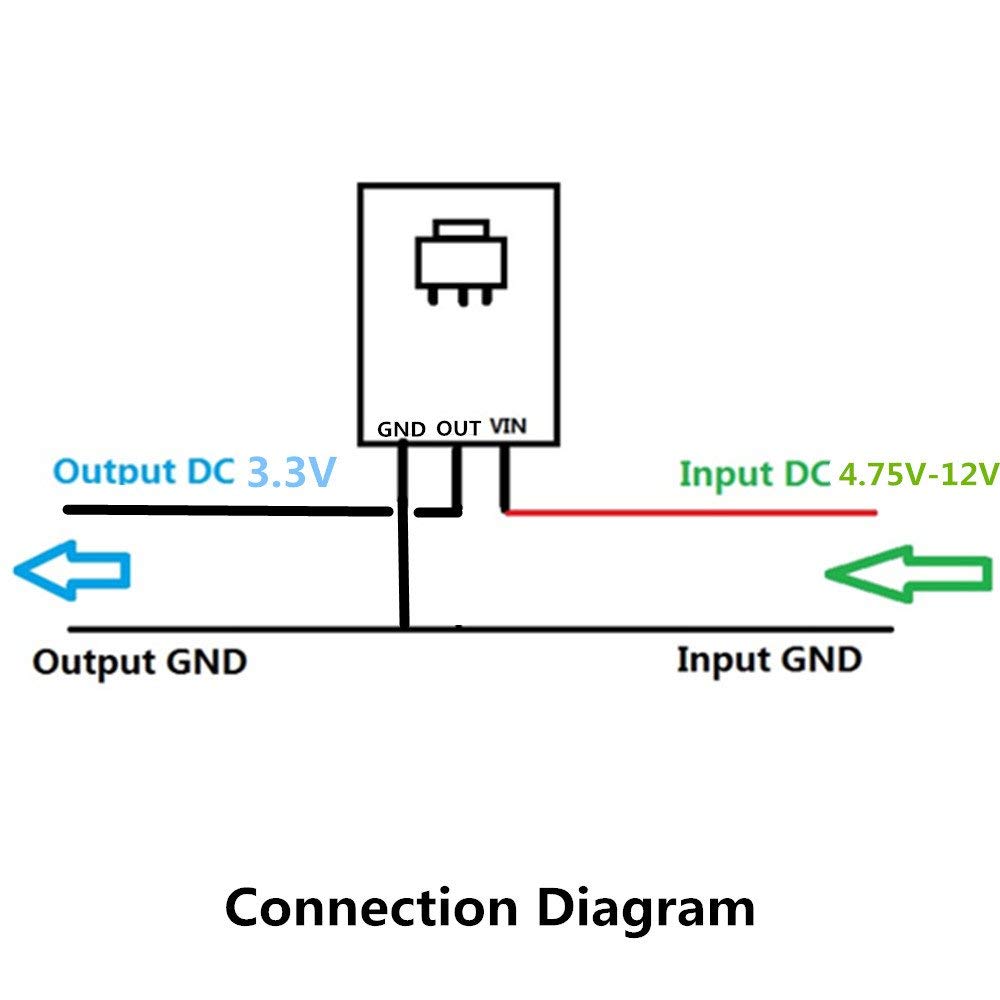

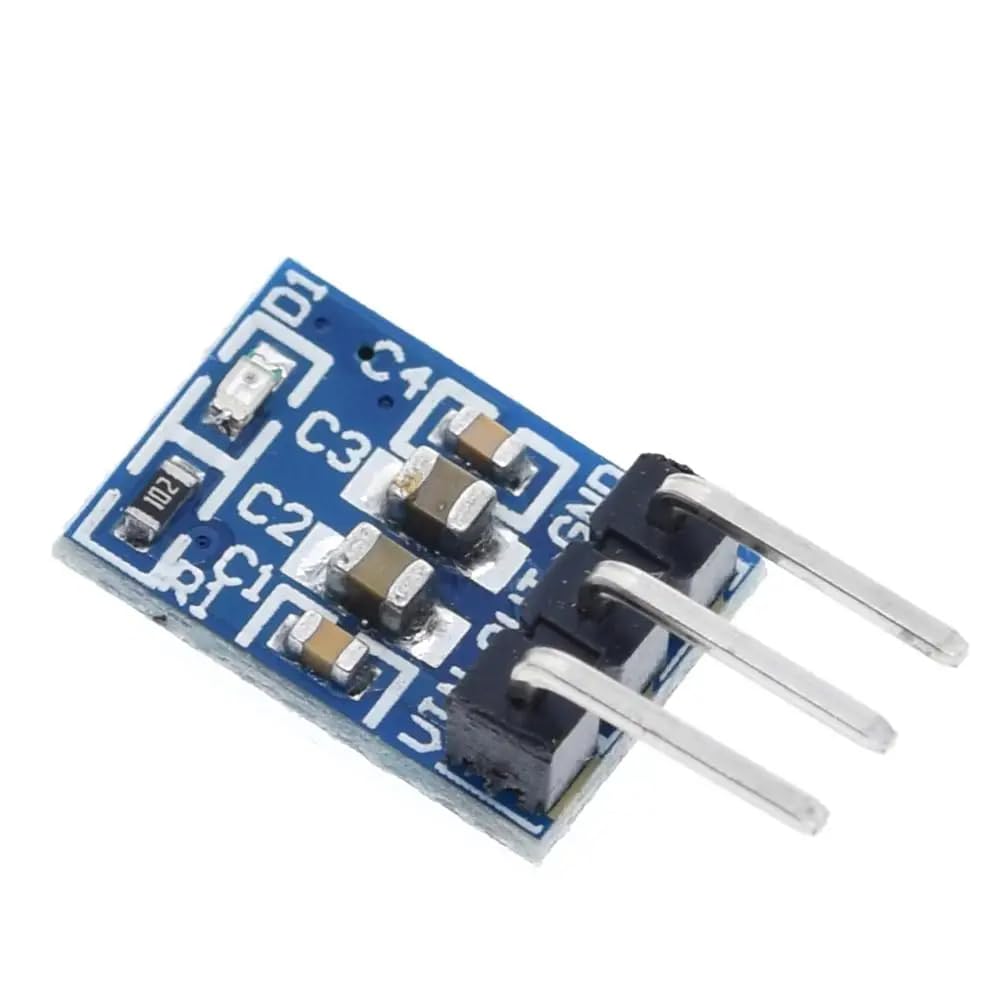

• The module is suitable for electronic devices such as SCM project design needs 3.3V power supply, It is simple Dual-panel design and the Input output using the 2 Pin single row pin for easy connection. 1117-3.3 pinout can be easy to connected with your MCU development and provide the contant power supply.
• Applicable for high-efficiency linear regulator Published Active Power Regulator Battery Charger Active instrument.
• Applications: Arduino UNO MEGA2560; MSP430 Development Board; 3.3V Low power consumption MCU; FPGA/CPLD PLD Programmable Logic Systems; ARM7 ARM9 ARM11 STM32; etc. 1117 overheat shutdown circuit provides overload and over-temperature protection.

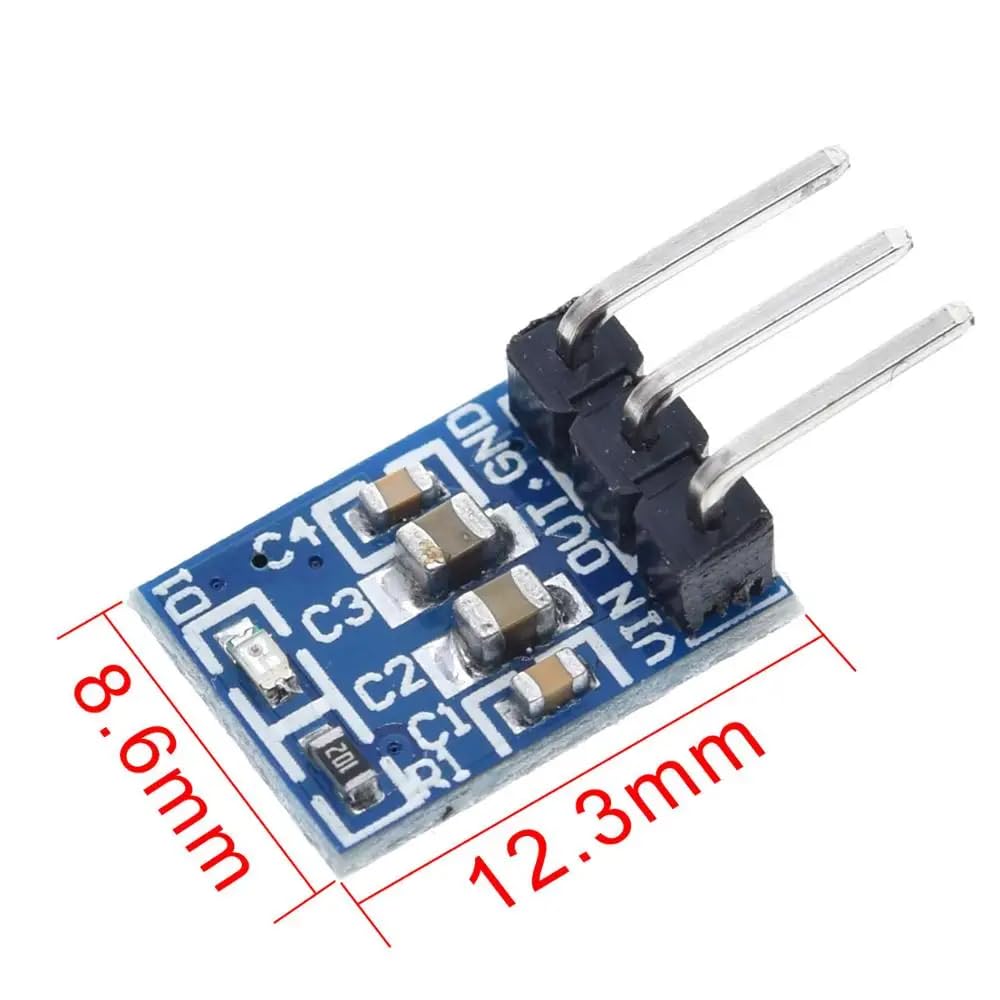

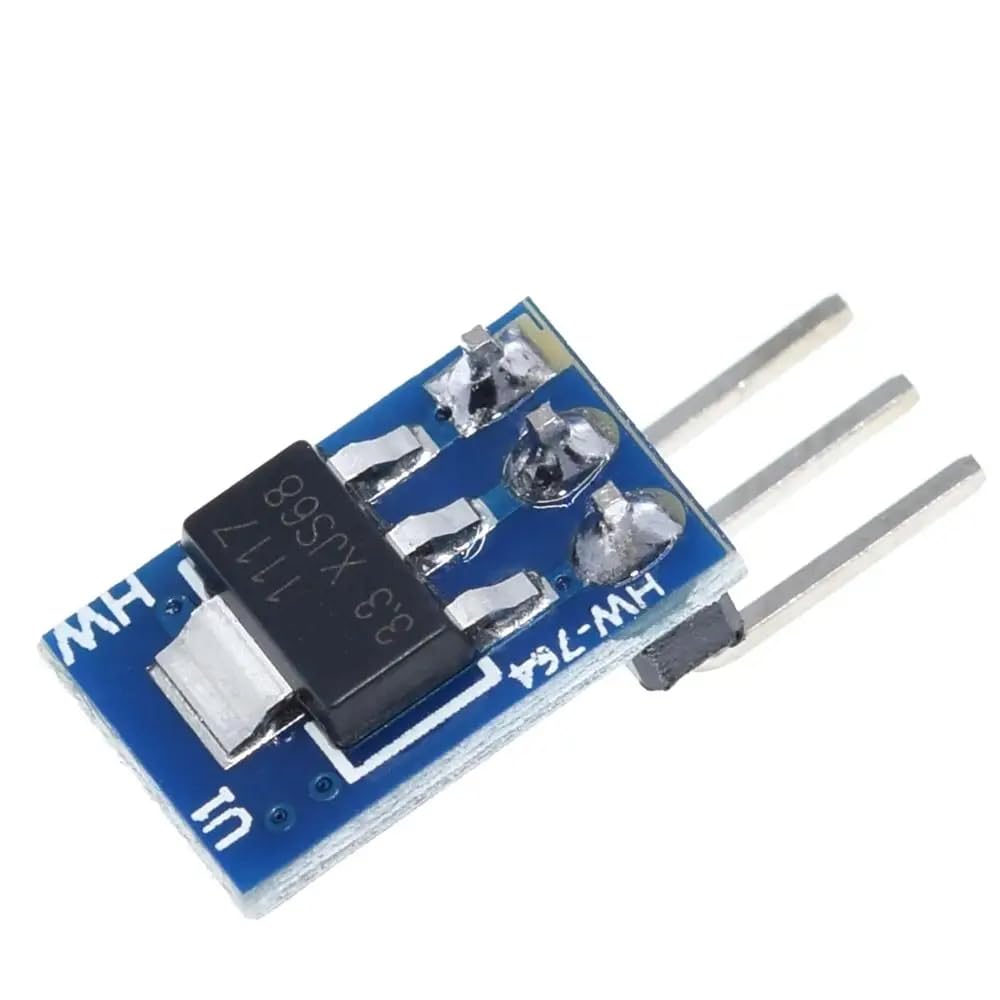

Description: 1117-3.3 is a positive Voltage Regulator Step Down Power Supply Module, support DC 4.75-12V input and 3.3V fixed voltage and 0.8A current output. Specifications: Output current: 1A Line adjustment rate: 0.2% (maximum) Load regulation: 0.4% (max.) Package Type: SOT-223 Operating junction temperature range: -40 to 125°C Welding temperature (25 seconds): 265°C Storage temperature: - 65~150°C Output voltage: 3.267 to 3.333V (IOUT: 0 to 1A, VIN :4.75V to 12V) Line adjustment (maximum): 10mV (VIN :4.75V to 12V) Load regulation (maximum): 15mV (VIN = 5V, IOUT: 0 to 1A) Voltage difference (maximum): 1.3V Current limit: 900 ~ 1500mA Quiescent Current (Max): 10mA Ripple suppression (minimum): 60dB Size:8.6mm x 12.33mm Package Included: 10 x 1117-3.3 is a positive Voltage Regulator Step Down Power Supply Module
