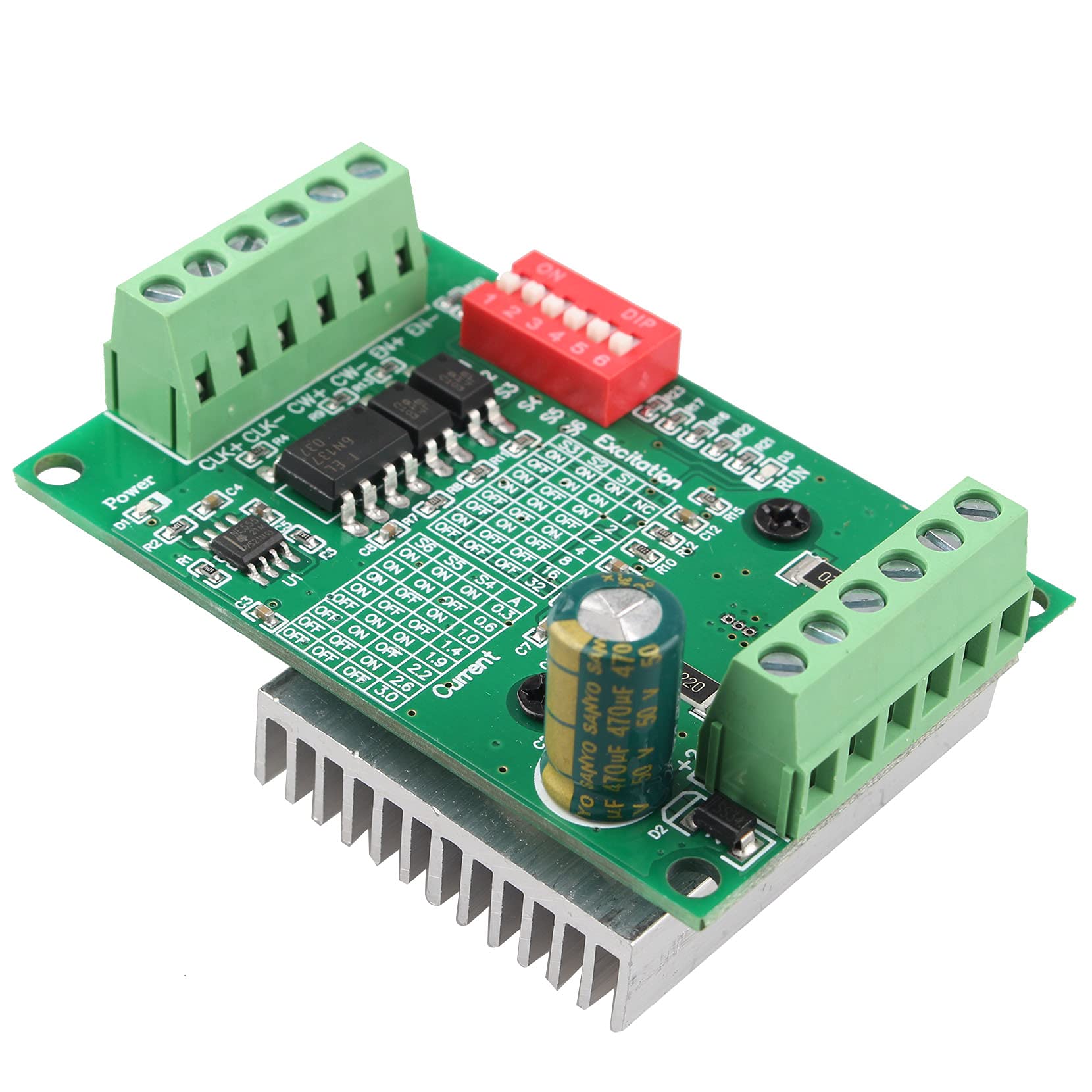

Jopto TB6560 TB6600 Upgraded Version 3A 32 Subdivision 42 57 Stepper Motor Driver Motor Driver Board Controller

• The working voltage is DC 10V-35V. It is recommended to use a switching power supply DC24V for power supply.
• The use of 6N137 high-speed optical coupling to ensure high speed without losing step.
• It is suitable for two-phase/four-phase/four-wire/six-wire stepping motor with 42,57 stepping within 3A, not suitable for stepping motor with more than 3A.
• Using original chips, there are low-voltage shutdown, overheating shutdown and over-current protection circuits to ensure performance.

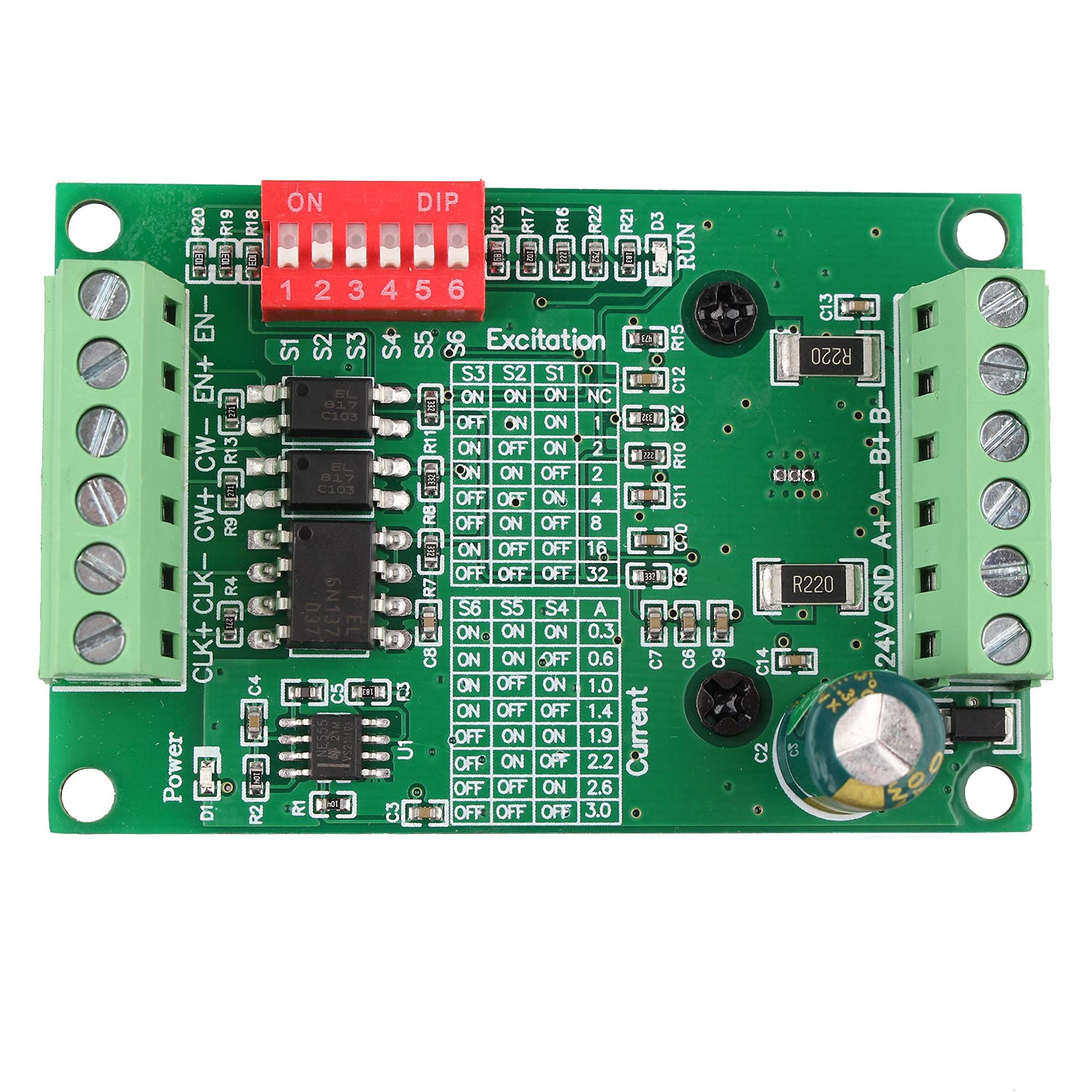

• The current level is adjustable step by step to meet your multiple application requirements.

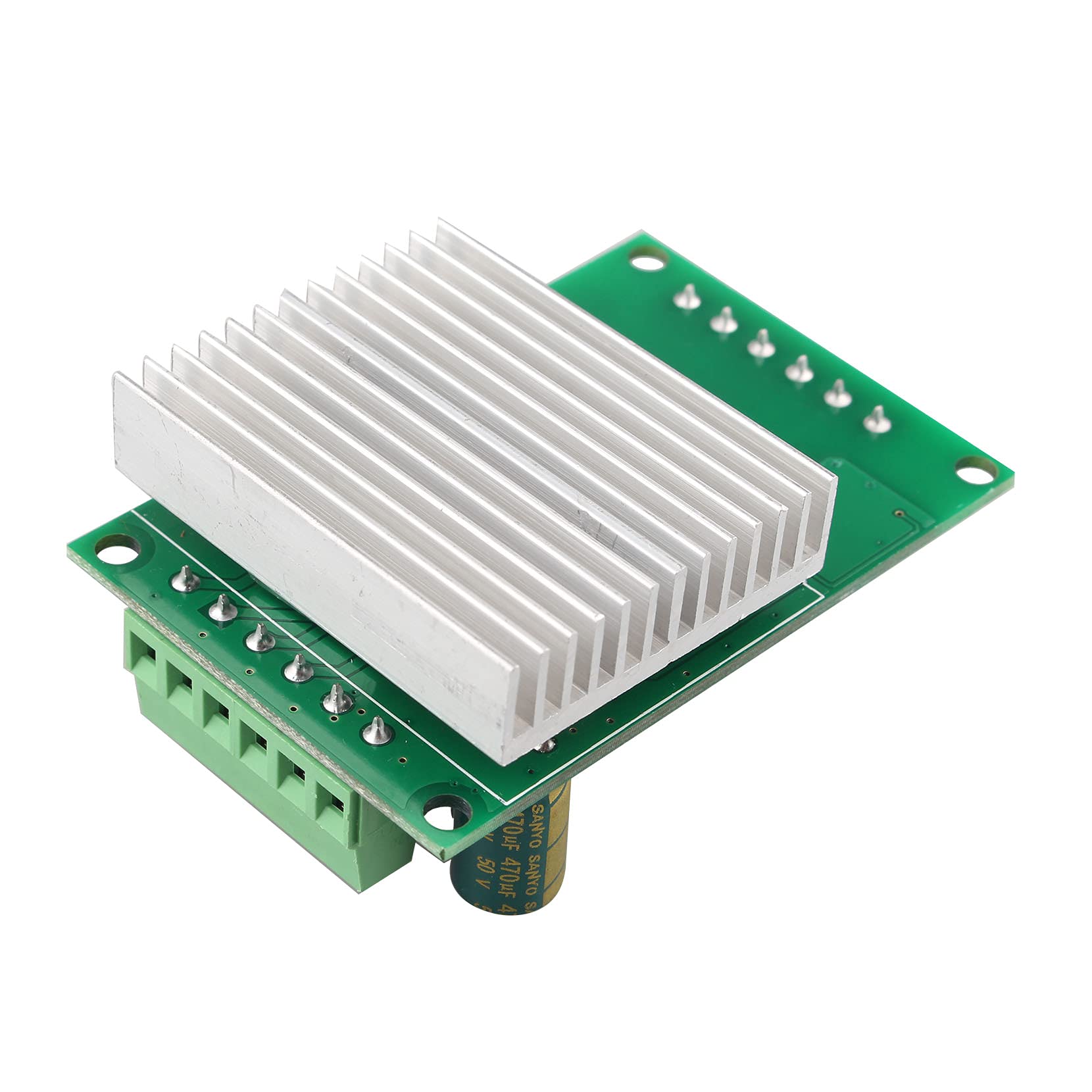

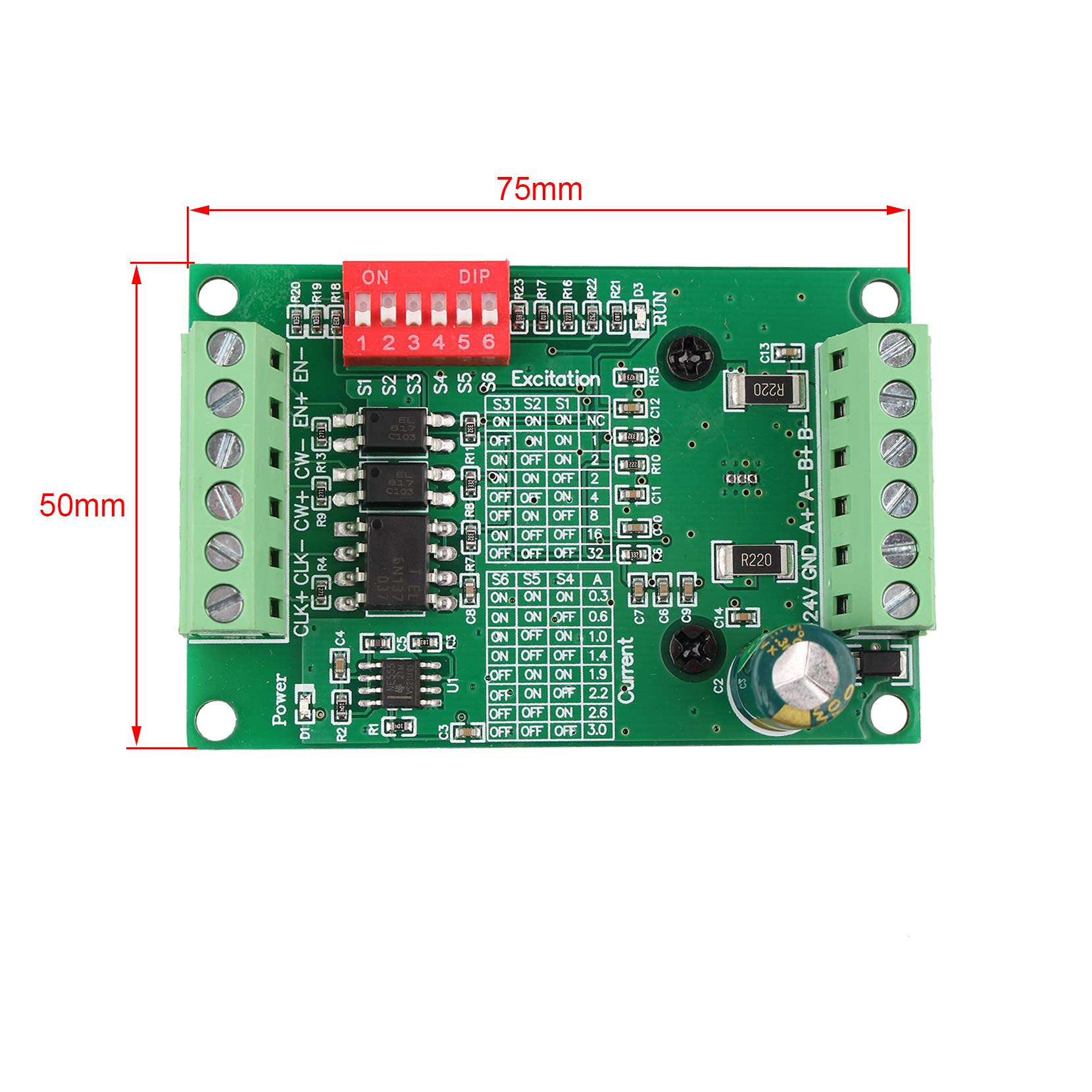

Feature: 1. The current level can be adjusted step by step to meet your multiple application requirements. 2. The power supply is anti-reverse connection treatment, and the reverse connection will not burn. 3. Use 6N137 high-speed optocoupler to ensure high-speed without losing step. 4. The board printing instructions can be operated without manual. 5. Adopt thick and densely toothed radiator for good heat dissipation. Specification: Rated output: 3A Subdivision: full step, half step, 1/4 step, 1/8 step, 1/16 step, 1/32 step, 32 subdivision. Automatic half-flow function. Rated maximum output: ±3A, peak value 3.5A Suitable for 42,57 stepping two-phase/four-phase/four-wire/six-wire stepping motor within 4A. Size: 75 × 50 × 35 mm Weight: 64 g Package Content: 1 x Stepper Motor Driver Board
