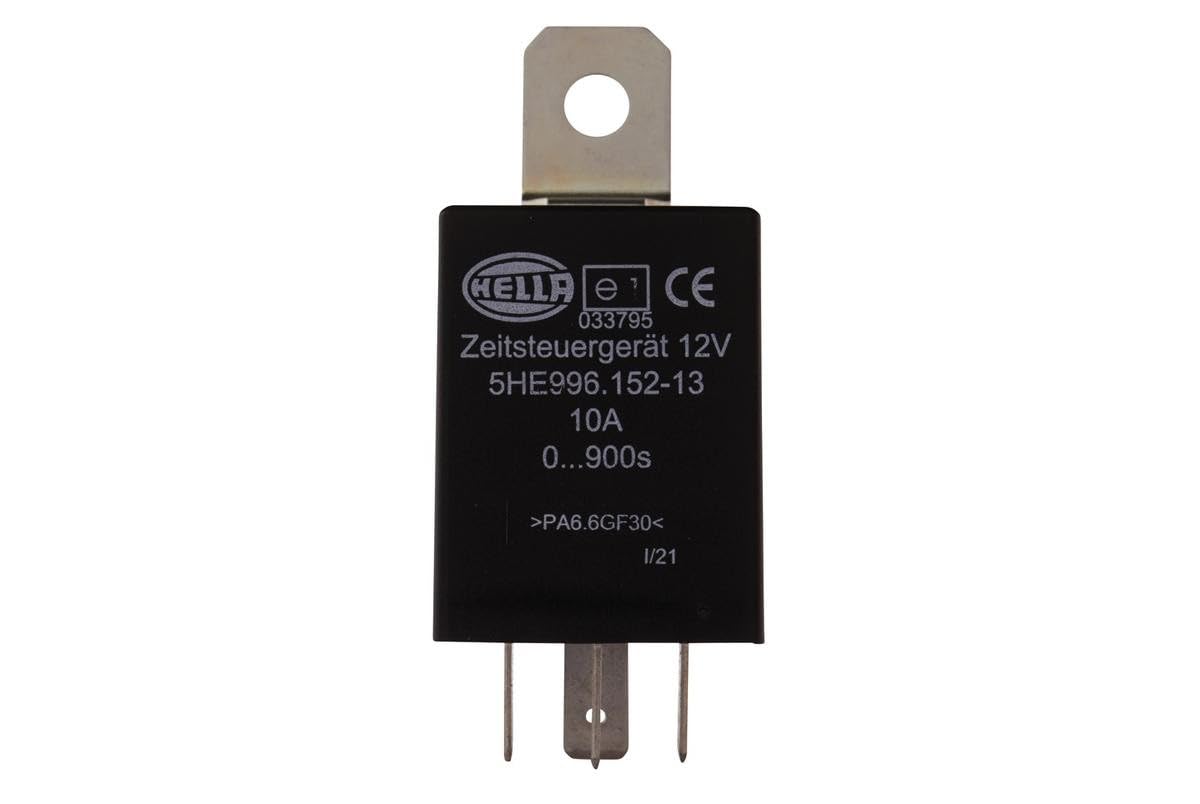

HELLA 5HE 996 152-131 Time Relay - 12V - Number of connectors: 5 - Changeover Contact

• HELLA produces more than 100 million units per year in its own production facilities
• OE quality: versatile and reliable
• Rated load, rated switching current: Up to 20 A, normally open contact: Up to 10 A, normally closed contact
• Temperature range from: -25°C - Temperature range to: 80°C - Adjustment range from: 0s - Adjustment range to: 900s
• Switch-off delay
• Adjustment Range [sec.]: 0-900
• Adjustment Range [min.]: 0-15
• Temperature range from [°C]: -25
• to temperature range [°C]: 80
• Inspection Tag: e1 033795

For a variety of technical applications, it is necessary to switch loads on or off with a delay. Applications Time control units drop-out delayed: Headlight cleaning, rear window heating, radiator fan run-on, timer etc. Applications Timer delayed start: Compressor air conditioning, delayed start motors, bus doors, etc. Delay manually adjustable. Delay time: 0 - 900 sec. Holder included in scope of delivery. Type approval according to Directive 95/54/EC (e1). Temperature resistance: -25 °C to +80 °C.
