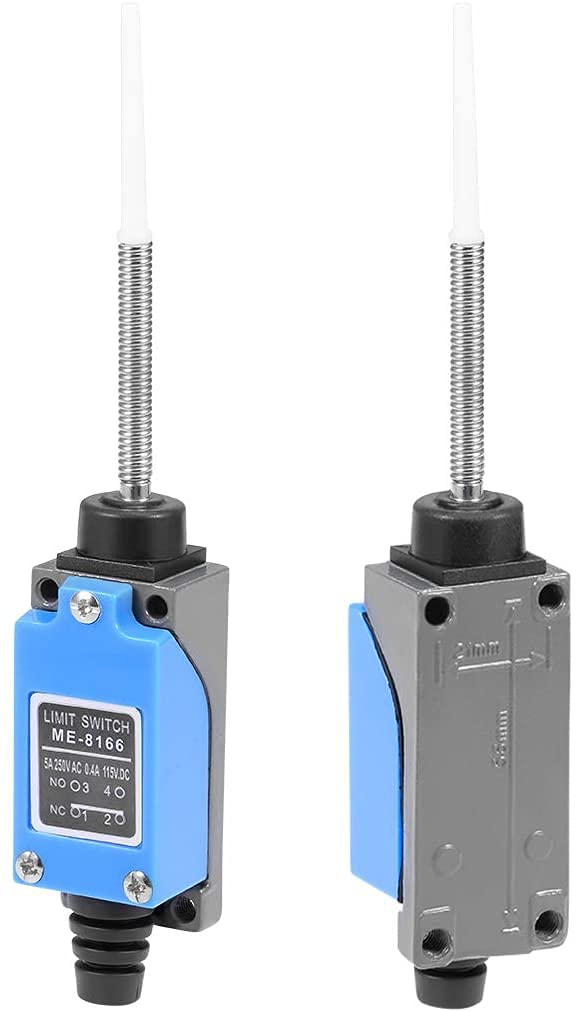

GUUZI 4pcs ME-8166 Flexible Coil Spring Momentary Limit Switch 1NC+1NO 0~250V/5A

• Model: ME-8166; Flexible Coil Spring Lever.
• High quality built-in basic switch with good electrical conductivity.
• Able to withstand some washdowns, shock and vibration.
• Easy-to-wire, smooth operation and reliable.
• This Limit Switch can help for industrial automation equipment.

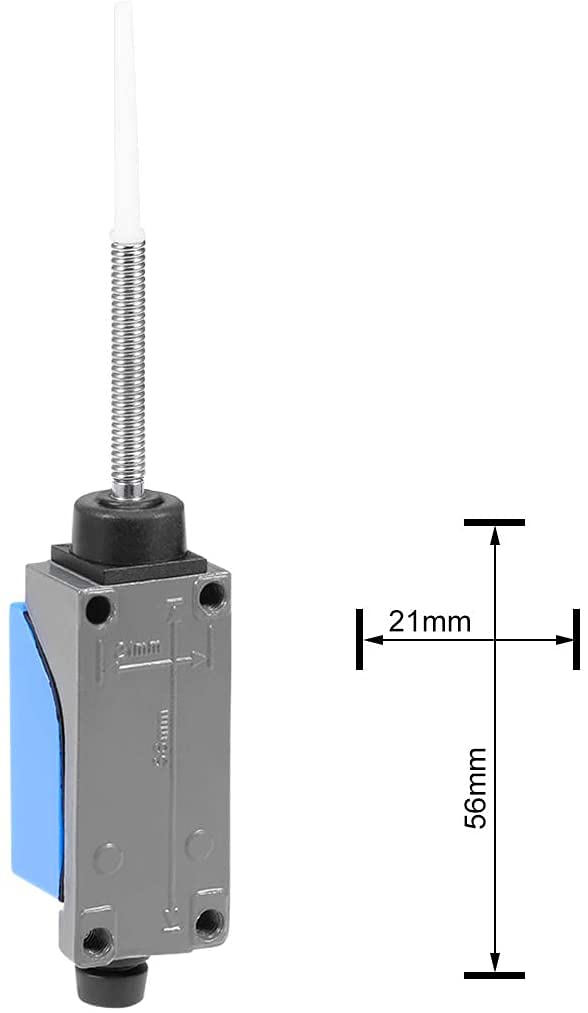

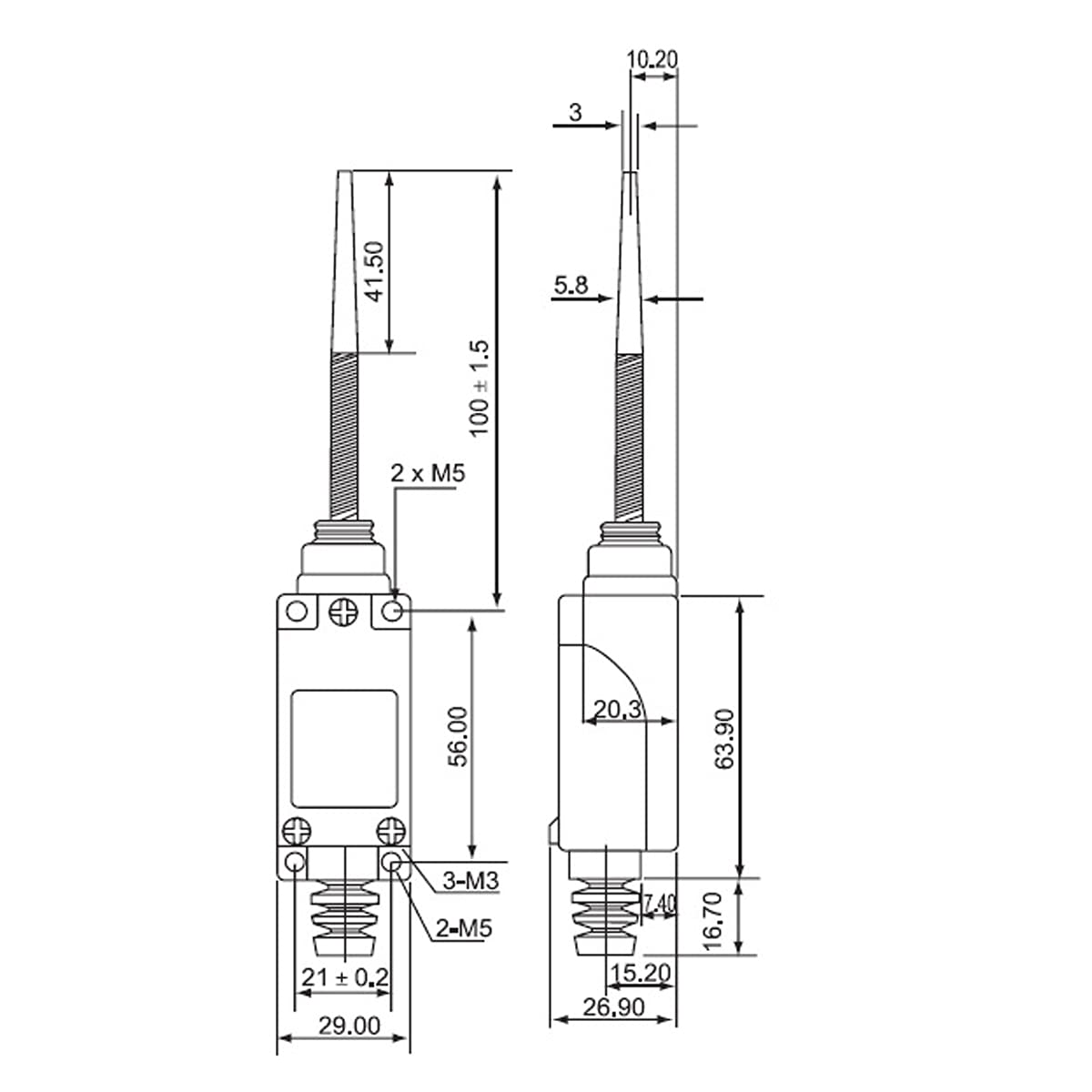

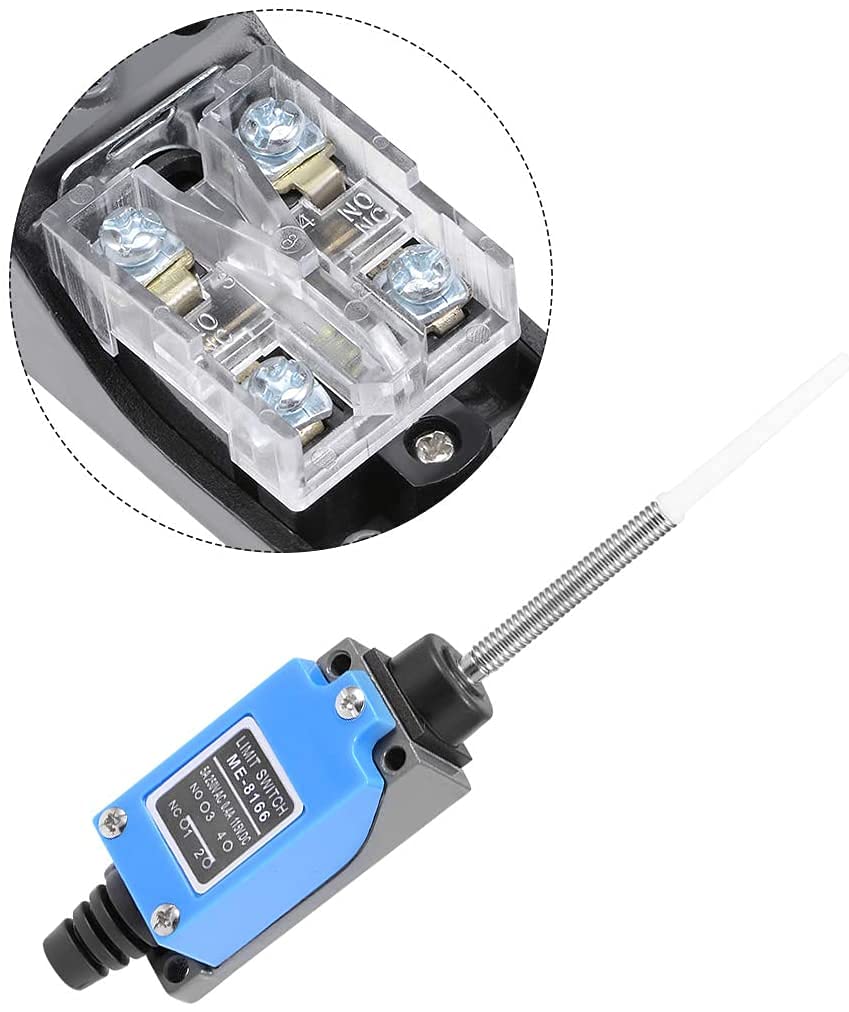

Specification: Product Name: Limit Switch Model: ME-8166 Actuator Type: Plastic end Flexible Spring Rod Type Rated Voltage: 5A 250V AC / 0.4A 115V DC Contact Configuration: 1NC+1NO Body Size: 64 x 28 x 25mm (L*W*T) Mounting Hole Size: M5 Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W) The coil spring can be operated in any direction except the axis direction. The use of the coil spring is for that are not uniform in size or direction. Operating Characteristics: OF max.: 1000g (9.8N) PT max.: 30mm Description: Double circuit limit switch with build-in double reed mechanism. Zine alloy and intensive plastic shell, strong and hightly rigid construction. Smooth operation with highter OT. Brass contacts with 30% silver contained. Easy-to-wire design. This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
