GUUZI 4pcs Adjustable ME-8104 Revolving Plastic NC-NO Momentary Roller Lever Arm Limit Switch for CNC Mill Laser Plasma 0~250V/5A

• Double reed mechanism momentary limit switch, ensuring a longer mechanical life.
• Made of zinc alloy, reinforced plastic and rubber, strong structure, waterproof and oil proofing.
• Double circuit limit switch, rotary adjustable lever arm with roller.
• Contact Configuration : NC + NO; IP Rating : IP66; Voltage Rating : AC 250V 5A ;DC 115V 0.4A.

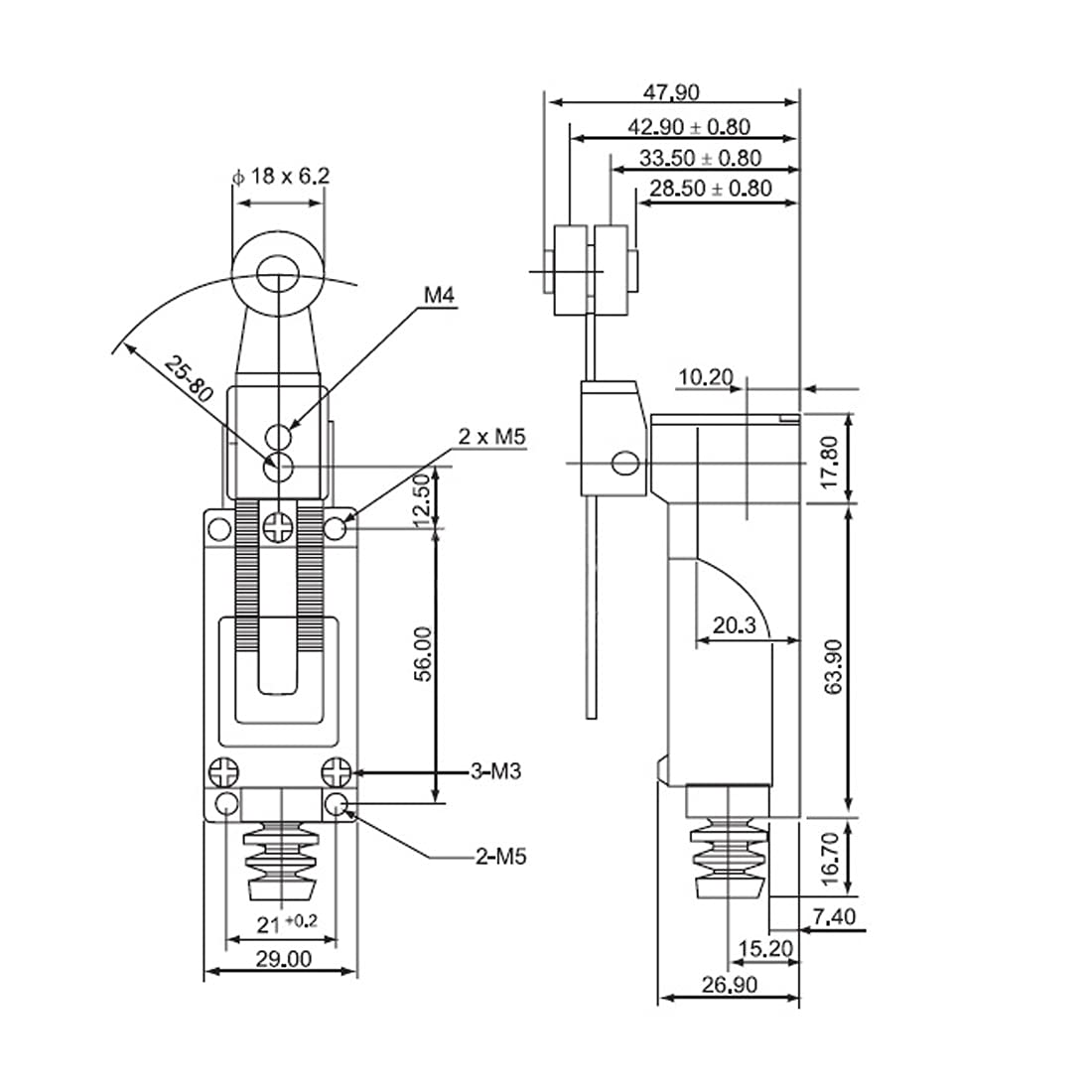

• Total Size : 124 x 28 x 41mm/ 4.9 x 1.1" x 1.6"(L*W*H); Package Content : 4 x Limit Switch.

Features: Safe and reliable ,dust and oil proof ,small installation size ,the products are for general use. The lever arm can rotate, can be rotated to the left and to the right. This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant. Can be used in safety circuits, control circuit and auxiliary circuit for terminal limit protection. Specifications: Product Name : Limit Switch Model No.: ME-8104 Actuator Action: Momentary Actuator Type: Rotary Adjustable Lever Arm with Roller Contact Configuration: NC + NO IP Rating: IP66 Voltage Rating: AC 250V 5A; DC 115V 0.4A Roller Dimension: 1.7 x 0.6cm / 0.7" x 0.24"(D*H) Lever Arm Length: 5cm/2" Fixing Thread Diameter:0.45cm/0.18" Total Size: 12.4 x 2.8 x 4.1cm/4.9 x 1.1" x 1.6"(L*W*H) Material: Resin, Plastic & Metal Color: Blue,Black Package Content: 4pcs × Limit Switch Note: 1).The colors may have difference as the different display, please understand. 2).Please allow 1-2mm error due to manual measurement, please make sure you do not mind before you bid.
