GRT8-M1 Delay Time Relay, Multifunctional Timer Relay, with 10 Functions, DIN Rail Mount AC 220V, for Industrial Equipment, Lighting Control, Heating Element Control

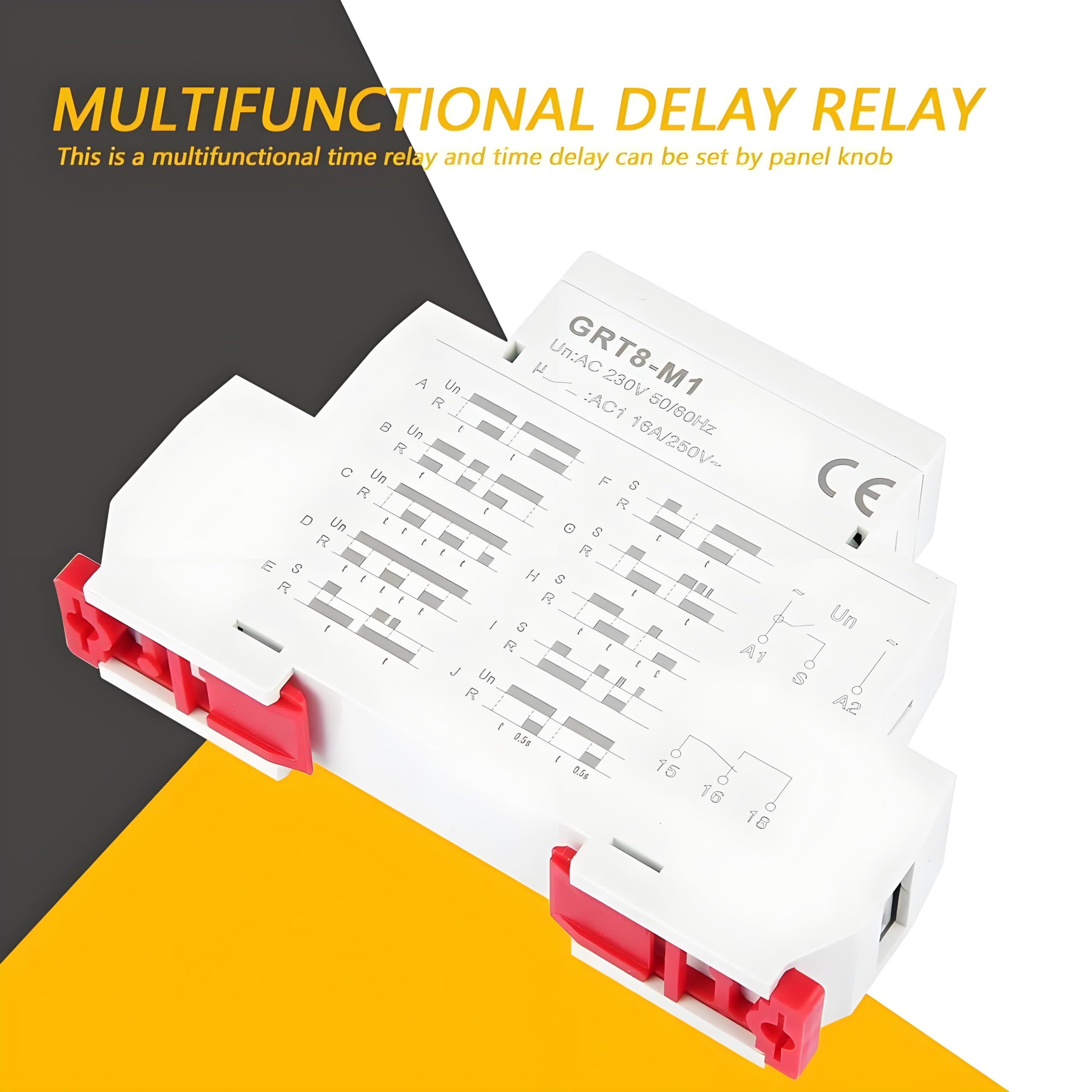

• ✔Multifunctional Time Relay: This is a multifunctional time relay and time delay can be set by panel knob.

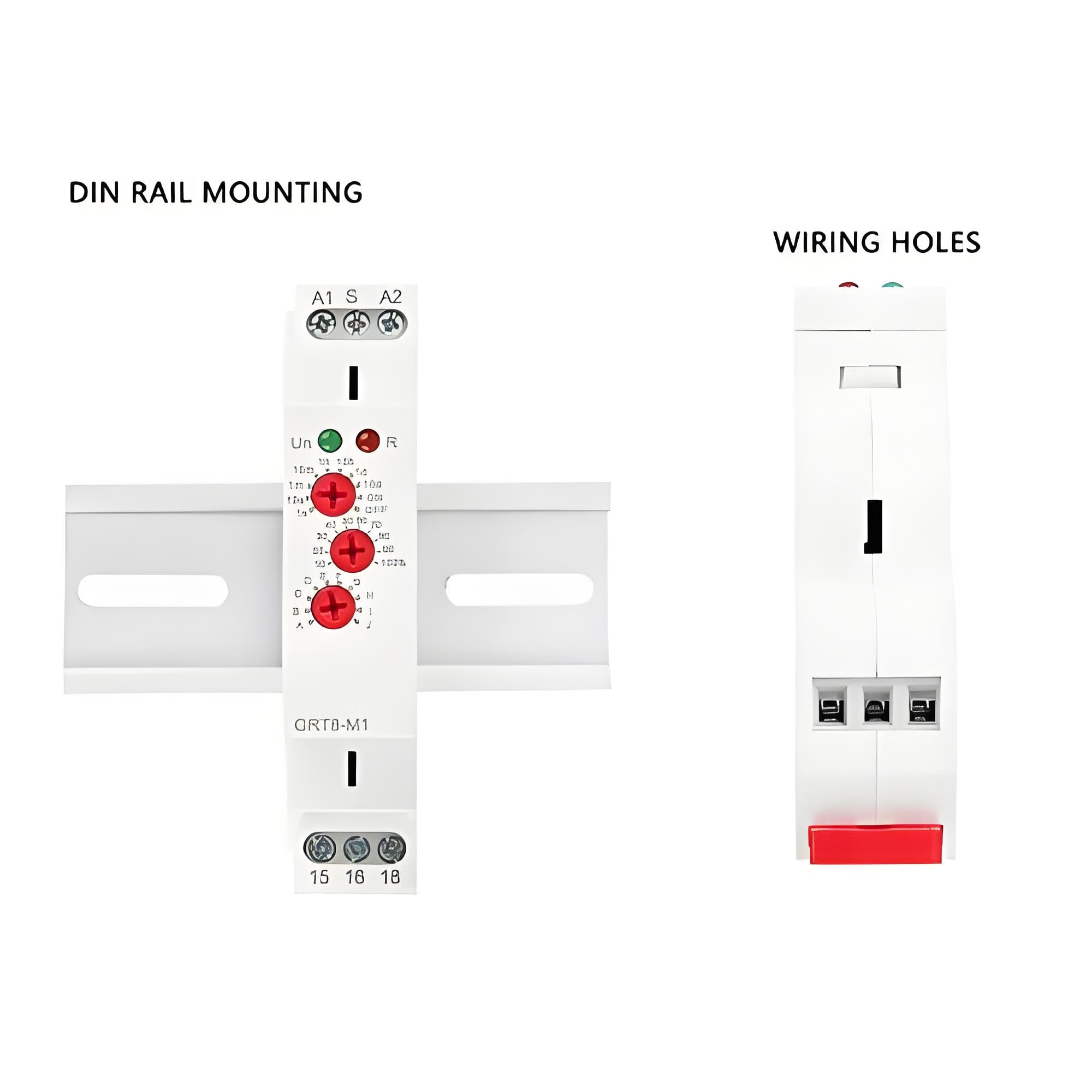

• ✔Mounting method: This relay has super small volume, with 35mm DIN rail, can be mounted on 35mm DIN rail.
• ✔Delay range: 0.1s-10 days, normally open, normally closed. Super wide time delay range of 0.1s - 10days. Relay working status is indicated by LED indicators.

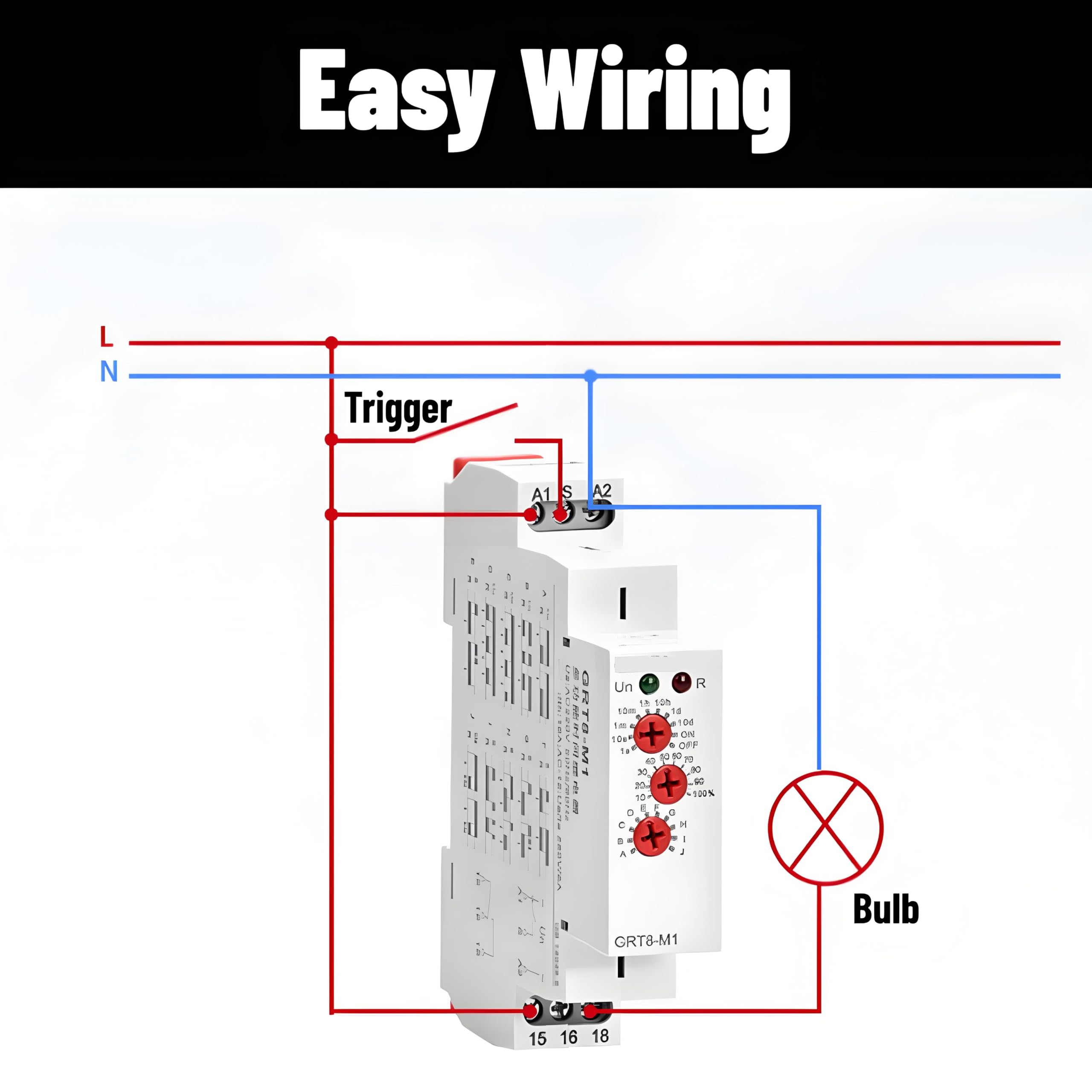

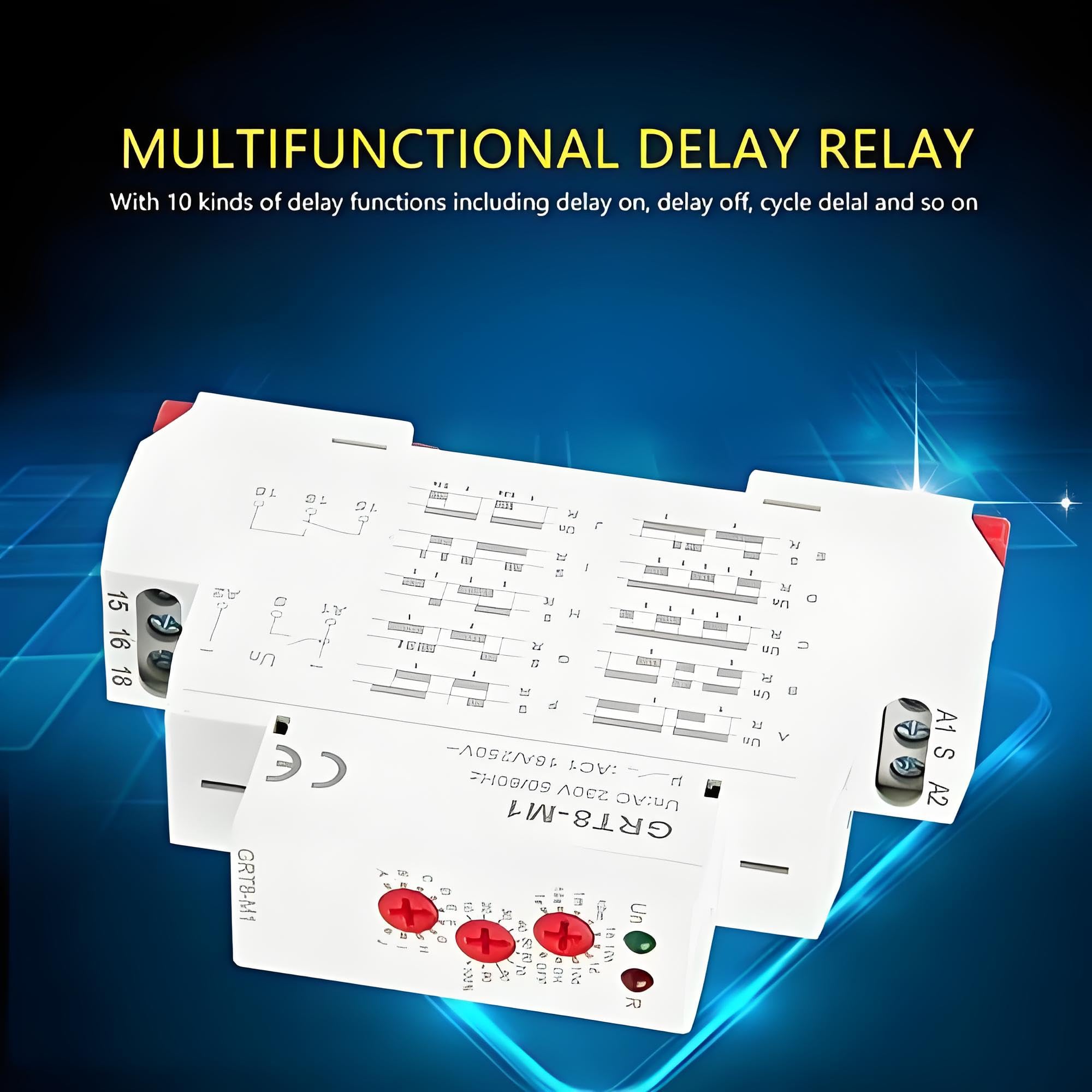

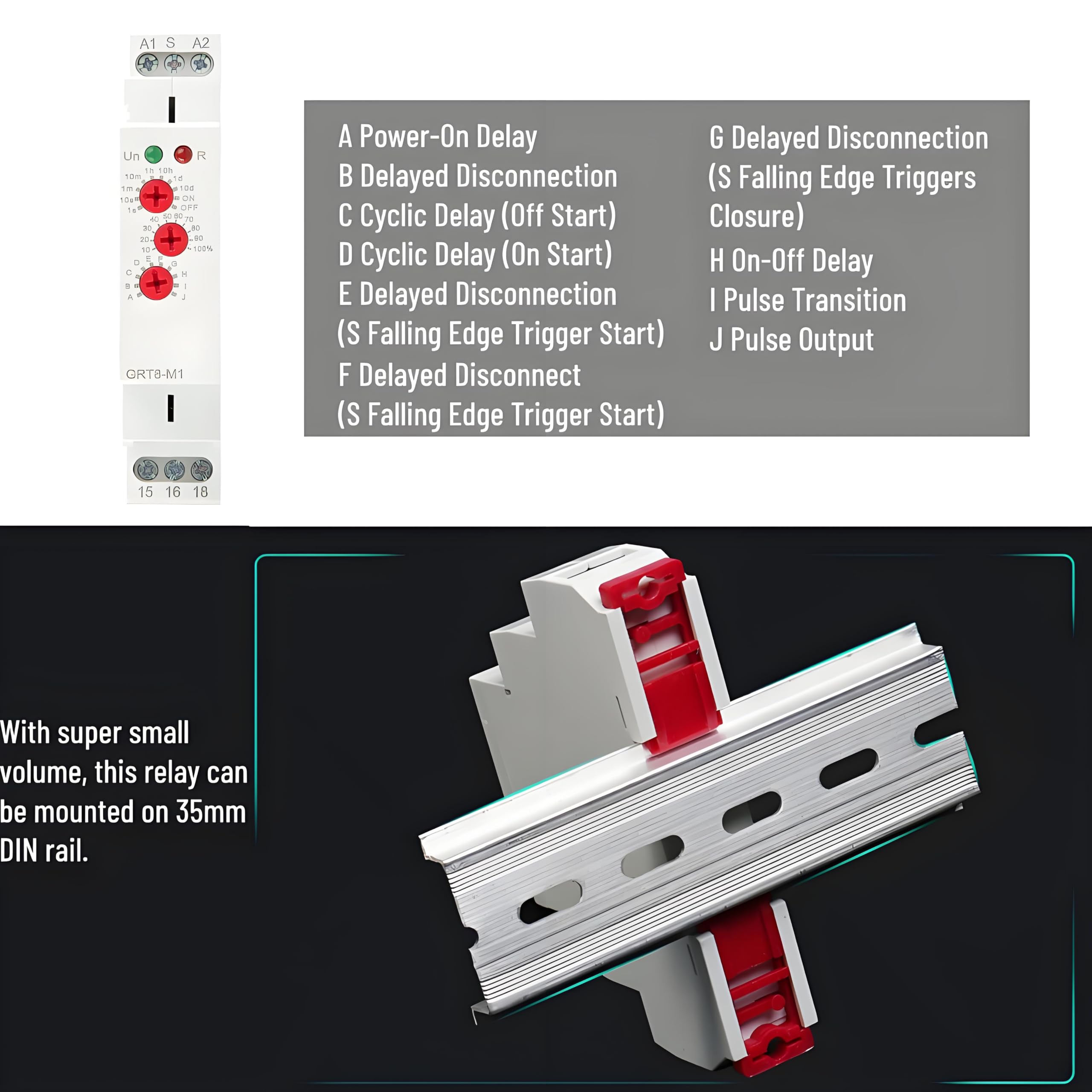

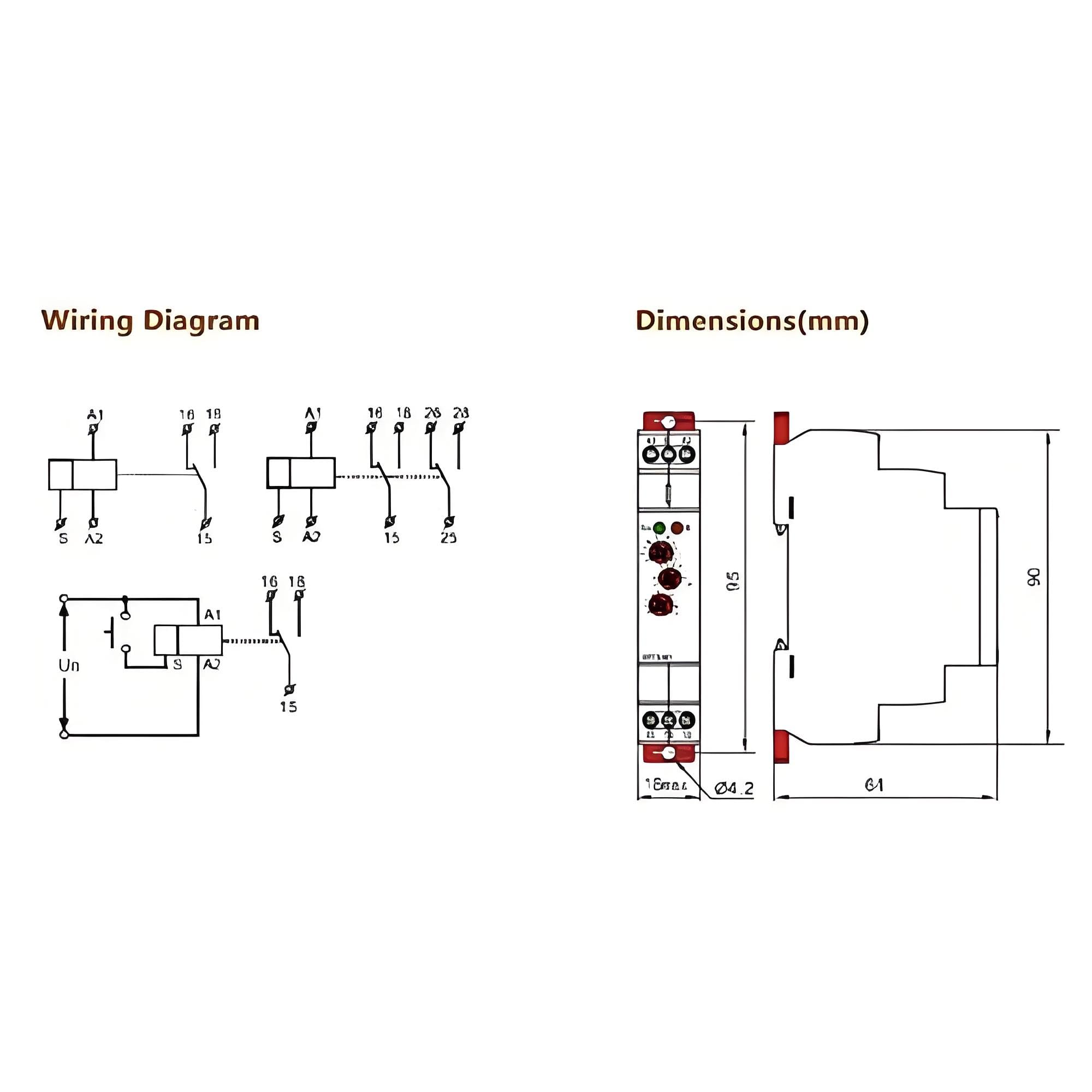

• ✔Delay function: The delay time relay has 10 kinds of delay functions including delay on, delay off, cycle delay and so on. Power terminal: A1-A2.
• ✔Scope of application: This time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control and more.

Specification: Rated power supply voltage: AC 220V (50-60Hz) Power terminal: A1-A2 Power consumption: AC max.6VA/1.3W Setting method: knob Setting accuracy: 10% Power indicator: Green LED Delay range: 0.1s-10 days, normally open, normally closed Repeated accuracy: 0.2% Temperature fluctuation error: 0.05%/℃, at = 20 Output contact: 1 x SPDT, 250VAC/24VDC Minimum switching power: 500mW Output relay indication: red LED Mechanical life: 1x107 Reset time: Max 200ms Working temperature: -20℃~55℃ Mounting method: 35mm DIN rail Mounting altitude: ≤2000m Weight: Approx. 75g/2.6oz Package list: 1 * Multifunctional Delay Time Relay
