Gravity: Analog AC Current Sensor 5A | AC Current Signal Conversion Module Open Type AC Transformer Probe Included (Non-contact Measurement)

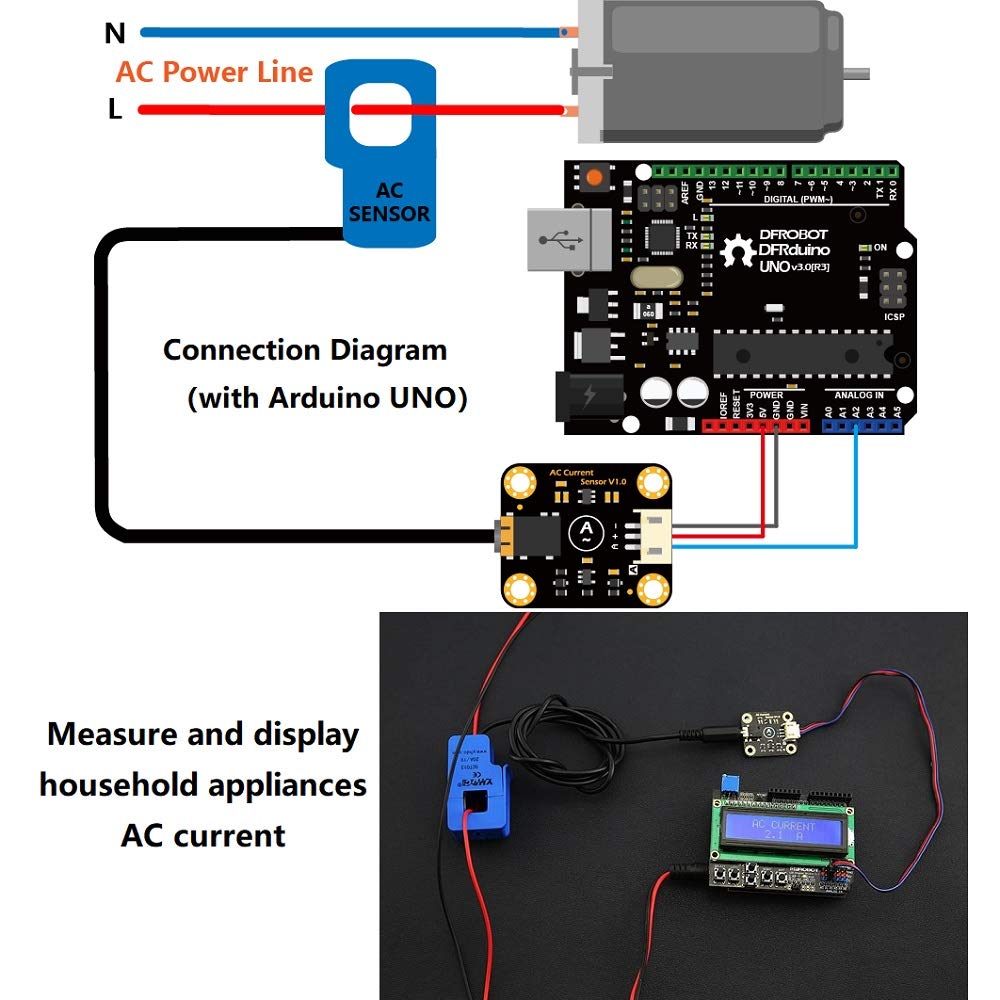

• Simply clamp the AC transformer probe on the AC line, and then plug the 3.5mm headphone jack into the signal conversion module to read the current AC current value.
• The analog output is designed to be compatible with 3V3/5V micro-controller. It can be conveniently used for AC current measurement to monitor AC motors, lighting equipment, air compressors, etc.
• Features: Non-contact measurement, high safety; Multiple ranges for various measurement scenarios; Compatible with 3V3/5V micro-controller
• Applications: AC motor automatic monitoring, Lighting and electrical equipment measurement
• Any technical issues after purchase please contact with our tech-support team: techsupport@dfrobot.com. Product wiki >>> https://wiki.dfrobot.com/Gravity_Analog_AC_Current_Sensor__SKU_SEN0211_

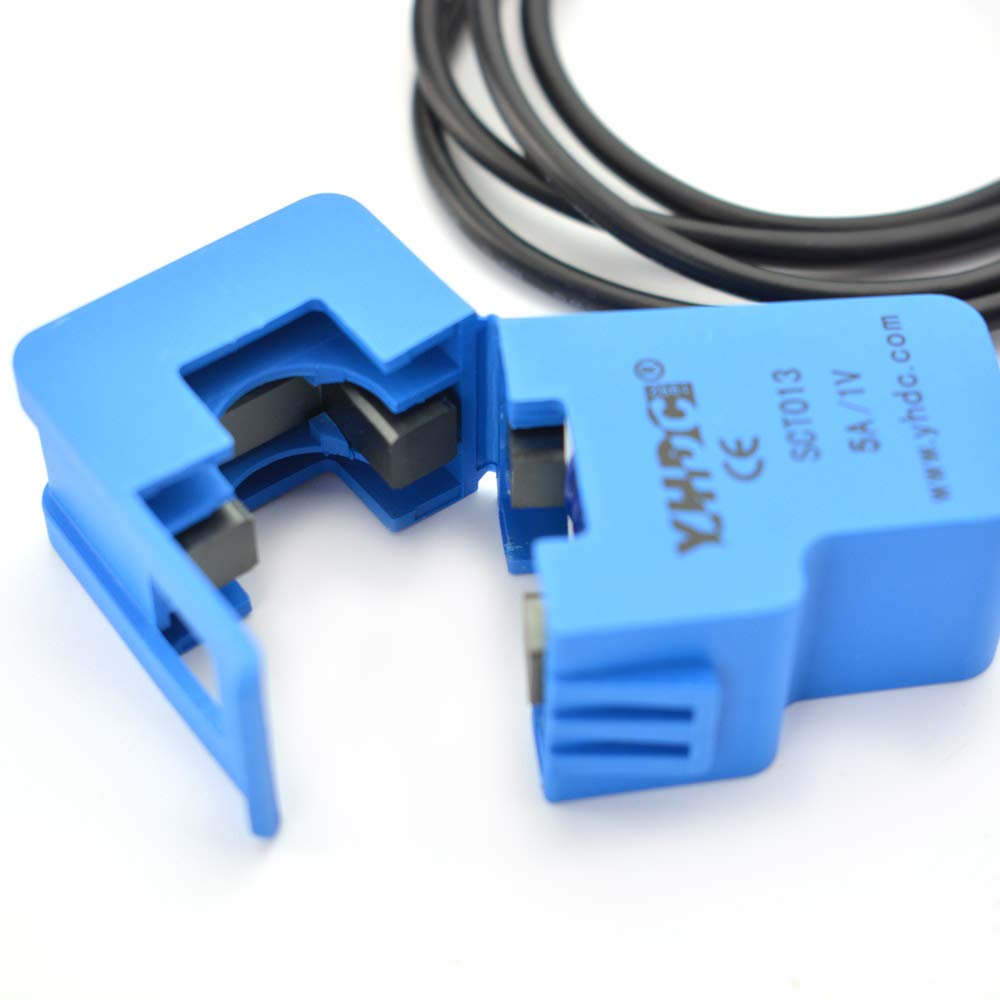

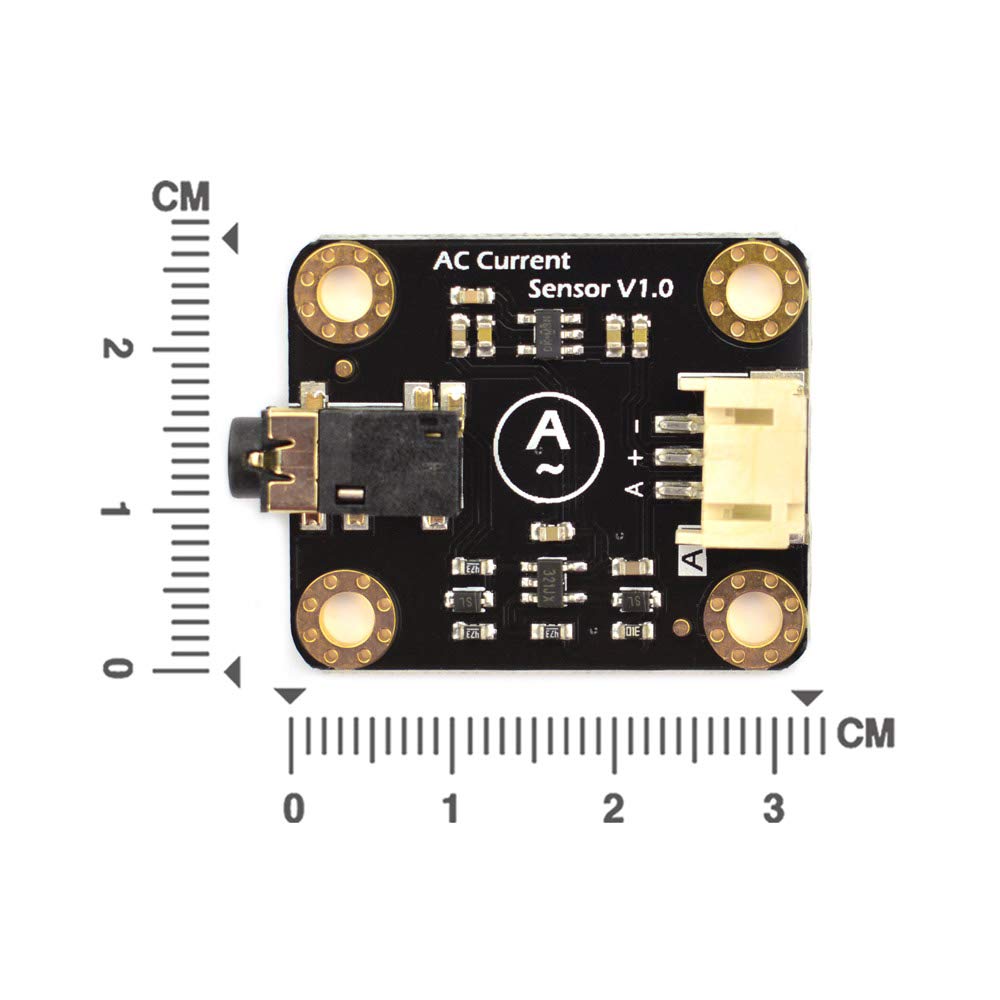

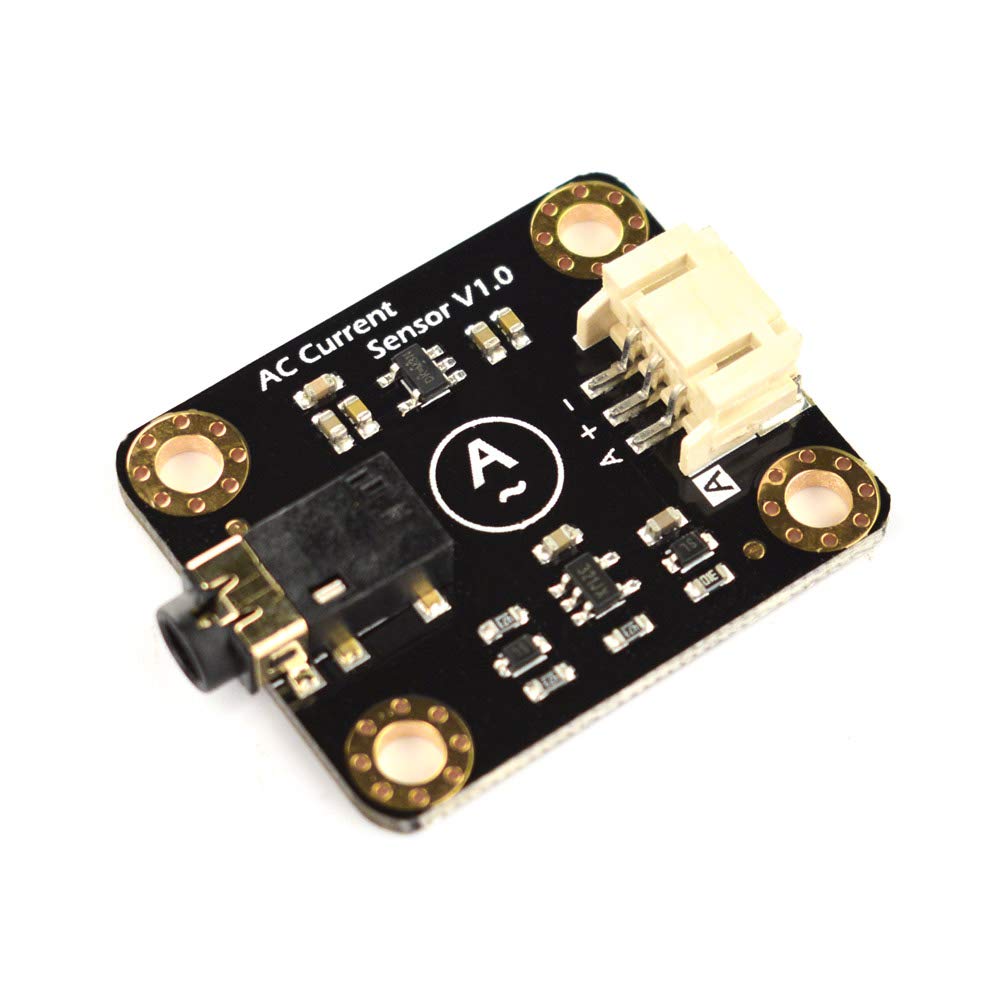

DFRobot Gravity: Analog AC Current Sensor (5A) Introduction When you want to measure the AC current, are you still having trouble cutting the wires, wiring or soldering. Gravity: Analog AC Current Sensor comes to the rescue, eliminating the need to cut wires or reconnect circuits. Specifications AC Current Signal Conversion Module Input Voltage (VCC): 3.3V-5.5V Interface: Gravity Analog (PH2.0-3P，analog voltage output 0.2-2.8V DC) AC Voltage Input Range: 0-1V (AC RMS) Relative Error: ±4% Dimension: 32 × 27 mm /1.26 × 1.06 in Weight: 5 g Open Type AC Transformer Probe AC Current Range: 0-5 A Signal Output (standard Φ3.5mm 3P plug): 0-1V AC voltage, linear corresponding range 0-5A Accuracy: ±1% Non-linearity: ≤±0.2% Frequency Range: 50Hz ~ 1kHz Cable Length: 1 m Working Temperature: -25 ℃ ~ +70 ℃ Opening Size: 13 × 13 mm / 0.51 × 0.51 in Weight: 50 g Shipping list AC Current Signal Conversion Module x1 Open Type AC Transformer Probe (5A) x1 Gravity-3P Analog Sensor Cable x1
