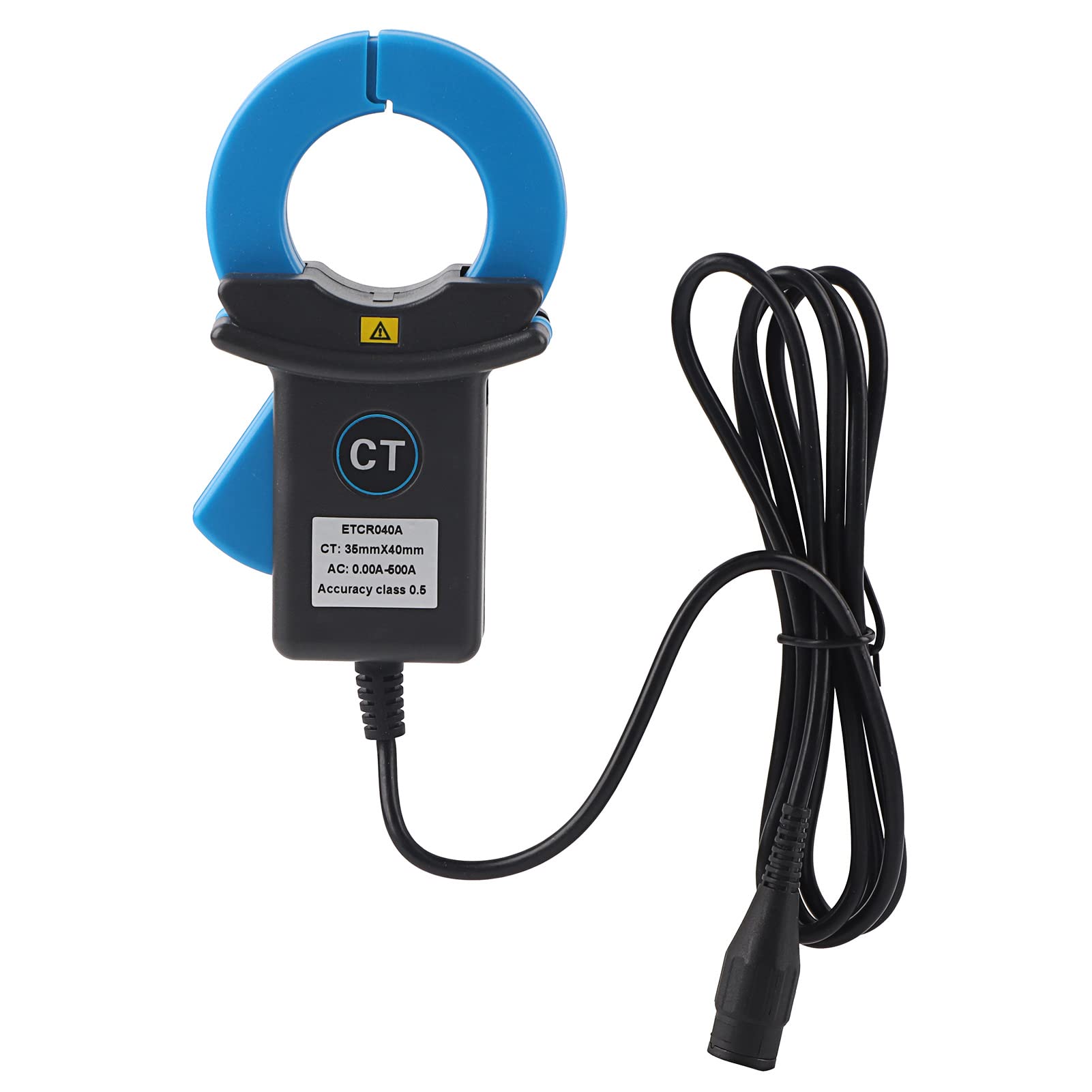

Clamp Meter Clamp Current Sensor Leakage Detection Current Sensor High Precision Electrical Industrial Measuring Instrument(ETCR040A)

• ★High Precision: The clamp structure does not need to cut off the power supply and disconnect the line under test. It is especially suitable for on-line field testing. It is suitable for high precision detection of AC current, high harmonic current, phase, electric energy, power, power factor, etc.
• ★Versatility: With the new CT technology, it can connect phase detection analyzer, industrial control device, data recorder, oscilloscope, harmonic analyzer, power quality analyzer, high precision digital multimeter and so on
• ★Widely Applied: It is widely used in electric power, communication, meteorology, railway, oil field, construction, metrology, scientific research and teaching units, industrial and mining enterprises and other fields
• ★Stable Working Performance: With high quality alloy core, it has stable performance, high precision and strong anti-interference ability, and is suitable for complex interference environment

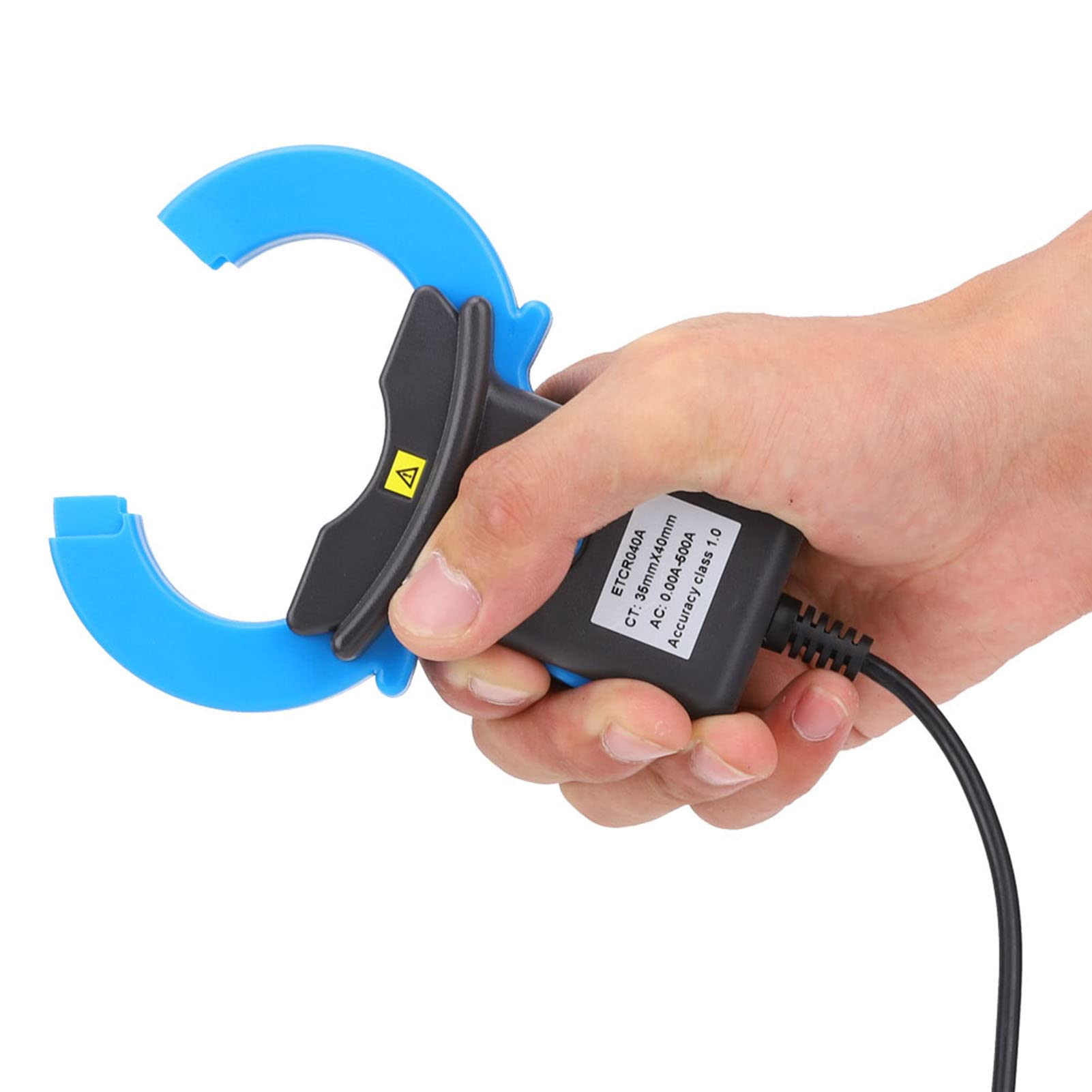

• ★Easy to Operate & Carry: The transformer can output current and voltage signals. It is compact and easy to carry. Non-contact measurement, easy to operate, fast, safe and reliable

Specification: Condition: 100% Brand New Item Type: Current Sensor Material: ABS Output Interface: 2m Shielded Cable, End Interface: BNC Plug Working Frequency: 45Hz - 100KHz Working Temperature: -15°C - 50°C Insulation Strength: AC 3700V/Rms (Between Iron Core and Outer Casing). Security Level: CATⅢ600V Output Mode: Induced Current Output Product Type ETCR040A Range 0.01A-500A Accuracy Level 1.0 Phase Error ≤2° Current Type Turns Ratio 4000:1 Reference Load  ≤20Ω Voltage Type Output Voltage 0-3V(20Ω) Secondary Load ≥100KΩ Frequency 45Hz-100KHz Jaw Size 35x40mm / 1.4x1.6in Size 125x70x37mm / 4.9x2.8x1.5in Weight 190g / 6.7oz Package List: 1 x Current Sensor
