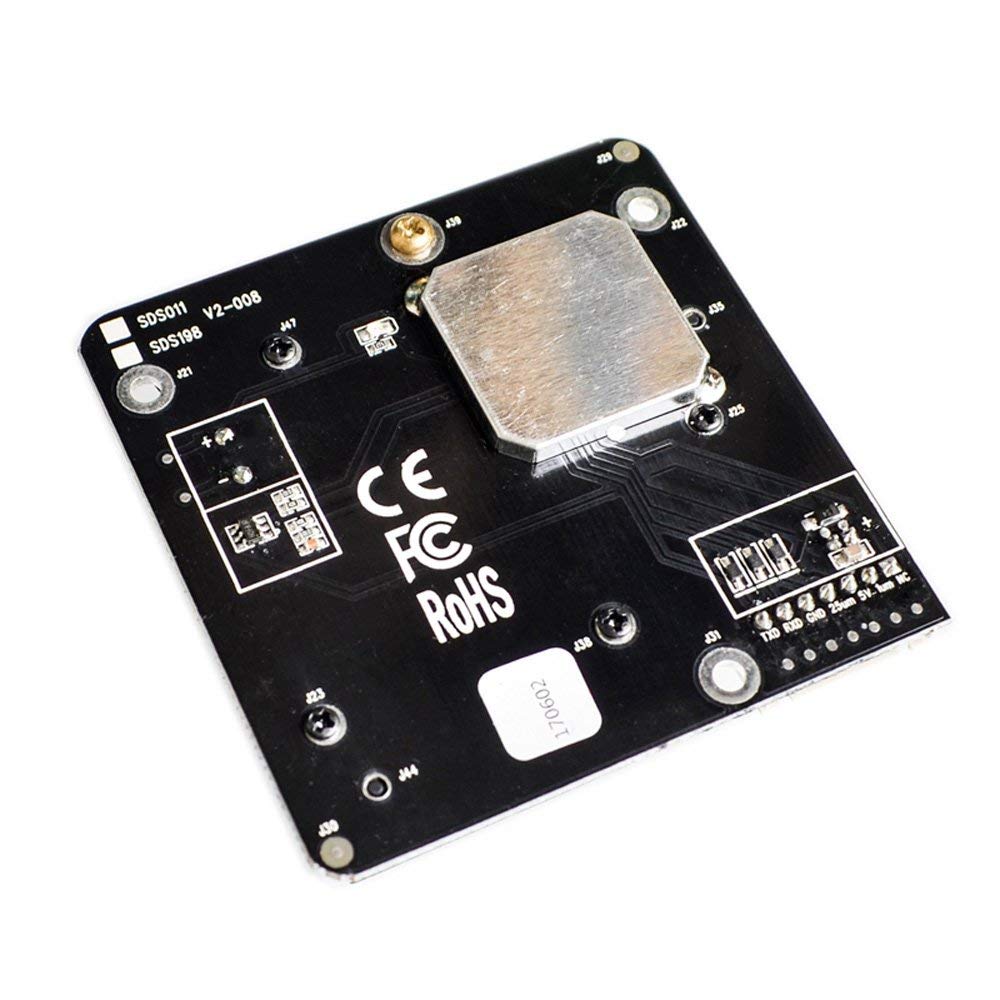

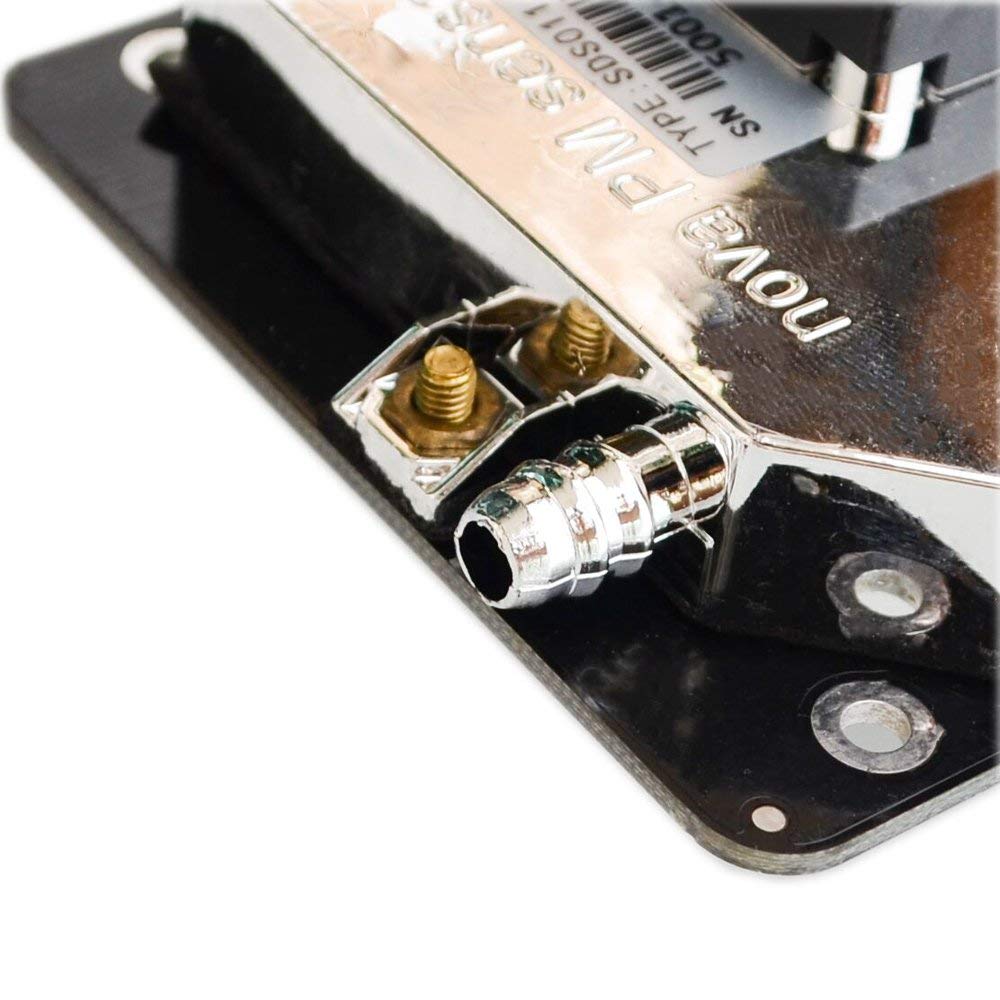

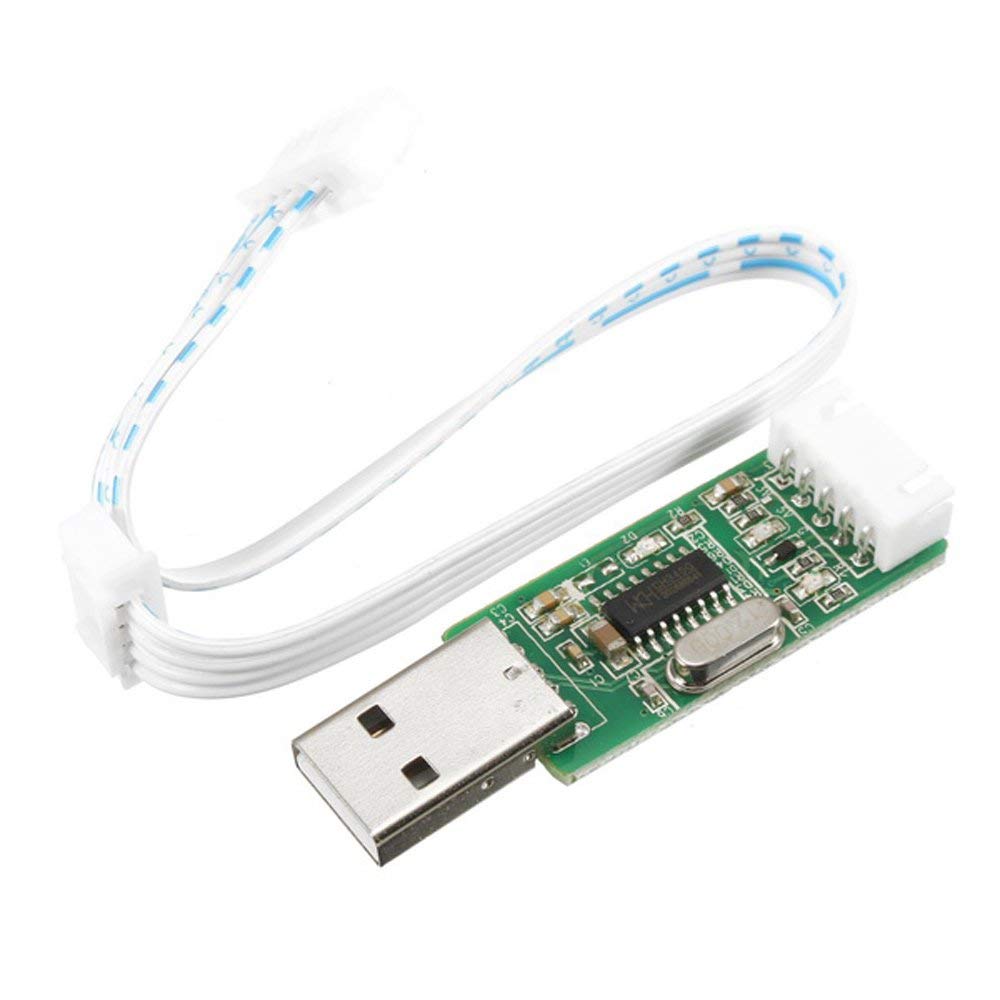

DollaTek PM Sensor SDS011 High Precision PM2.5 Air Quality Detection Sensor Module Super Dust Sensors Digital Output

• The SDS011 using principle of scattering,can get the particle concentration between 0.3 to 10um in the air.It with digital output and built-in fan is stable and reliable.
• Accurate and Reliable: detection, stable, good consistency;Quick response: response time is less than 10 seconds when the scene changes.
• Easy integration: UART output (or IO output can be customized), fan built-in;High resolution: resolution of 0.3ug/m3.
• Scope of application:PM2.5 Detector;Purifier;Air Exchangers;Filtering system.
• Working principle:Using scattering principle:Light scattering can be induced when particles go through the detecting area;The scattered light is transformed into electrical signals and these signals will be amplified and processed

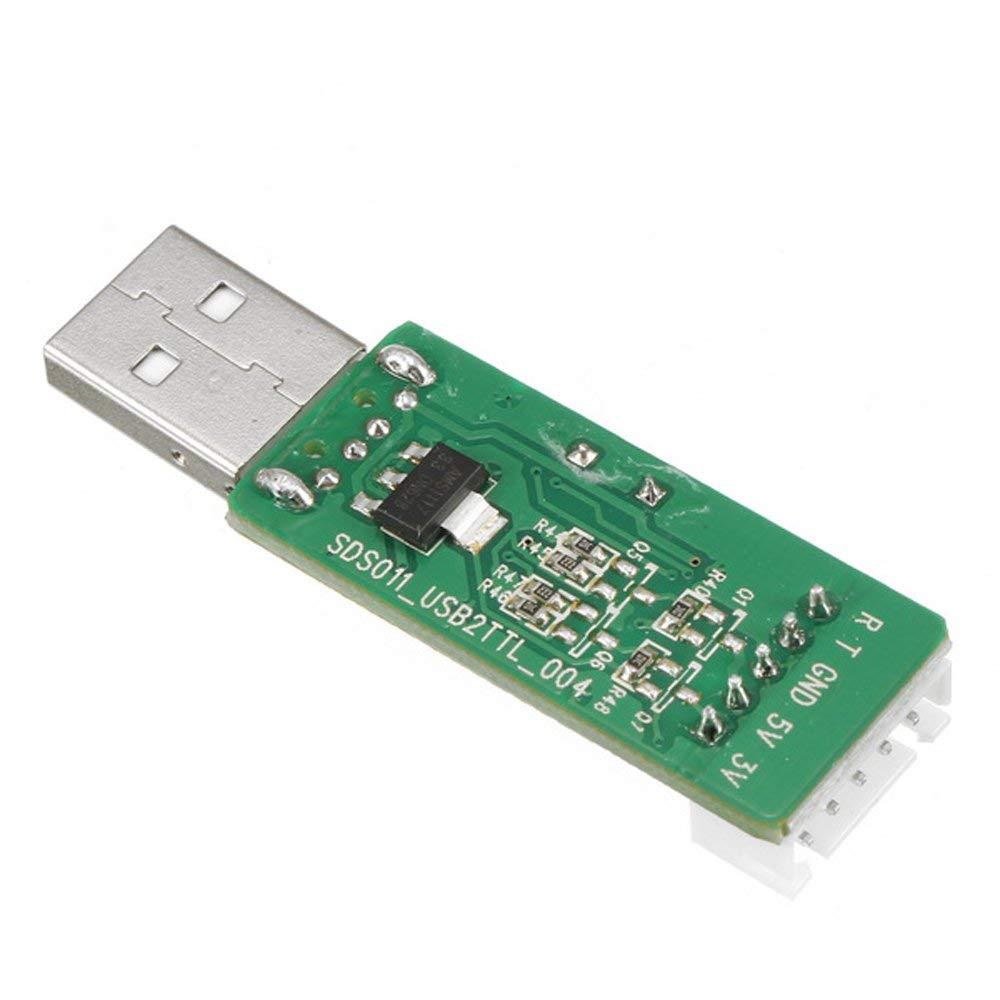

Interface specification: 1:CTL:Control pin, reserved 2:1um:>0.3 Micron particle concentration, PWM Output 3:5V:5V power input 4:25um:>2.5 Micron particle concentration, PWM Output 5:GND:GND 6:R:Serial port receiver RX 7:T:Serial port transmission TXPS: The pitch of Interface is 2.54mm Communication protocol: Serial communication protocol: 9600 8N1. (Rate of 9600, data bits 8, parity none, stop bits 1) Serial report communication cycle: 1+0.5 seconds Data frame (10 bytes): message header + order+ data(6 bytes) + checksum + message trailer The number of bytes:Name:Content 0:message header:AA 1:order:C0 2:data 1:PM2.5 low byte 3:data 2:PM2.5 high byte 4:data 3:PM10 low byte 5:data 4:PM10 high byte 6:data 5:0(reserved) 7:data 6:0(reserved) 8:checksum:checksum 9:message trailer:AB Checksum: data 1 + data 2 + ...+ data 6 PM2.5 data content: PM2.5 (ug/m3) = ((PM2.5 high byte*256 ) + PM2.5 low byte)/10 PM10 data content: PM10 (ug/m3) = ((PM10 high byte*256 ) + PM10 low byte)/10 Package included: 1 x PM Sensor SDS011 High Precision PM2.5 Air Quality Detection Sensor Module
