Gebildet 10pcs Plastic Reed Switch Reed Contact,Magnet Near - Break Circuit, Magnet Away -Connect Circuit,Magnetic Induction Switch(3mm脳14mm) With 10pcs Small Multi-Use Round Magnets
★★★★★
$11.40
Quantity
1
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item
- Package included: 10×Reed Switch, 10×Small Multi-Use Round Magnets.

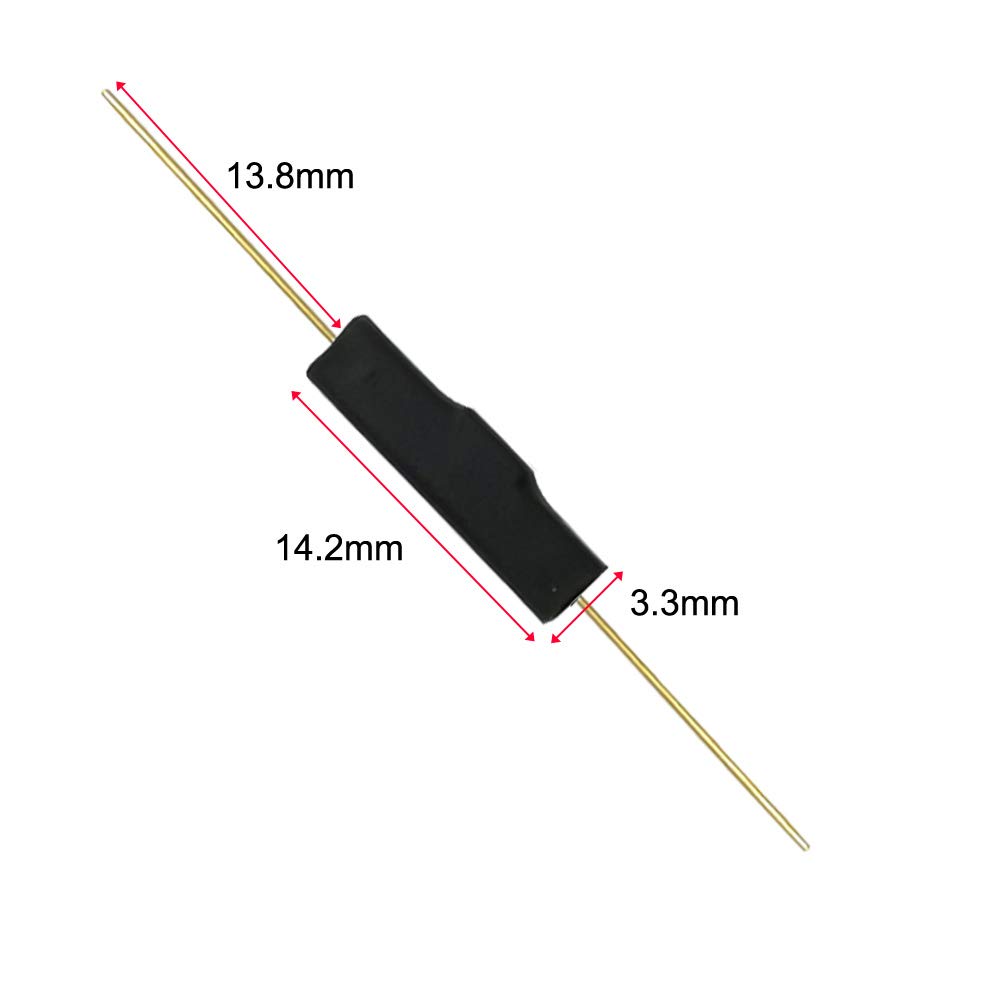

- Length of Plastic : 14mm; Diameter of plastic: 3mm;Max. Switch Current: 0.5A; Maxima charging current: 1.0A.
- Maximum switching voltage 100VDC.Working temperature: -20 degrees to 80 degrees.
- Normally Closed : Magnet Near - Connect Circuit, Magnet Away - Break Circuit
- Maximum contact resistance: 100M; Minimum Insulation Resistance: 1010.
Product description
Package included 10×Normally Closed Reed Switch Normally Closed : Magnet Near - Connect Circuit, Magnet Away - Break Circuit 10×Small Multi-Use Round Magnets Product Description Total Length 44mm Plastic Part Length 14mm Plastic Part Diameter 3mm Working temperature: -20 degrees to 80 degrees Maximum power 10W Maximum switching voltage 100VDC Maximum switching current 0.5A Maximum load current 1.0A Maximum contact resistance 100M Minimum insulation resistance 1010 Action time 1.0ms Bounce time 0.6ms Release Time 0.4ms Response frequency 4000Hz Maximum operating frequency 500Hz Sensitive Value 10-15AT Minimum reset Min Value 4FT Maximum contact capacitance 0.7PF Electrical life (load) 108 (5VDC, 10mA) 105 (24VDC, 400mA) Test line circle number/Resistance 870/5000Ω
