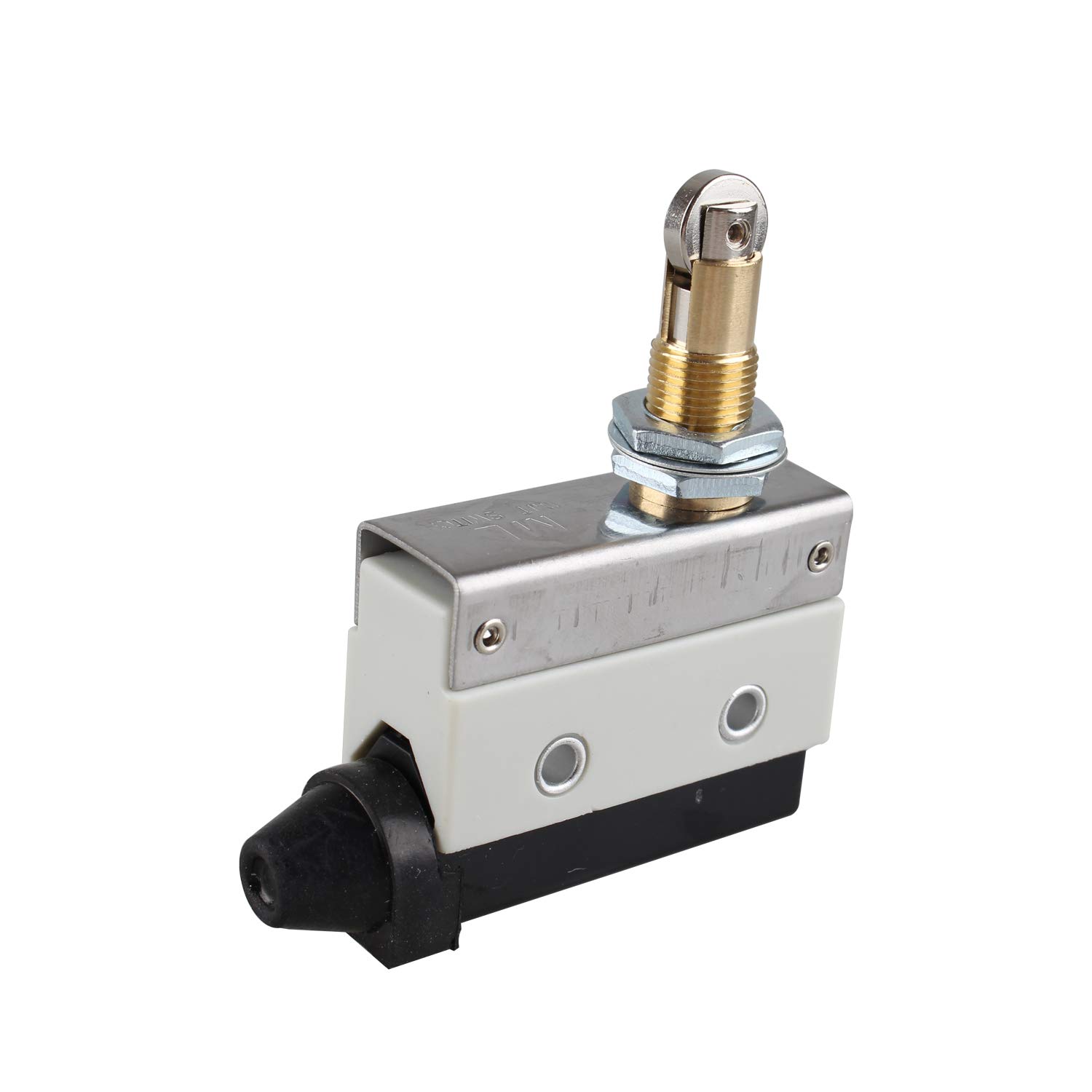

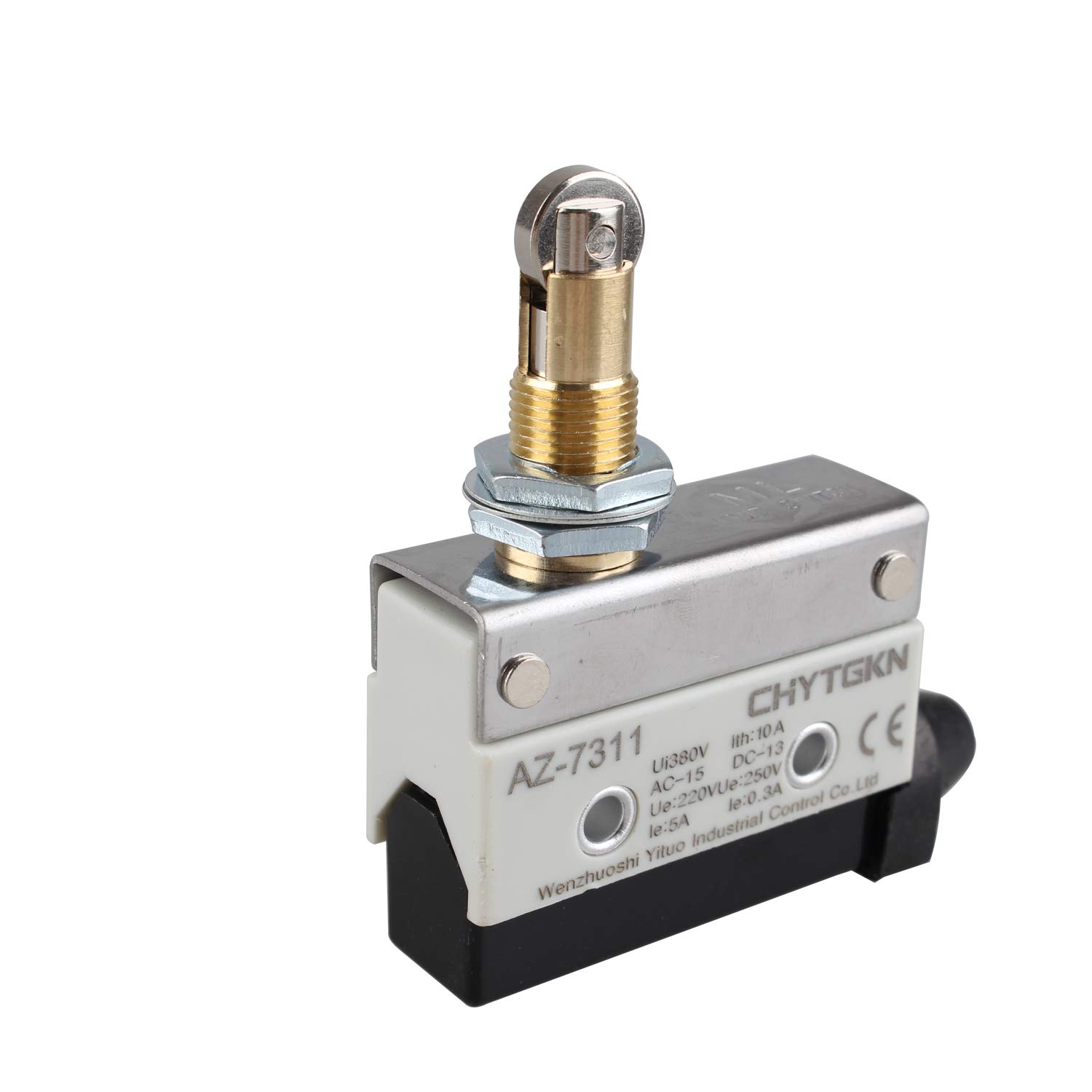

Futheda Horizontal Limit Switch AZ-7311 TZ-7311 Micro Momentary Parallel Roller Plunger Actuator AC 380V 10A Single Pole Switch Panel Mount 1NC+1NO

• Intensive ABS plastic shell, sealed construction. High quality built-in basic switch with good electrical conductivity.
• High precision design, use easily. Designed to control the movement of a mechanical part.
• Panel mount, side fixed with better water-proof and oil-proof performance. Able to withstand some washdowns, shock and vibration.
• This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
• Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc.

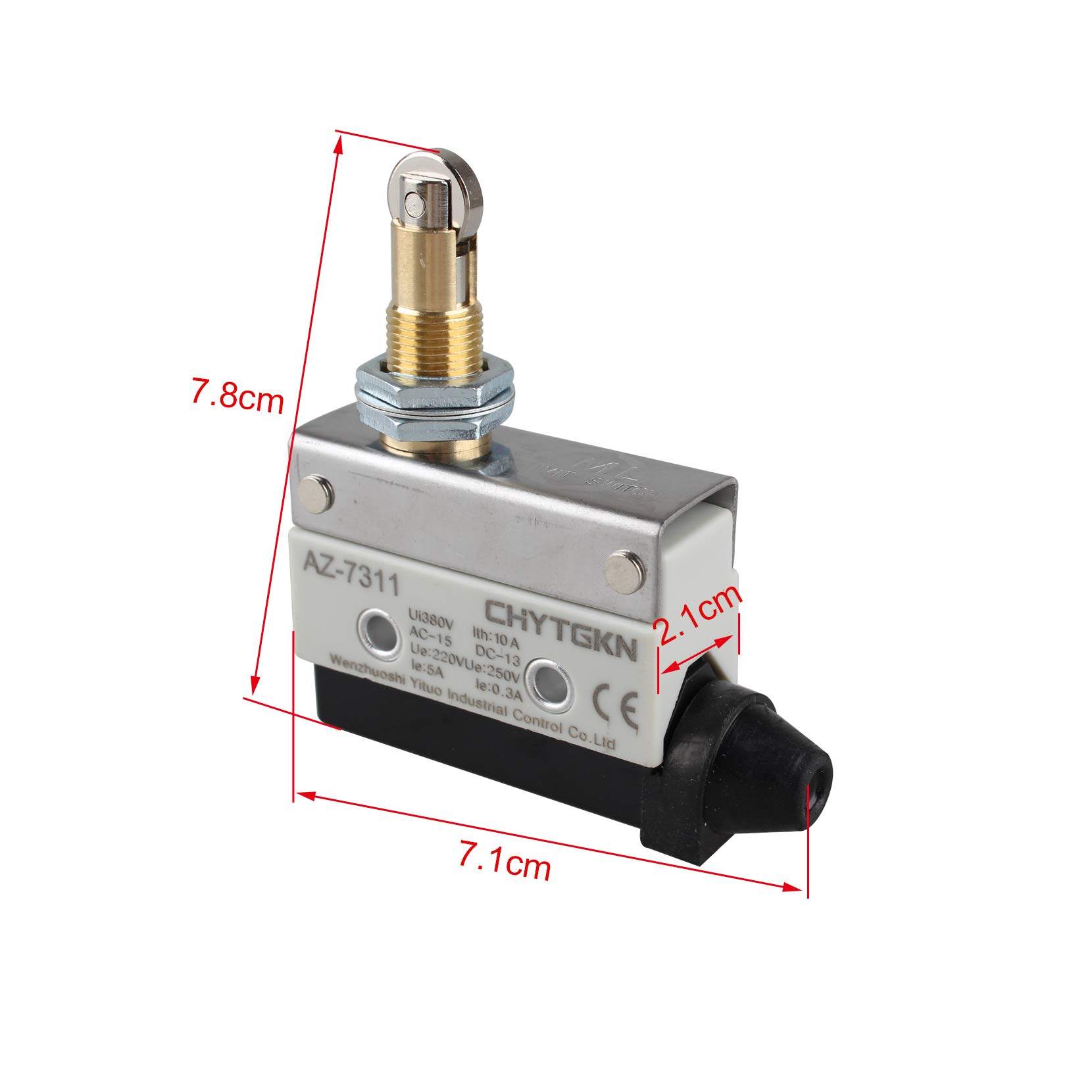

Features Intensive ABS plastic shell, sealed construction. Panel mount, side fixed with better water-proof and oil-proof performance. Smooth operation with higher OT. Able to withstand some washdowns, shock and vibration. This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection. Applicable to AC DC control circuits. High precision design, use easily.Designed to control the movement of a mechanical part. IP 40 Protection Degree. Which means this switch is available to tools & small wires.(>1mm) Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc. Specification Product Name: Limit Switch Model: AZ-7311 (TZ-7311) Actuator Type: Roller Plunger Type Ui: 380V Ith: 10A Rated Voltage: AC-15: 220V 5A DC-13: 250V 0.3A Contact Configuration: 1NC 1NO Size: 7.1 x 7.8 x 2.1cm Mounting Hole Size: 4.2mm Mounting Hole Distance: 25.4mm Weight: 81.5g Package Including 1 x Limit Switch
