Futheda 2Pcs ME-8108 Adjustable Plasma Rotary Roller Lever Arm Momentary Limit Switch NC-NO Compatible with Arduino CNC Mill Router

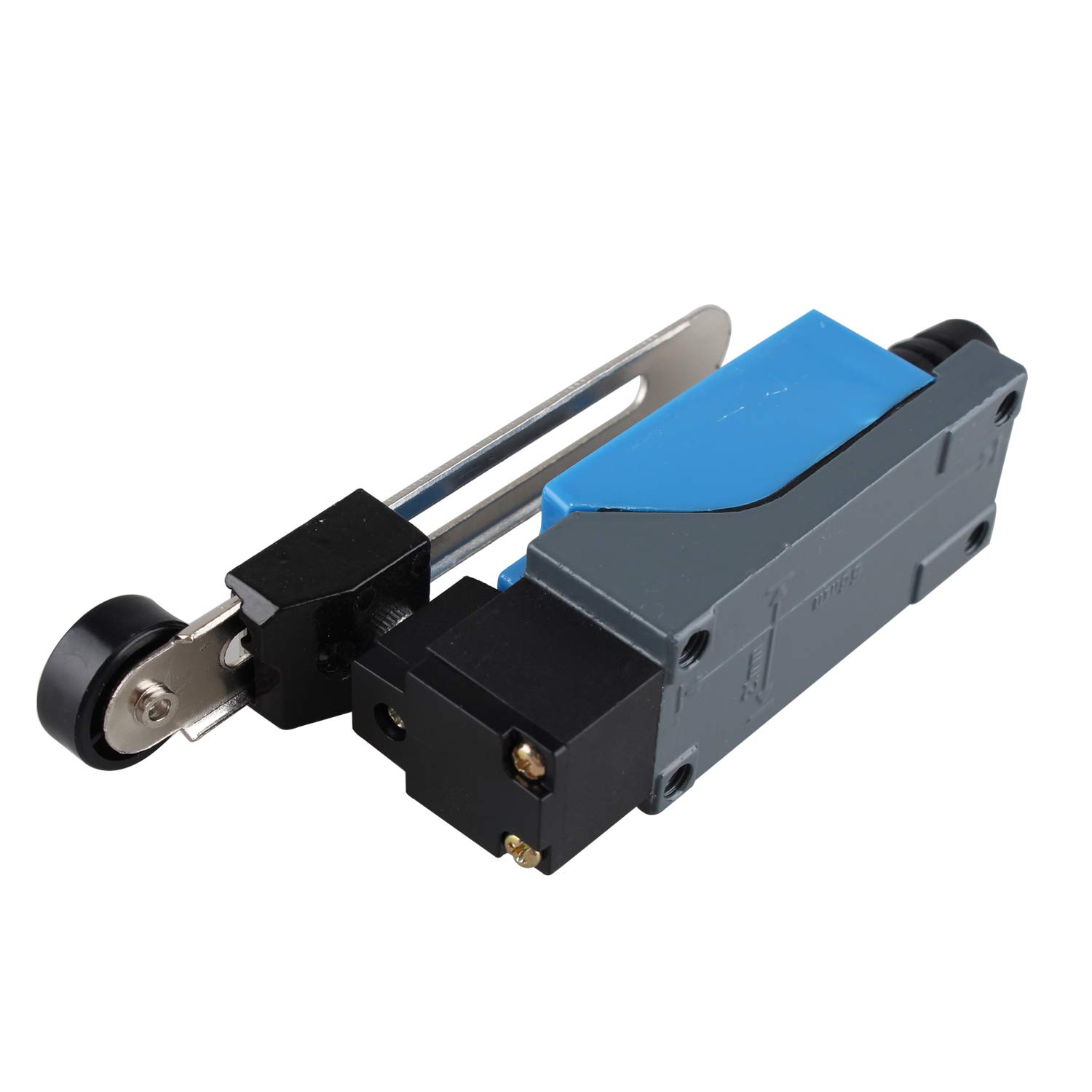

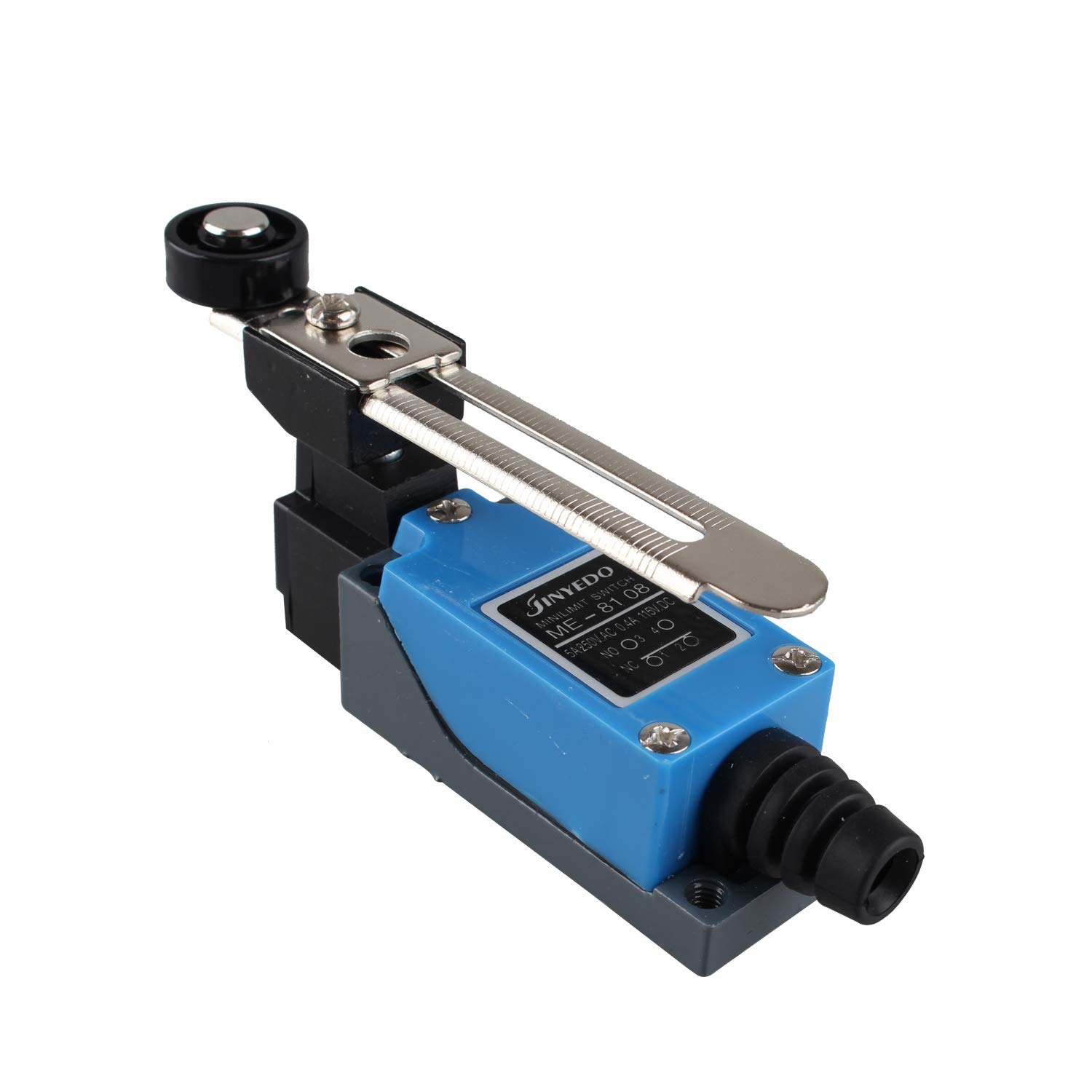

• Rotary Adjustable Roller Lever Arm Actuator, Automatic Reset, 2 NC + 2 NO Contact Configuration.
• This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
• High quality built-in basic switch with good electrical conductivity. Able to withstand some washdowns, shock and vibration.

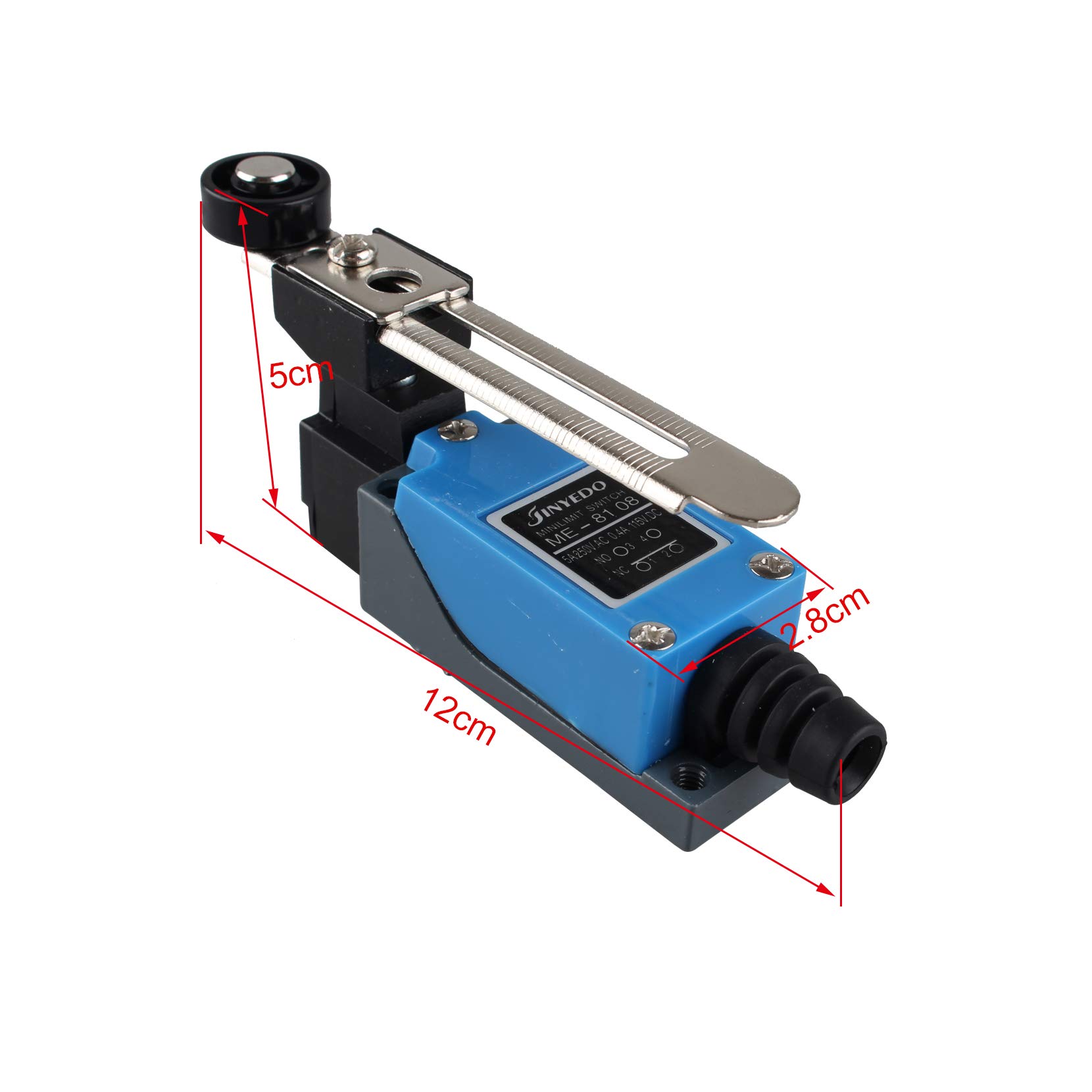

• Easy-to-wire, smooth operation and reliable. Lever Arm can be rotated to the left by 90 and to the right by 90. The length of the lever is adjustable.
• Please pay attention to the Voltage Rating and check with the voltage of your place to make sure the Limit Switch successfully works.

Features Rotary Adjustable Roller Lever Arm Actuator, Automatic Reset, 2 NC + 2 NO Contact Configuration. This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection. High quality built-in basic switch with good electrical conductivity.Able to withstand some washdowns, shock and vibration. Easy-to-wire, smooth operation and reliable.Lever Arm can be rotated to the left by 90 and to the right by 90. The length of the lever is adjustable. Please pay attention to the Voltage Rating and check with the voltage of your place to make sure the Limit Switch successfully works. Normal working and installation conditions: Ambient temperature: no more than +60℃, no less than -15℃ Altitude: height does not exceed 2000m Atmospheric conditions: relative humidity does not exceed 50% when the ambient air temperature is +60℃; higher relative humidity at lower temperatures; average maximum relative humidity of the wettest month is 95%, and the monthly average of the month is the lowest The temperature is +25℃, taking into account the condensation that occurs on the surface of the product due to temperature changes. Pollution degree: level 3 Product name: mini limit switch Material: rubber, plastic & metal Model: me8108 Actuator action: Momentary Actuator Type: rotary adjustable lever arm with roller Contact configuration: NC NO Rated voltage: AC 250V 5A, DC 115V 0.4A Roller dimension: 18 x 7mm/0.71" x 0.2" Lever arm length: 9.2cm/3.6" Fixing thread diameter: 4.5mm Total size: 122 x 28x 50mm Mounting size: 56 x 21mm Weight: 89.4g Package Including 2 x Limit Switch
