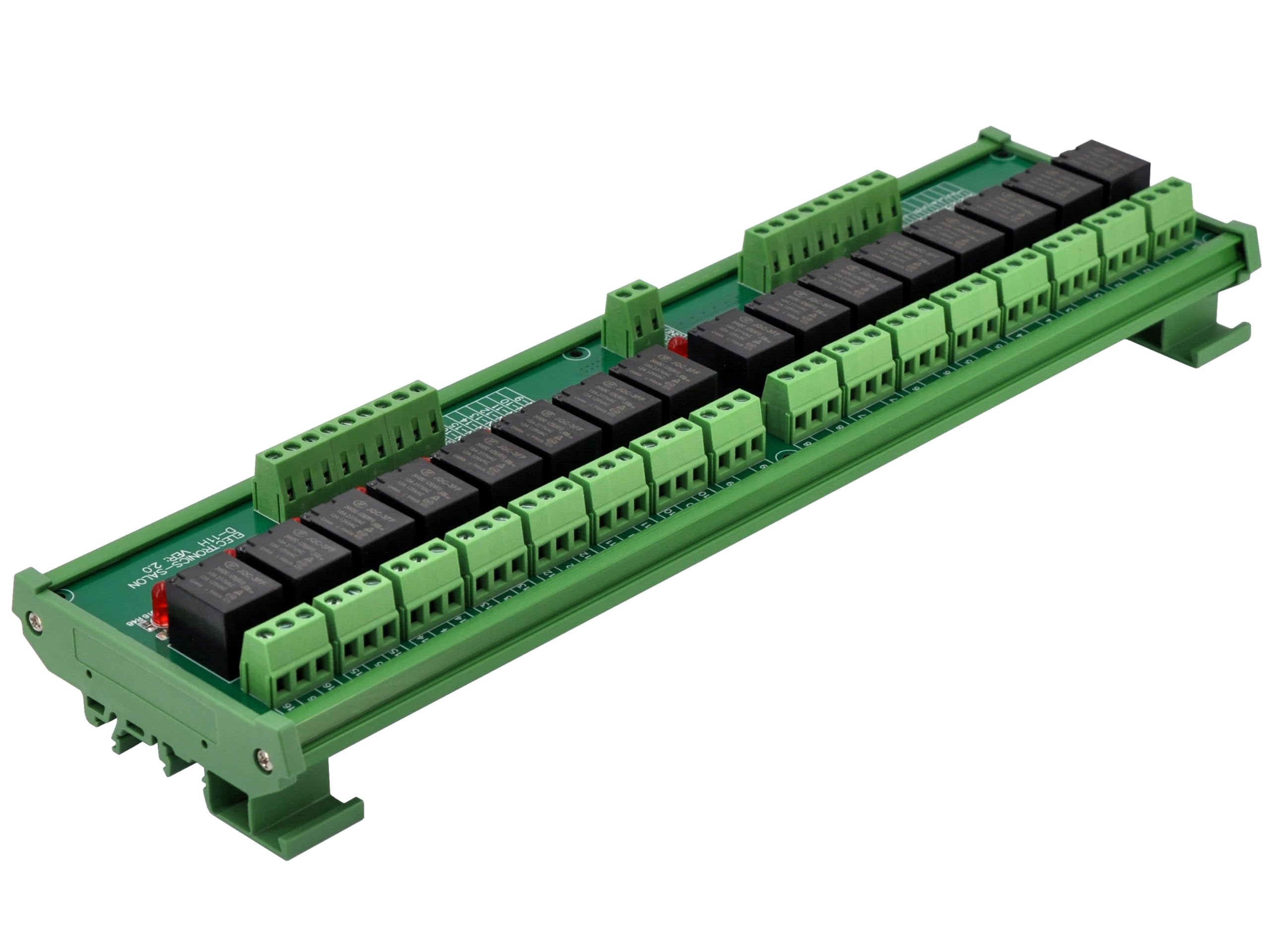

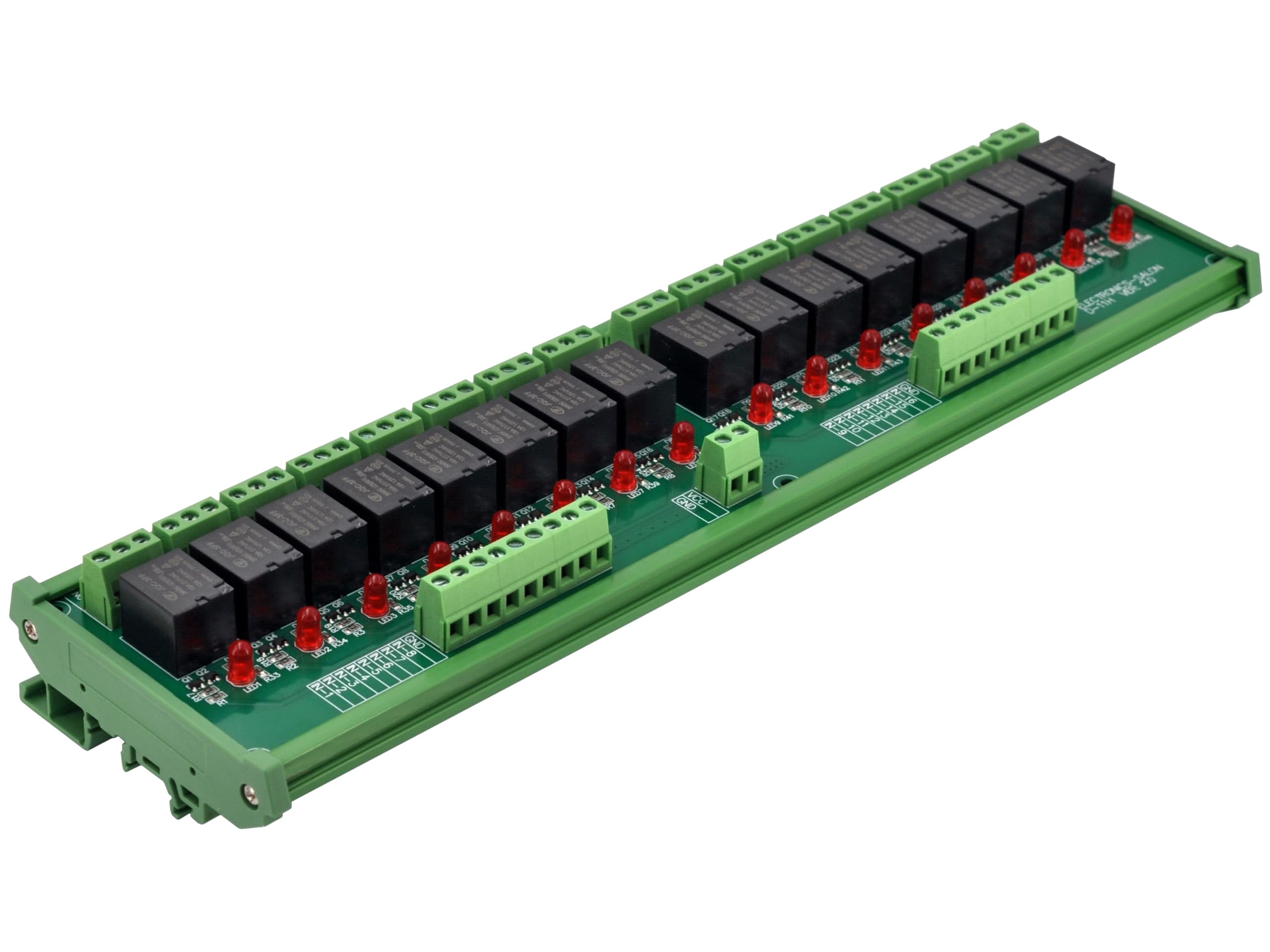

Electronics-Salon DIN Rail Mount 16 SPDT 10Amp Power Relay Interface Module, DC 24V Version.
Product description

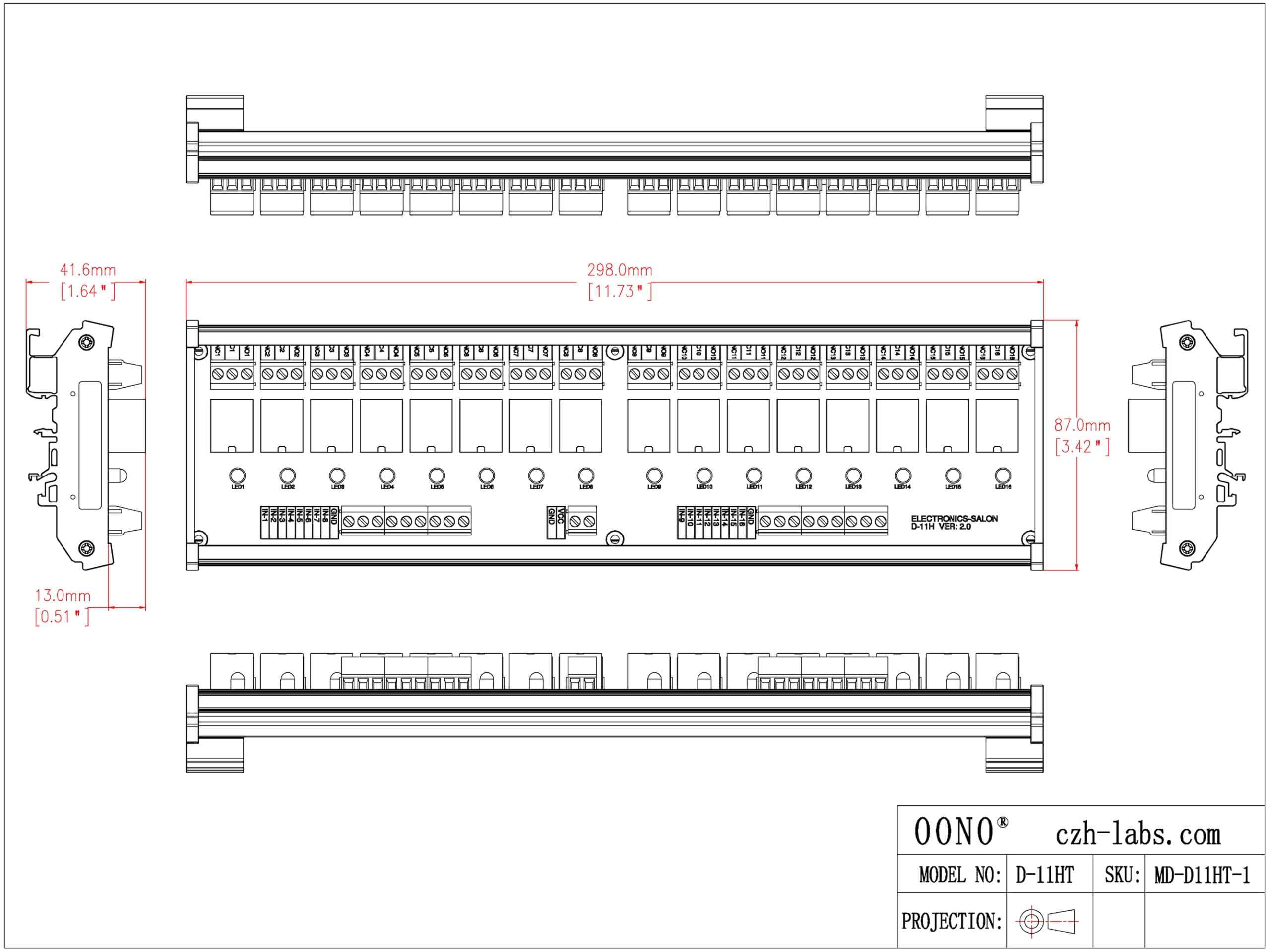

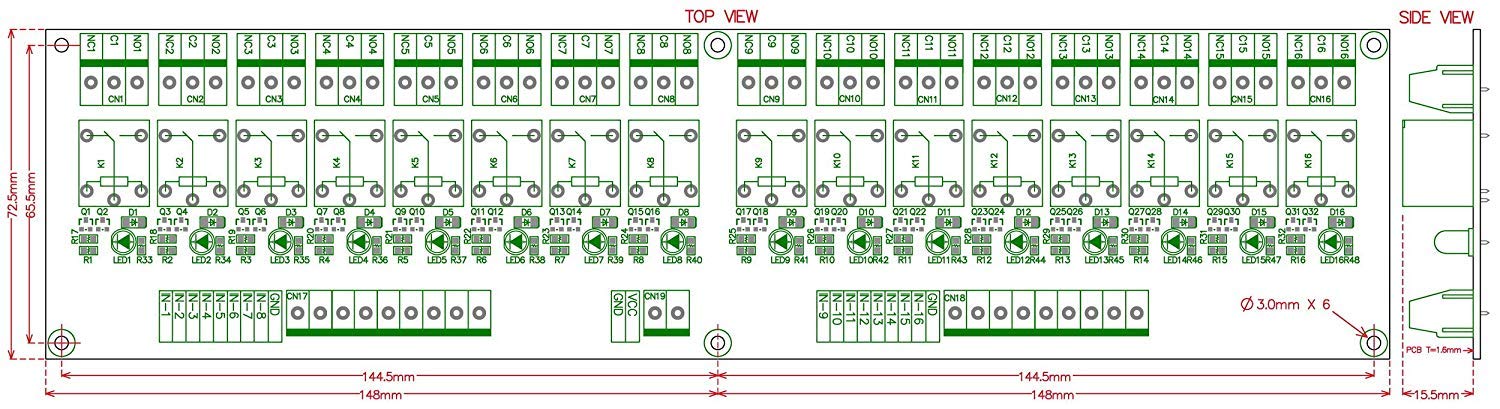

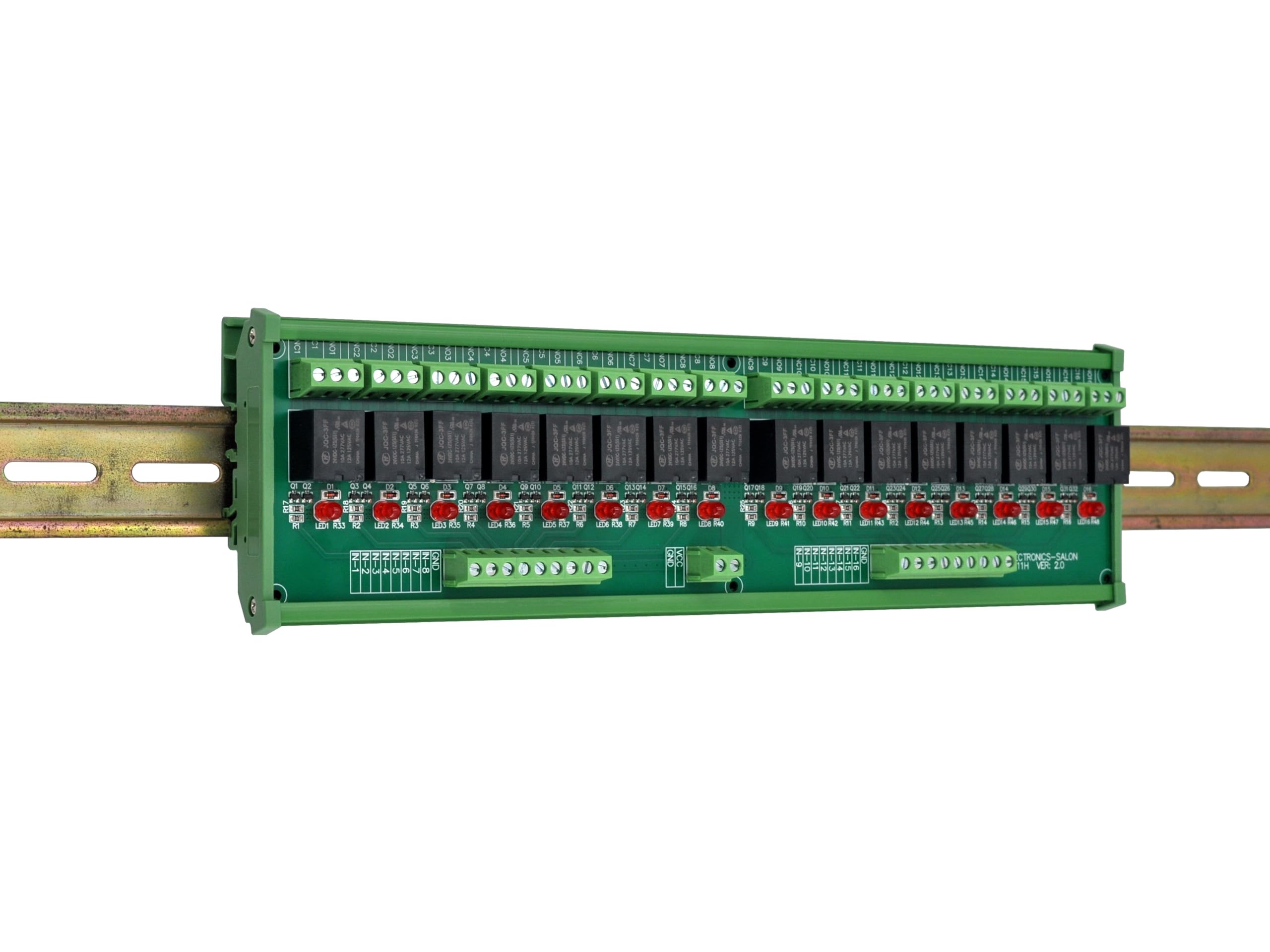

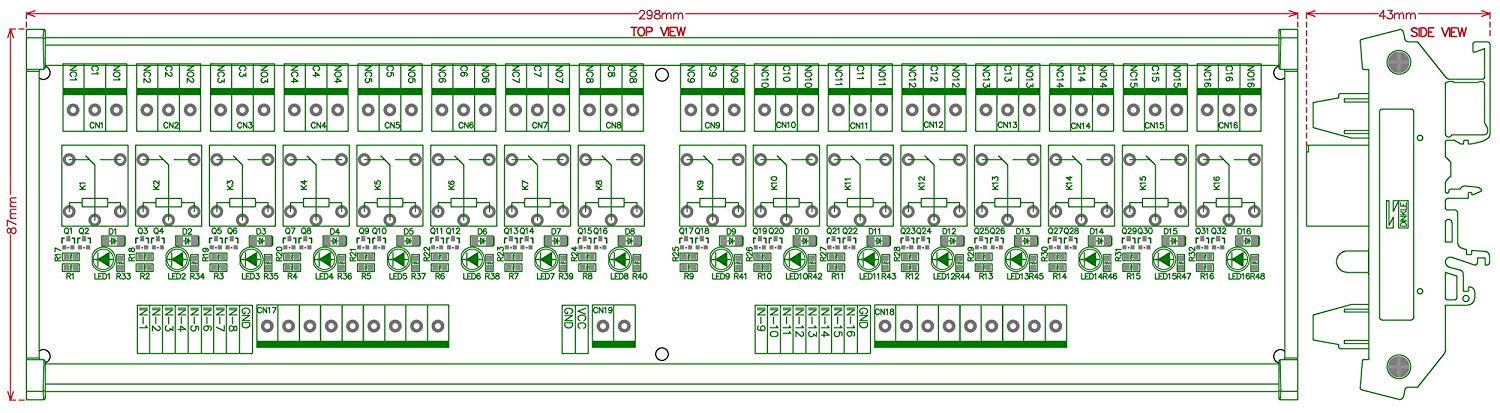

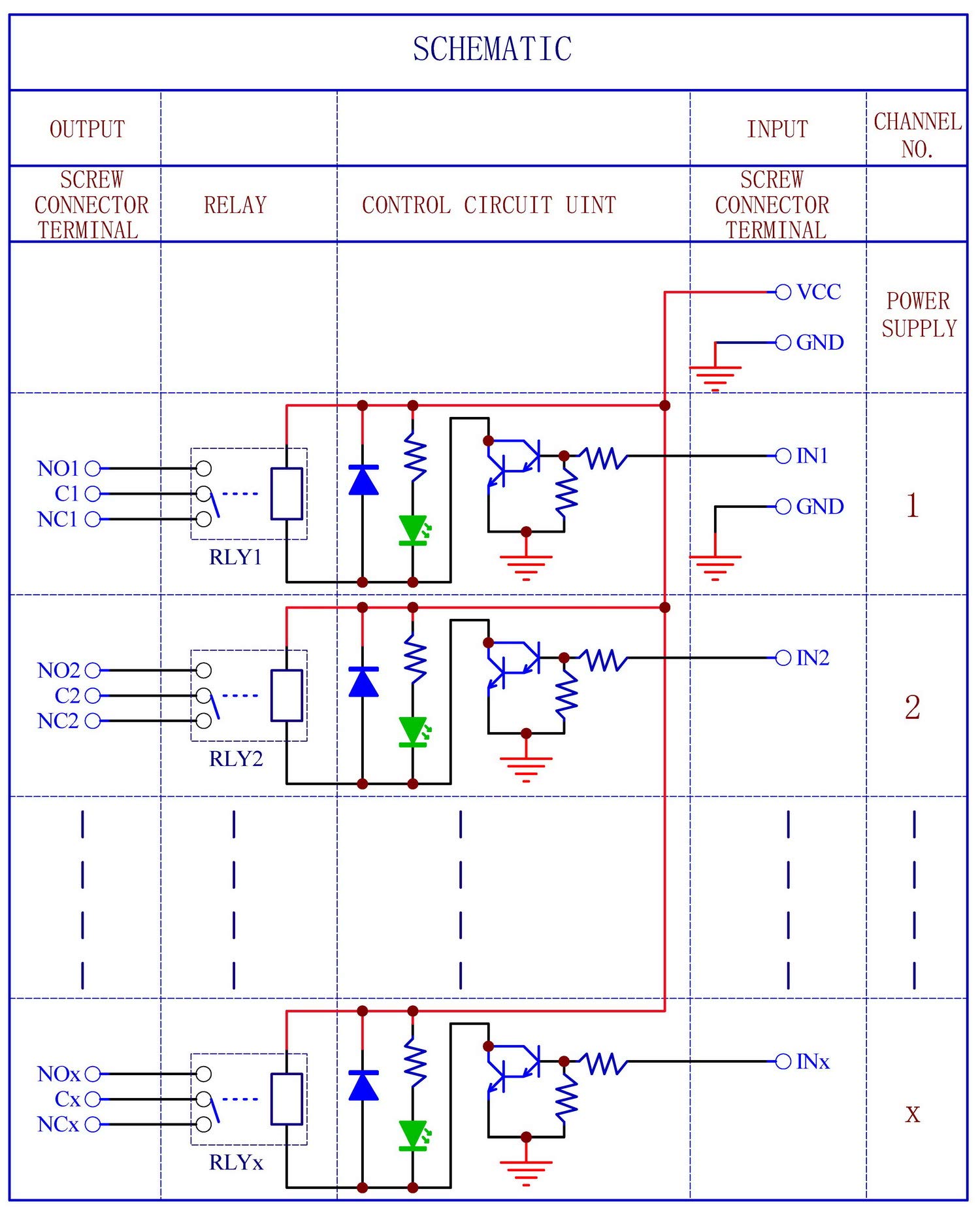

August-30, 2018, upgrade to version 2.0 16 Channel SPDT power relay interface module, high quality JS1-24V-F 10Amp relays. Darlington transistor circuits drive relay coil, LED indicator for each relay channel. High quality screw terminal block. FR-4 fiber glass PCB, dual copper layers. Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use. Operating Voltage / Current (VCC): 18 to 36VDC / 560mA(at 24VDC). Control signal voltage (IN-X): 0V - 0.5Vdc (low level), relay not action. 2.5V - 24Vdc (high level), relay action. Output (relay switch) contact rating for each channel: For AC, 125 / 250 VAC, 10Amp For DC, 30 VDC, 5Amp External dimensions: L298mm x W87mm x H43mm. PCB dimensions: L296mm x W72.5mm x H17.1mm The item no paper specifications, before buy please download the PDF datasheet: https://images-na.ssl-images-amazon.com/images/I/A1SCgm+XiRL.pdf
