Ehdis 1 Pack 12V 80 APM 4 Pin Changeover Relay With Socket Holder for Truck, Motor, Heavy Duty On/Off Normally Open SPST Relay Socket Plug 4 Wire

• Country of Manufacture: China; Material: Plastic, Metal, Copper
• Contact Type: SPST (Normal Open); Pin Number: 4 Pin

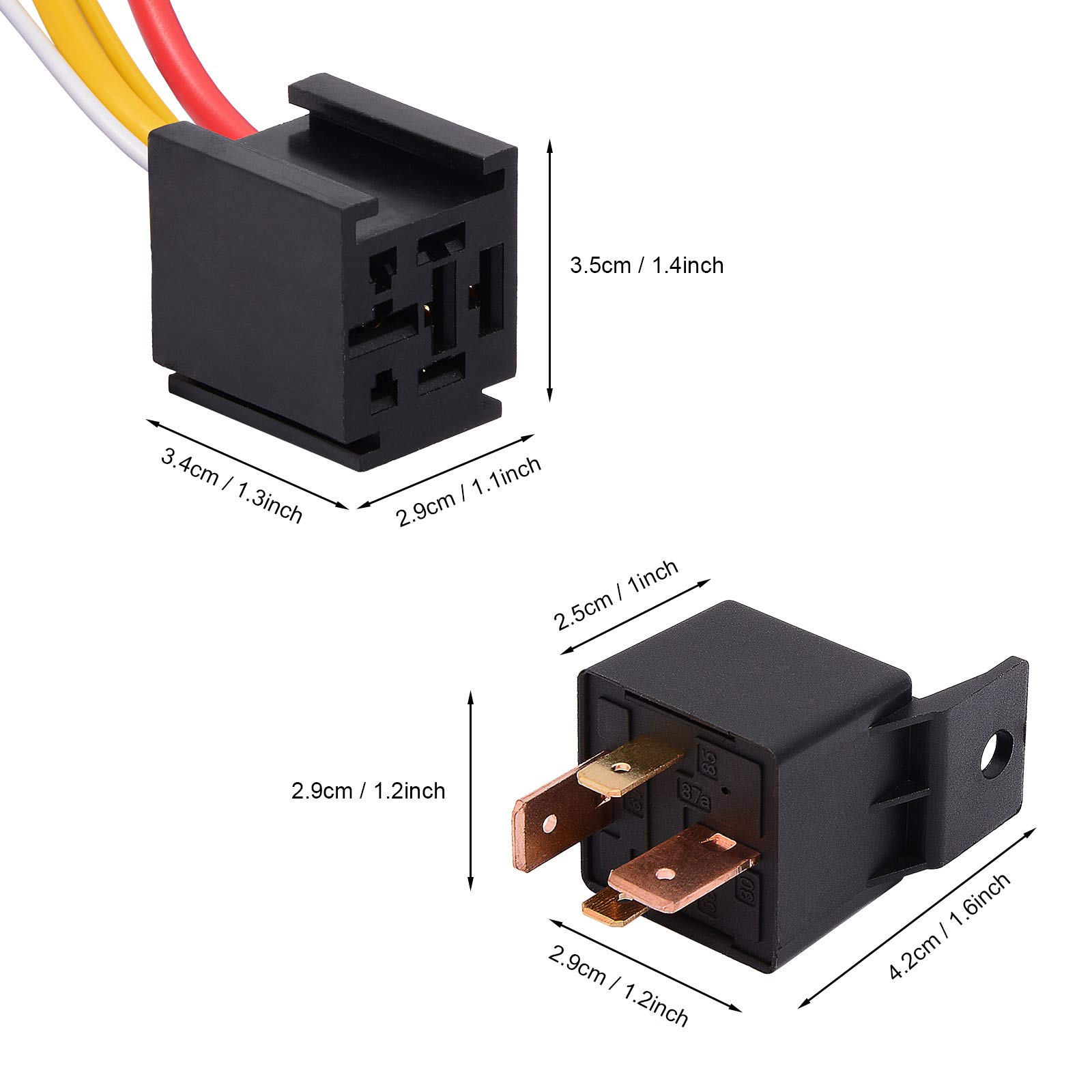

• Coil: 12VDC 80 Amp; Body Size: 28 x 28 x25mm/1.1" x 1.2" x 1"(L*W*H)
• Relay size: 33 x 28 x 52mm/1.3" x 1.1" x 2"(L*W*H); Fixing Hole Dia: 6.5mm/2.5"; Socket Size: 35 x 34 x 18 mm

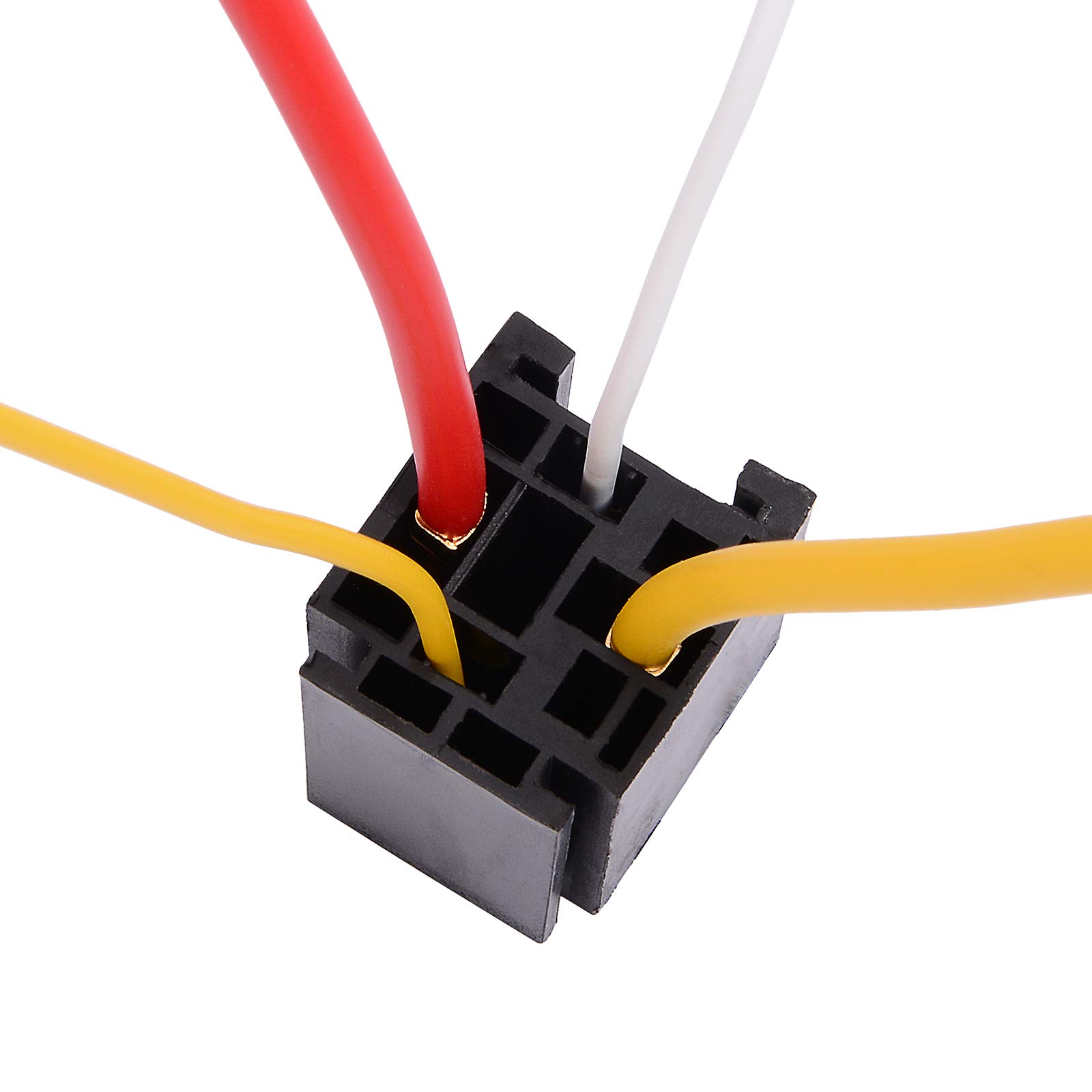

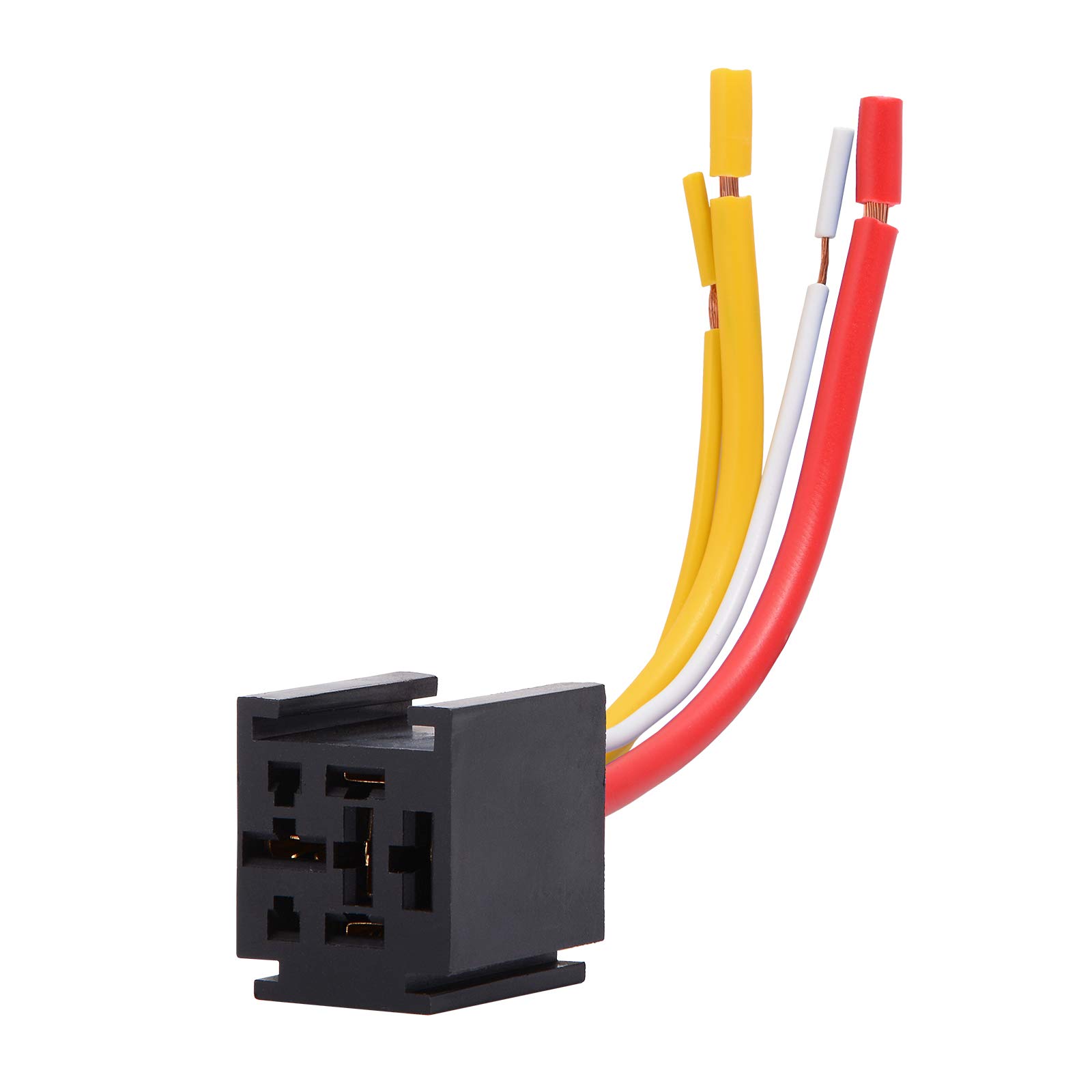

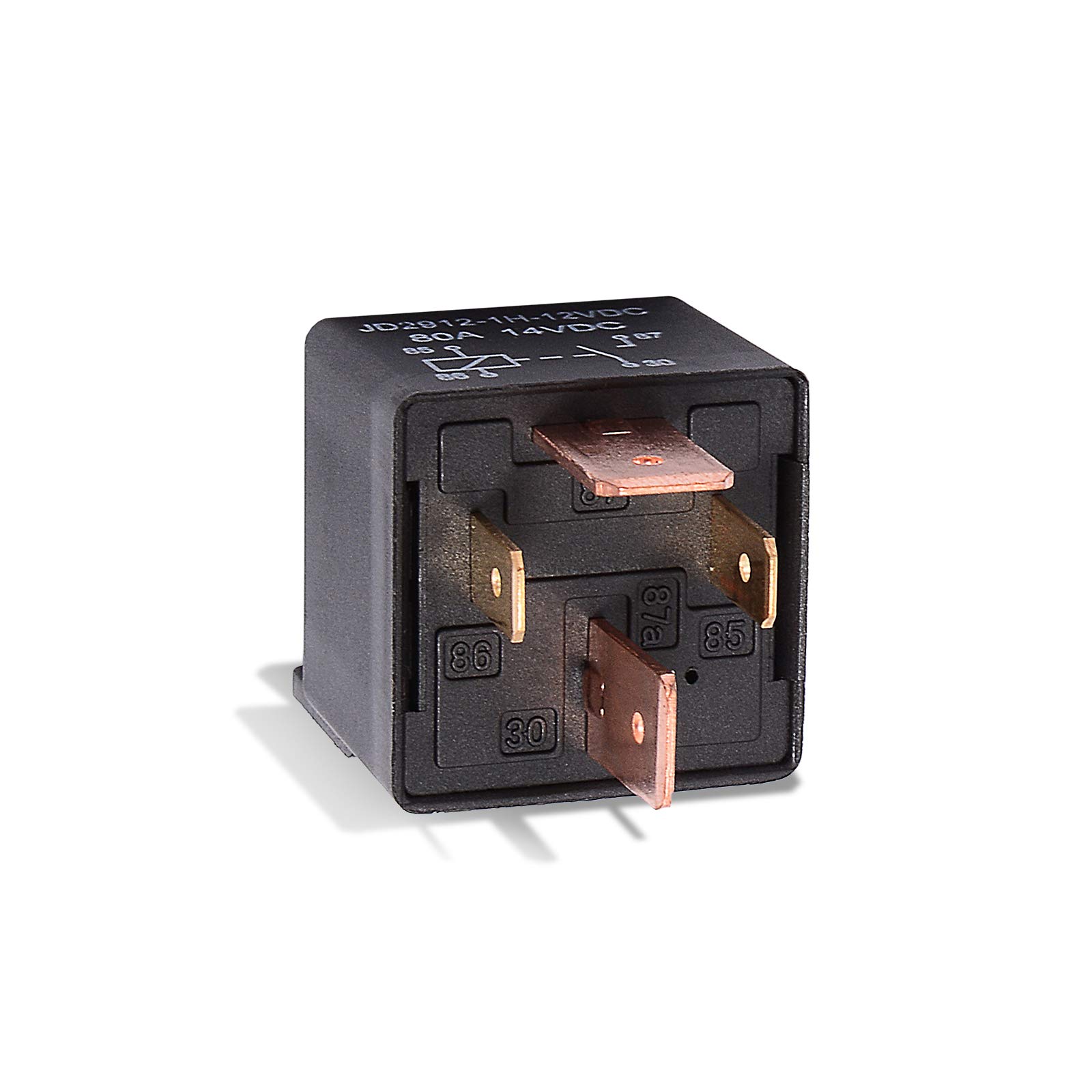

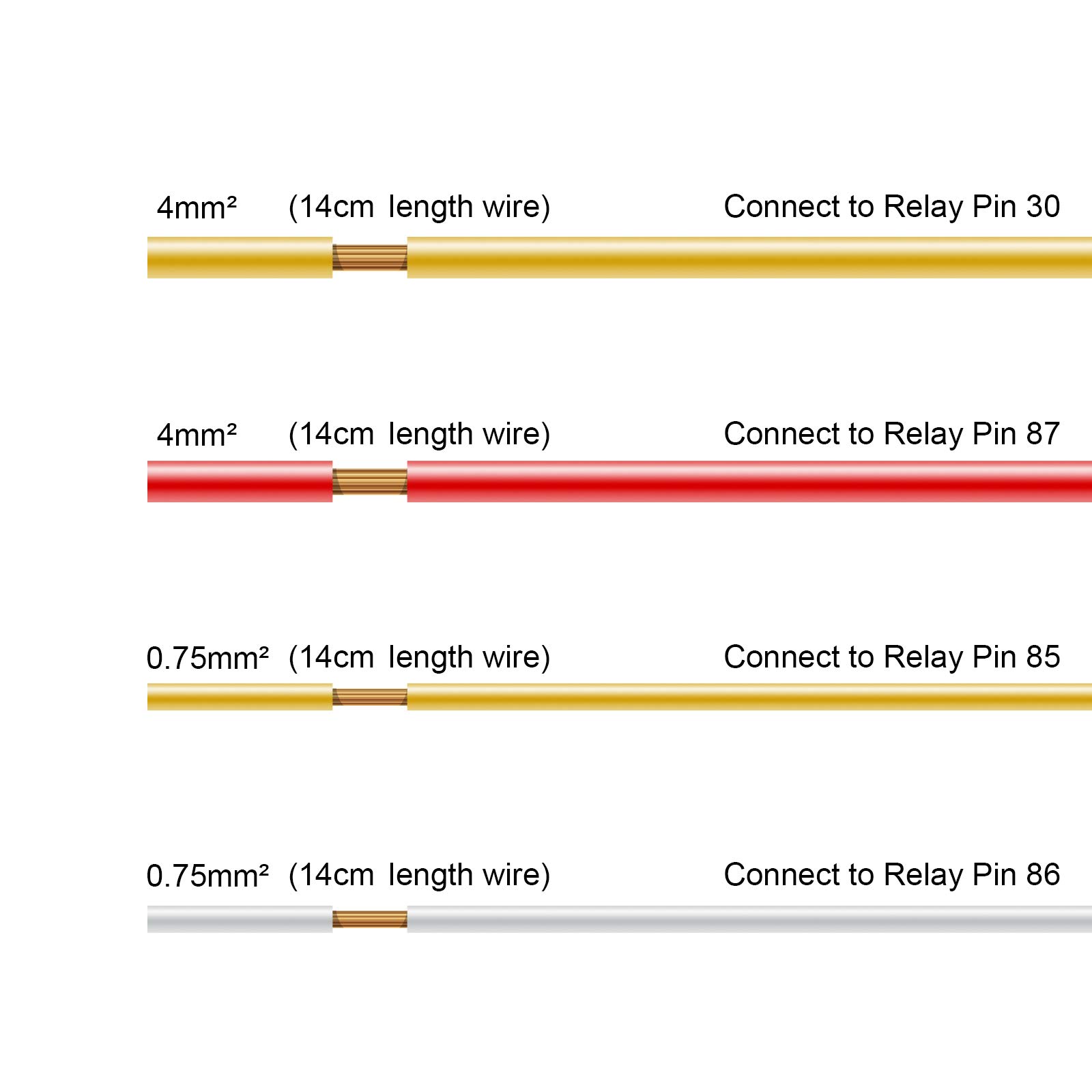

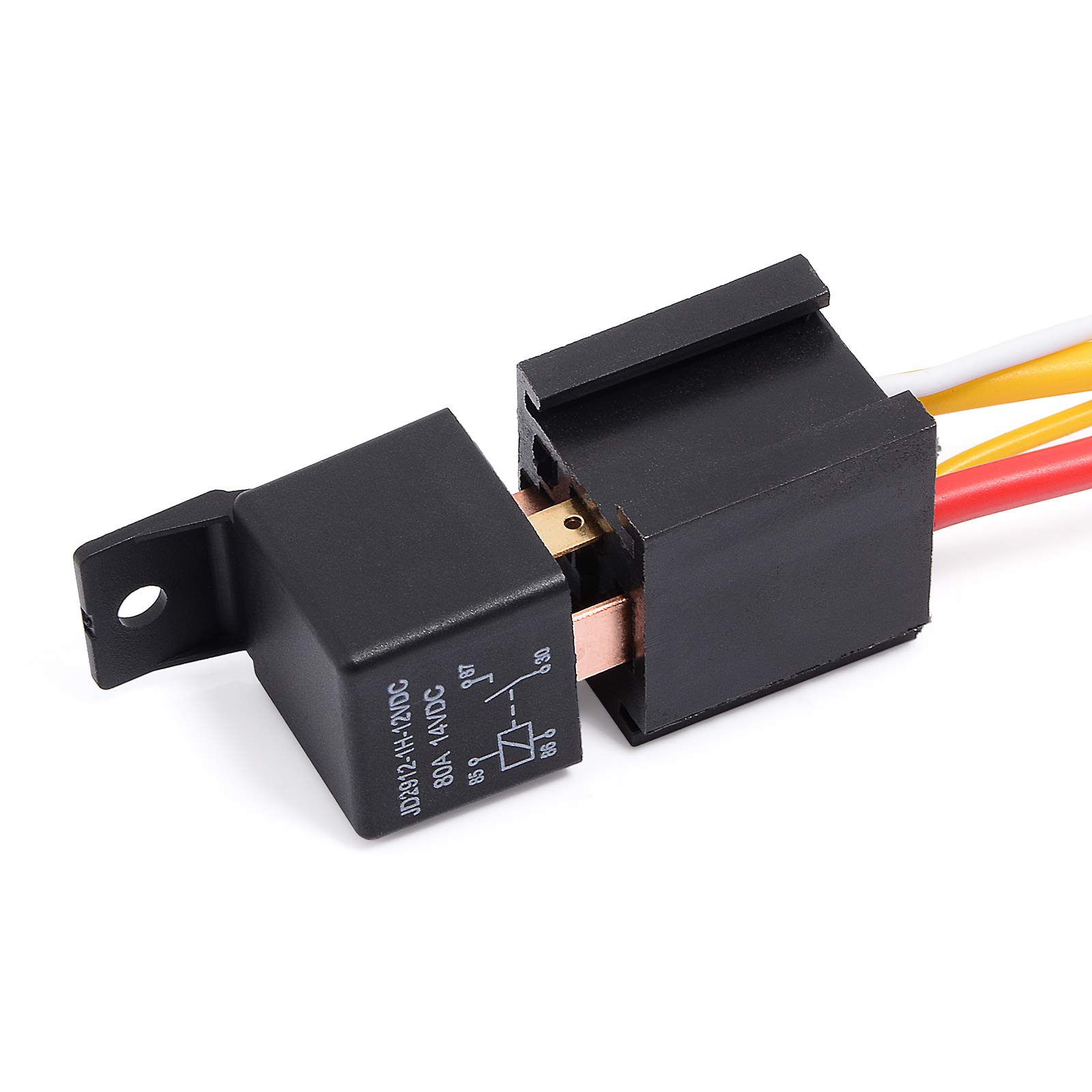

• Package Content: 1 x Model: JD-2912 Car Relay; 1 x 4 pin relay socket with 4 wires

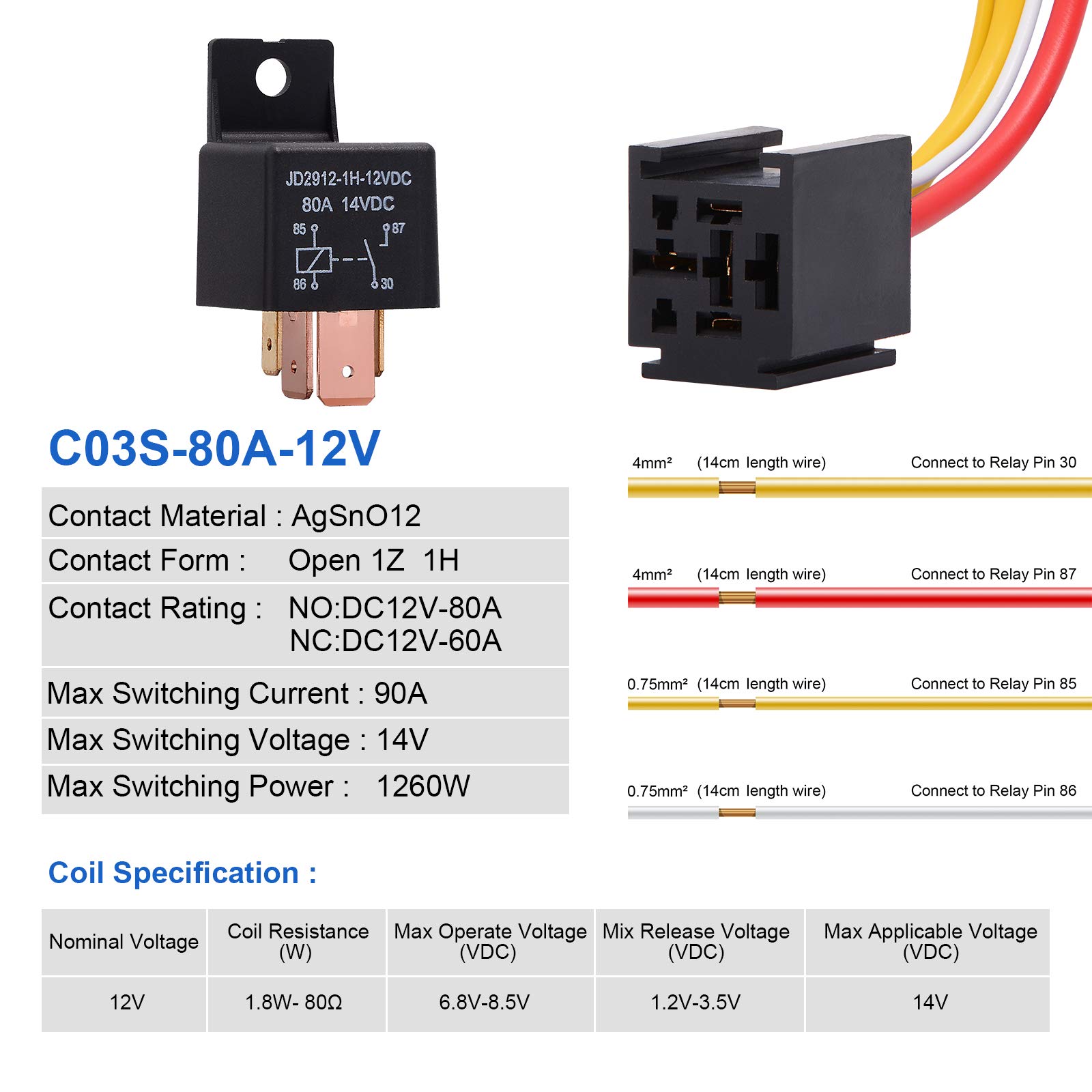

Contact Data: Contact Material: AgSnO2 Contact Form: Normal Open Contact Ratings: No: 80A 14VDC Contact Resistance: 100mMax at 6VDC 1A Max switching Current: 80A Max Switching Voltage: 75VDC Max Switching Power: 560W Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min) Life Expectancy Mechanical: 10,000,000 Operations Coil Specification: Nominal Voltage(VDC): 12V Coil Resistance (1.8W): 80 Max Operate Voltage (VDC): 6.0~8.0 Mix Release (VDC): 0.6~3.6 Max Applicable Voltage (VDC): 15.6 Characteristics: Temperature Range: -30°C ~+80°C Vibration Resistance: 10~55Hz, 1.5mm Shock Resistance: Operations Extremes: 10g Damage Limits: 100g Humidity: 40%~85% Insulation Resistance: 100m ohm Min at 500VDC Safety Standard: CCEE Dielectric Strength Between Open Contacts 500VAC (for one minute/sec) Between Contact and coil: 750VAC (for one minute/sec) Operate Time: 7ms Release Time: 5ms Weigh: Approx. 35g
