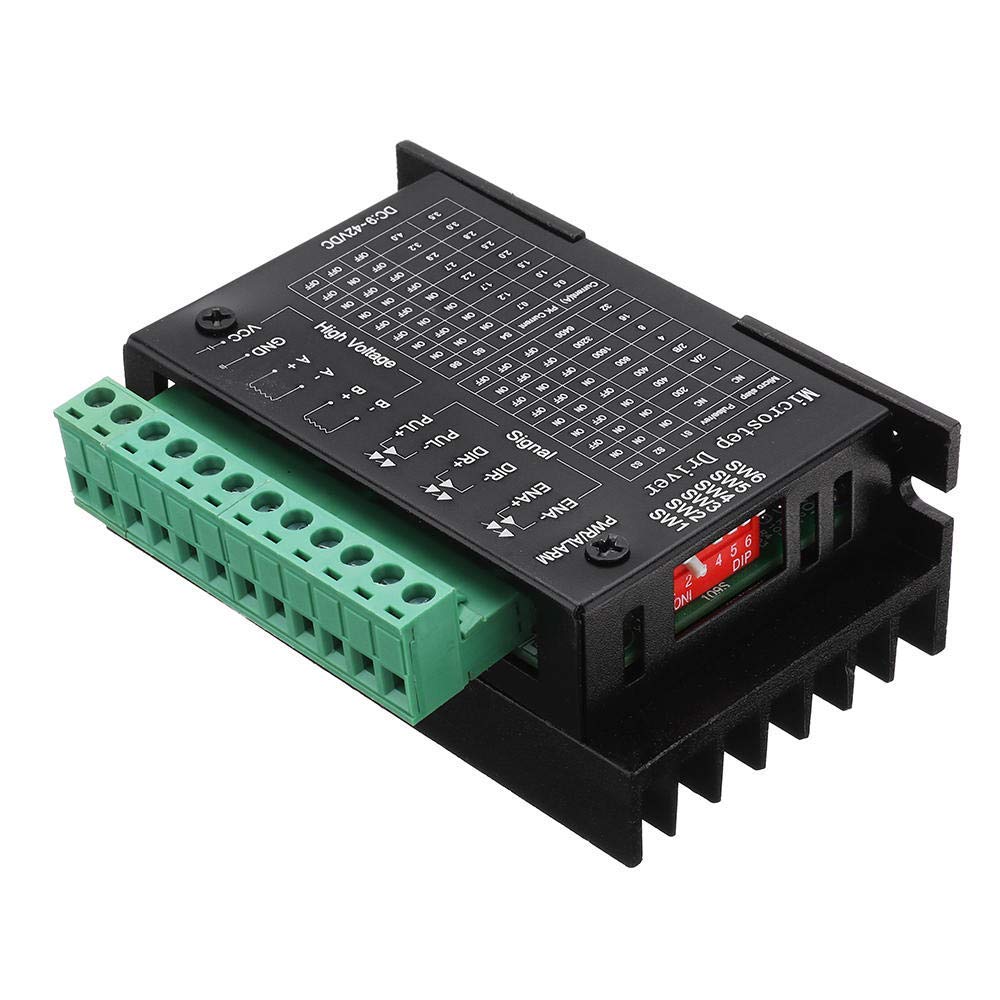

DollaTek TB6600 4A 9-42V Stepper Motor Driver CNC Controller, Stepper Motor Driver Nema Tb6600 Single Axes Two Phase Hybrid Stepper Motor for CNC

• 9V-42V DC power supply, H bridge bipolar constant phase flow drive.
• The maximum 4.0A of the eight kinds of output current. The largest 32 subdivision of the 6 models are optional.
• Energy-saving semi-automatic current lock function, built-in temperature protection and over current protection.
• Can control 2 phase stepper motor forward and reverse rotation, With 1-2, W1 -2 , 2W1 -2, 4W1 -2 phase excitation mode.
• Only the clock pulse signal can be driven two-phase bipolar stepper motor to achieve low vibration, high efficiency work.

Description: The TB1H is a high performance microstepping driver based on the latest original for high-efficiency TB6600HG for IC. The TB6600HG adopts single-chip PWM bipolar sinusoidal chopper to ensure the low vibration and high efficiency. Feature: PWM chopper type bipolar stepper motor driver IC. 9V-42V DC power supply. H bridge bipolar constant phase flow drive. The maximum 4.0A of the eight kinds of output current. The largest 32 subdivision of the 6 models are optional. Input signal high speed photoelectric isolation. Common-anodestandard single pulse interface. Offline to maintain the function. Semi closed enclosure can be adapted to a more stringent environment. To provide energy-saving semi-automatic current lock function. Built-in temperature protection and over current protection. Specifications: Single chip bipolar sine microstep stepper motor driver. The new BiCD 0.13 nm process.up to 42V. Resistance (a +) = 0.4.The forward and reverse rotation control. 5 subdivision mode options (1/1, 1/2, 1/4, 1/8, 1/16,1/32). Output current: IOUT = 4.0A (peak, in 100ms). Rated output: IOUT = 3.5 A.Package: HZIP25 - 1.00F. Input port internal pull-down resistor: 100 K. Alarm output pin current:Ialert = 1mA. Monitoring output pin (MO): Imo= 1mA. With reset and enable pin.With standby function. Built in overheating protection (TSD) circuit. Undervoltage protection, built-in (UVLO) circuit. Built-in overcurrent detection (ISD), circuit. Package Included: 1 x TB6600 4A 9-42V Stepper Motor Driver CNC Controller"
