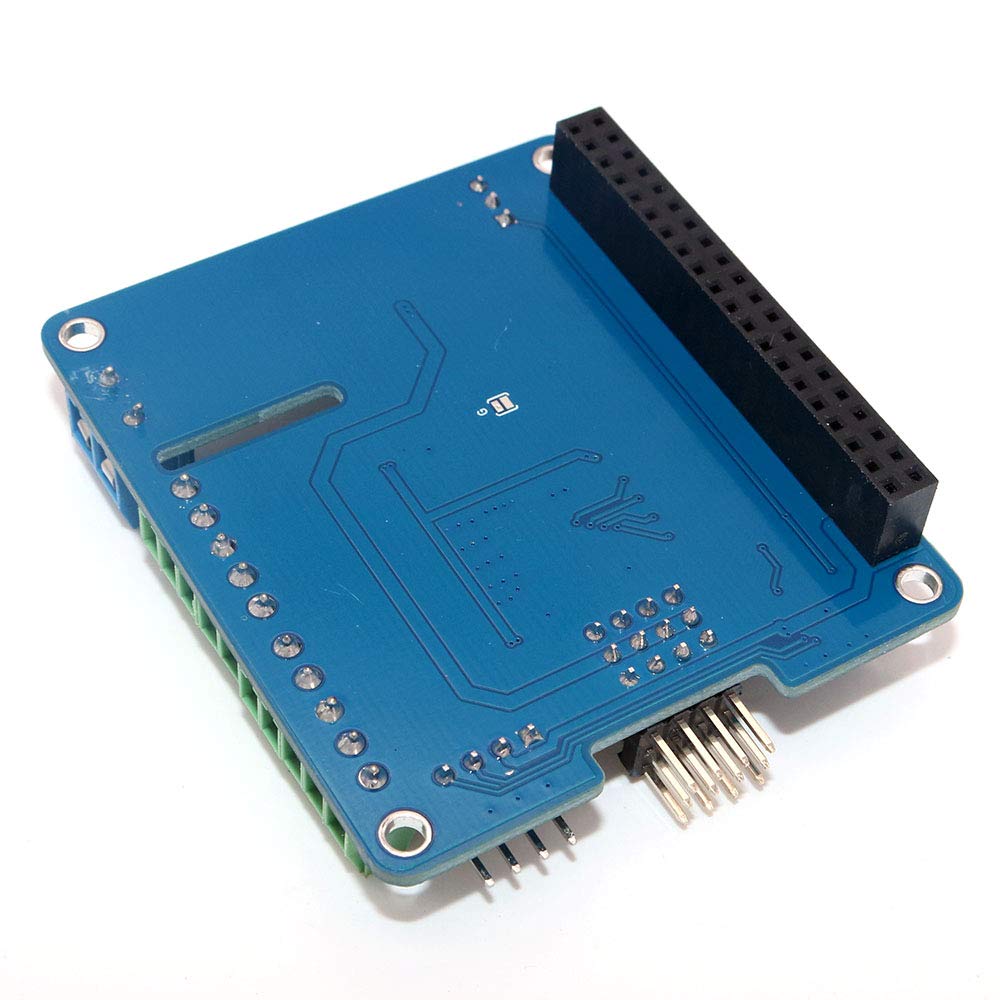

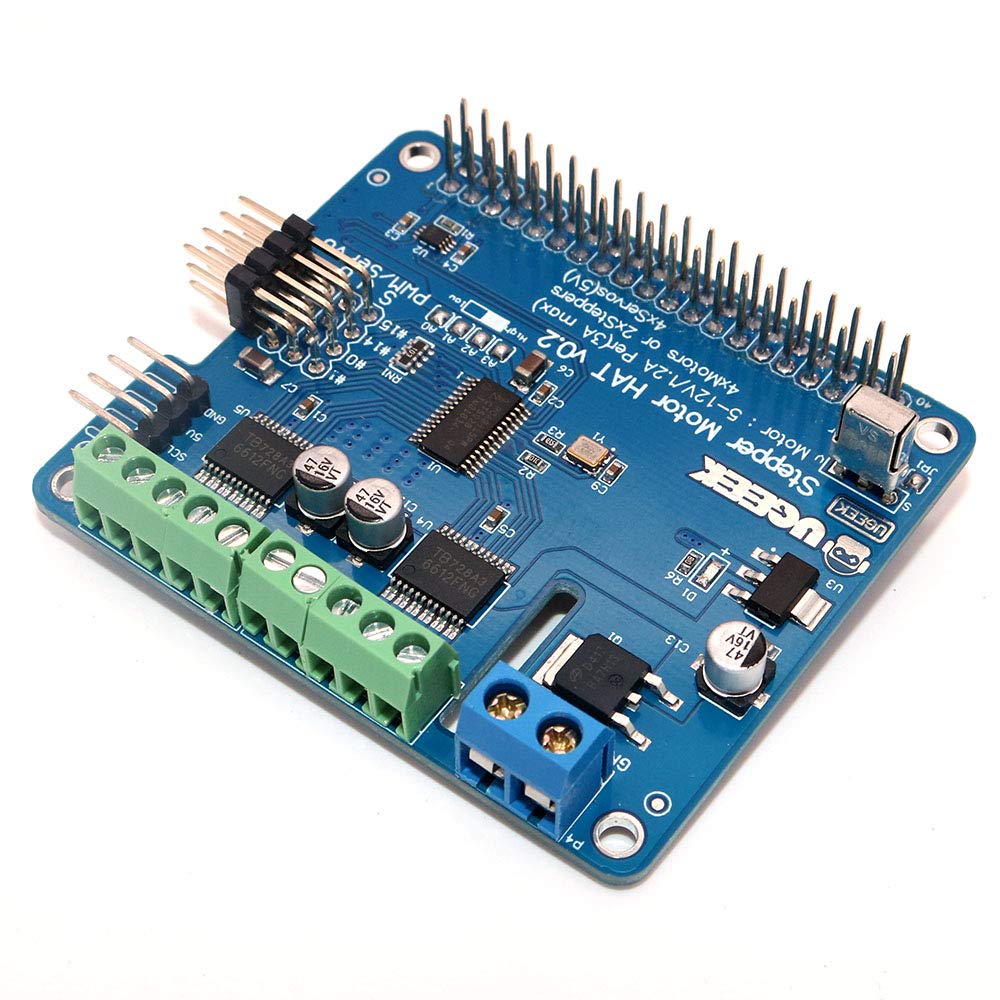

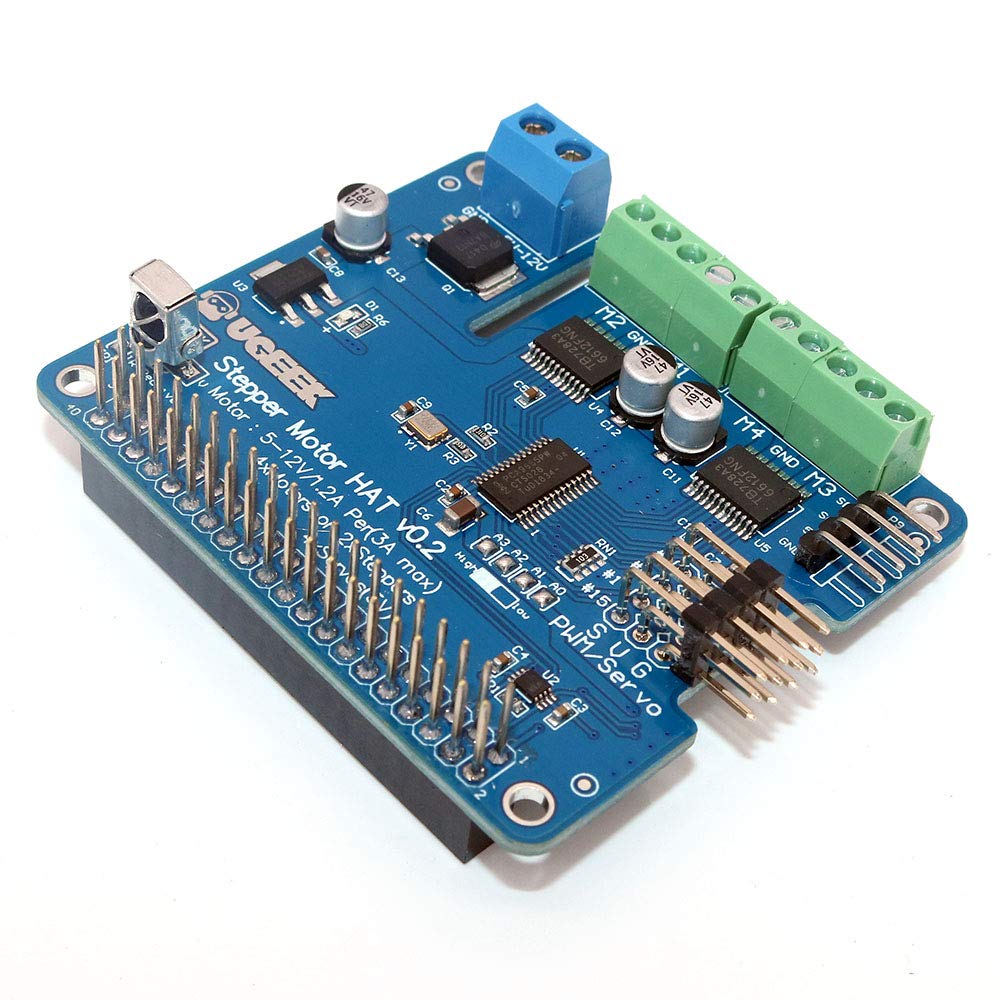

DollaTek Rasberry Pi 3 Stepper Motor HAT Full Function Robot Expansion Board For Raspberry Pi 3,Pi 2,B+,Zero

• Full Function Robot Expansion Board Support Stepper Motor Servo For Rasberry Pi 3B /2B / B+/Zero
• Stepper motors are great for (semi-)precise control, perfect for many robot and CNC projects
• This HAT supports up to 2 stepper motors. The python library works identically for bi-polar and uni-polar motors
• 4 H-Bridges: Provides 1.2A per bridge (3A peak) with thermal shutdown protection, internal kickback protection diodes. Can run motors on DC 5V to DC 12V. 2. Up to 4 bi-directional DC motors with individual 8-bit speed selection
• Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, interleaved or micro-stepping. Up to 4 Channel 12-bit PWM/Servo(5V). One Infrared Receiver(GPIO26)

DollaTek Rasberry Pi 3 Stepper Motor HAT Full Function Robot Expansion Board For Rasberry Pi 3,Pi 2,B+,Zero Full Function Robot Expansion Board Support Stepper Motor Servo For Raspberry Pi 3B /2B / B+/Zero Stepper motors are great for (semi-)precise control, perfect for many robot and CNC projects This HAT supports up to 2 stepper motors. The python library works identically for bi-polar and uni-polar motors 4 H-Bridges: Provides 1.2A per bridge (3A peak) with thermal shutdown protection, internal kickback protection diodes. Can run motors on DC 5V to DC 12V. 2. Up to 4 bi-directional DC motors with individual 8-bit speed selection Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, interleaved or micro-stepping. Up to 4 Channel 12-bit PWM/Servo(5V). One Infrared Receiver(GPIO26) Product specifications Operating voltage: 5V ~ 12V Interface: I2C Size: 65x56x21mm Weight: 0.02kg Product Interface Description 4-way steering gear interface (# 0, # 1, # 14, # 15) 4-way motor interface (M1, M2, M3, M4) 2 stepper motor interface (M1 + M2, M3 + M4) I2C interface Packing included: 1x DollaTek Stepper Motor Expansion Board
