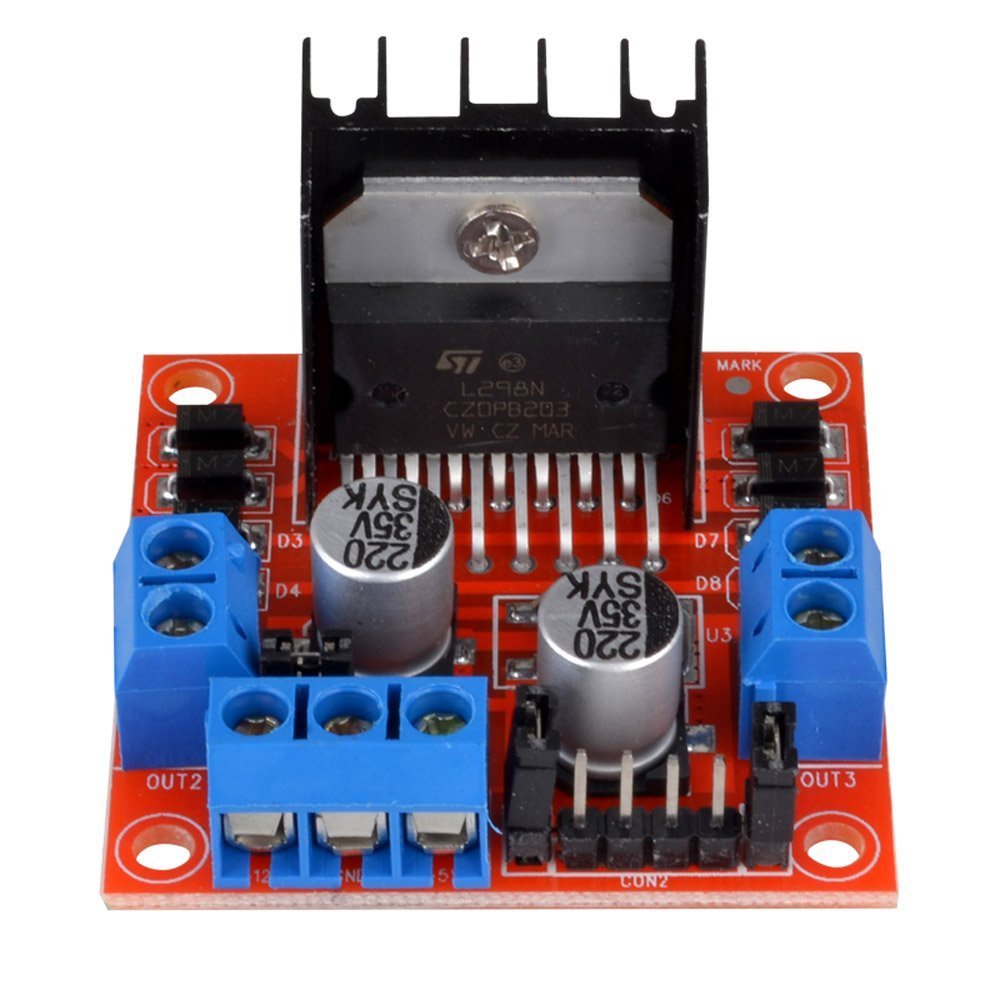

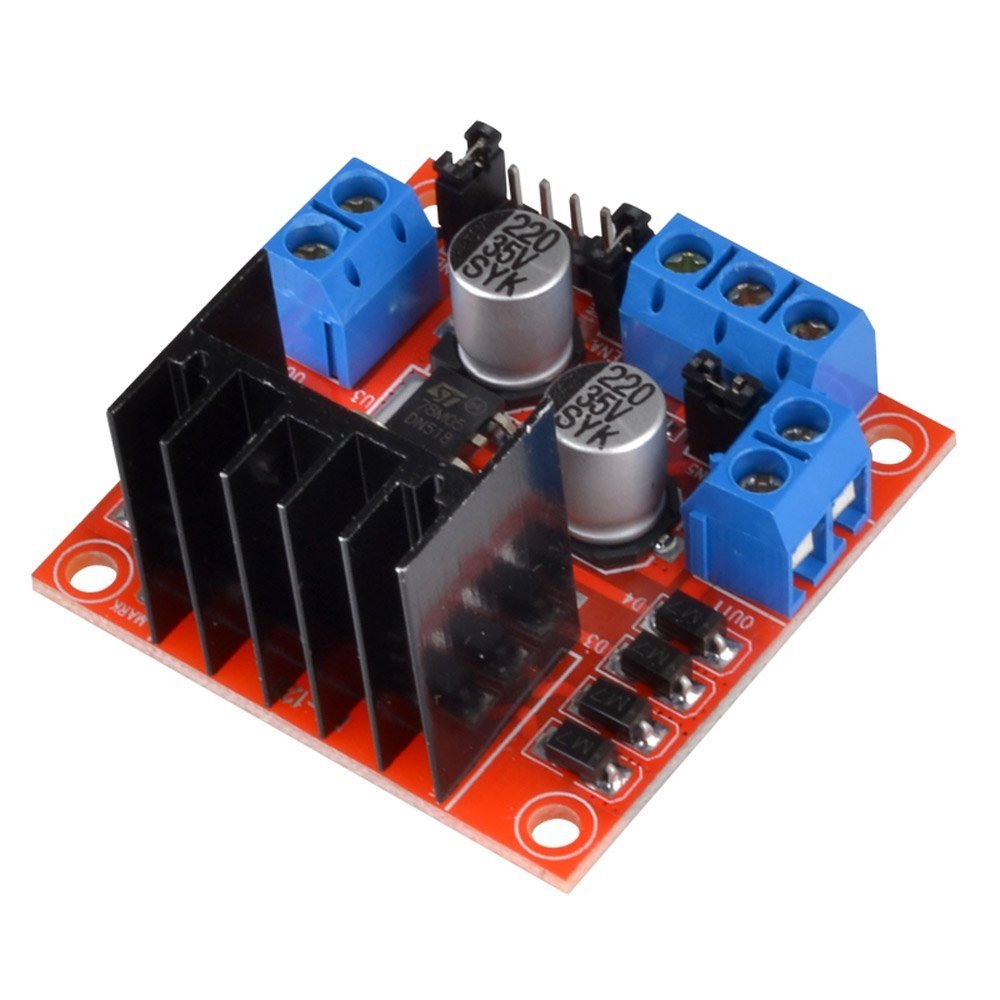

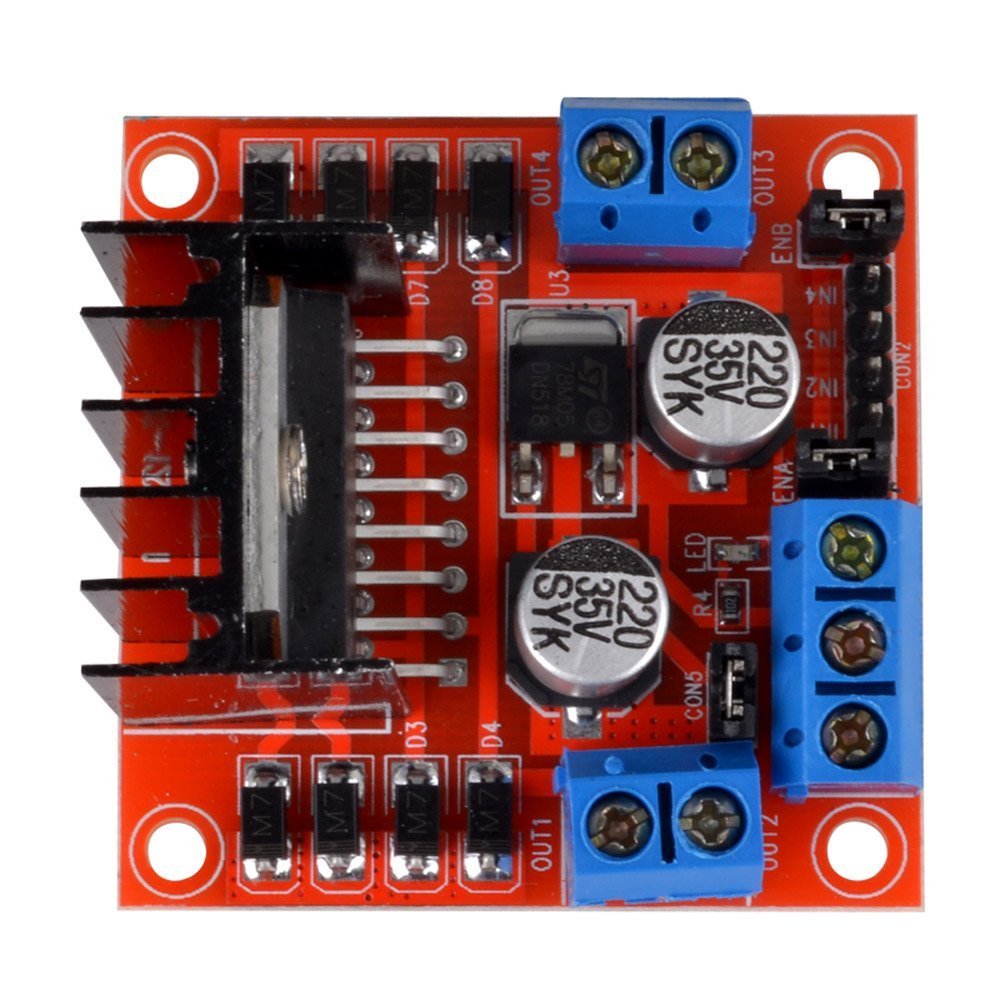

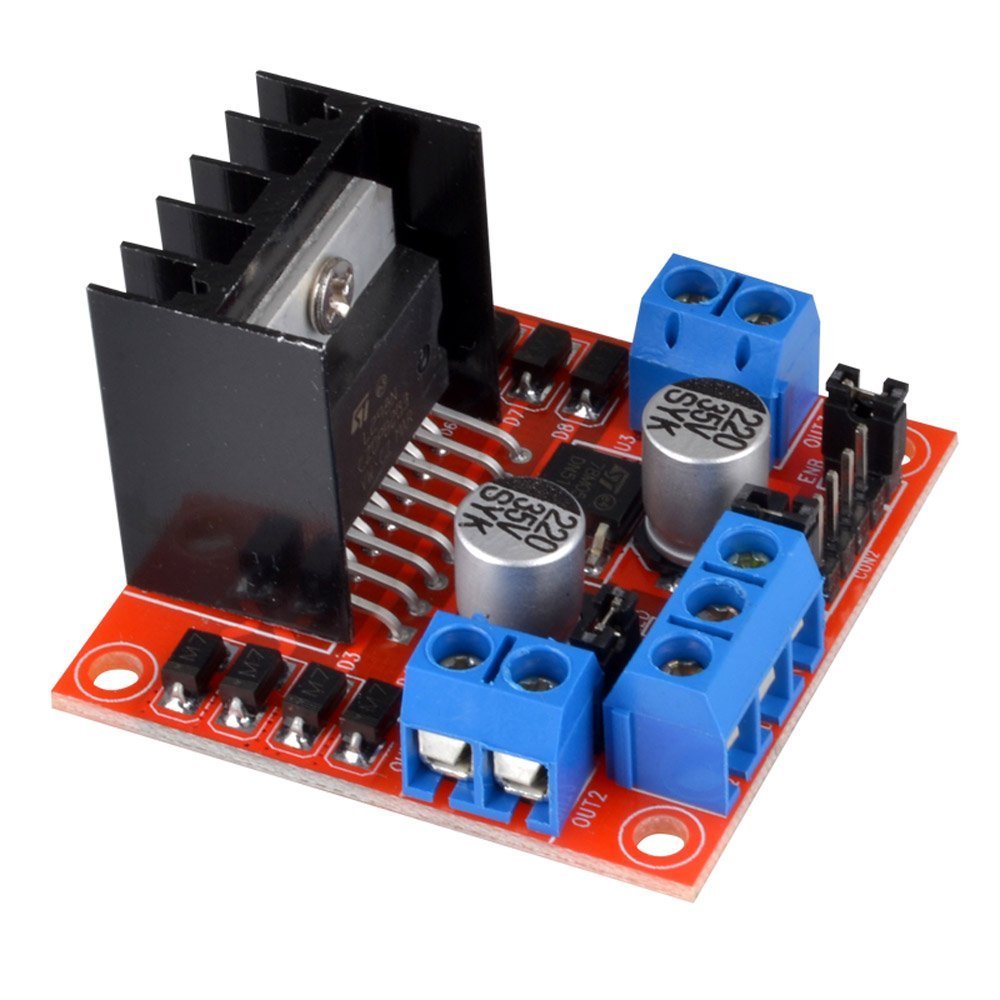

DollaTek Mini Stepper Motor Drive Controller Board Module L298N Dual H Bridge DC Stepper for Arduino Smart Car Robot

• The module using ST L298N chipset,has strong driver capability,afterglow protection diode, more stable and reliable.
• Logical voltage 5V. Drive voltage 5V-35V Drive current 2A(MAX single bridge). Max power 25W Storage temperature: -25 ~ +130
• Size:43*43*27mm / 1.69*1.69*1.06"
• Dual-channel H-bridge driver working mode creates higher working efficiency
• To avoid damage the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage

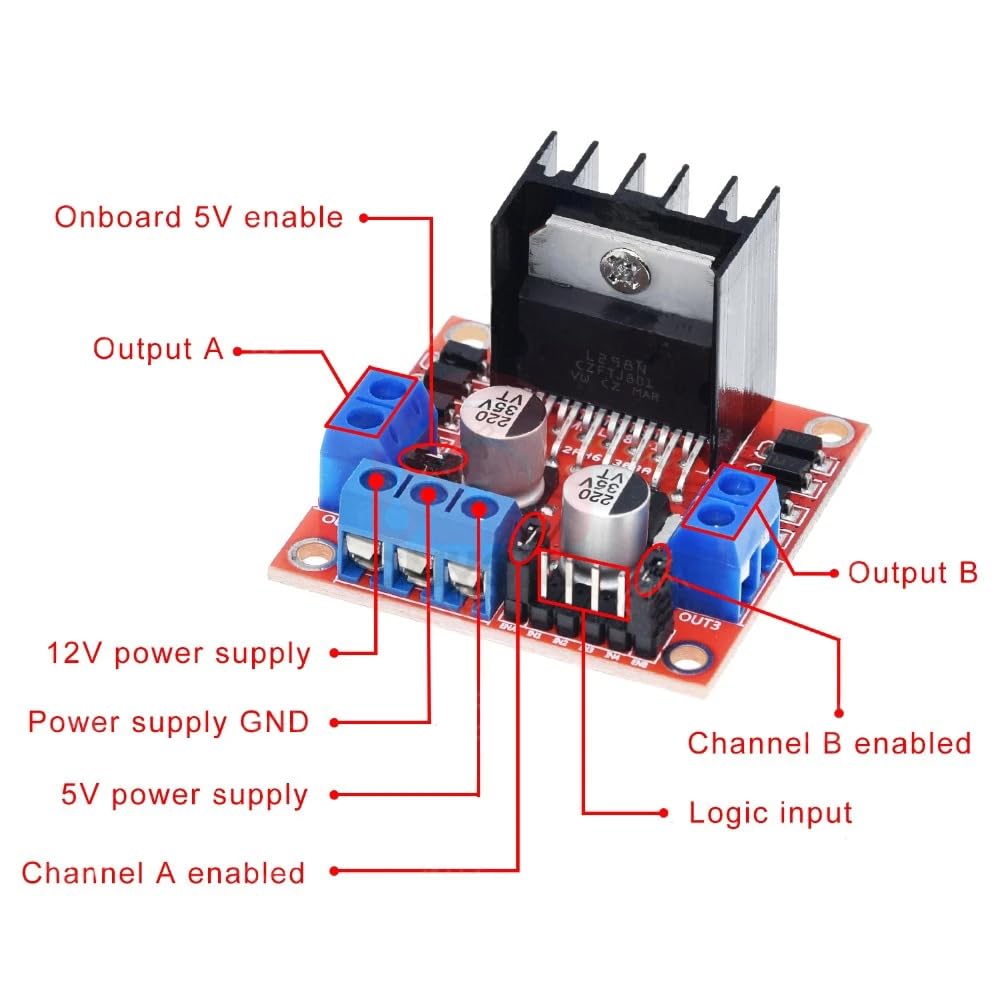

Features: 1. L298N as main driver chip makes strong driving ability/small heating/strong anti-interference 2. Use large-capacity filter capacitors and diode with freewheeling protection function, increasing reliability 3. This module integrated with one internal 5V power supply, meaning when your driving voltage is 7V-35V,it makes 5V of energy board power supply logically; when 5V of energy board power on, please not input voltage to +5V power supply in interface but you can lead 5V voltage for external usage Eg: ENA enable IN1 IN2 to control OUT1 OUT2ENB enable IN3 IN4 to control OUT3 OUT4 Specification: Chip: ST L298N dual H-bridge driver chip Logic voltage: 5V Logic current 0mA-36mA Storage Temperature: -20 ℃ to +135 ℃ Operating mode: H-bridge driver (dual) Drive voltage: 5V-35V Drive current: 2A (MAX single bridge) Maximum power: 25W Dimensions: 43x43x27mm Package includes: 1x L298N Module
