DollaTek ESP8266 12V WiFi relay Internet of Things smart home Cell phone APP tele switch

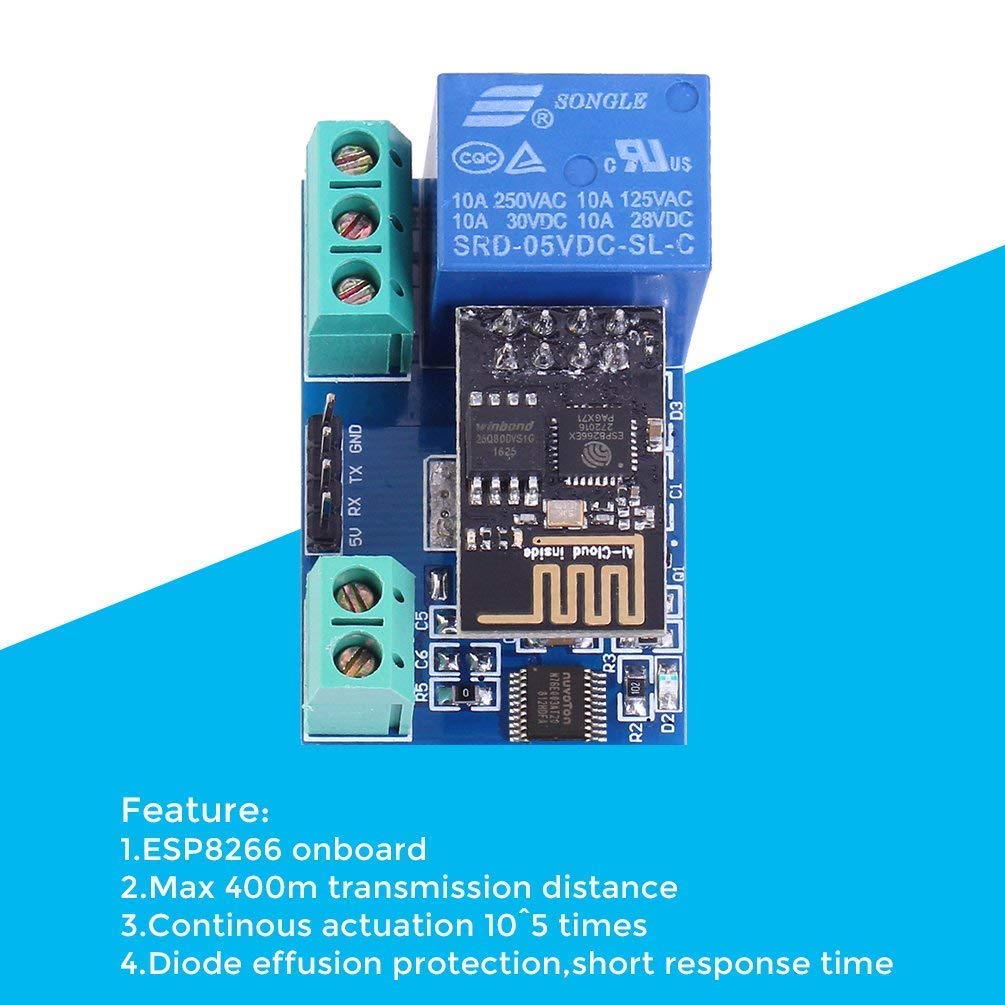

• IOT smart home remote control kit based on ESP8266 WiFi module and 1 channel 12V 10A 10A/250V AC 10A/30V DC relay module
• Control the relay working status through "EasyTCP_20" APP which can be download from the Tools file from drive.google.com/open?id=0ByLlBkJVmxooZFl4R2VPRGszMGs
• With max. 400m transmission distance and the baud rate is 9600,8,1,0,0
• With the features of diode effusion protection and short response time

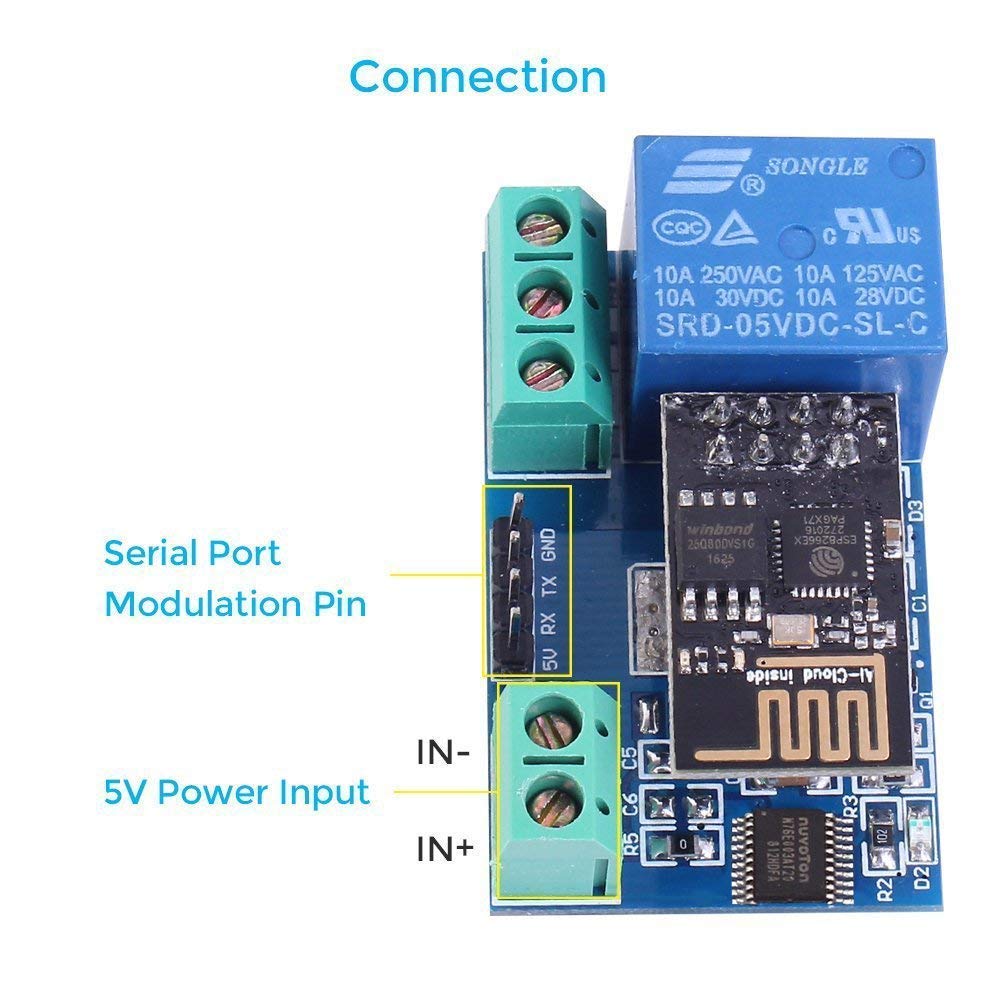

• Connection info has been provided as the picture shown. Download the material from drive.google.com/open?id=0ByLlBkJVmxooZFl4R2VPRGszMGs

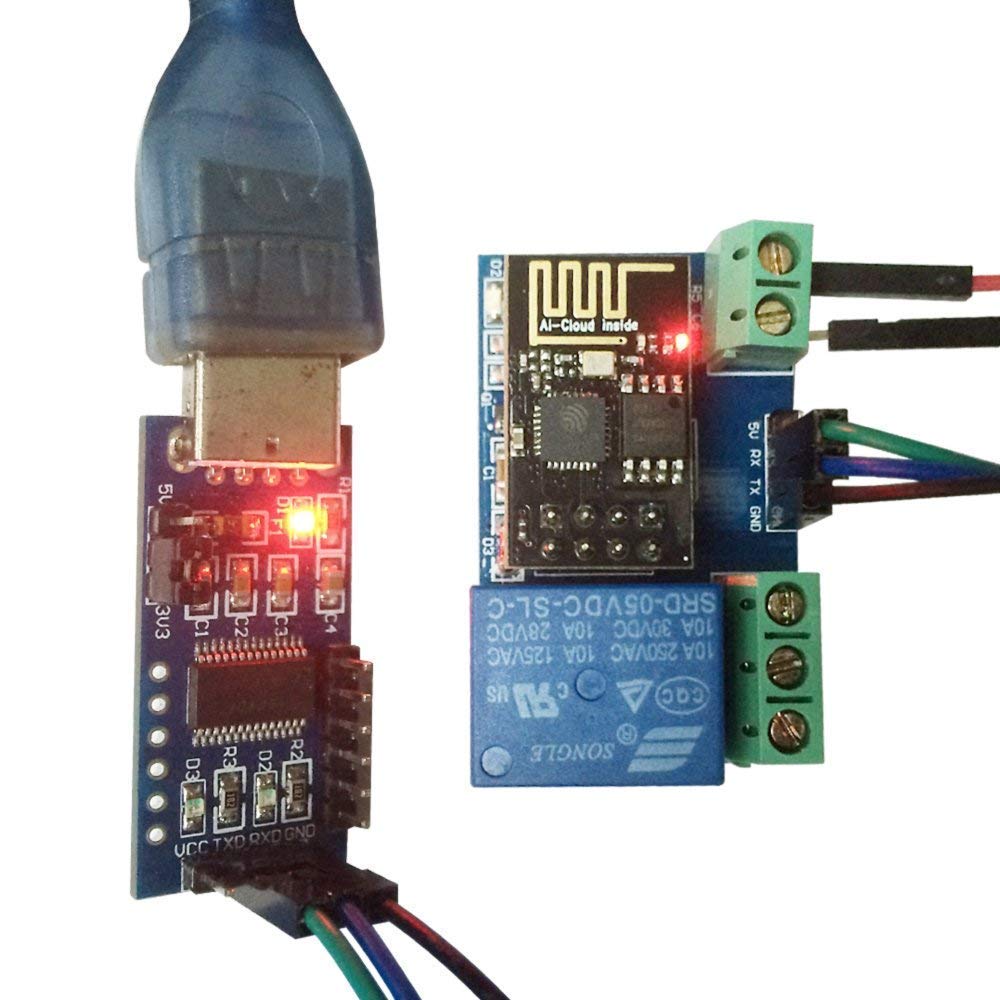

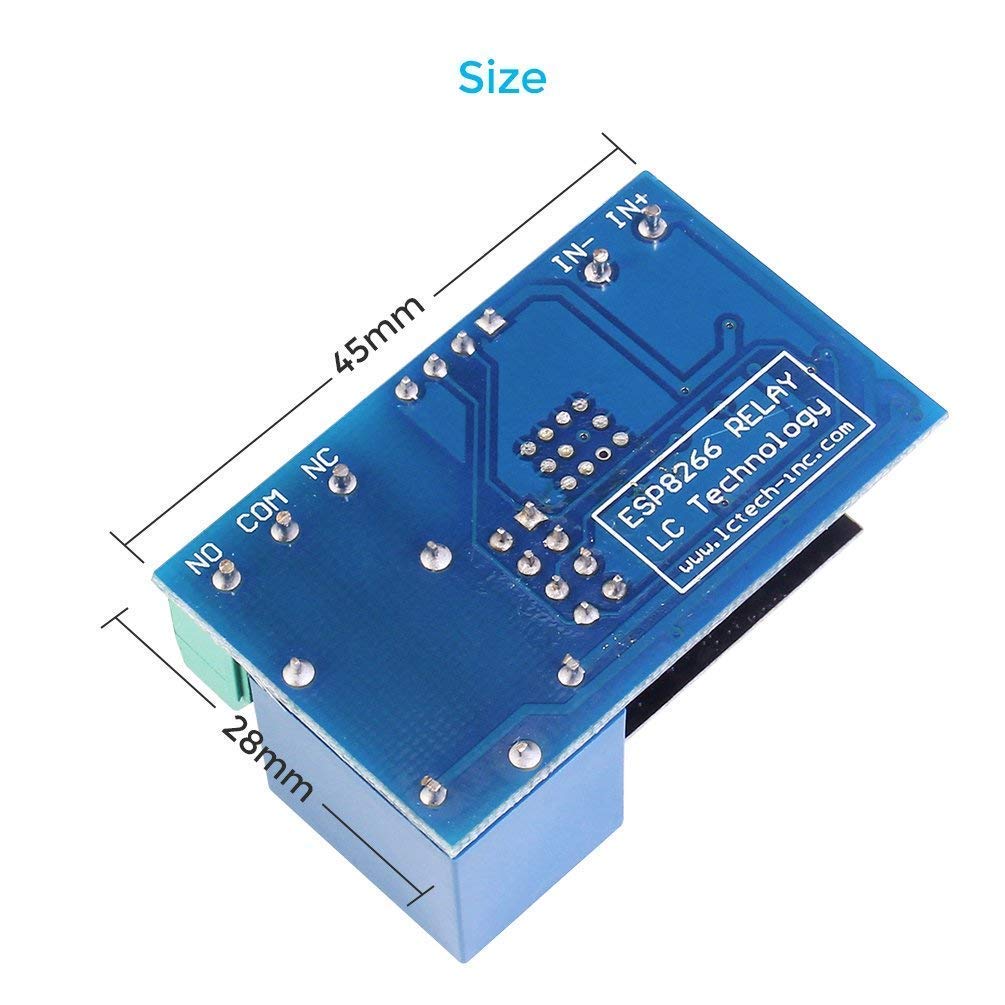

DollaTek trademark Reg.NO:013726393 Introduction: Onboard ESP8266 WIFI module, AP mode 5 client can be connected at the same time; Module has two work modes: 1, cell phones, carry on the WiFi module;2, mobile phone and WiFI module Carrying on the same router, by mobile phone APP to control relay; Transmission distance: 1, the open environment, the mobile phone when carrying on the WIFI module maximum transmission distance of 400 m; when the WiFI module and cell phone carrying on the router at the same time the signal transmission distance in accordance with the router on the weak; Onboard 12 v, 10 A / 250 v AC 10 A / 30 v DC relay, absorb 100000 times continuously; Module with diode effusion protection, short response time; Module baud rate: 9600,8,1,0,0. Introduced the hardware and instructions Size: 45*28mm The board function description: IN +,IN-: 12 v power input; TX ,RX and GND: a serial port debug pins; Onboard the ESP8266 WIFI module has three work modes: STA (client), AP (hot), the STA + Ap( hot +client), according to the workings of a module to the corresponding choice of WIFI module working mode.Module need before use serial debugging software and USB to TTL module send serial command was carried out on the WIFI module configuration (don't power outages after configuration is complete, as some of the parameters of WIFI module cannot be saved when the power is cut off), mobile phone and WIFI module after establishing a network connection can use the phone APP control relay. Package Includes: 1x DollaTek ESP8266 12V WiFi relay Internet of Things smart home Cell phone APP tele switch
