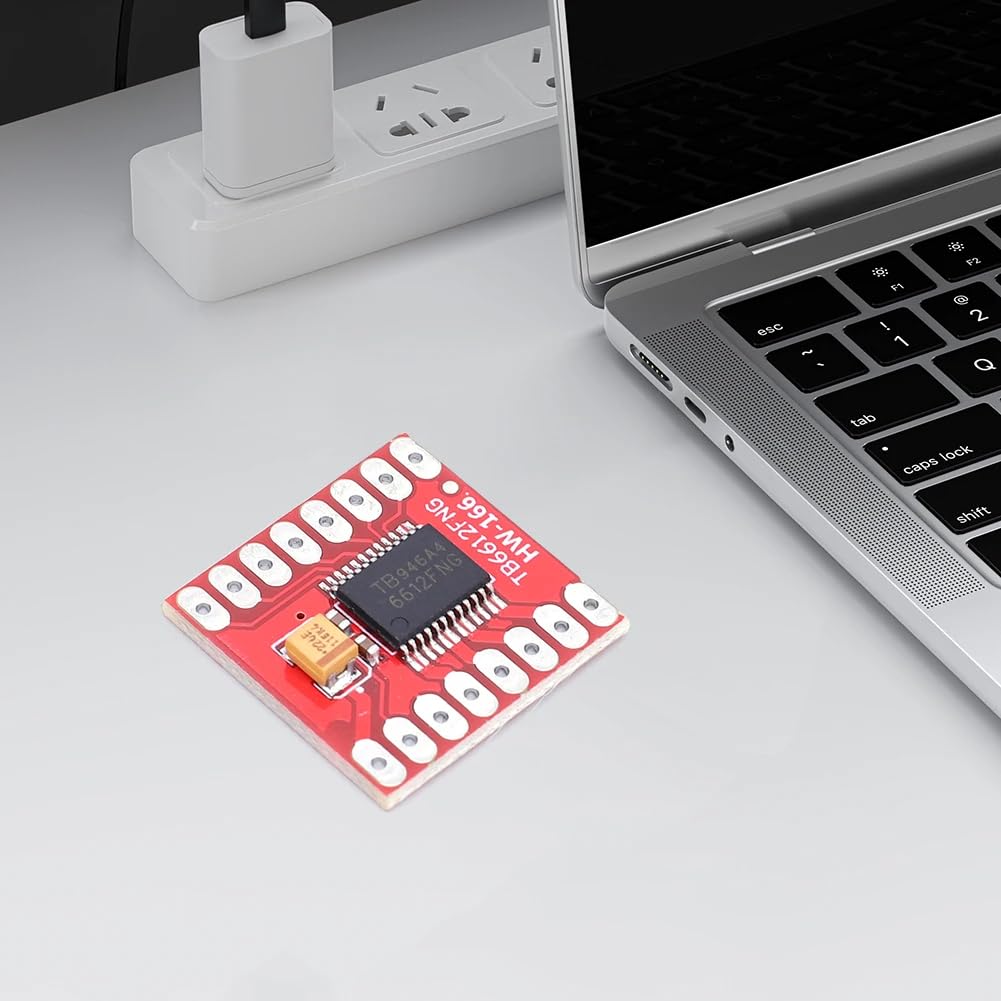

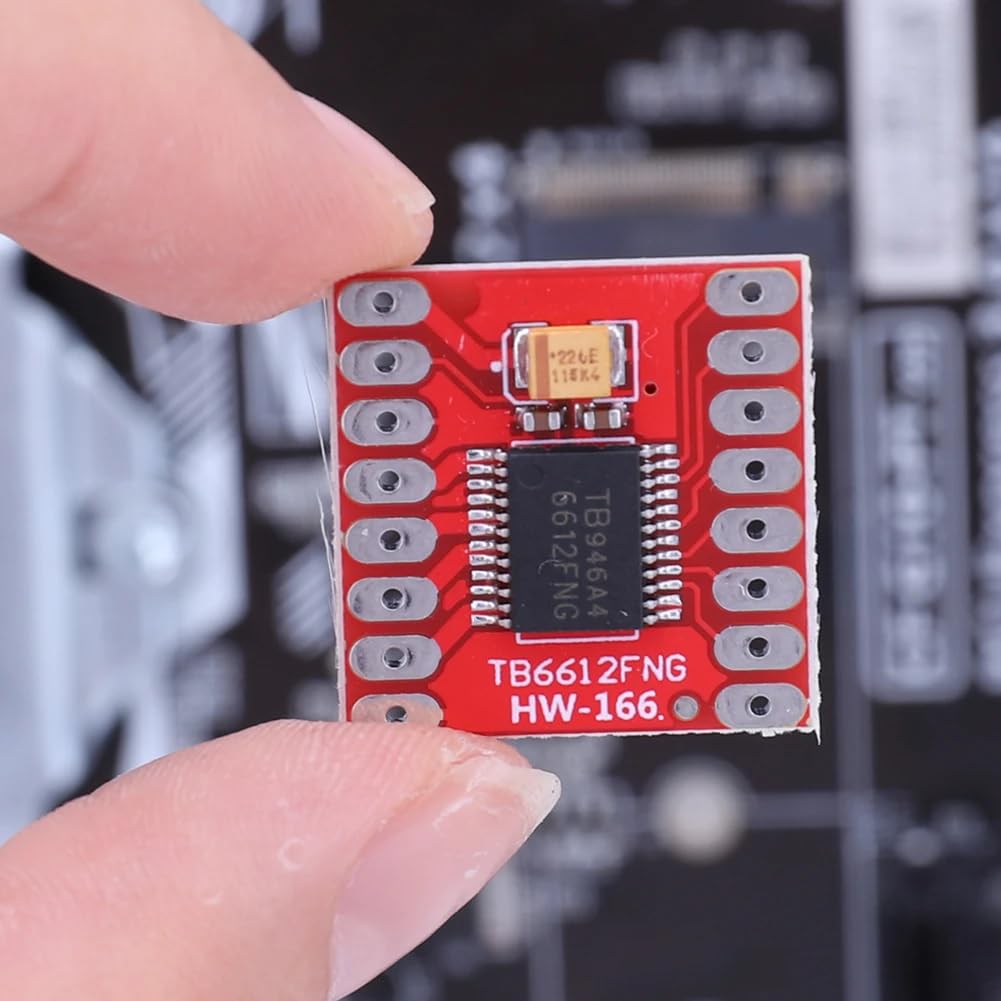

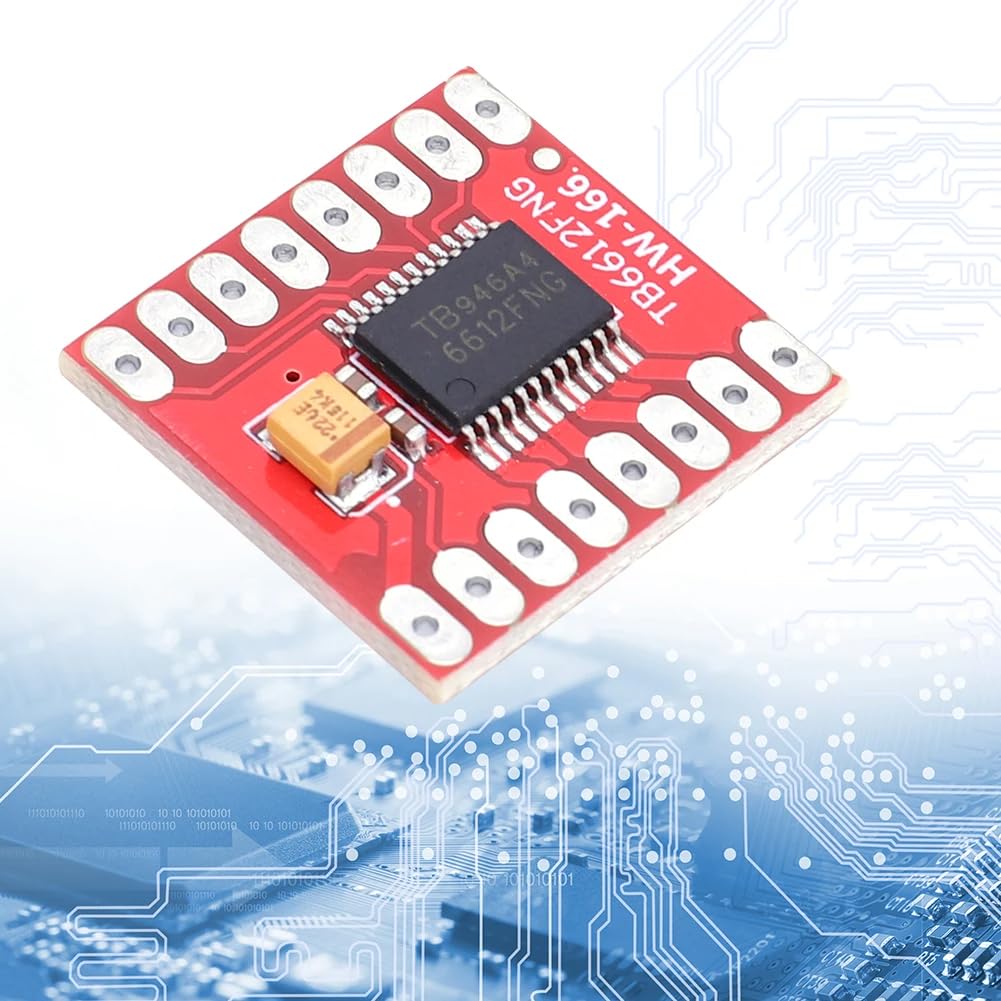

DollaTek Dual Motor Driver Module 1A TB6612FNG For Arduino Microcontroller

• Standby control to save power
• CW / CCW / short brake / stop motor control modes
• Filtering capacitors on both supply lines
• Built-in thermal shutdown circuit and low voltage detecting circuit

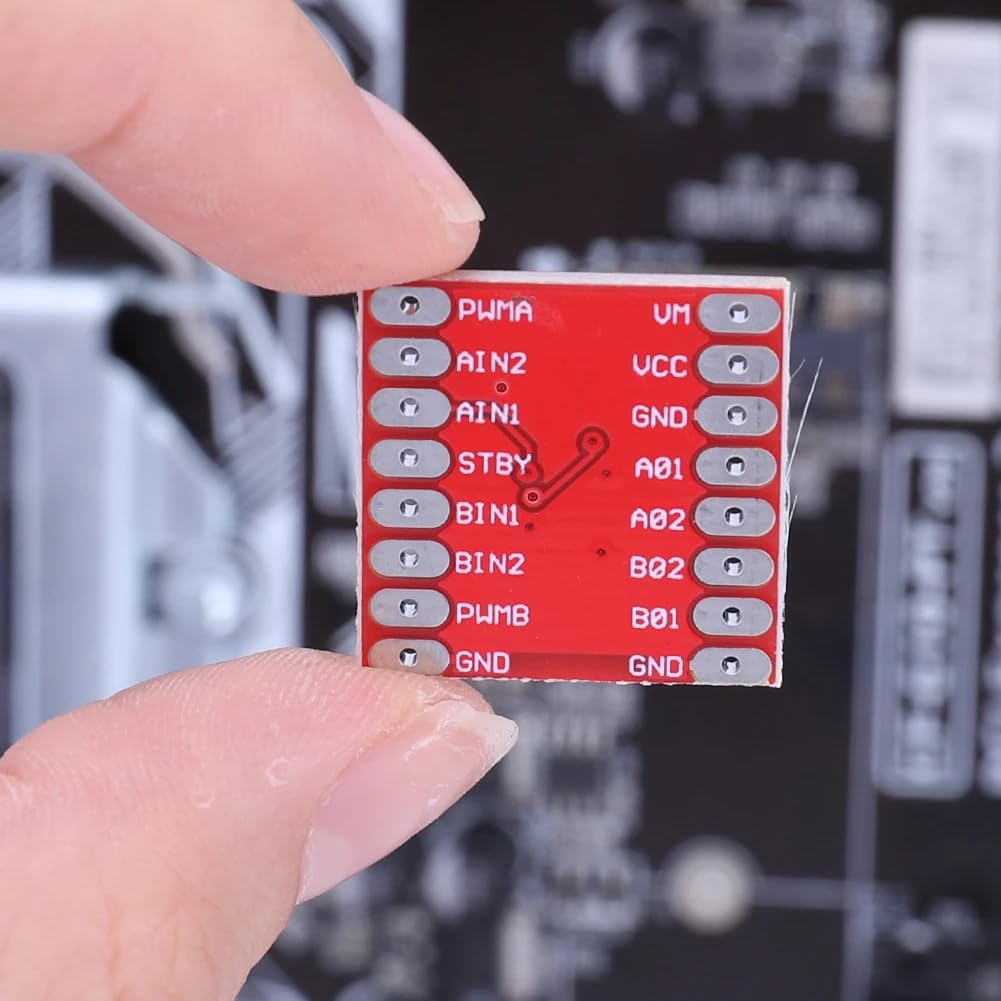

• All pins of the TB6612FNG broken out to 0.1 inch spaced

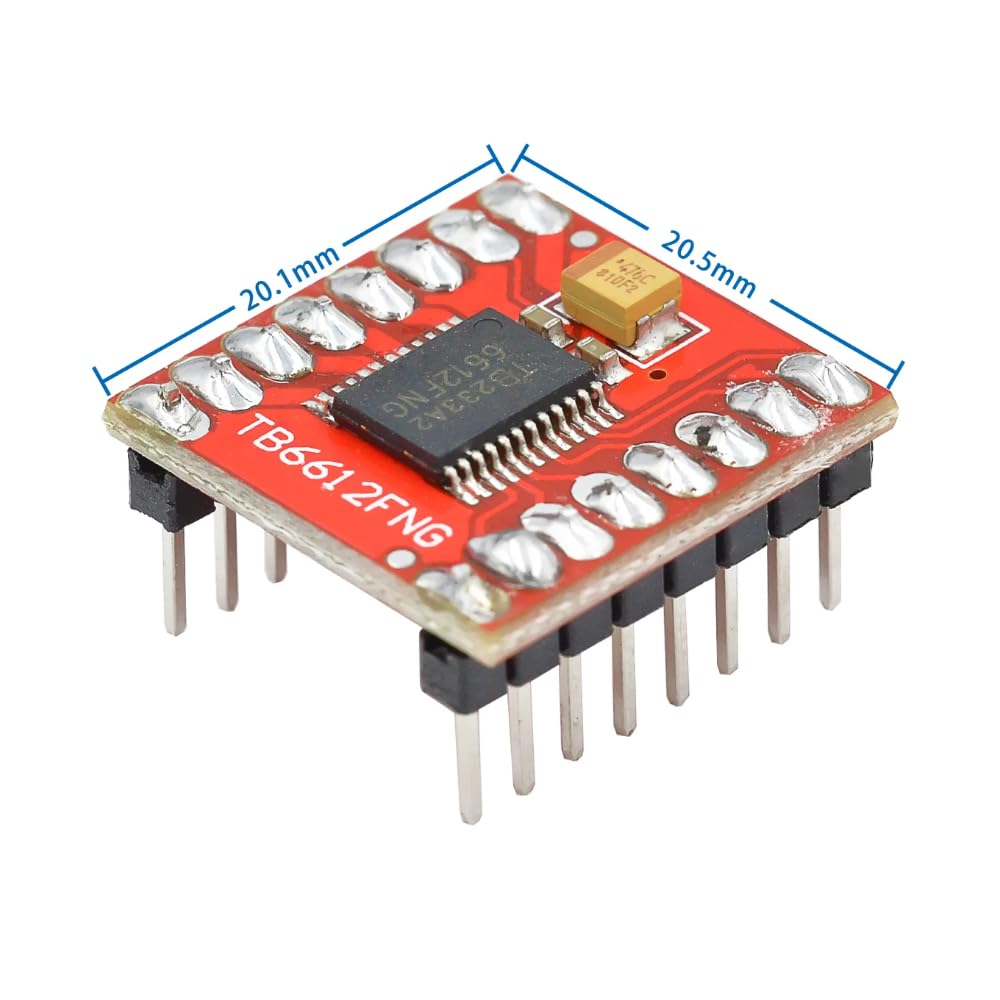

DollaTek trademark Reg.NO:013726393 The TB6612FNG motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes - CW, CCW, short-brake, and stop. The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limited to a maximum voltage of 15VDC. The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse). All pins of the TB6612FNG are broken out to two 0.1 inch pitch headers. Specification: Dimension: 0.8 x 0.8 inch Power supply voltage: VM = 15V max, VDC = 2.7-5.5V Output current: Iout = 1.2A (average) / 3.2A (peak) Package included: 1x Dual motor driver module
