DC Auto Buck Boost Module,Adjustable Automatic Step UP Down Voltage Converter LCD Display CCCV Step Up Down Voltage Converter Solar Charging

• Digitally adjusted voltage and current, convenient and fast, industrial quality, high precision, can be directly used in engineering projects.

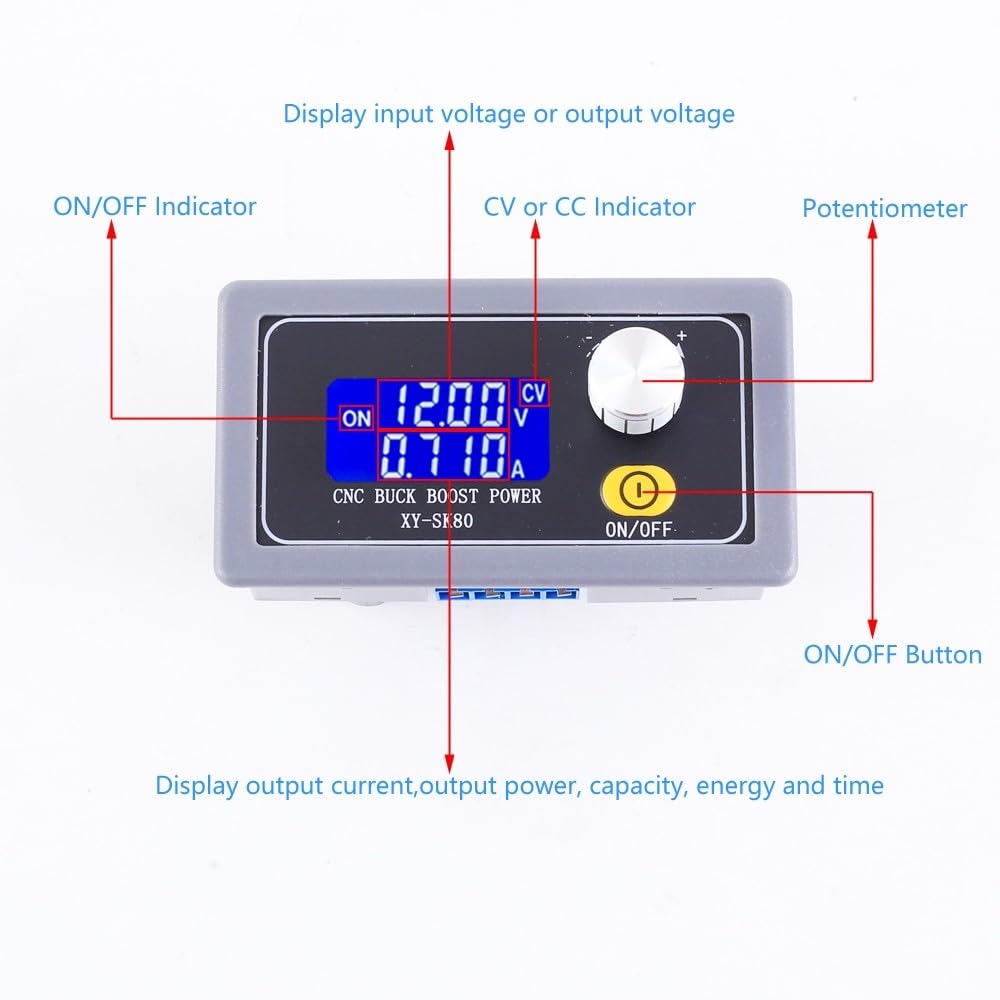

• Using professional power LCD, the interface is clear, the operation is very simple, and it has a nearly perfect protection mechanism.

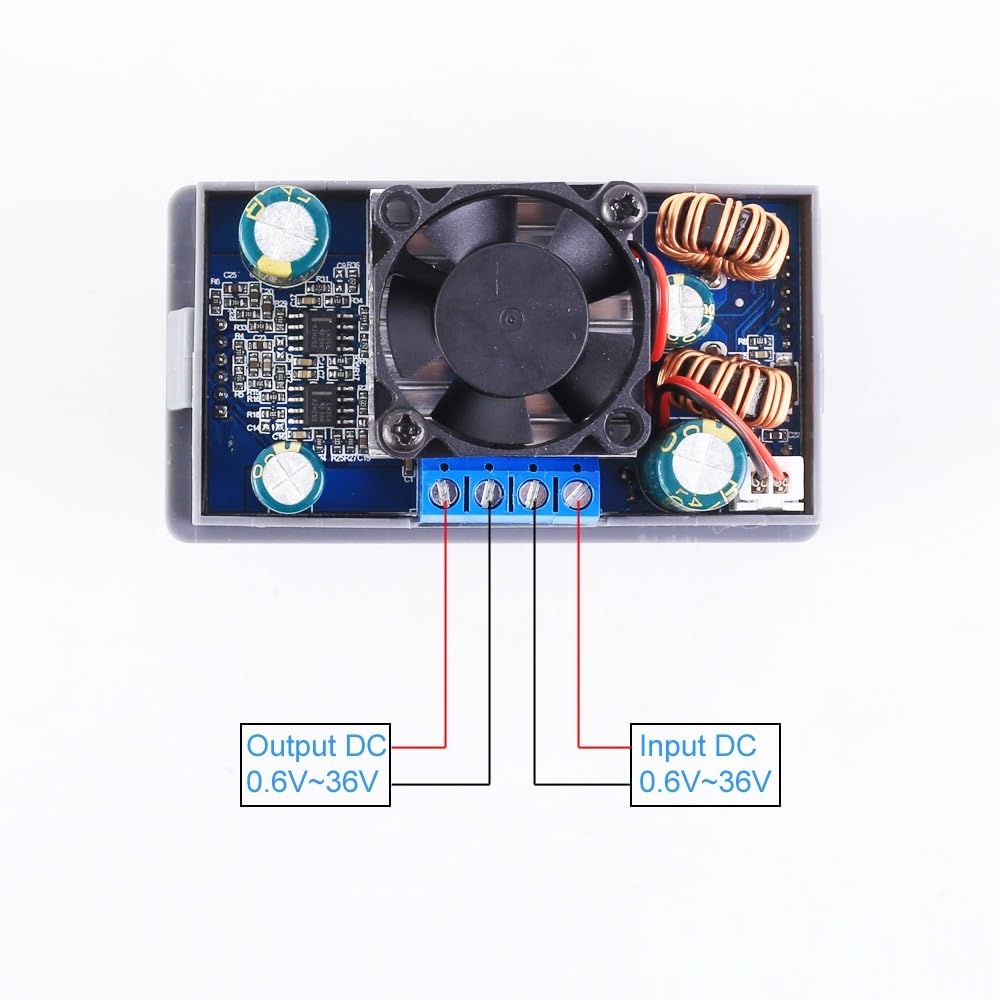

• Hardware protection: input terminal anti-reverse protection, reverse connection does not burn; output terminal short circuit protection, short circuit does not burn; output terminal is anti-reverse, no additional anti-reverse diode is required when charging the battery.
• Software protection: overvoltage protection (OTP), overcurrent protection (OCP), overpower protection (OPP), overtemperature protection (OTP), input undervoltage protection (LVP).
• Voltage and current can be locked to prevent misoperation.

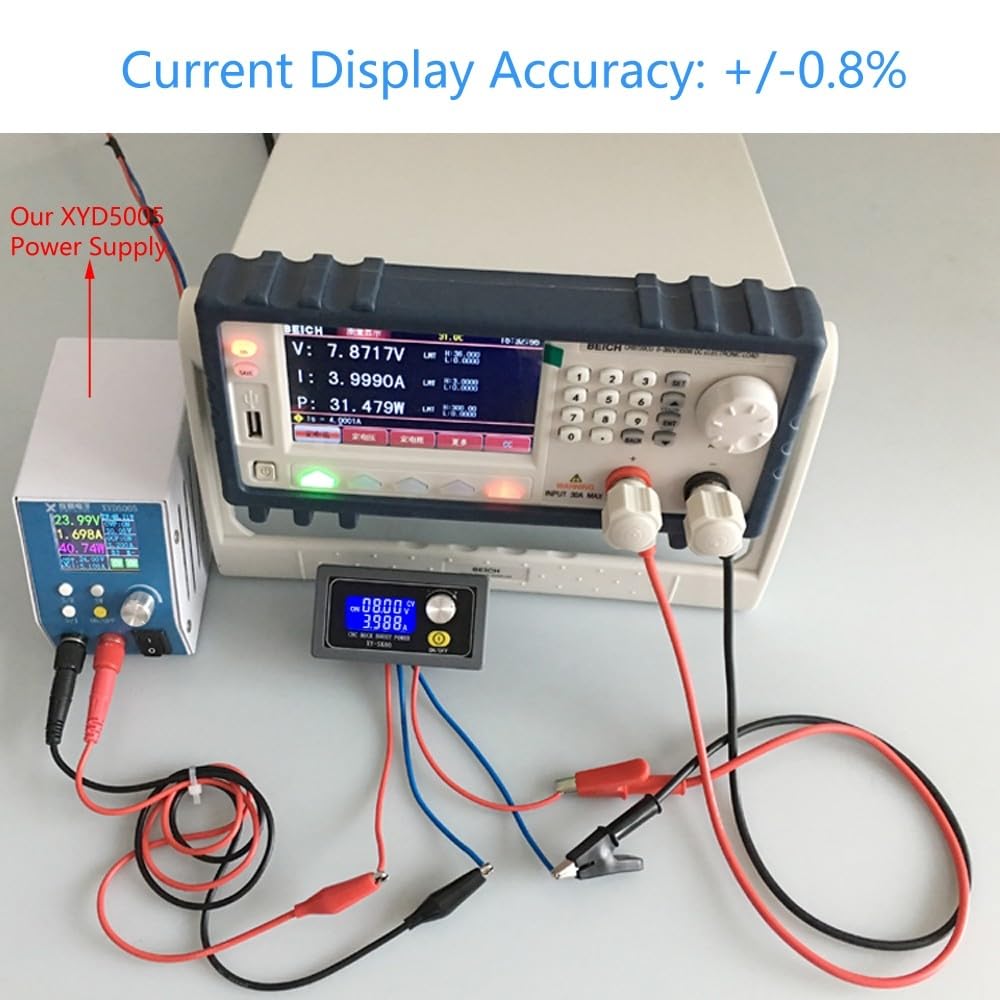

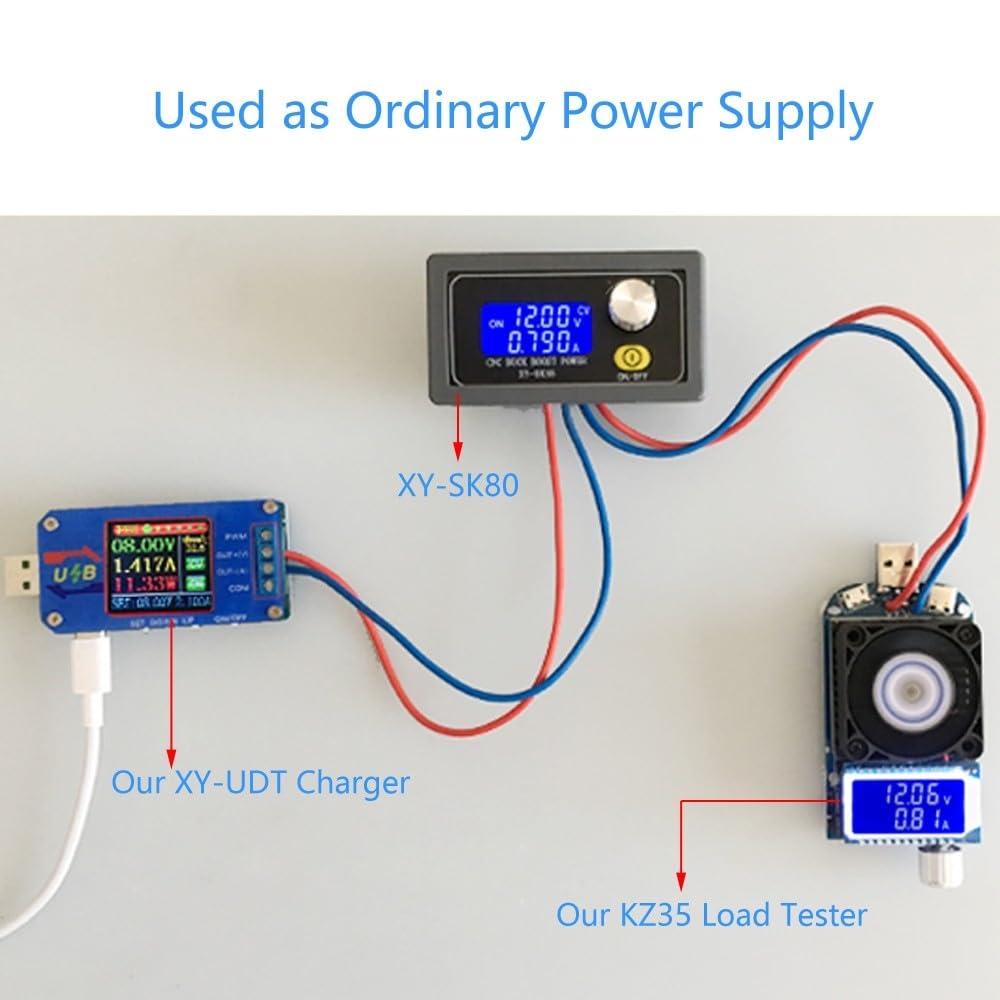

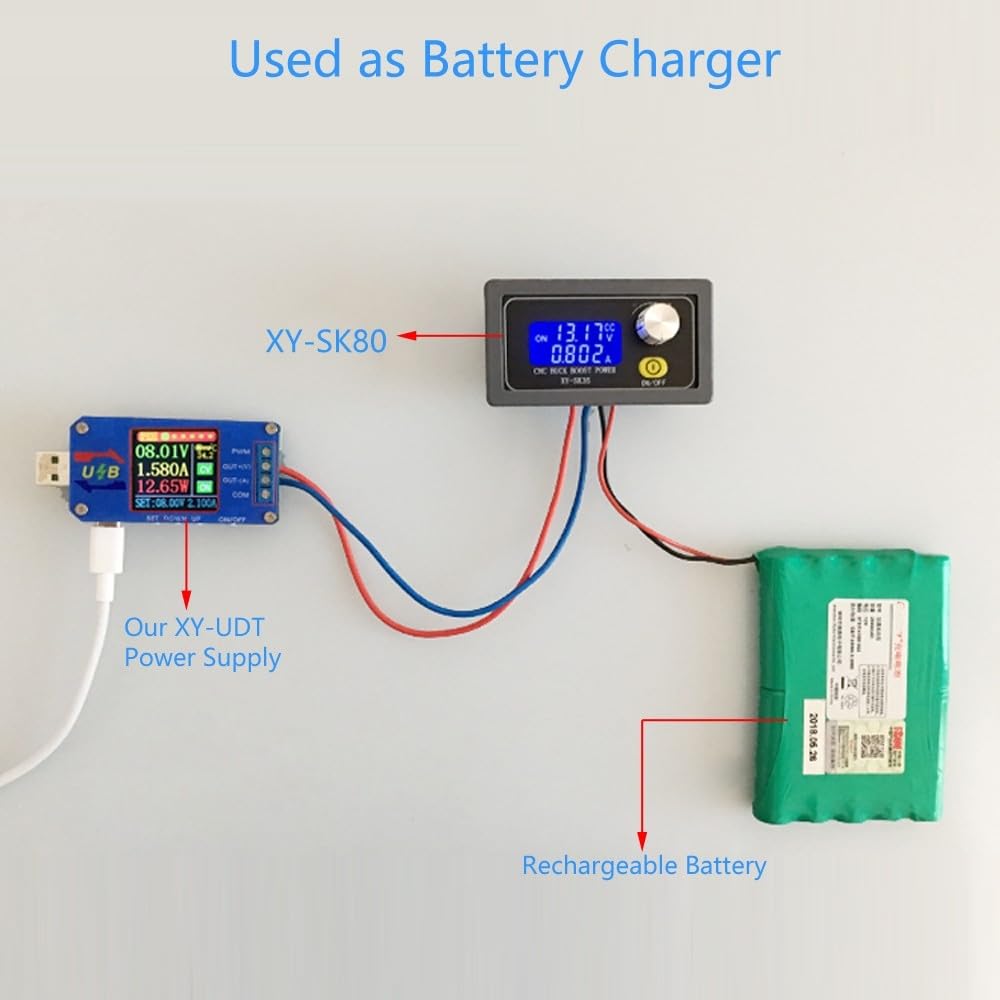

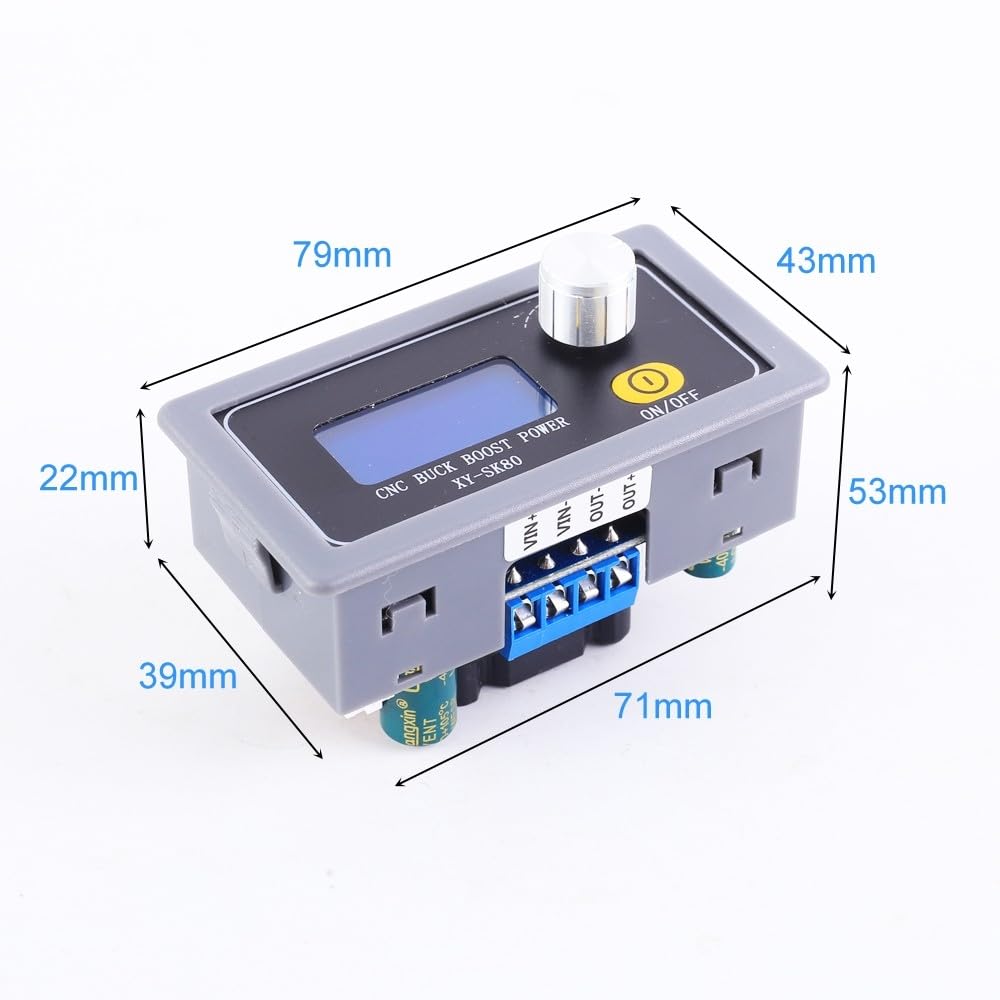

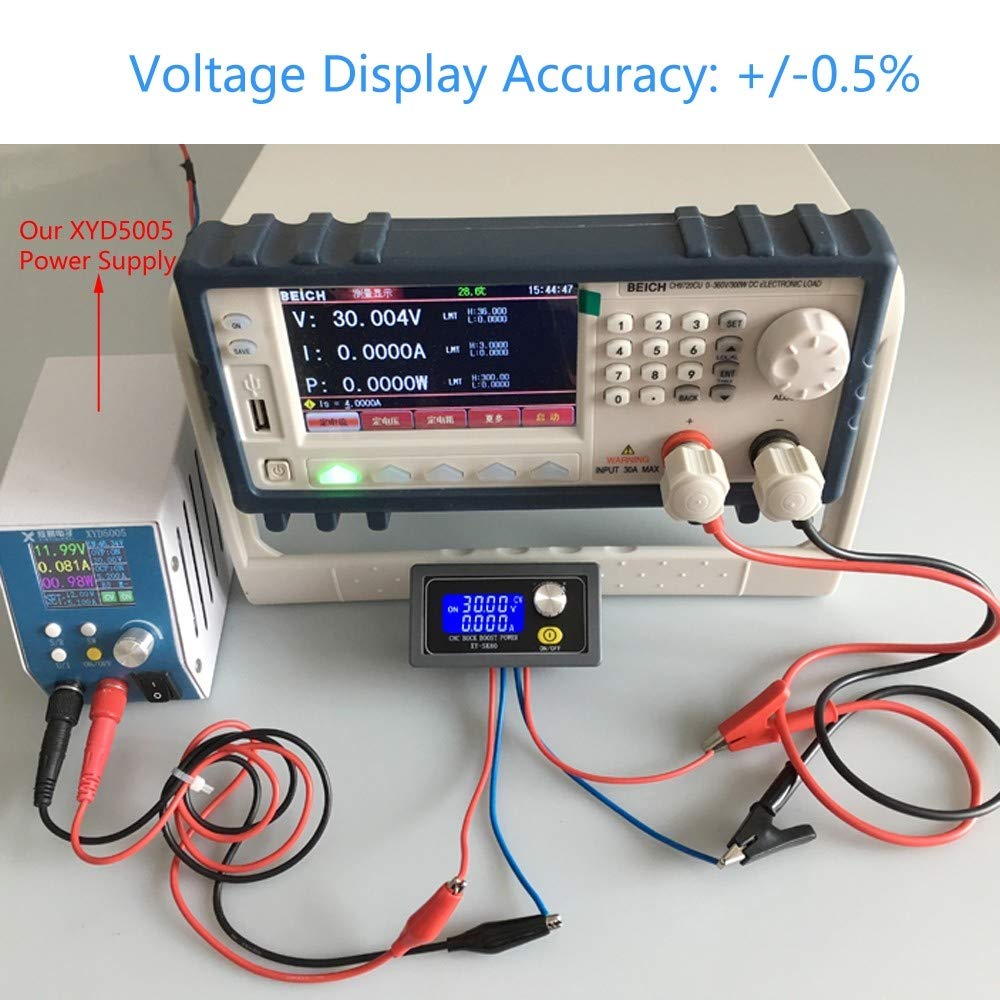

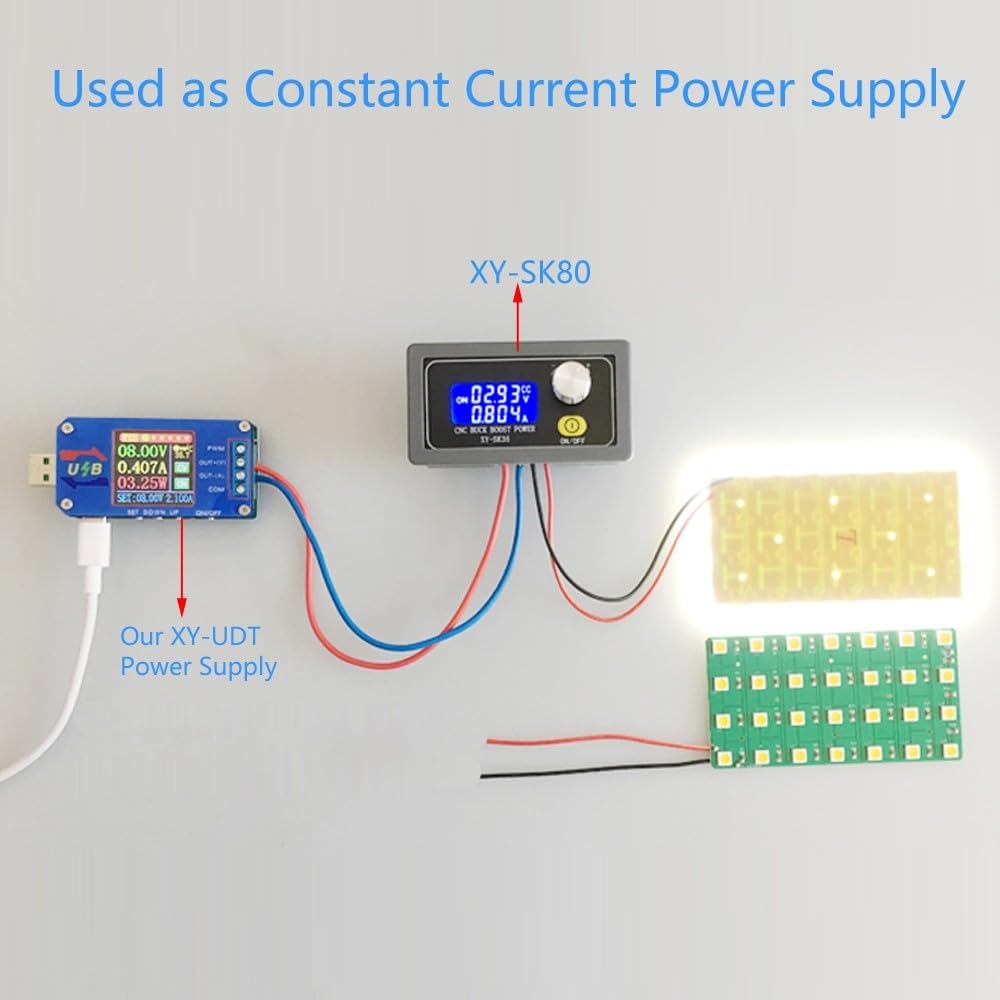

Features: 1. High quality heat sink 2. Multiple parameters are displayed simultaneous 3. Enabled/disabled output 4. Automatic buck/boost voltage 5. Constant voltage constant current output 6. Solar charging 7. Lock output current 8. Support anti-reverse protection 9. Support anti-backflow protection 10. Support output short circuit protection 11. Support over-voltage protection 12. Support over-current protection 13. Support over power protection 14. Support over temperature protection 15. Support display input voltage 16. Support display output voltage, current, power 17. Support working status indicatorSpecification: Product Number:XY-SK80 Working Voltage:DC 6.0V~36V Output Voltage:DC 0.6V~36V Output Current:0.0A~5.1A Output Power:80W Voltage Display Precision:0.5% Voltage Display Resolution:0.01V Current Display Precision:0.5% Current Display Resolution:0.001A Conversion efficiency:About 88% Anti-reverse Protection:Yes Anti-backflow Protection:Yes Short Circuit Protection:Yes Work frequency:180KHz Over-temperature Protection:100℃ Working Temperature range:-20℃~100℃ Working Humidity range:0%-95%RH Size:79*43*53mm Application: <1. Ordinary power supply 2. Battery charger 3. LED drive power 4. Instrument voltage display 5. Test meter 6. Circuit test 7. Power conversion Package: 1PCS XY-SK80 Step UP Down Power Supply Module
