DC 5-36V Dual-MOS Trigger Digital LED Relay Module with Adjustable Timer Delay for Custom Automation Control Systems and Industrial Cycle Controller Applications

• Wide Voltage Range: This relay board operates within a voltage range of 5-36V, making it compatible with various systems and applications, ensuring versatility for different project needs.
• Dual MOS Technology: Featuring advanced dual MOS trigger capabilities, this module provides performance and increased efficiency, making it ideal for long-lasting and stable in automated setups.
• User Friendly Display: The digital LED display offers clear visibility for real-time monitoring of timer settings, making it easy for users to adjust and configure the module according to their specific timing requirements.
• Customizable Cycle Timing: With adjustable timing settings, you can set cycle delays as needed, giving you complete control over your automation tasks, whether for home, industrial, or experimental projects.
• Compact Design: The compact and lightweight design allows for easy integration into various projects without taking up valuable space, making it a go-to choice for DIY enthusiasts and professionals alike.

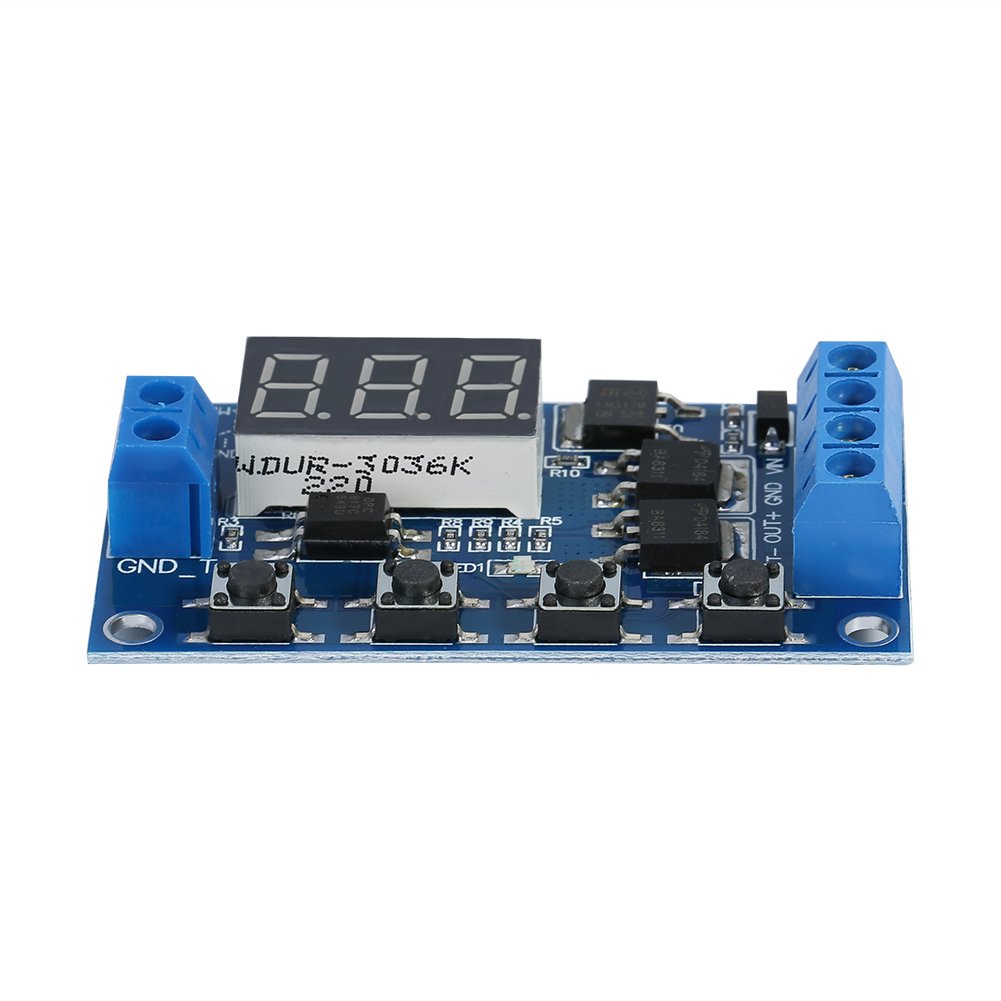

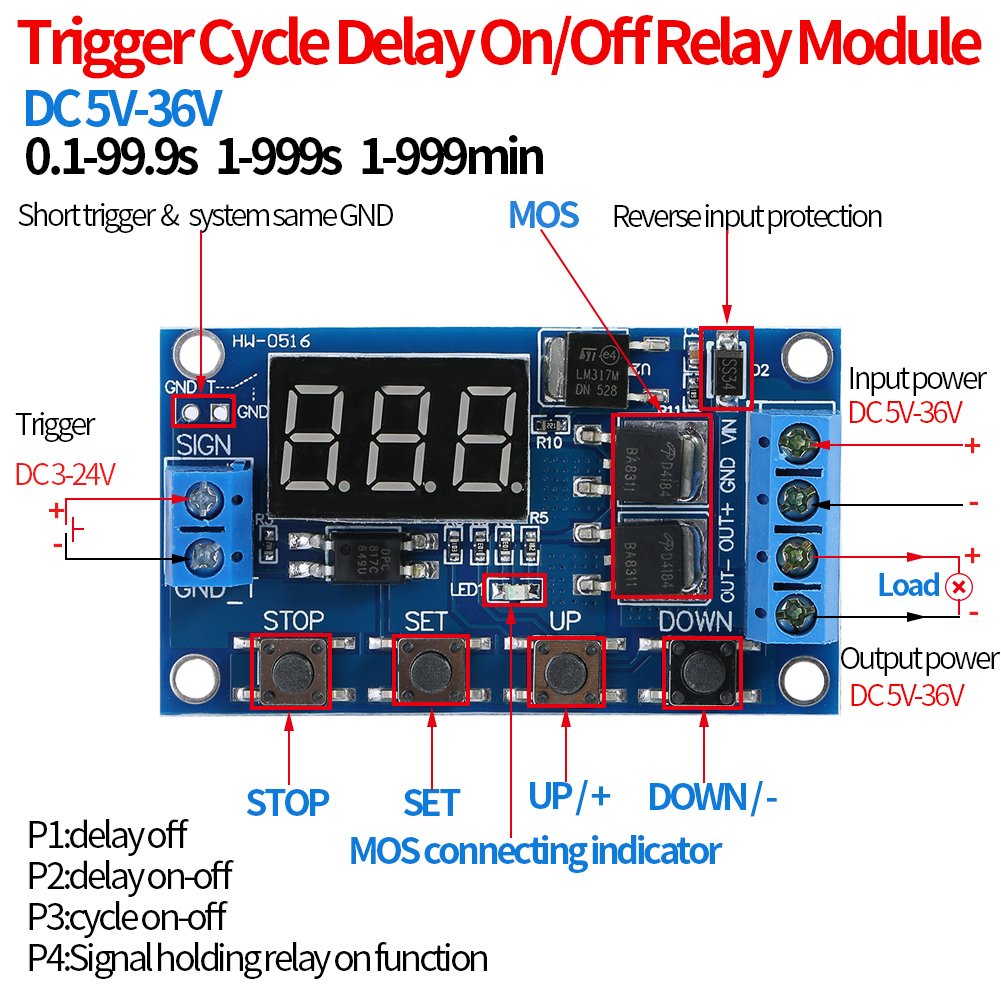

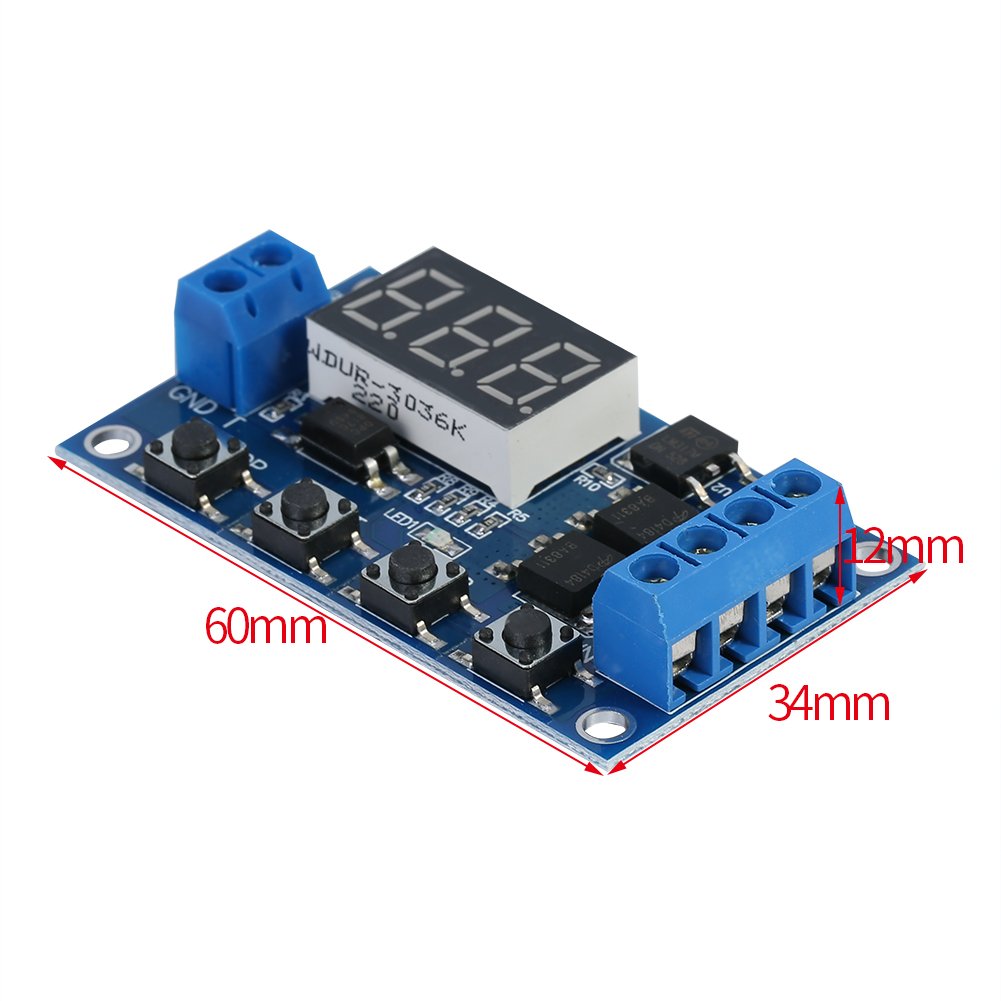

This is a timer delay trigger module with LED display. The module has 5-36V wide voltage. At room temperature, its operating current is up to 15A, power up to 400W, so it can be used for most equipment. Besides, you can set different OP, CL, LOP parameters, and these parameters were independent of each other and saved respectively. Even when there is a power failure, all set parameters can be automatically saved. Specifications: Voltage: DC 5V~36V. Trigger Signal Source: High voltage level trigger (3.0V~24V), signal ground and system ground are not on common ground to improve the system's anti-jamming capability (you can also connect them on common ground). Output Capacity: DC 5V~36V, at room temperature, continuous current is 15A, power 400W. With enhanced heat dissipation, the current can be up to 30A. Quiescent Current: 20mA Operating Current: 50mA Working Temperature: -40℃~85℃ Clocking (Time Delay) Range: 0.1seconds to 999minutes Size: 60×34×12mm / 2.36×1.33×0.47" Package Includes: 1×Timer Switch Module Note: 1. The module is an active output, the output voltage equal to the input voltage. 2.'DC + 'and' load + ' are internally shorted(connected), but' DC- 'and' load - ' cannot be shorted, otherwise the load cannot be controlled on and off, which is equivalent to load being powered on always.
