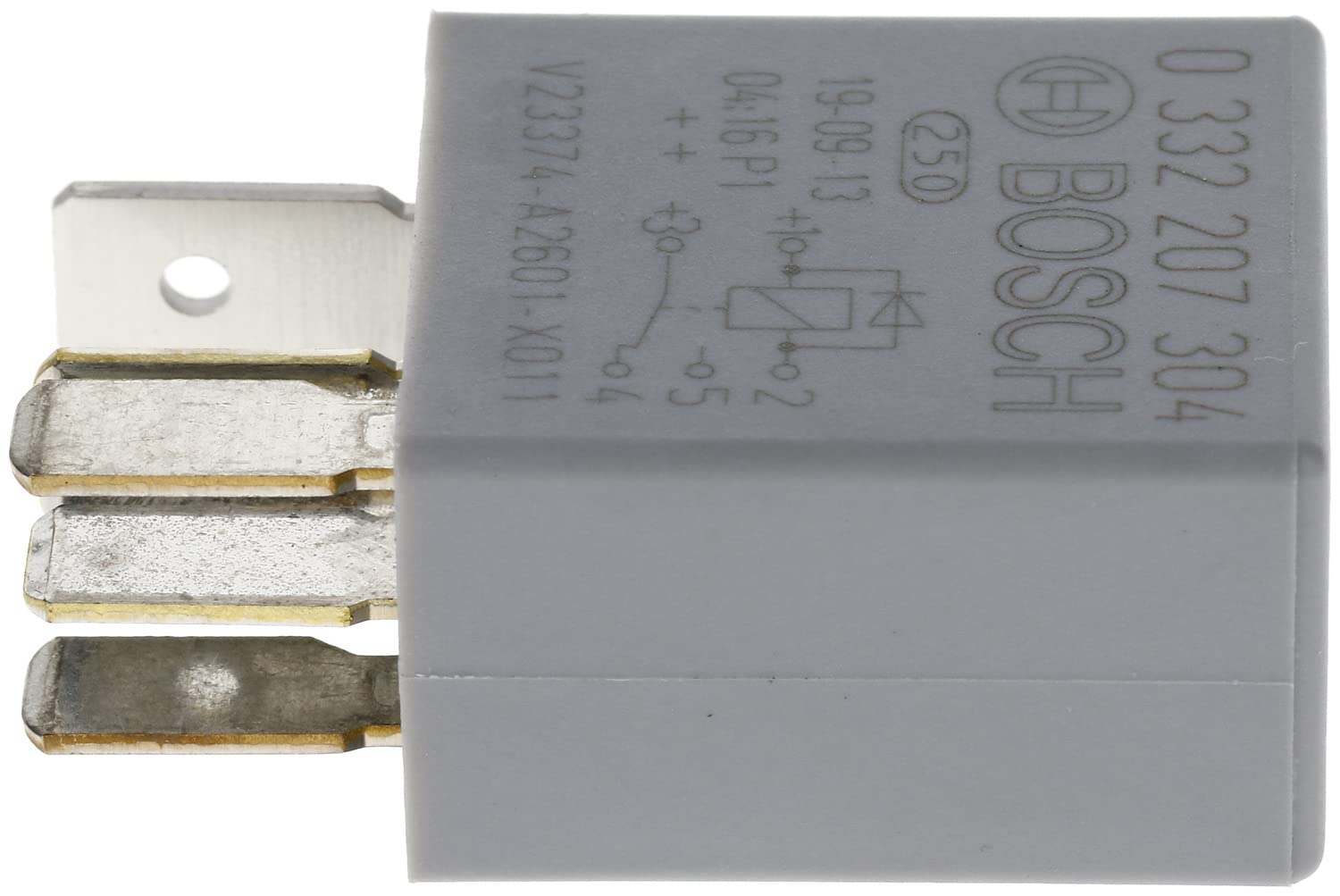

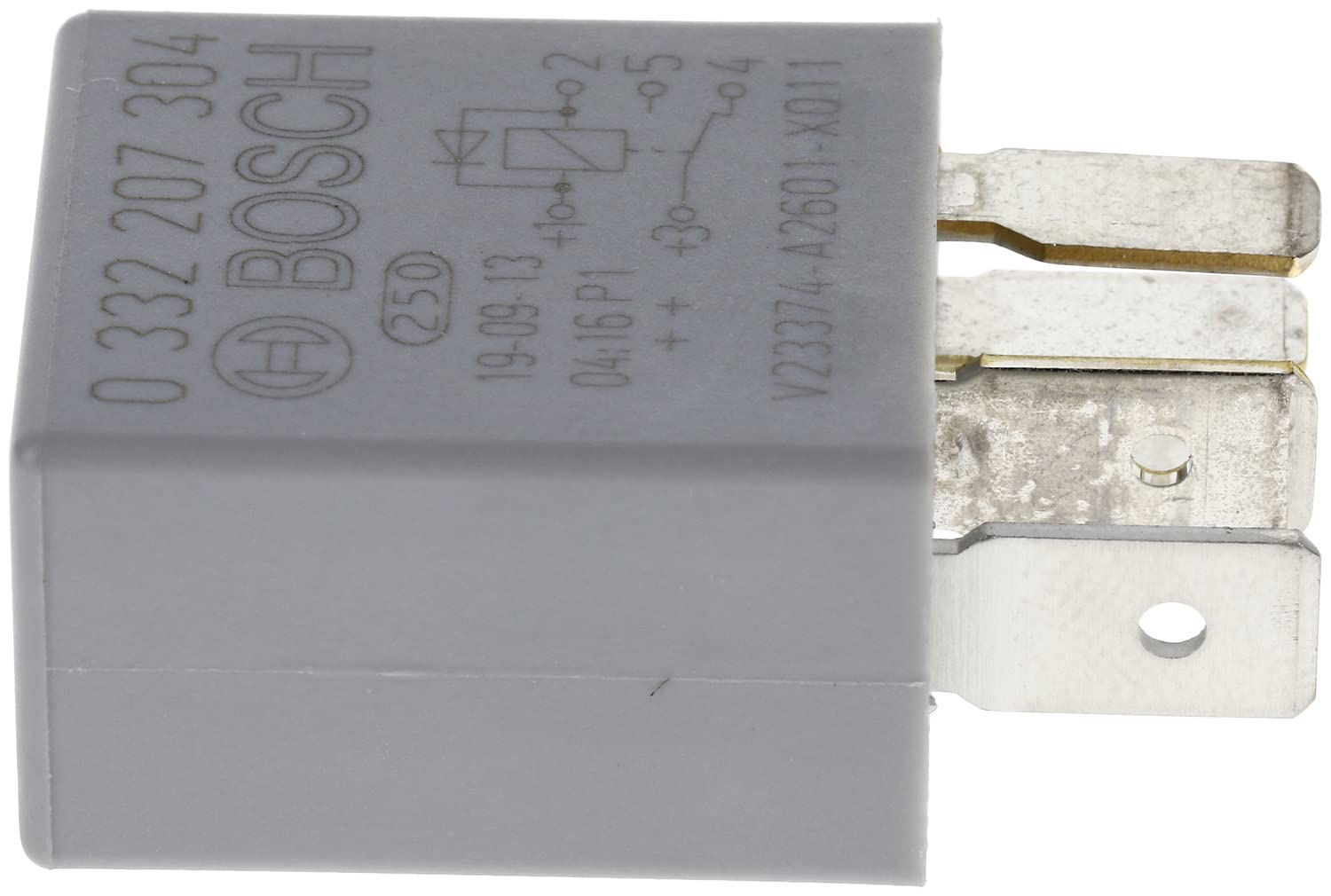

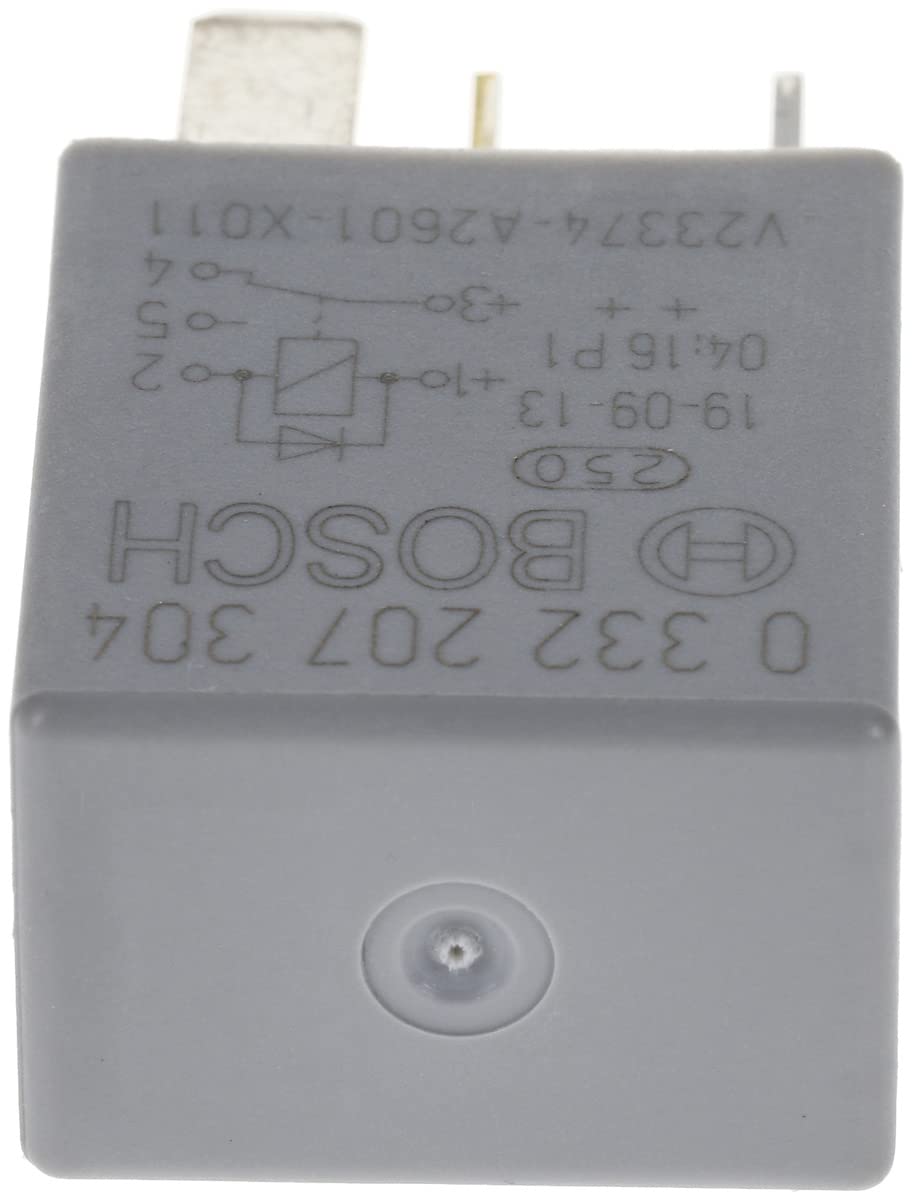

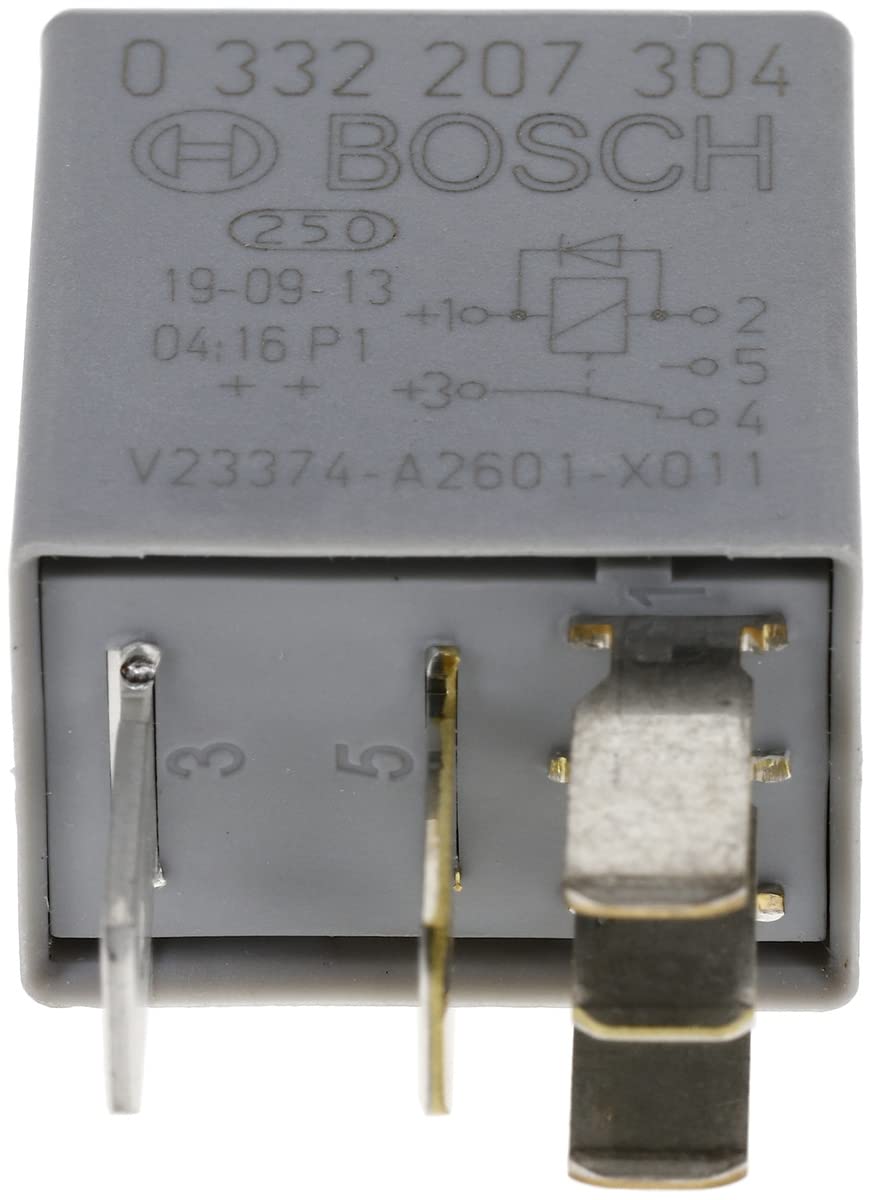

Bosch 0332207304 Micro Relay 12V 20A, IP5K4, Operating Temperature from -40 Degree to 85 Degree C, 5 Pin Relay with diode

• Changeover relay, 12V, relay switch, five pole relay
• Developed to be durable and robust through accurate processing and the use of ideal-quality materials: allows for up to 250 000 switching cycles
• 12V 20A relay: rated switching currents of up to 20 A - For high power
• Temperature resistant design: provides the ability to cope with ambient temperatures reaching from -40 Degree C up to +85 Degree C
• Standardised connectors: enables quick and easy installation
• Housing: IP5K4, Terminal: IP20

At several applications in vehicles, car relays are required to close or separate electrical circuits. Bosch provides a wide range of automotive relays for the specific requirements of each vehicle model. The comprehensive range consists of micro, mini and power relays. Relays feature two electrically separated circuits. The load circuit allows a high switching capacity which is activated by the control circuit. Reliably perform switching operations in a wide range of vehicles due to a particularly compact design: The Bosch micro relay allows rated switching currents of up to 25 A and has a nominal voltage of either 12 or 24 volts.
