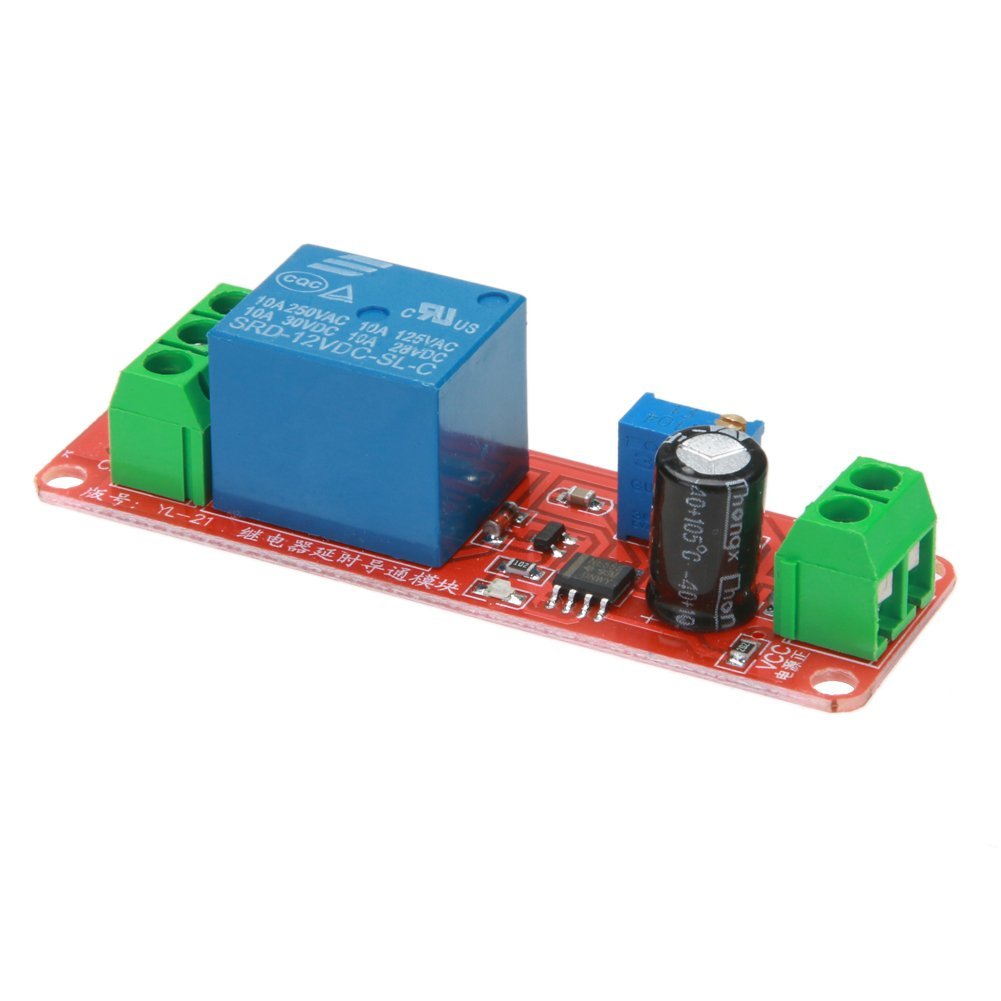

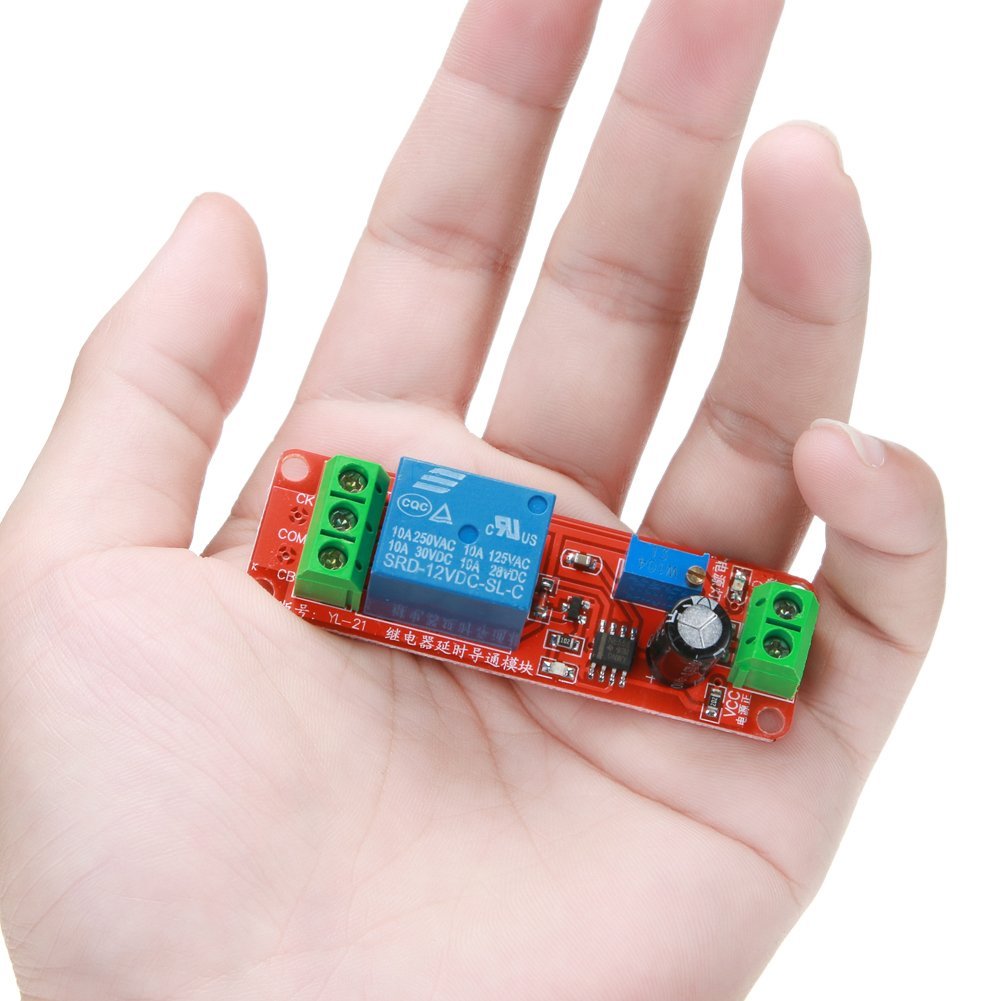

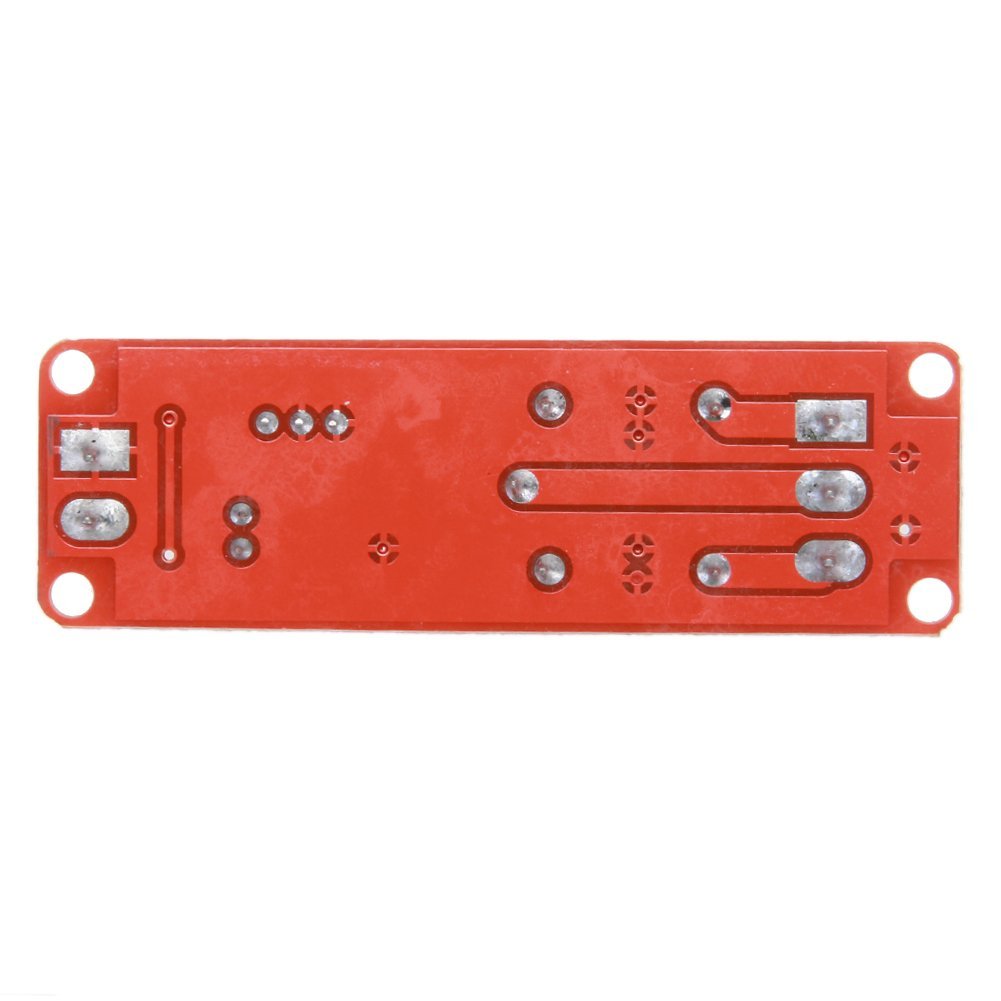

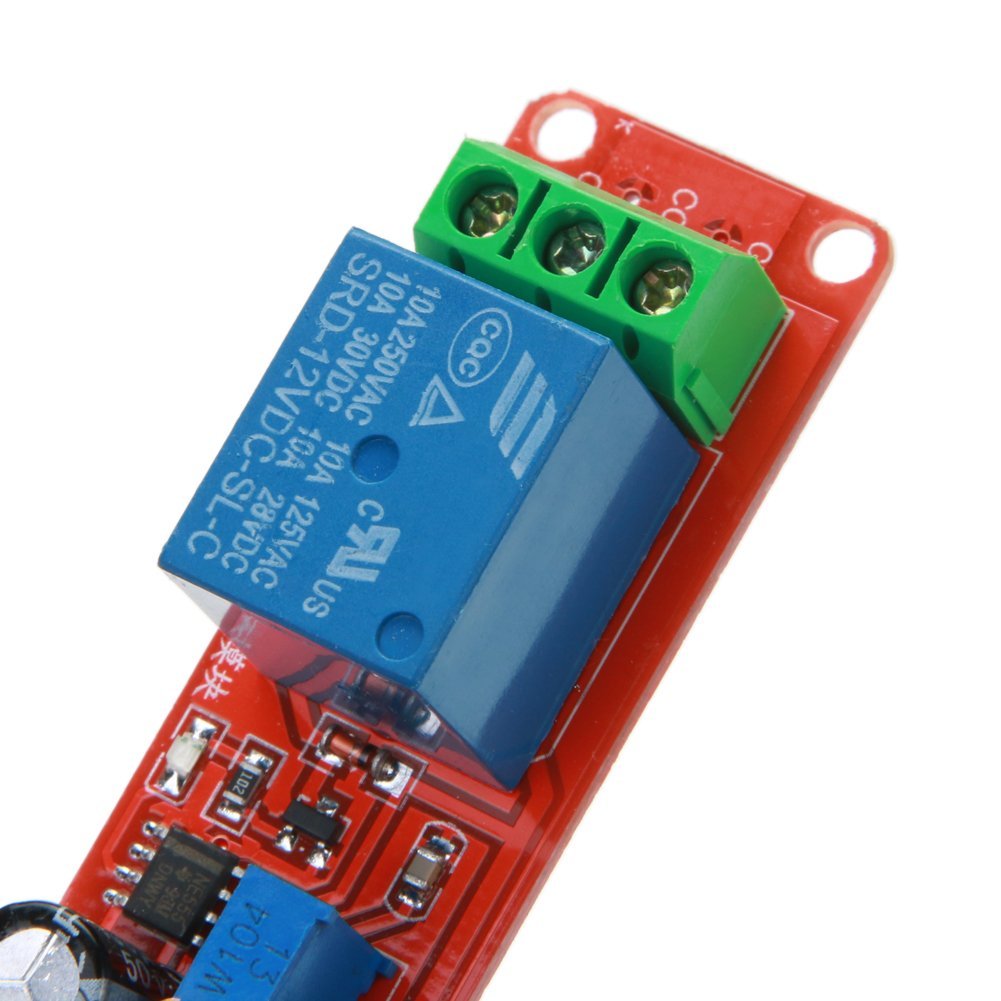

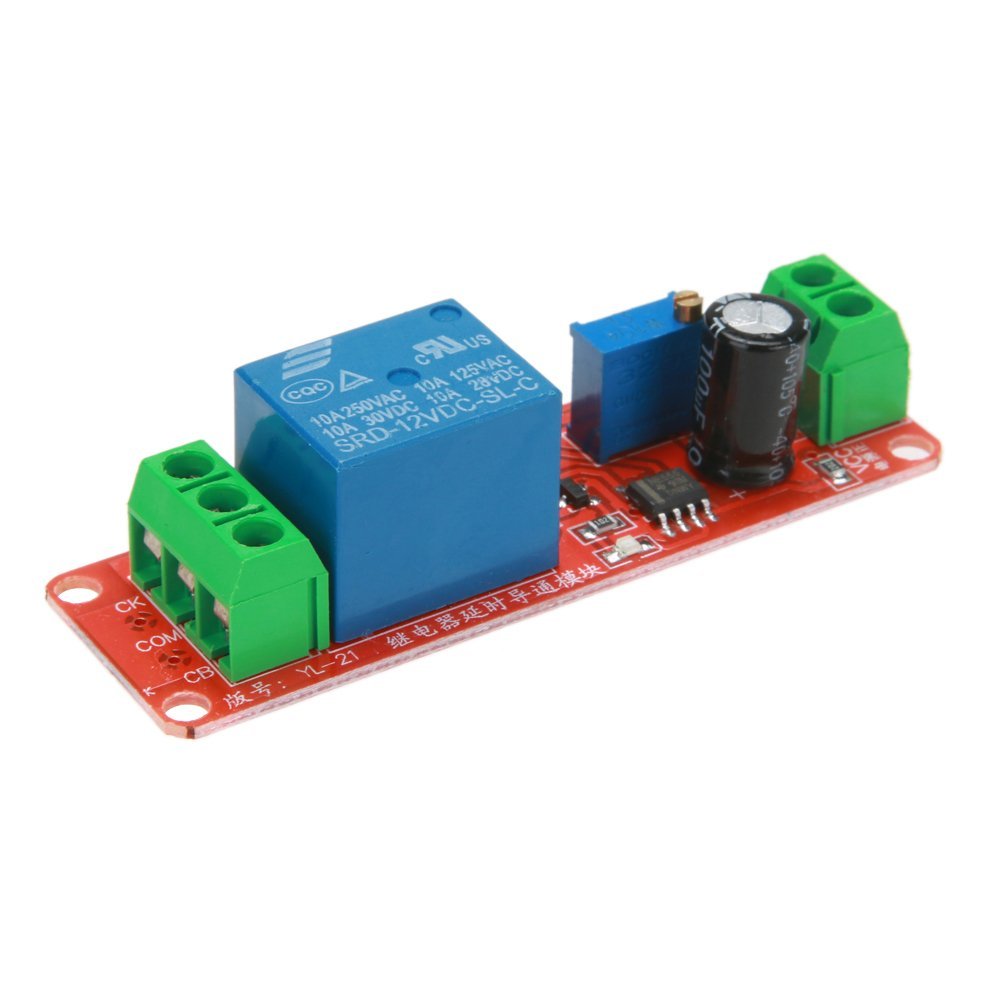

ARCELI 2 PCS NE555 12V DC Adjustable 0-10 Second Timer Delay Relay Switch Module Shield for Raspberry Pi

• The power indicator LED and switch trigger the timing indicator LEDs.
• This relay module output can be connected to a load of 250V 10A DC 30V 10A.
• There is the chronopotentiometry control time, which is adjustable from 0 to 10 seconds by default, or by a longer change in the capacity setting time.
• Applications: vehicle equipment delay to prevent the ignition of a car, prevent a strong sudden current to burn components and equipment.

Features: This is a brand new and high quality Delay power on module. High-performance timing CPU design. The power indicator LED and switch trigger the timing indicator LEDs. The output can be connected to an AC 250V 10A DC 30V 10A load. There is the chronopotentiometry control time, which is adjustable from 0 to 10 seconds by default, or by a longer change in the capacity setting time Applications: vehicle equipment delay to prevent the ignition of a car, prevent a strong sudden current to burn components and equipment. Main chip (NE555): Time from microseconds to long hours. Simple circuit design. Precision pulse generation / timing. Adjustable working cycle. Countless sources of application and information. Specifications: Module based on: NE555 chip Delay module: delay connection module Input voltage: DC 12 V. Control voltage: AC 0 ~ 250 V / max. 10A, DC 0-30V / Max. 10 A. Operating voltage: 12 V DC (otherwise 5 V optional). Max. Load: 2200 W. Quantity: 2 pieces. Product size: approx. 68 x 22 x 18 mm / 2.67 x 0.86 x 0.7 inches. Net weight: approx. 34g Box contents: 2 x Delay Relay Module
