Timer Switch Module, Akozon Timer Relay Switch Module DC 6V~30V Trigger Delay On/Off Cycle with Digit LED Display Micro USB 5V

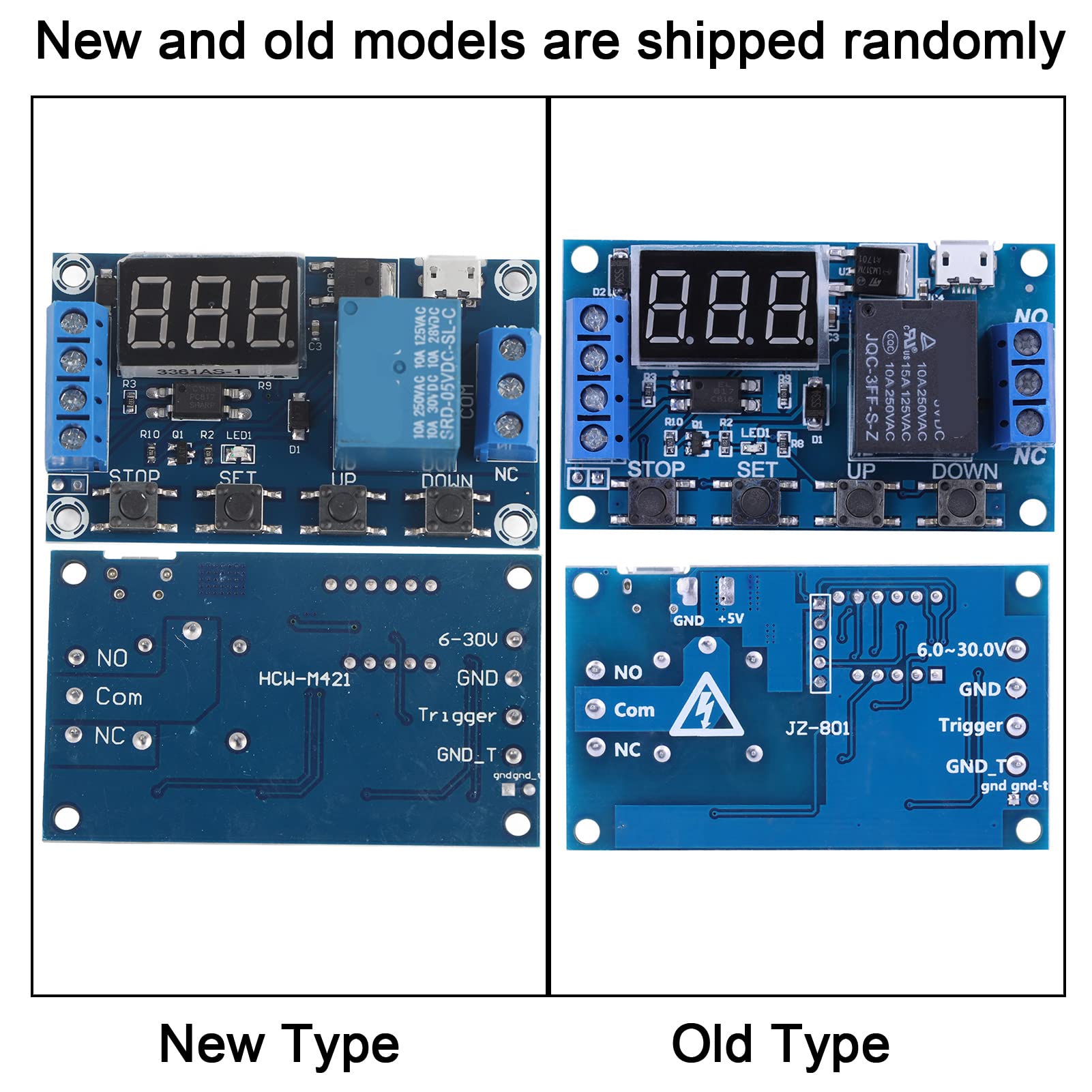

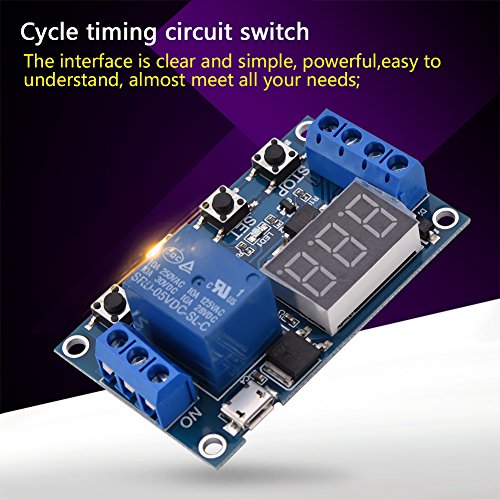

• 【Easy to use】Wide DC power supply voltage from 6V to 30V, support micro USB 5.0V power supply, very convenient to use.Interface is clear, simple and powerful, easy to understand, almost meet all your needs.
• 【Independent parameters】You can set different OP, CL, LOP parameters, these parameters were independent of each other and saved respectively. All set parameters will be automatically saved if there is a power failure.With optical coupling isolation, improved anti-interference ability, industrial level circuit board.
• 【Relay Enable Mode】The module supports reverse input protection, and there is a STOP button for emergency stop function. 1. NO: Connection is allowed during OP time. 2. OFF: Connection is not allowed, always turned off. Press STOP button at main interface to change between ON and OFF, the present state will flash then back to main interface. (This is emergency stop function, used to disconnect relay.)
• 【Sleep Mode】Added sleep mode, it will automatically turn off display if no operation in 5 minutes after enabled, and you can press any button to wake it up. C-P sleep mode: if no operation within 5 minutes; display will close automatically while procedure runs normally. O-d normal mode: displays always shows. Press and hold STOP button for 2 seconds to change between C-P and O-d, present state will flash and then back to the main interface.
• 【Back to main interface】After setting mode parameter, press and hold the SET button for 2 seconds then the present mode will flash, and go back to the main interface. Main interface: when relay does not work, it shows "000" (no decimal point); when relay is working, it shows decimal point. Mode Selection Interface: Press and hold SET button to enter. After setting, press and hold SET button to back to main interface.

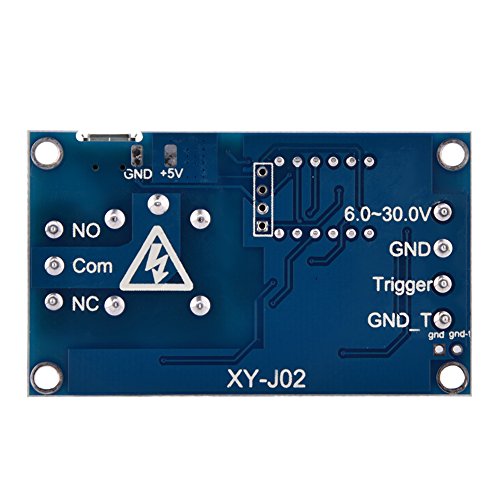

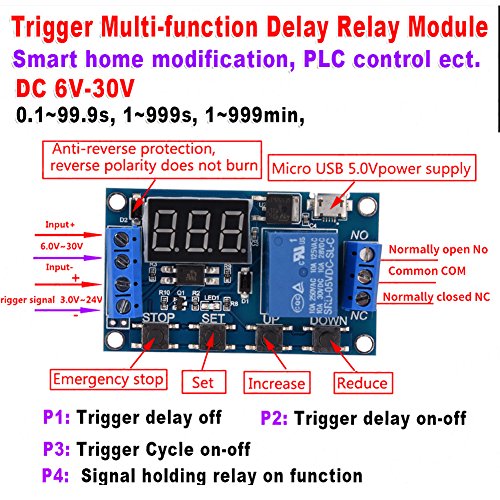

Specifications: Voltage: 6V~30V(support micro USB 5.0V) Trigger Source: High voltage level trigger(3.0V~24V), ground and system ground are not connected to improve system anti-interference ability(or you can connect them). Load Capacity: DC 30V 5A, AC 220V 5A Quiescent Current: 20mA Operating Current: 50mA Operating Temperature: -40℃~85℃ Size: Approx. 6.2*3.8*1.7cm / 2.44*1.49*0.67" Timing Range: 0.1seconds to 999 minutes(continuously adjustable) Instruction: Operation Mode: P1: After triggering signal, switch is connected for "OP" time, then disconnected; within the "OP" time: P1.1: if trigger again, it is invalid. P1.2: if trigger again, restart timing. P1.3: if trigger again, switch is disconnected, stop timing. P-2: After triggering signal, switch is disconnected for "CL" time, then switch is connected for "OP" time, and disconnect after timing. P3.1: After triggering signal, switch is connected for "OP" time, then switch is disconnected for "CL" time, and enter loop. If trigger during loop, switch is disconnected and stop timing. The loop times (LOP) can be set. P3.2: After power on, no need trigger signal, switch will be connected for "OP" time, then disconnected for "CL" time, and enter loop. The loop times (LOP) can be set P-4: holding function. If there is trigger signal, timing will be reset, switch remains connected; when the disappears, it will disconnect after "OP" time. During timing, if there is a signal, timing will be reset. OP: Connect time. CL: Disconnect time. LOP: Loop times(1~999, "---" indicates infinite times) After setting mode, press SET button at the main interface to check the parameter of present mode. Package Includes: 1 x Timer Switch Module
