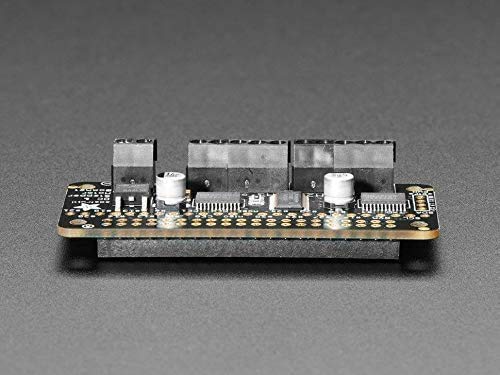

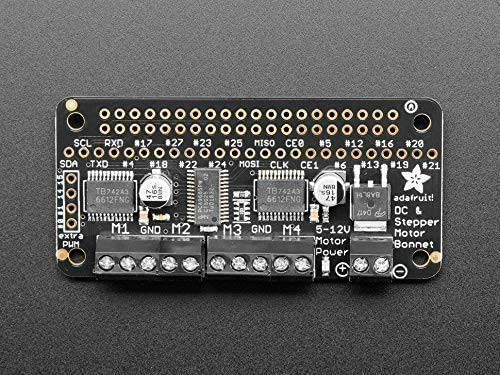

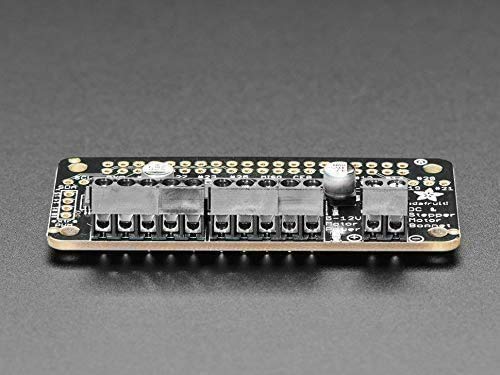

Adafruit DC & Stepper Motor Bonnet for Raspberry Pi

• ✅DREAMS DO COME TRUE! Let your robotic dreams come true with this new DC + Stepper Motor Bonnet
• ✅PERFECT MATCH! Perfect for any motion project as it can drive up to 4 DC or 2 Stepper motors with full PWM speed control.
• ✅ASSEMBLED AND TESTED - The Bonnet is fully assembled and tested so all you have to do is plug it right onto your Raspberry Pi.
• ✅EASY TO USE! Install the easy-to-use Python library, check out the examples and you're ready to go!
• ✅BEST PARTNER! Works best with Raspberry Pi model Zero, A +, B +, or Pi 2, Pi 3

Adafruit DC & Stepper Motor Bonnet for Raspberry Pi The add-on for your Raspberry Pi is ideal for your next robot project. Up to 4 DC motors or 2 stepper motors can be controlled. The bonnet will be fully assembled and delivered tested. It can be plugged into your Raspberry Pi and used immediately - no soldering required! Suitable for all Raspberry Pi models with 2x20-pin header. Since the Raspberry Pi does not have many PWM outputs, the board offers its own PWM driver chip to control both the direction of rotation of the motor and its speed. The driver is controlled via the I2C interface, which means that only two SDA & SCL pins are required to control several motors. The I2C address can also be set via 5 address-select pins and thus enables the use of up to 32 stackable HATs, ie the control of up to 64 stepper motors or 128 DC motors. Further product features: 4 H-bridges: 1.2 A per bridge, voltage range: 4.5 - 13.5 V Up to 4 DC motors with individual 8-bit speed settings - results in a resolution of approx. 0.5%. Up to 2 stepper motors (unipolar or bipolar) Reverse polarity protection Works best with Raspberry Pi Model Zero, A +, B +, or Pi 2, Pi 3. Install the Python library and get started with the sample programs! The HAT is built and delivered tested. Raspberry Pi and motors are not included, but can also be ordered from us.
