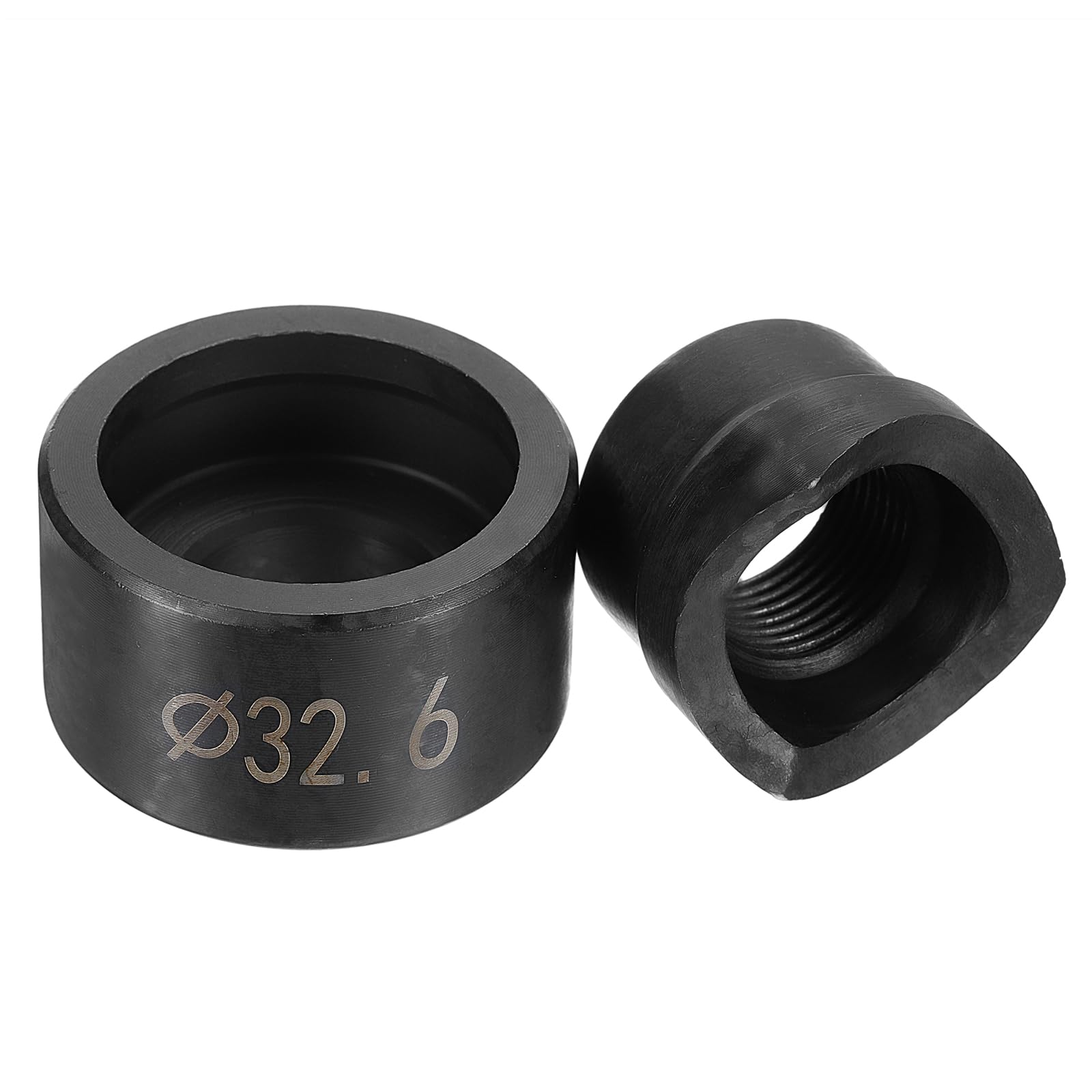

uxcell Conduit Punch and Die 32.6mm Chrome Steel Manual Knockout Punch Conduit Hole Cutter Set for Hydraulic Knock Out Driver

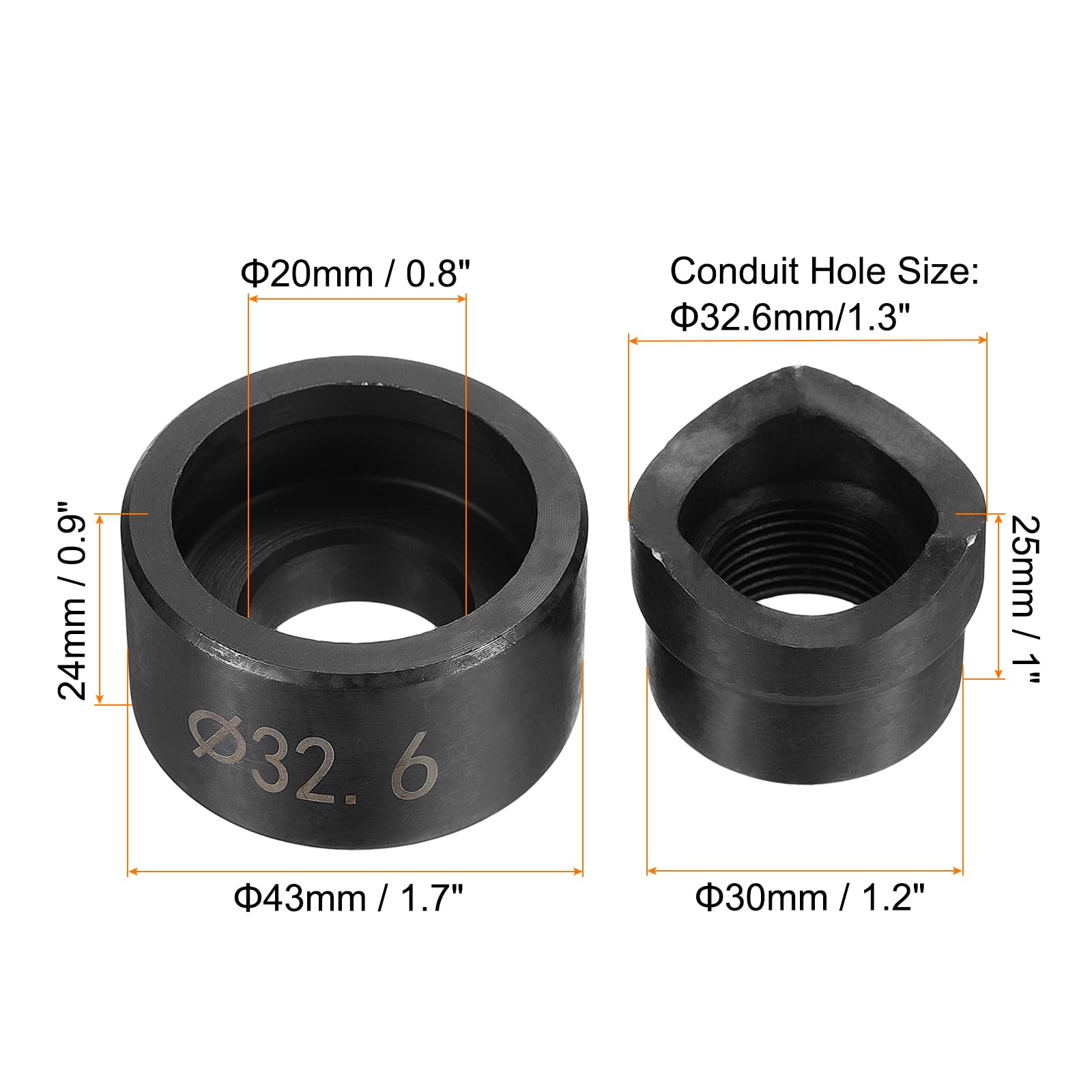

• Size - Conduit Hole Size: 32.6mm / 1.3", Lower Die Diameter: 43mm / 1.7", Lower Die High: 24mm / 0.94", Lower Die Inner Hole Diameter: 20mm / 0.78", Upper Die Diameter: 30mm / 1.18", Upper Die High: 25mm / 0.98", Upper Die Inner Hole Thread Specification: M20.

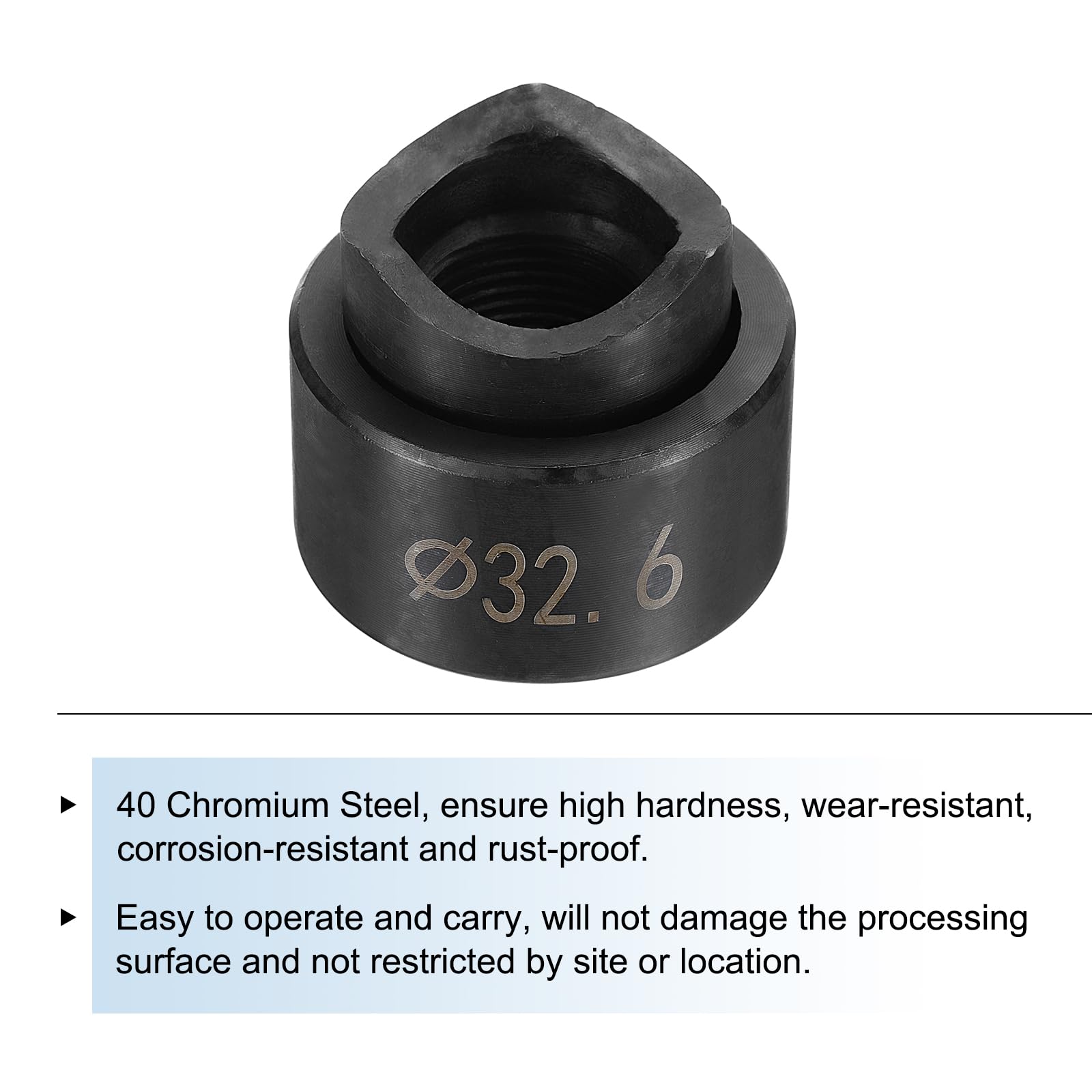

• Material - The knockout driver unit is made of 40 chromium steel with heat treatment, ensuring high hardness, wear-resistant, corrosion-resistant and rust-proof.
• Features - This hole cutter is easy to operate and carry, saves effort during use, which will not damage the processing surface and is not restricted by site or location.
• Applications - Hydraulic hole opener is perfect for drilling holes in a wide range of materials, such as stainless steel, iron, aluminum, etc., which can be used in metallurgy, petroleum, chemical industry, electrical appliances, shipbuilding, machinery and other industries.
• Notice - First, open an 11.5mm guide hole, screw in the draw stud in the hole opener, put down the lower die, iron plate, and upper die in sequence, and finally press and open the hole.

The knockout driver unit is made of 40 chromium steel with heat treatment, ensuring high hardness, wear-resistant, corrosion-resistant and rust-proof. This hole cutter is easy to operate and carry, saves effort during use, which will not damage the processing surface and is not restricted by site or location. First, open an 11.5mm guide hole, screw in the draw stud in the hole opener, put down the lower die, iron plate, and upper die in sequence, and finally press and open the hole. It can only be used on metal plates below 4mm; please do not use it without load to avoid high pressure oil pipes bursting due to excessive pressure. Hydraulic hole opener is perfect for drilling holes in a wide range of materials, such as stainless steel, iron, aluminum, etc., which can be used in metallurgy, petroleum, chemical industry, electrical appliances, shipbuilding, machinery and other industries.
