KATSU Hydraulic Knockout Punch 10 Ton 6 Dies 22-60mm Hydraulic Metal Hole Puncher Electrical Conduit Hole-Driver Cutter Kit Tool Set 405193

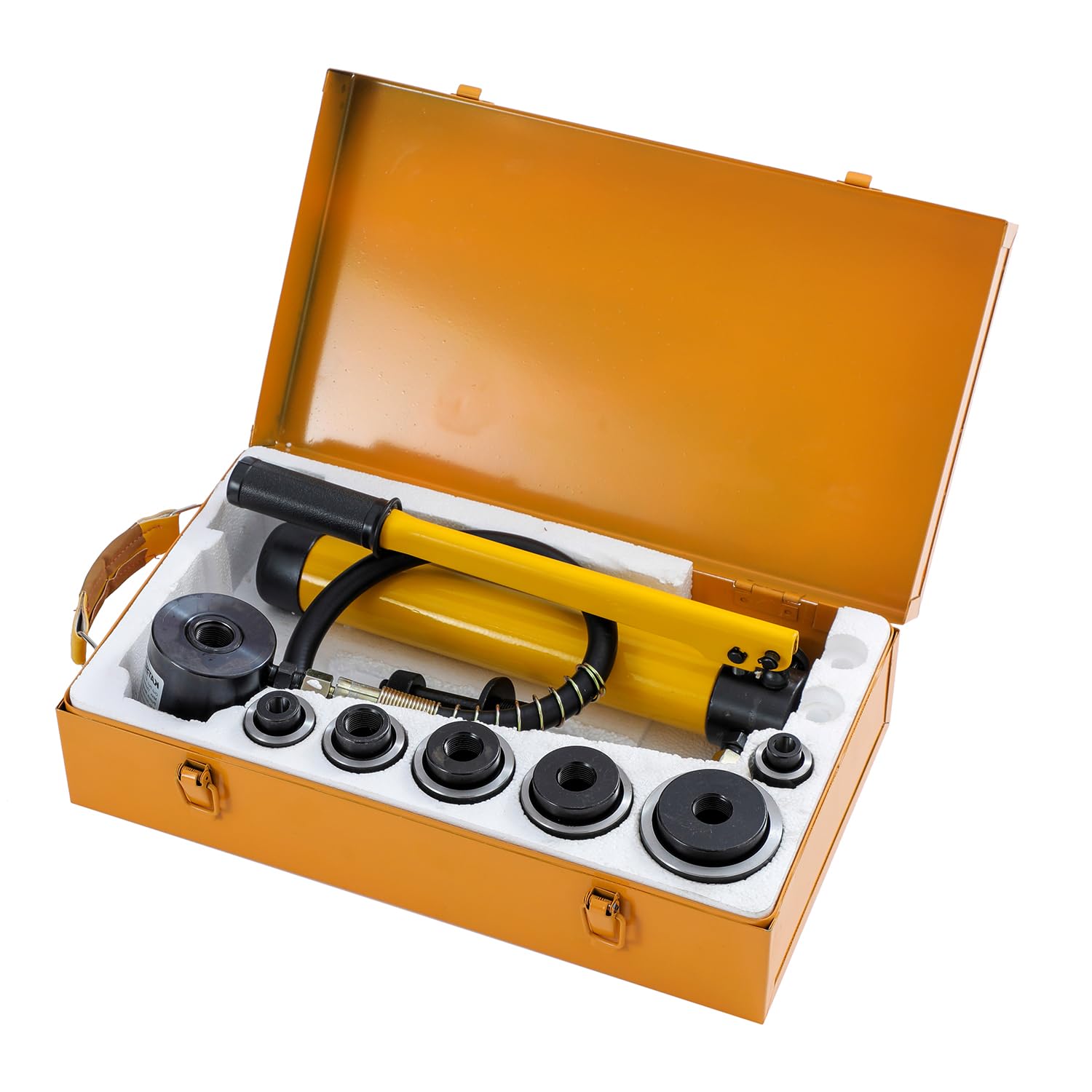

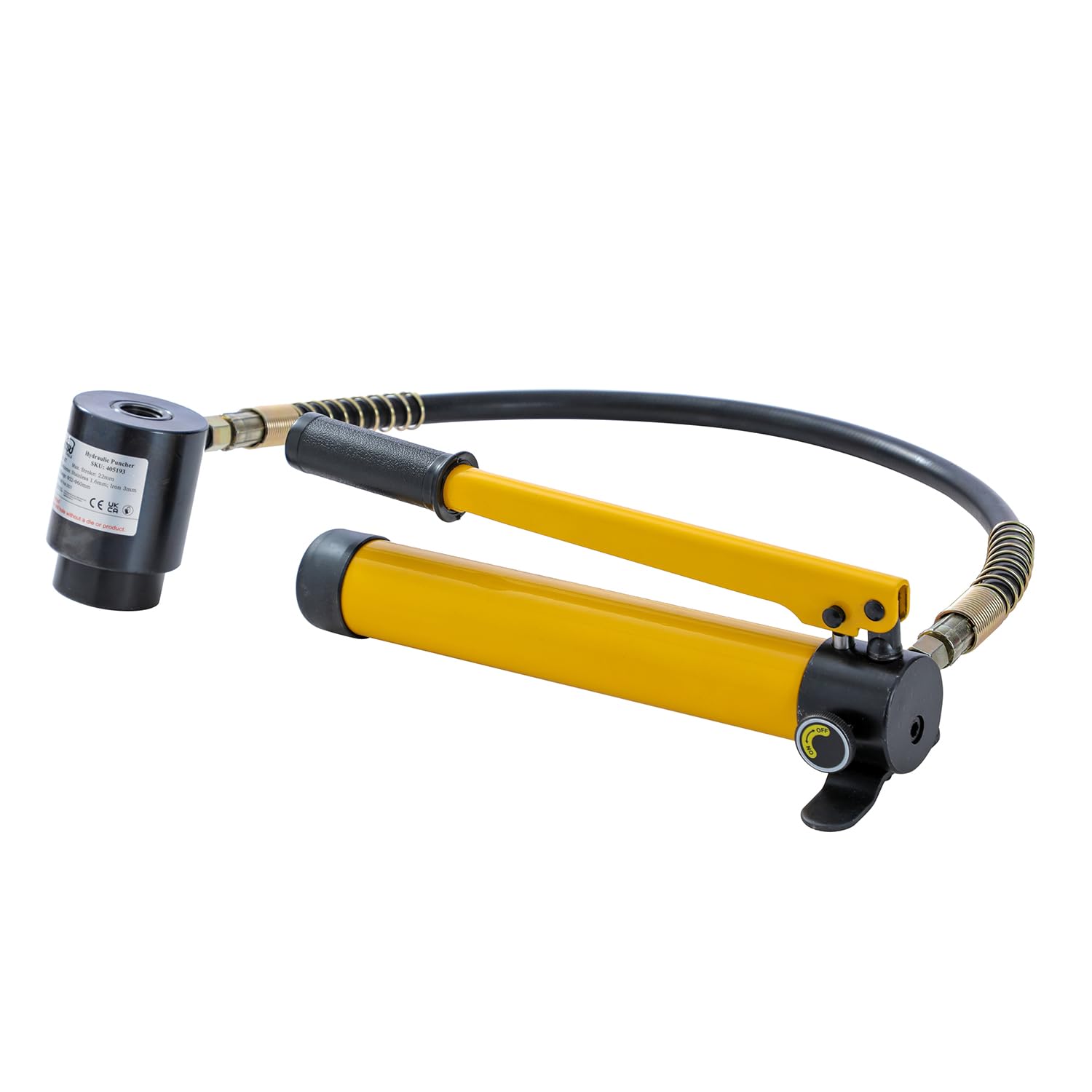

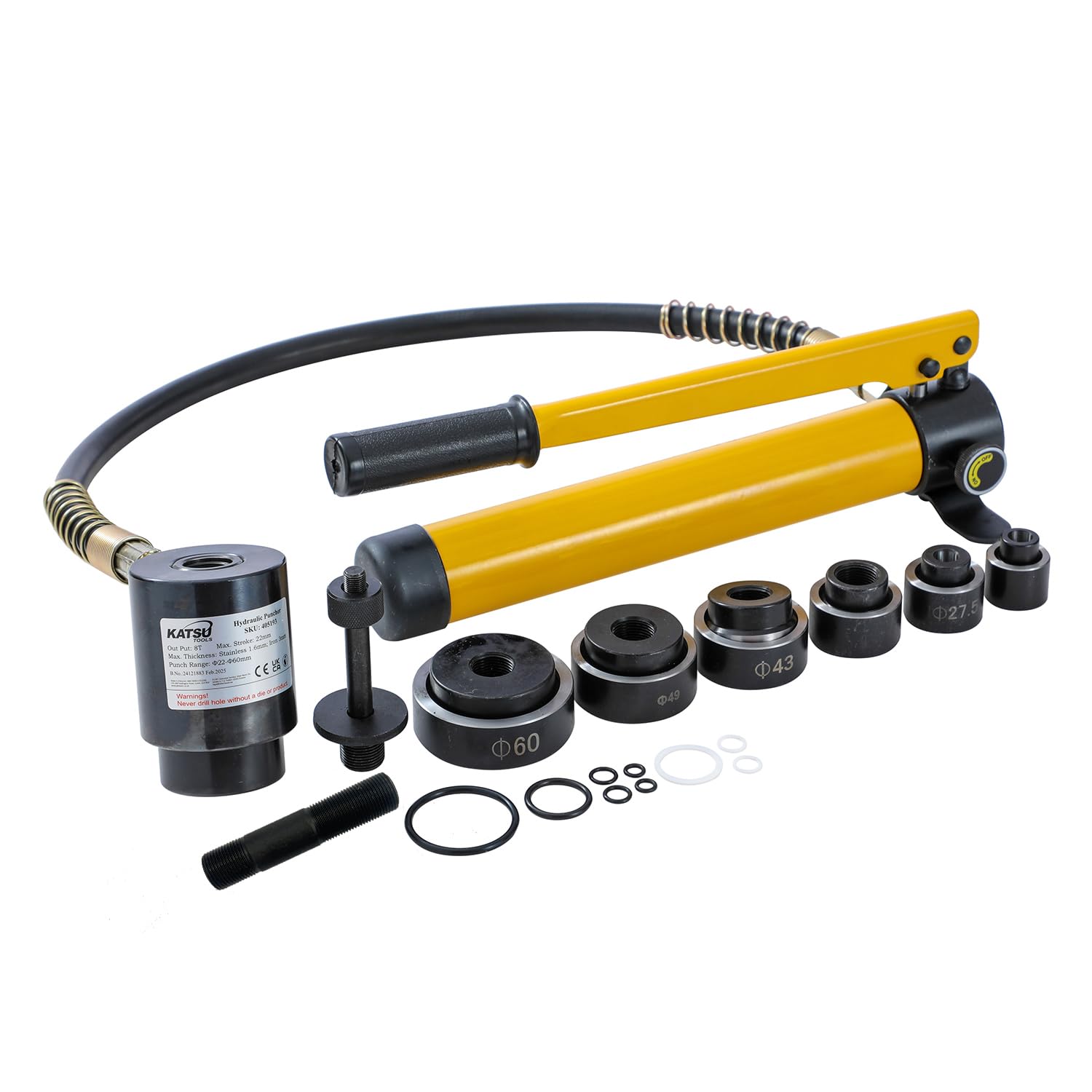

• Hydraulic Knockout tools kit

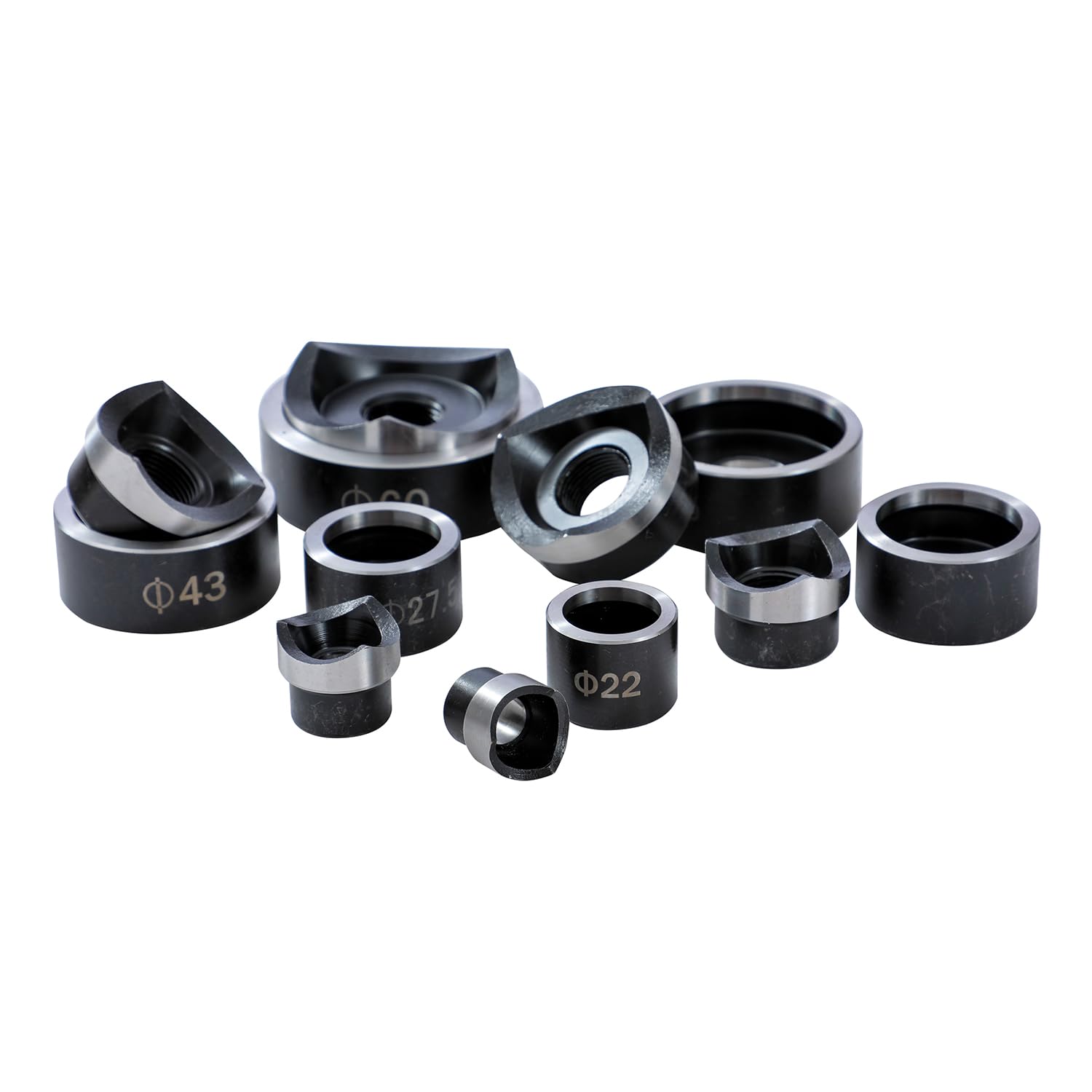

• 6 Cutting Dies 22, 27, 34, 43, 49 and 60mm
• Portable easy to use, easy to carry
• 10 Ton Working pressure
• Replacement Dies Square & Round Search Amazon B07Y5WYTXB

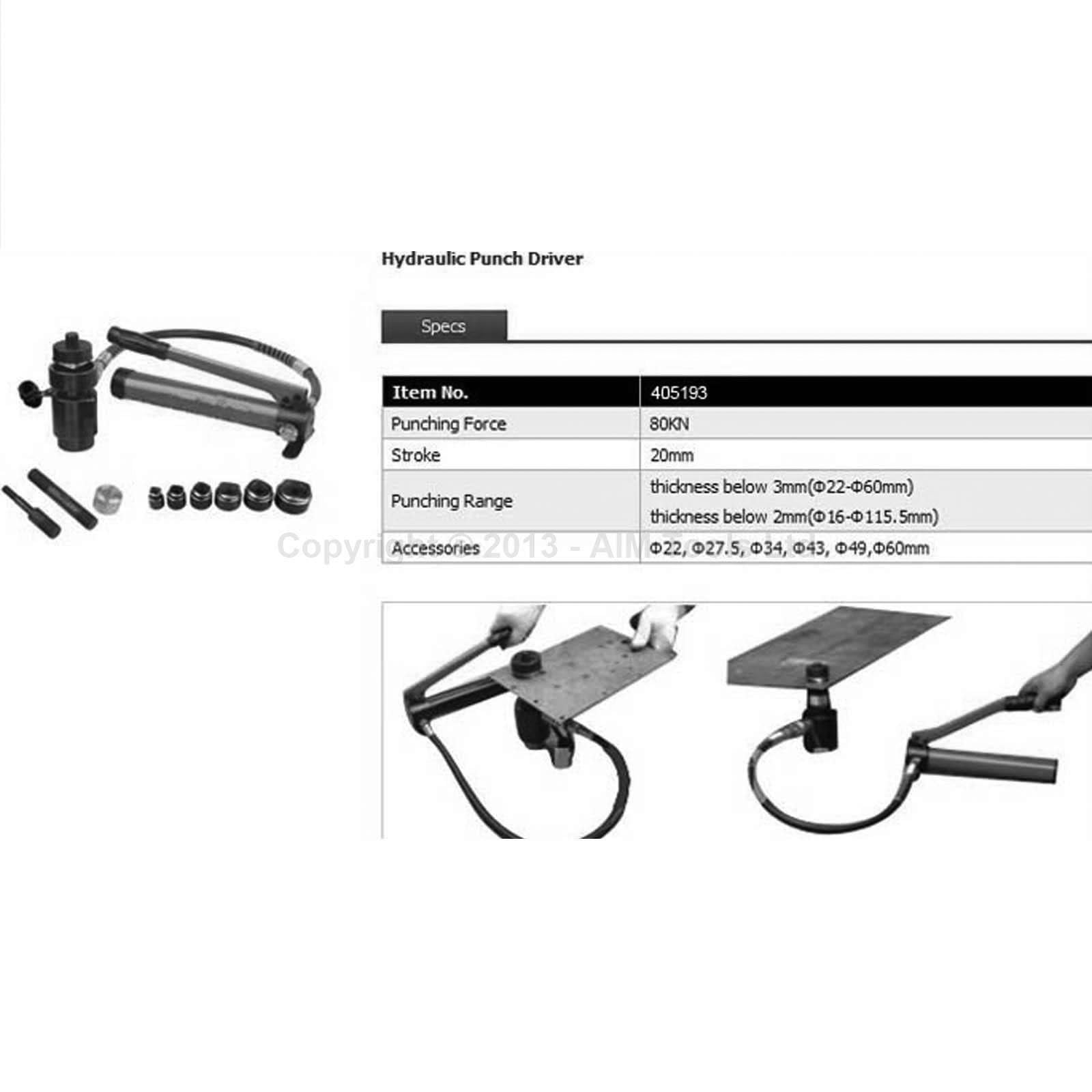

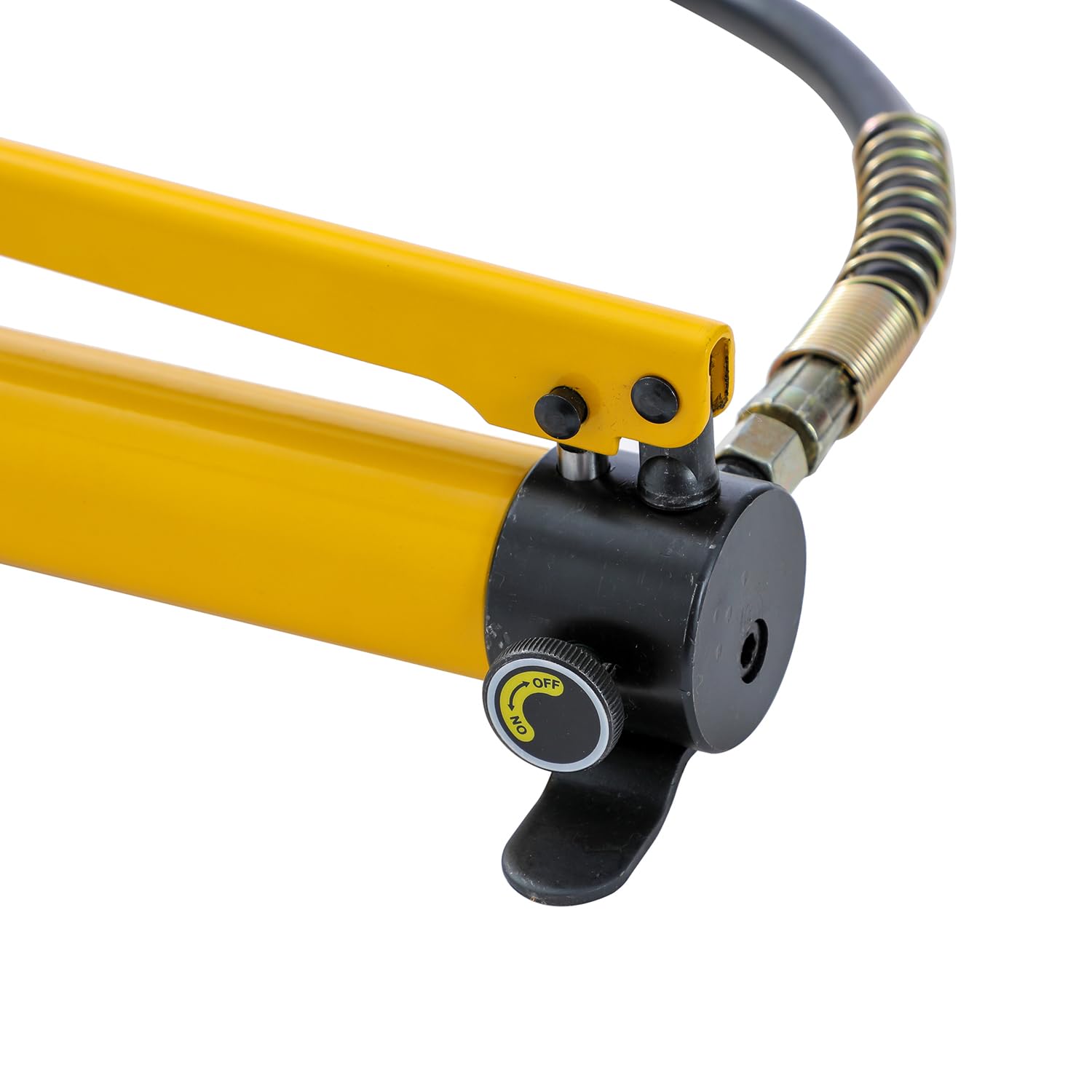

Specifications: Max Pressure:10 ton 6 x Dies: 22, 27, 34, 43, 49 and 60mm Max. Stroke: 22mm Works great 2mm in mild steel and 1mm in stainless, above 40mm holes Features: 6 Dies & Punches Interchangeable to Meet Different Needs Rotatable ON / OFF Switch for More Safety Easy Seating with the Brackets on the Bottom of the Hydraulic Pump Plastic Grip at the End of the Long Steel Handle widely used in metallurgy, petrol, electric, marine, machinery and other industries Operating instructions: 1. Before using the hydraulic stamp, use a drill to punch the workpiece to form a guide hole. 2. Screw the pull rod into the screw of the piston cylinder, then wrap the rod around the rod and use the rod to pass through the lower cutting shape. 3. Insert the pull rod into the guide hole, turn the upper cutting shape and make the upper cutting shape, and the workpiece is closely connected to the lower cutting shape. 4. Close the pressure relief valve clockwise and press the handle repeatedly to operate the piston pump. When the oil pressure rises and shears The cutting tool is enlarged and the tool starts to hit until it is finished. The handle must be stopped immediately after stamping. 5. Release the pressure relief valve counter-clockwise to release the oil pressure. 6. After punching, remove the punching tool and clean thoroughly.
