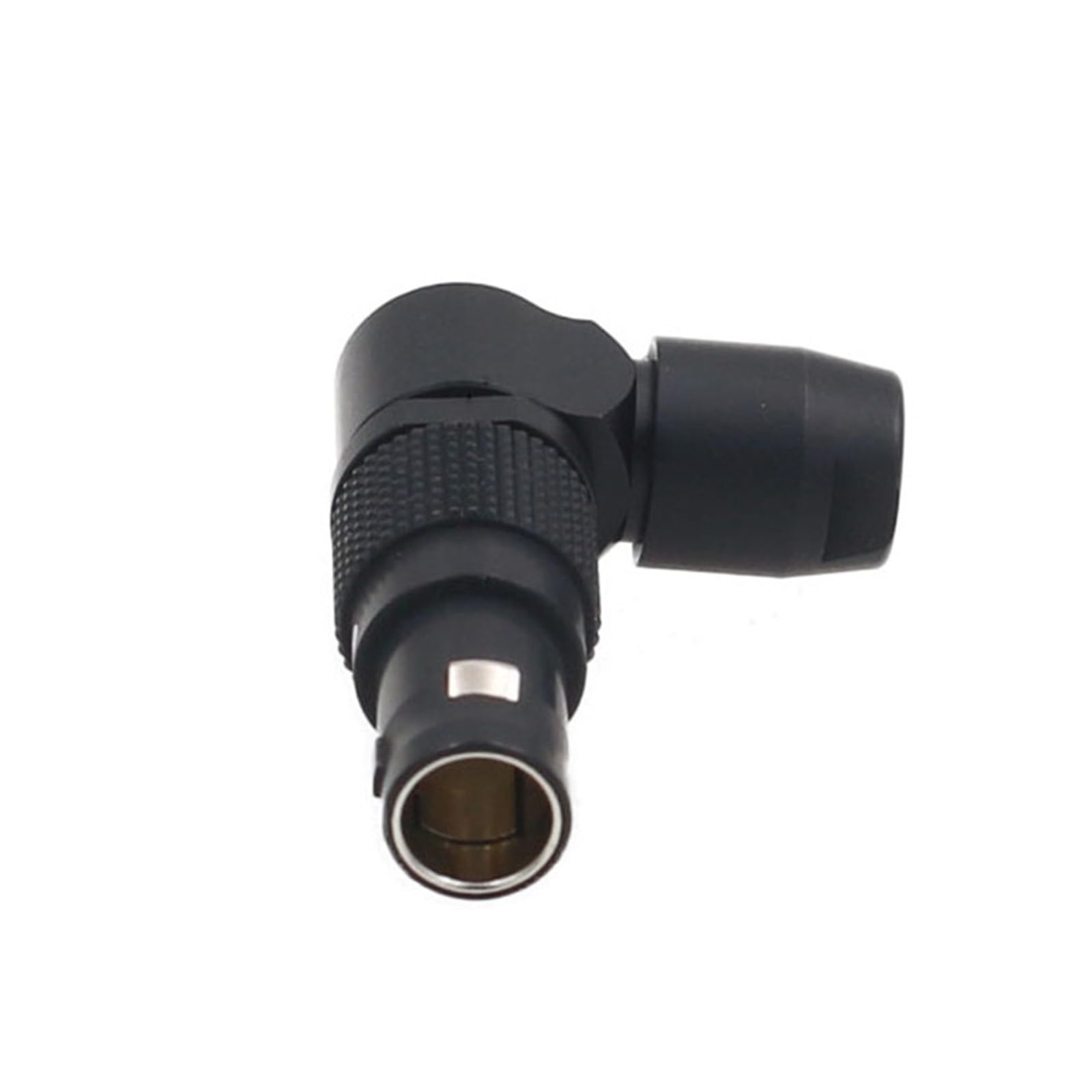

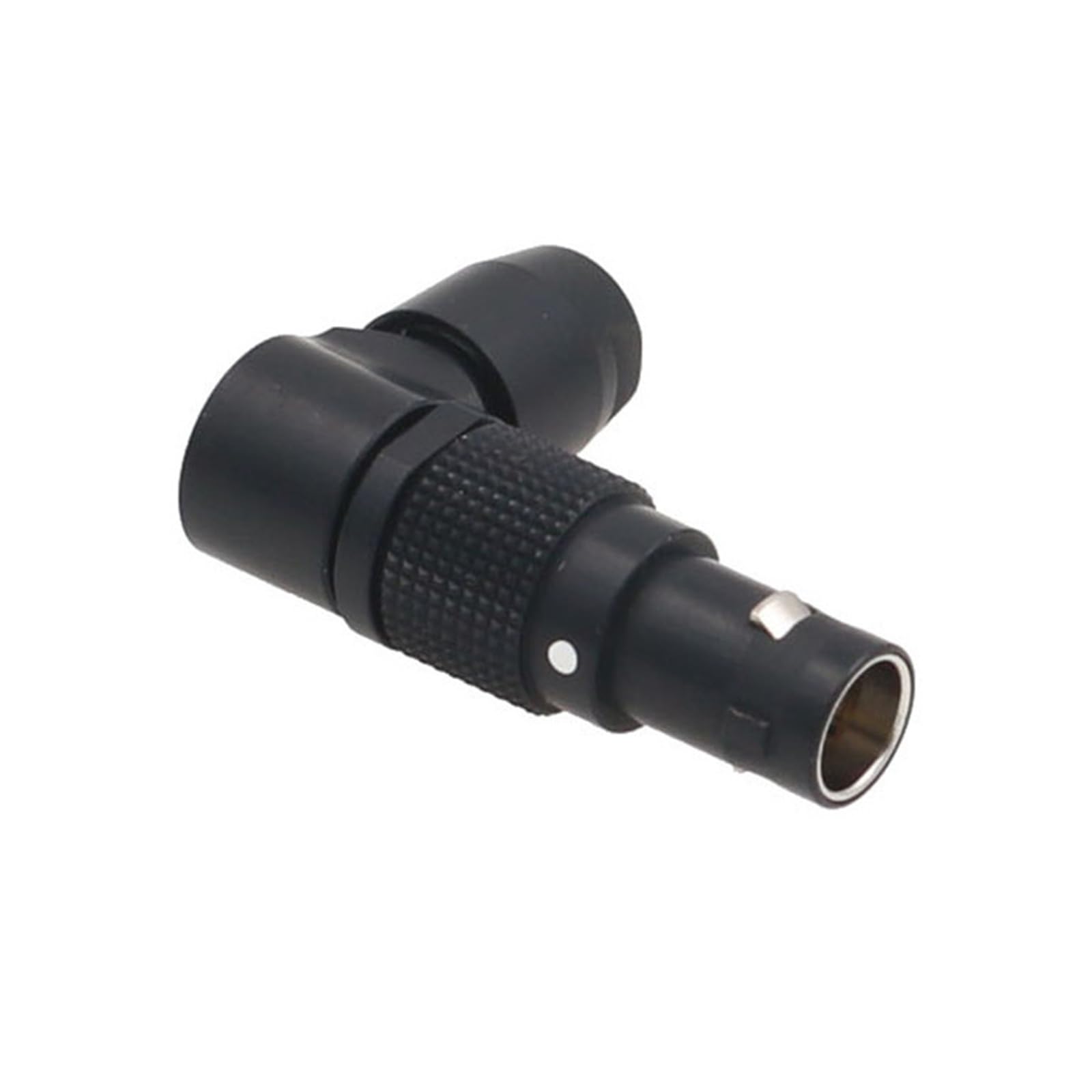

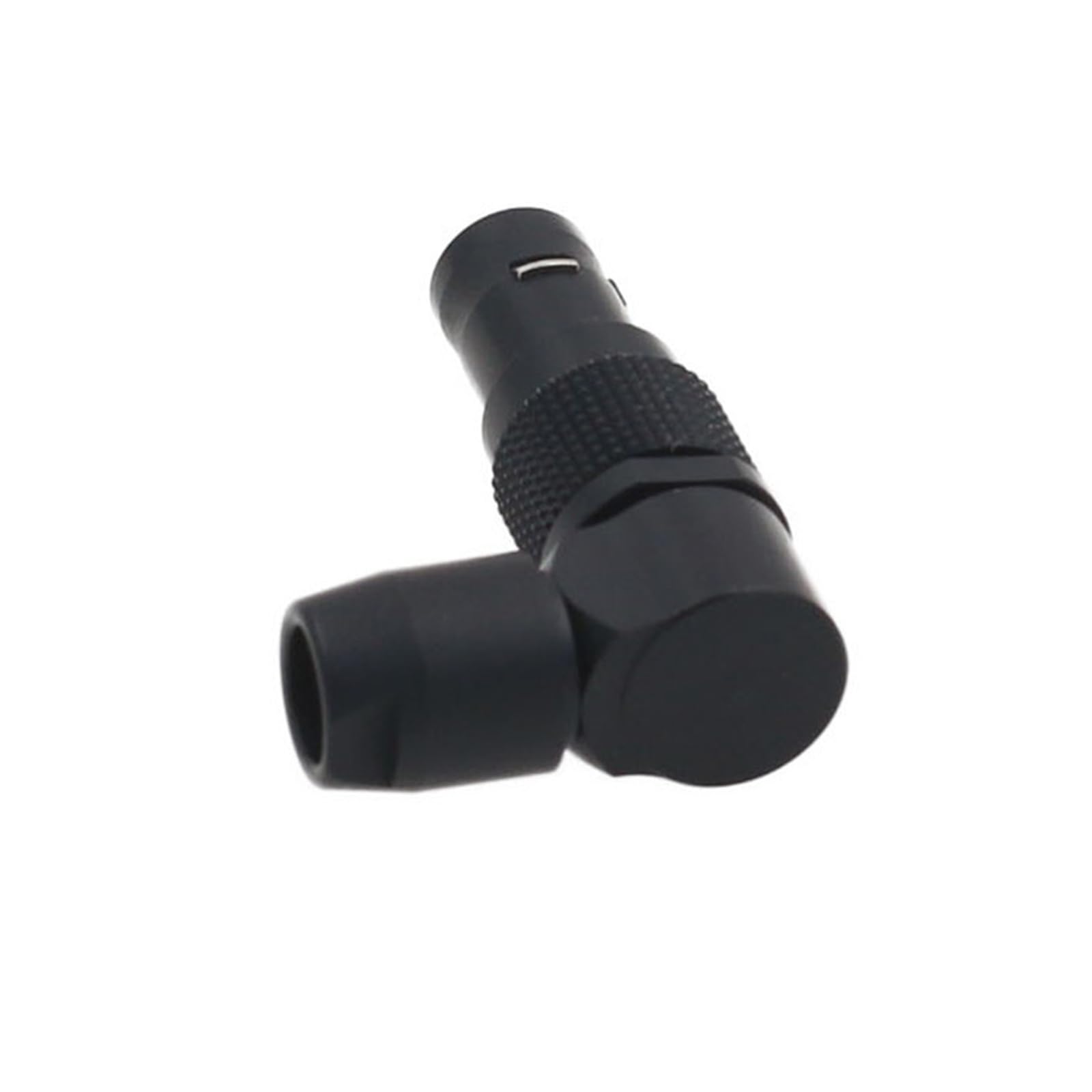

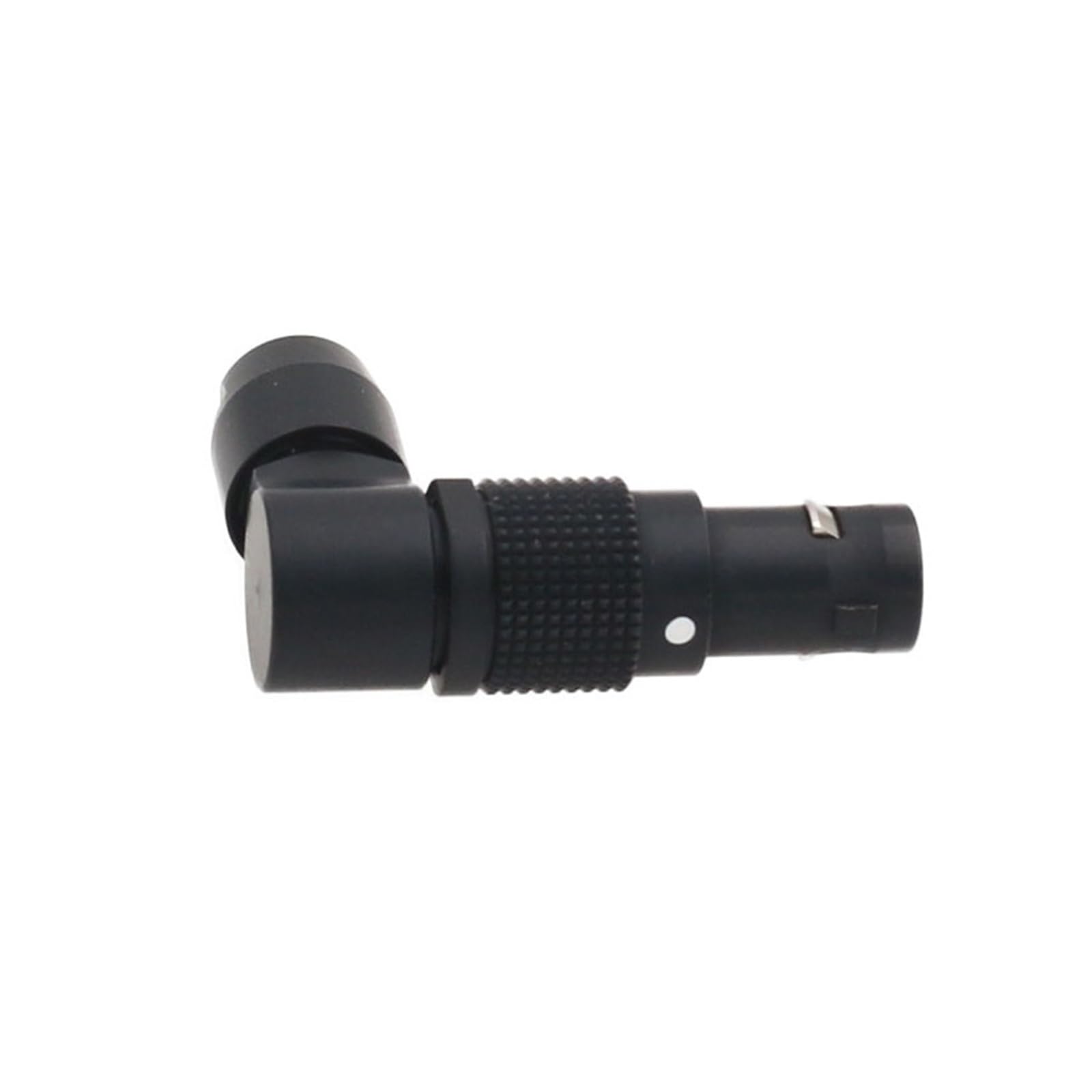

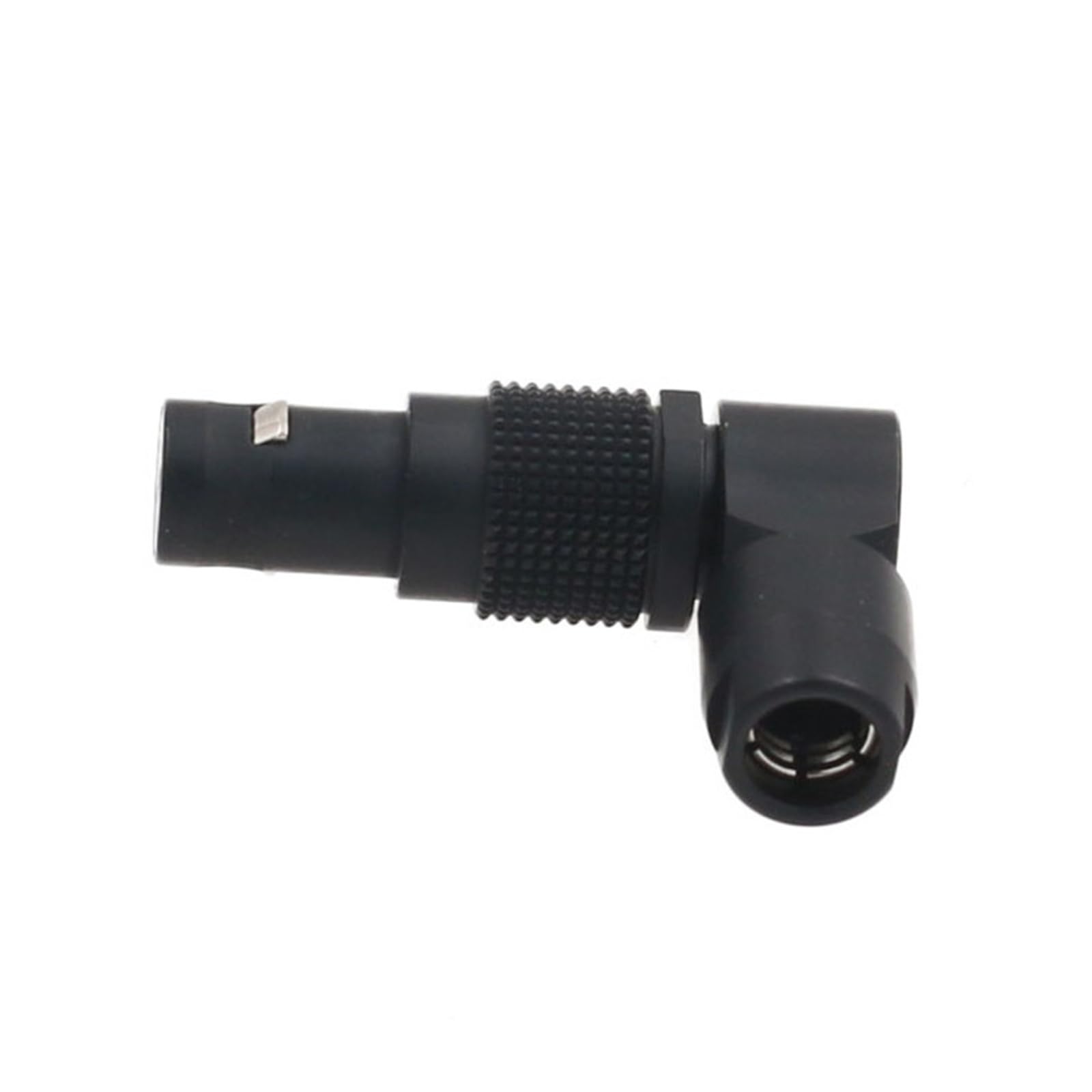

HangTon Black 0B FSG 2 Pin 90-Degree Connector Rotated Adjustable Right Angle Male Cable Plug Circular Push Pull Compatible for Lemo

• Black 2 pin male connector, compatible for Lemo 0B.FSG.302, right angle and adjustable. It allows to adjust the connector position in an efficient way in order to prevent cable snagging. Orientat it during its assembly and 8 positions available
• Rated current: 10 Amps. AWG wire size: 28 - 20, cable diameter: 2.5mm-5mm
• Contact diameter: 0.9 mm (0.035in), max. stranded conductor section: 0.56 mm^2 (AWG 20)
• Circular, push-pull self-latching, cable mounting, solder termination, IP50 rating
• Reliable, 360 degree complete EMC shielding, shock / vibration / corrosion resistance

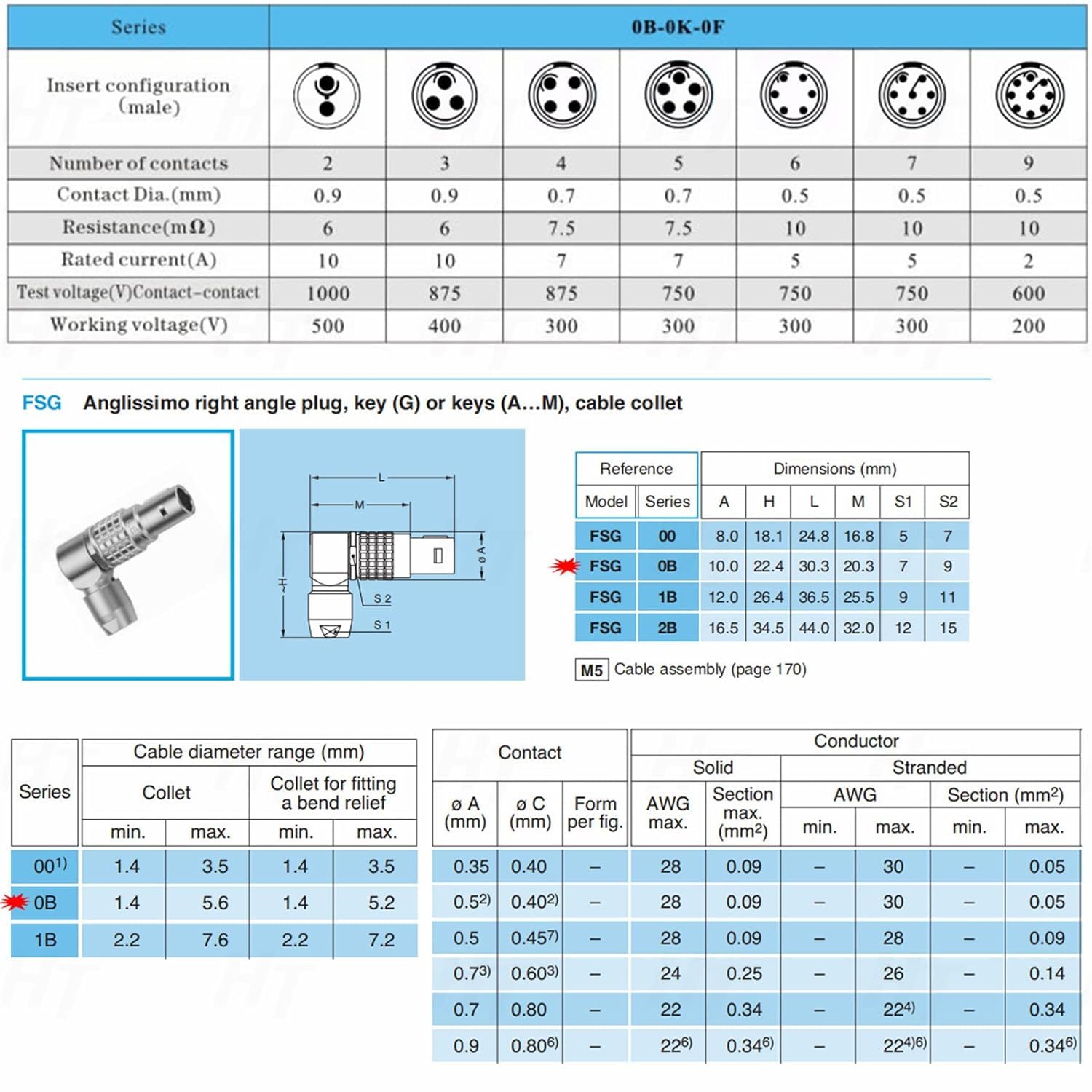

Compatible for LEMO 0B FGG EGG FSG FHG PHG connectors.Contacts: 2 3 4 5 6 7 9 Wire diameter max: 2-3pin: 20AWG; 4-5pin: 22AWG; 6-9pin: 28AWG Cable Outer Diameter Range: 2mm-5mm Protection Rating: IP50 Shell Material: Brass chrome plated Contact Material: Brass gold plated Termination: Solder Mating Cycle: >4000 times Temperature Range: -45~+125℃ We also supply all kinds of circular connectors( plug, panel mount socket, free socket, male or female contact, straight or right angle style, black / blue / golden / white anodized).
