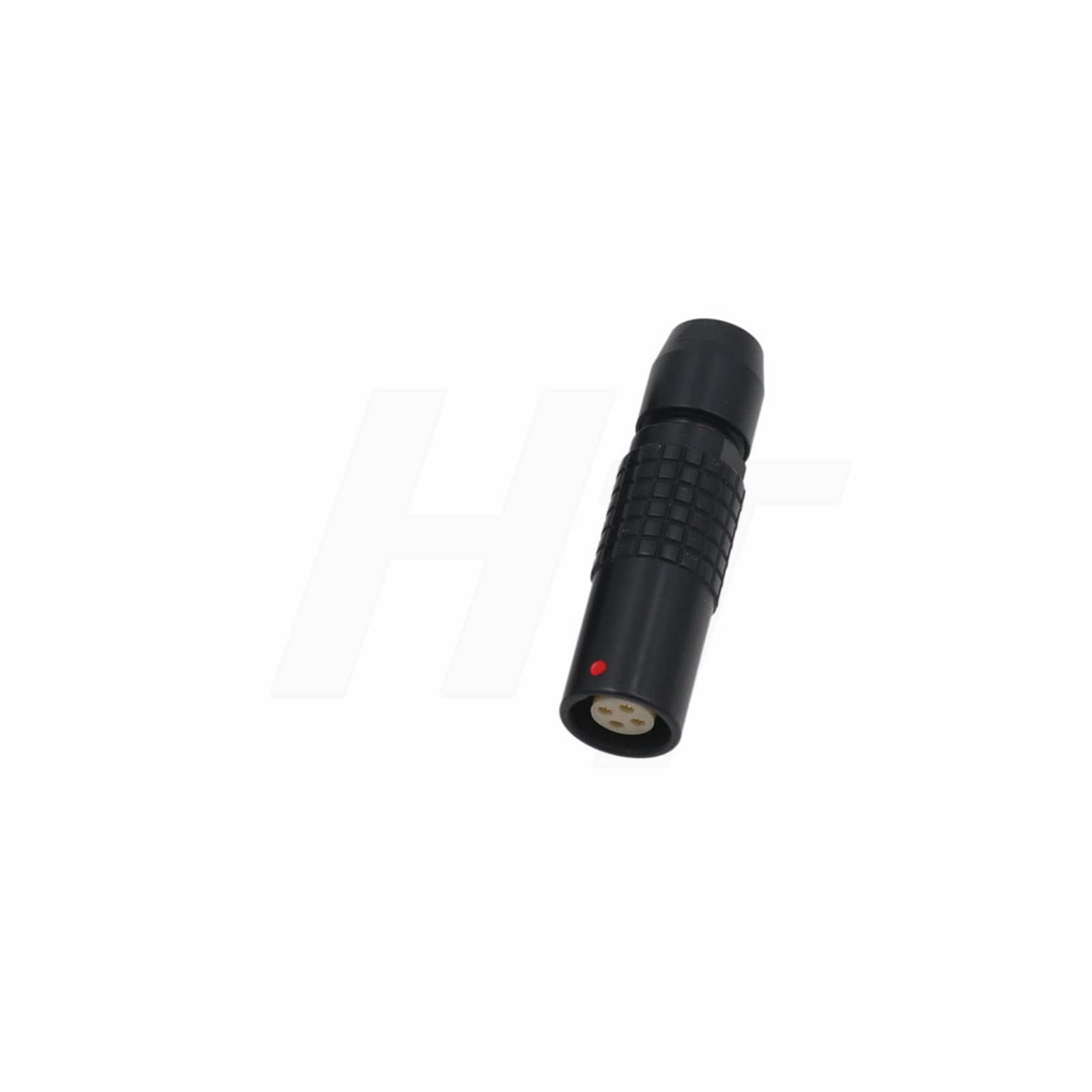

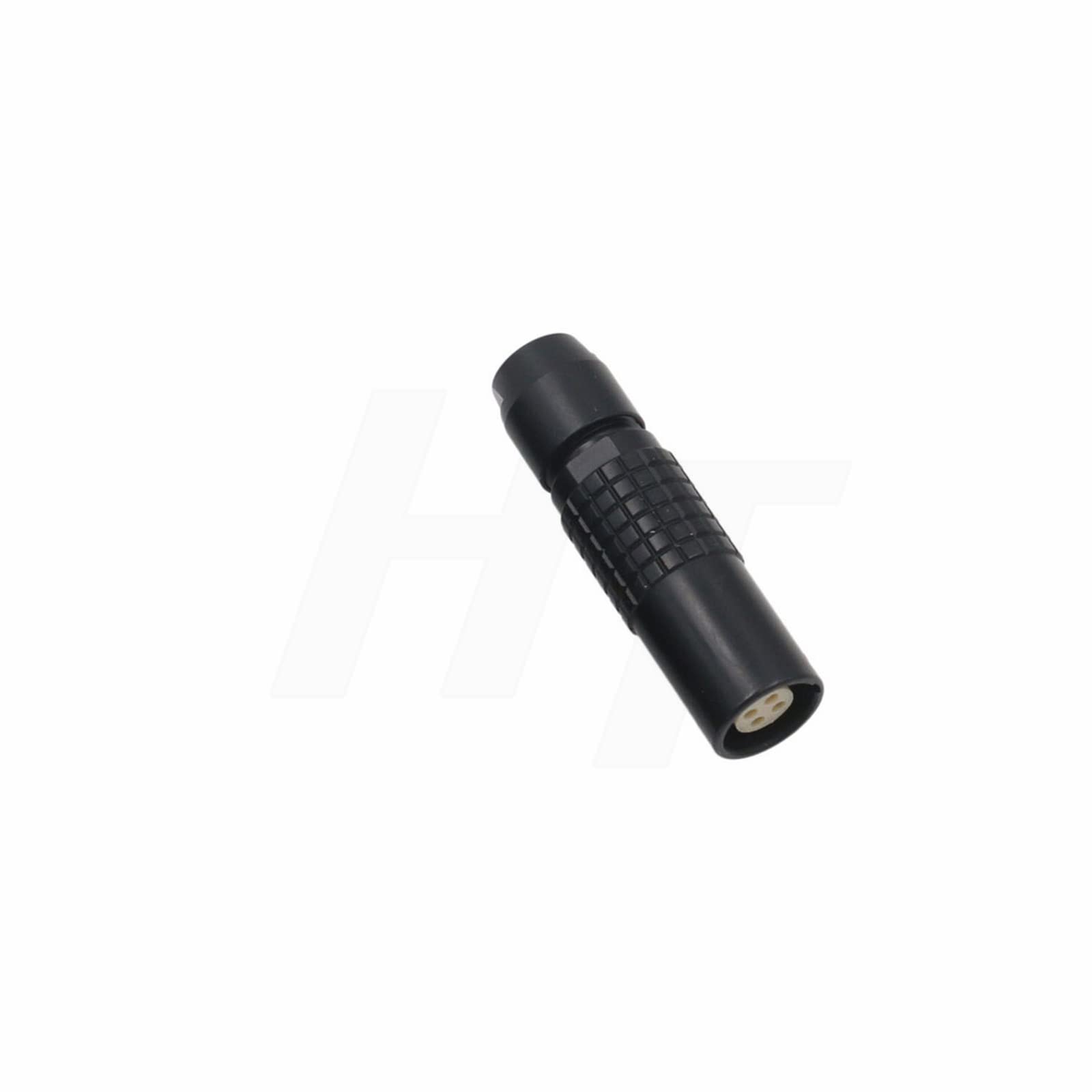

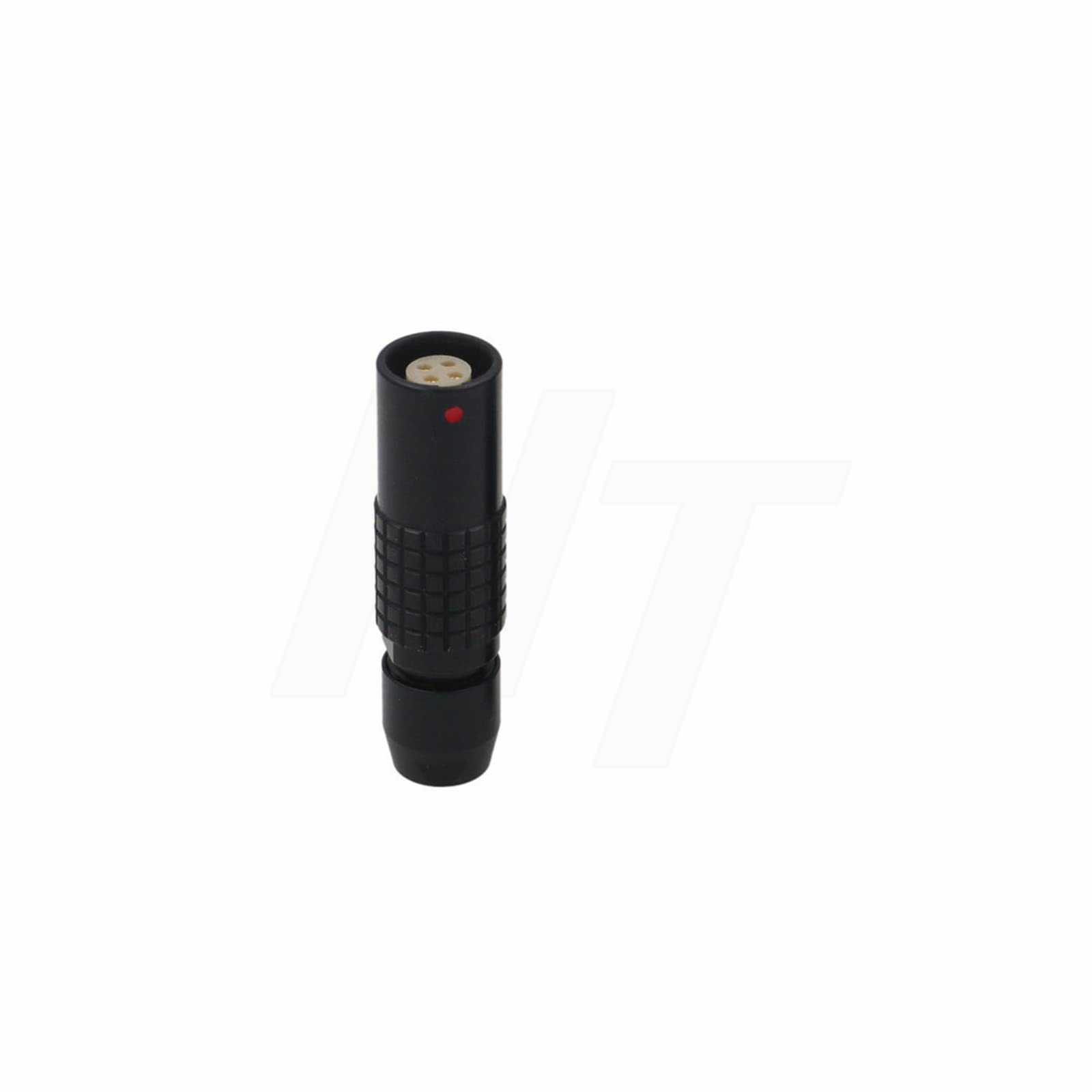

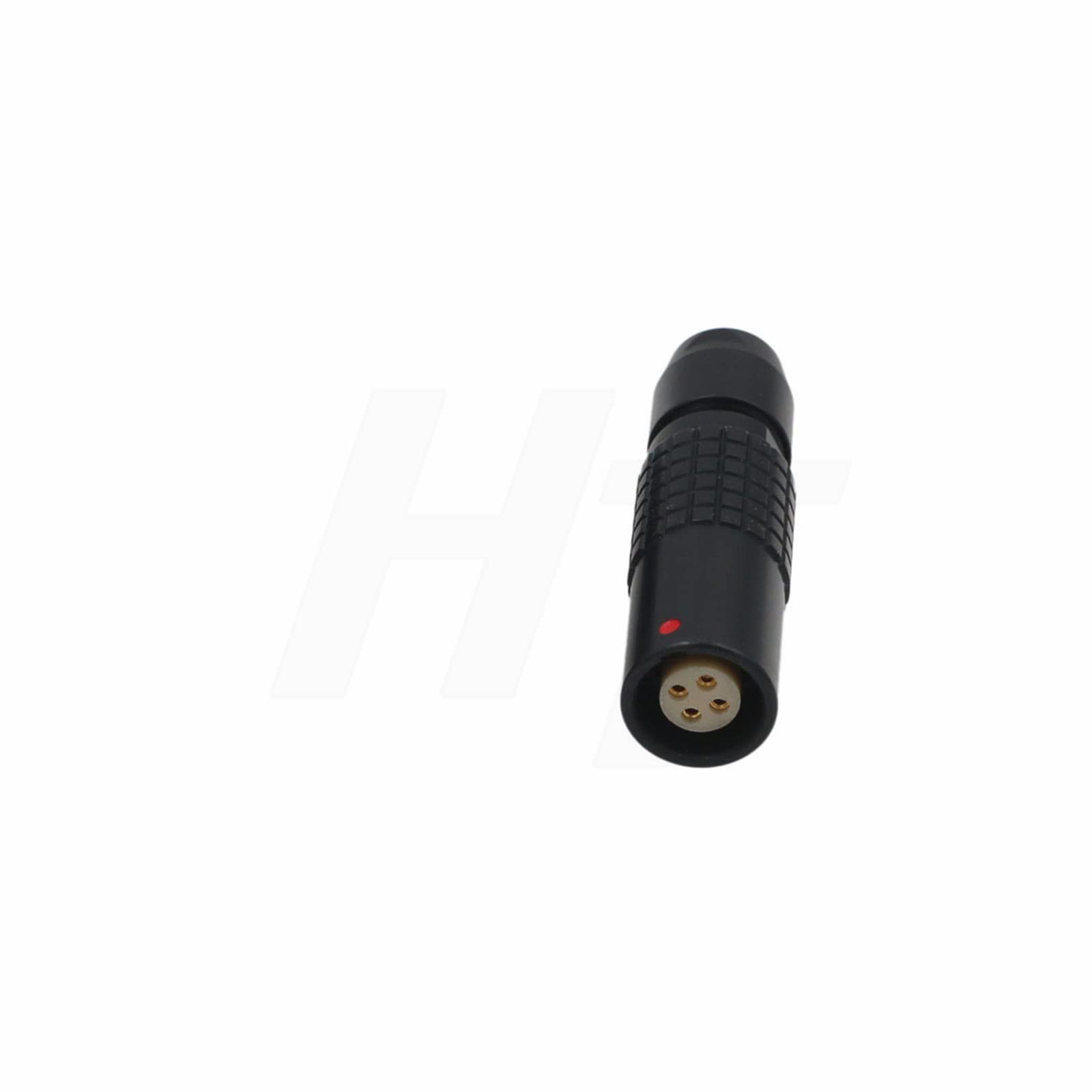

HangTon Black 0B PHG 2 Pin Connector Female Circular Push Pull Cable Socket Compatible for Lemo
About this item
- Black 2 pin female connector, compatible for Lemo 0B.PHG.302
- Rated current: 10 Amps. AWG wire size: 28 - 20, cable diameter: 2.5mm-5mm
- Contact diameter: 0.9 mm (0.035in), max. stranded conductor section: 0.56 mm^2 (AWG 20)
- Circular, push-pull self-latching, cable mounting, solder termination, IP50 rating
- Reliable, 360 degree complete EMC shielding, shock / vibration / corrosion resistance
Product description

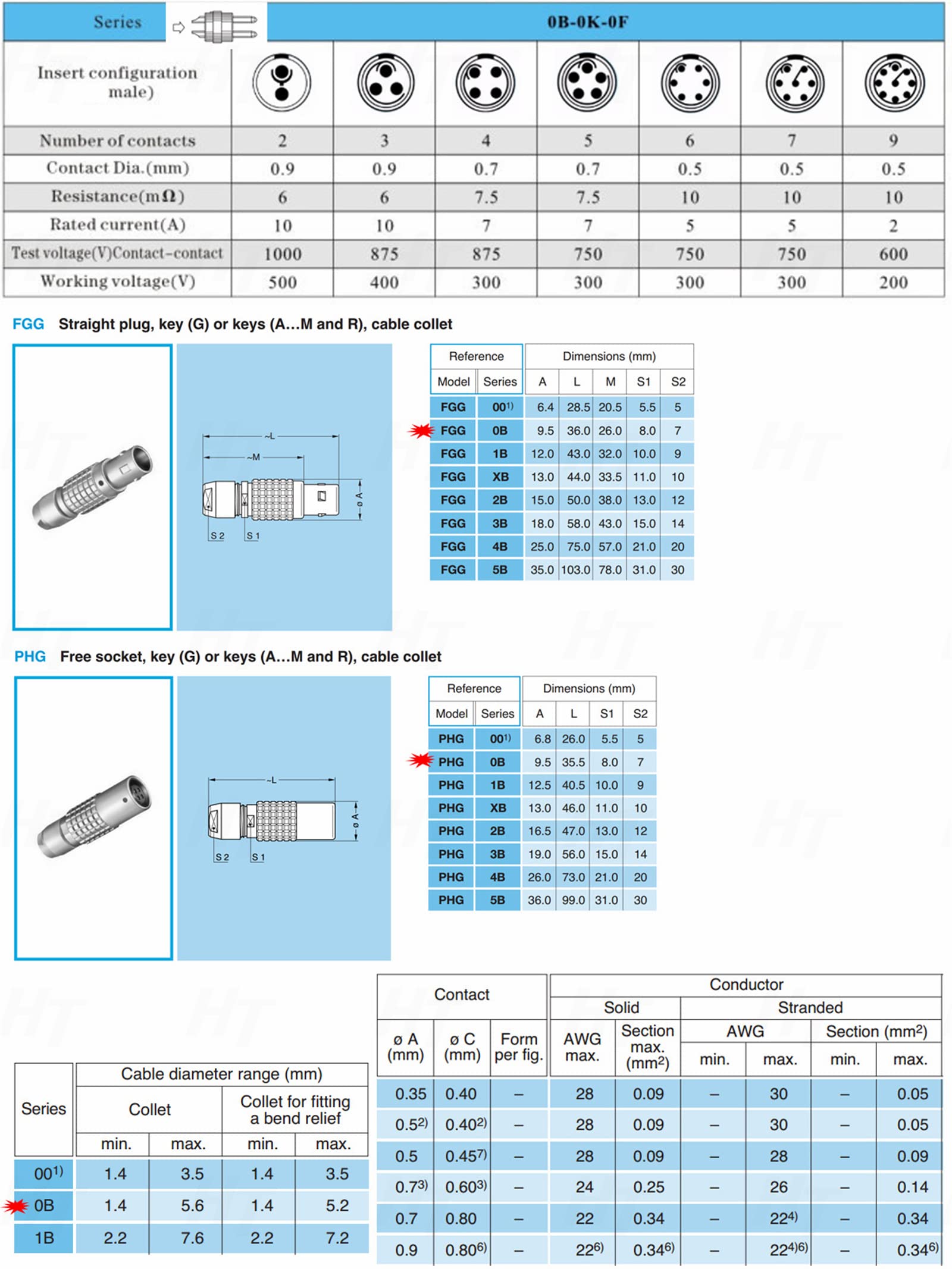

Compatible for LEMO 0B FGG EGG FSG FHG PHG connectors.Contacts: 2 3 4 5 6 7 9 Wire diameter max: 2-3pin: 20AWG; 4-5pin: 22AWG; 6-9pin: 28AWG Cable Outer Diameter Range: 2mm-5mm Protection Rating: IP50 Shell Material: Brass chrome plated Contact Material: Brass gold plated Termination: Solder Mating Cycle: >4000 times Temperature Range: -45~+125â We also supply all kinds of circular connectors( plug, panel mount socket, free socket, male or female contact, straight or right angle style, black / blue / golden / white anodized).
Product details
