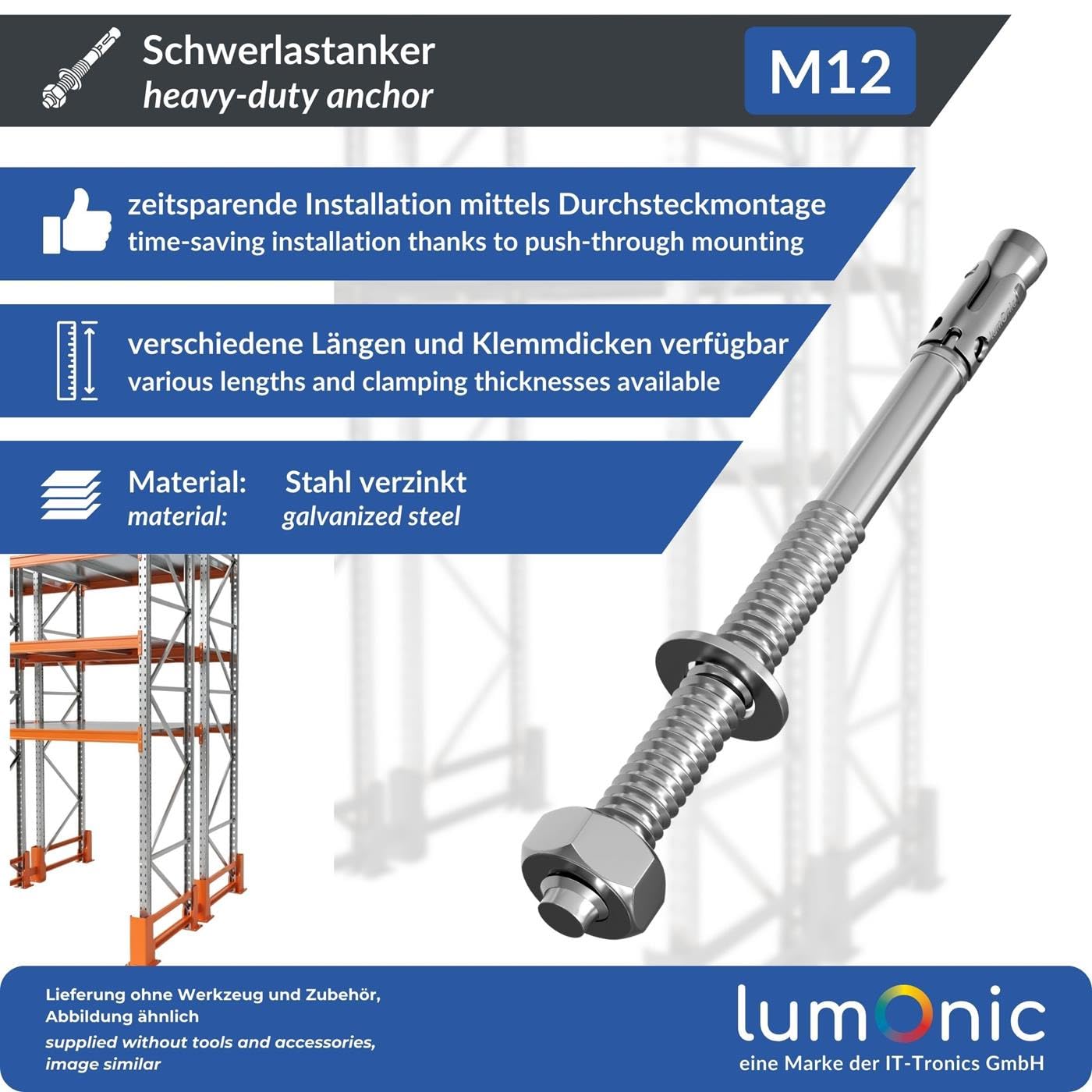

5 x Lumonic Heavy Duty Anchor, M12 x 160 Galvanised, For Use as a Wedge Anchor, Metal Dowels, Bolt Anchor, Flash Dowels, For Various Types of Through Hole Mono

• Product: The M12 heavy duty anchor can be used as a metal dowel, as a bolt anchor, and also as a lightning dowel for installation. Material: galvanised steel. You will receive 1 item

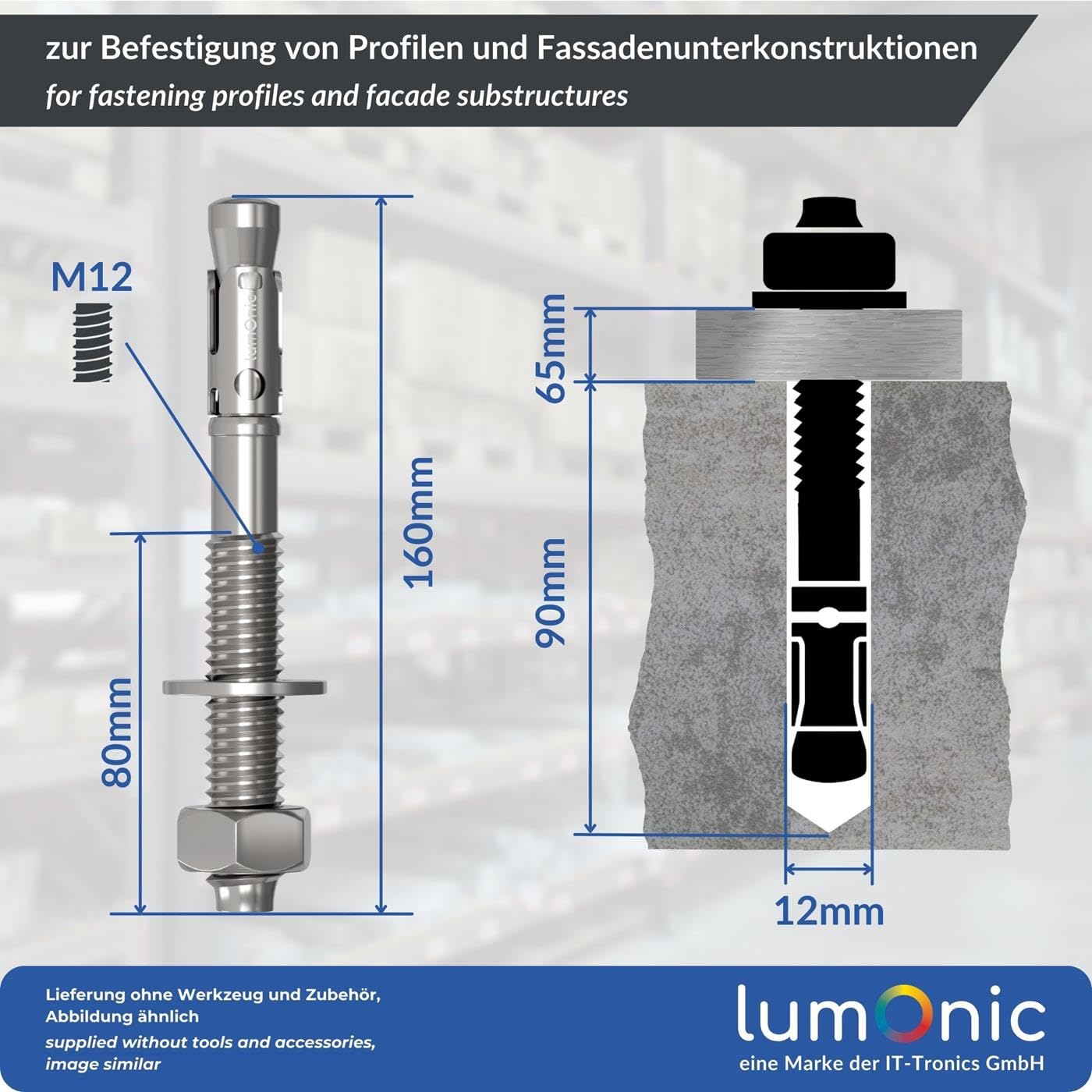

• Dimensions: the total length of the M12 wedge anchor is 160 mm, with a thread length of 80 mm. The clamping thickness is 65 mm, the maximum torque is 50 Nm. Drill hole diameter is 12 mm and drill hole length should be 90 mm.
• Use: the heavy-duty anchor is suitable for through-hole mounting in building materials such as concrete and steel, among other things for angle profiles, rails, brackets, wooden beams and facade substructures.
• Features: galvanised steel, dimensionally stable up to 50 Newton metres. Allows for easy installation, ideal for through-hole mounting in various building materials. The mechanism ensures low assembly effort.
• Function: hole drilling and clean afterwards. Insert the wedge anchor into the drill hole whereby the expansion clip rests against the borehole wall due to its own tension. Tightening the nut presses the expansion clip against the building material.

✔ Areas of application: the corner anchor is suitable for the pressure installation of angle profiles, rails, brackets, wooden beams and facade substructures, among others. ✔ Features: quick assembly, ideal for mounting through hole, low assembly effort. ✔ How it works: the corner anchor is pushed into the drill hole, the expansion clip is then attached against the wall of the drill hole due to the internal tension. When the nut is tightened, the cone sinks into the expansion clip, expands it and presses it against the building material. Product: Metal Dowel Tip: heavy anchor. Material/quality: galvanised. Discussion Wire: M12 Total length: 160 mm. Cable Length: 80mm Clamp Thickness: 65mm Probe diameter: 12mm Probe length: 90mm Torque: 50Nm
