Lumonic Heavy Duty Anchor Pad M16 x 280 mm Galvanised I For Use As A Metal Dowel I For Different Types Of Mounting

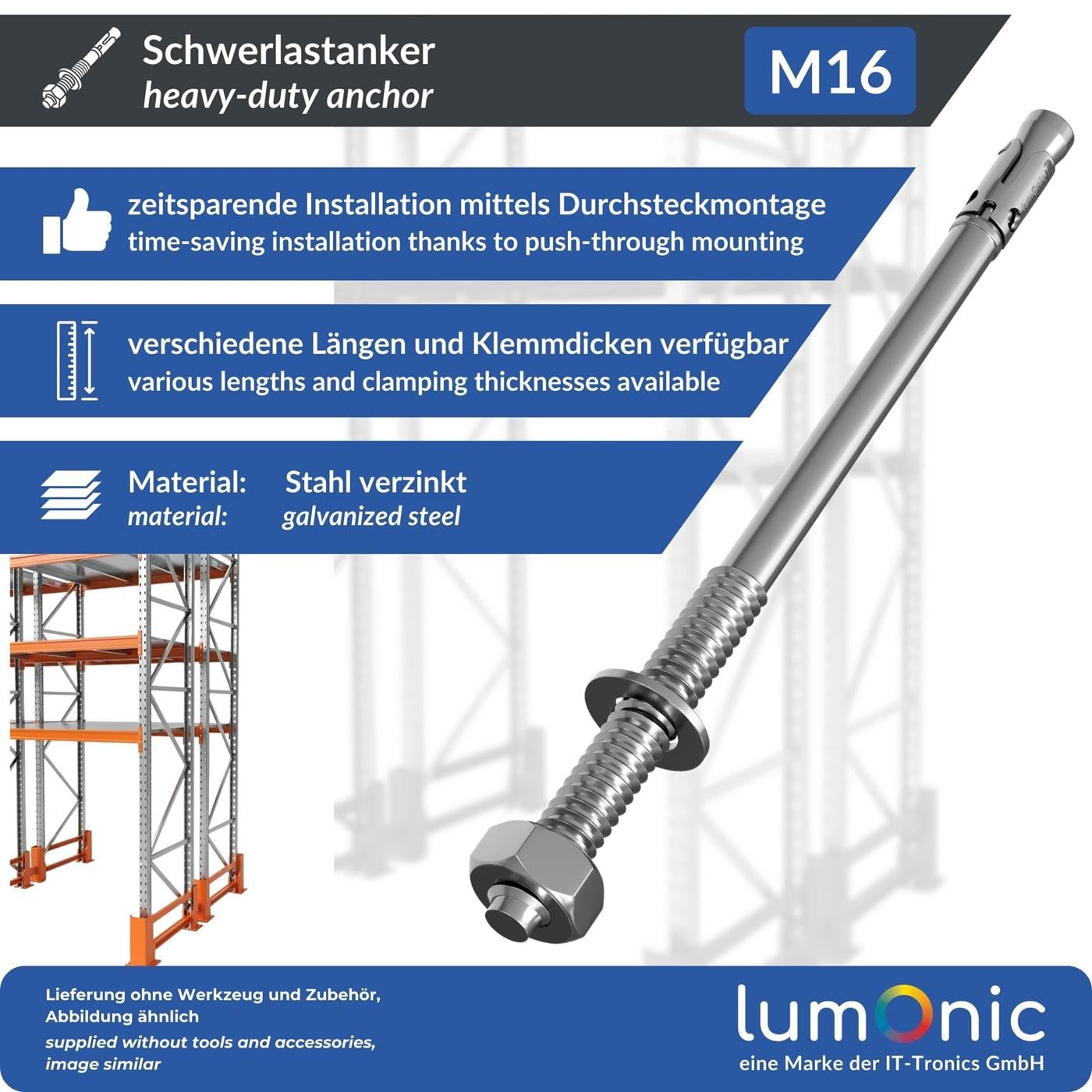

• PRODUCT: Heavy duty anchor M16 can be used as metal dowel, anchor bolt and also as lightning bolt for mounting. Material: galvanised steel. In the offer, you are purchasing 1 piece.

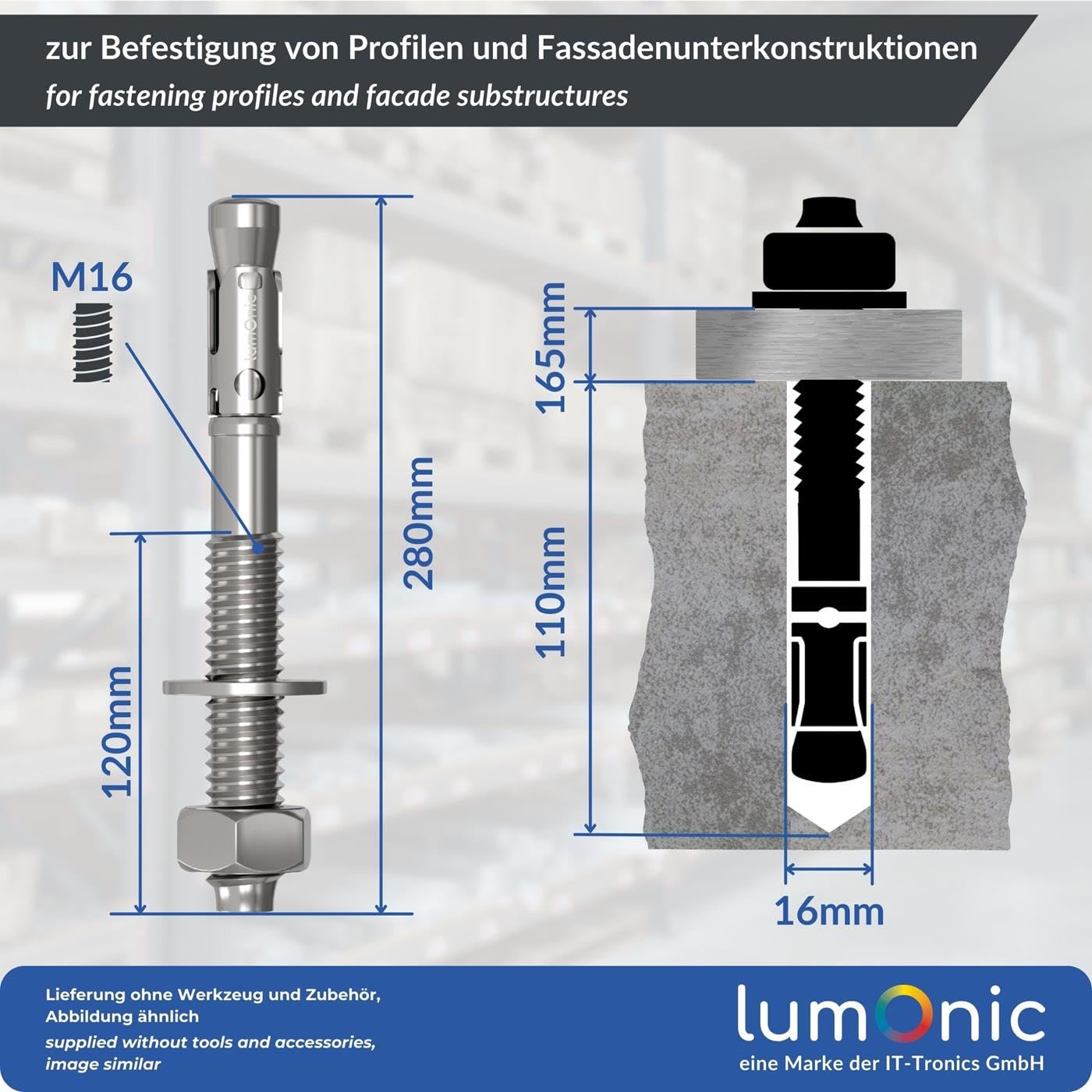

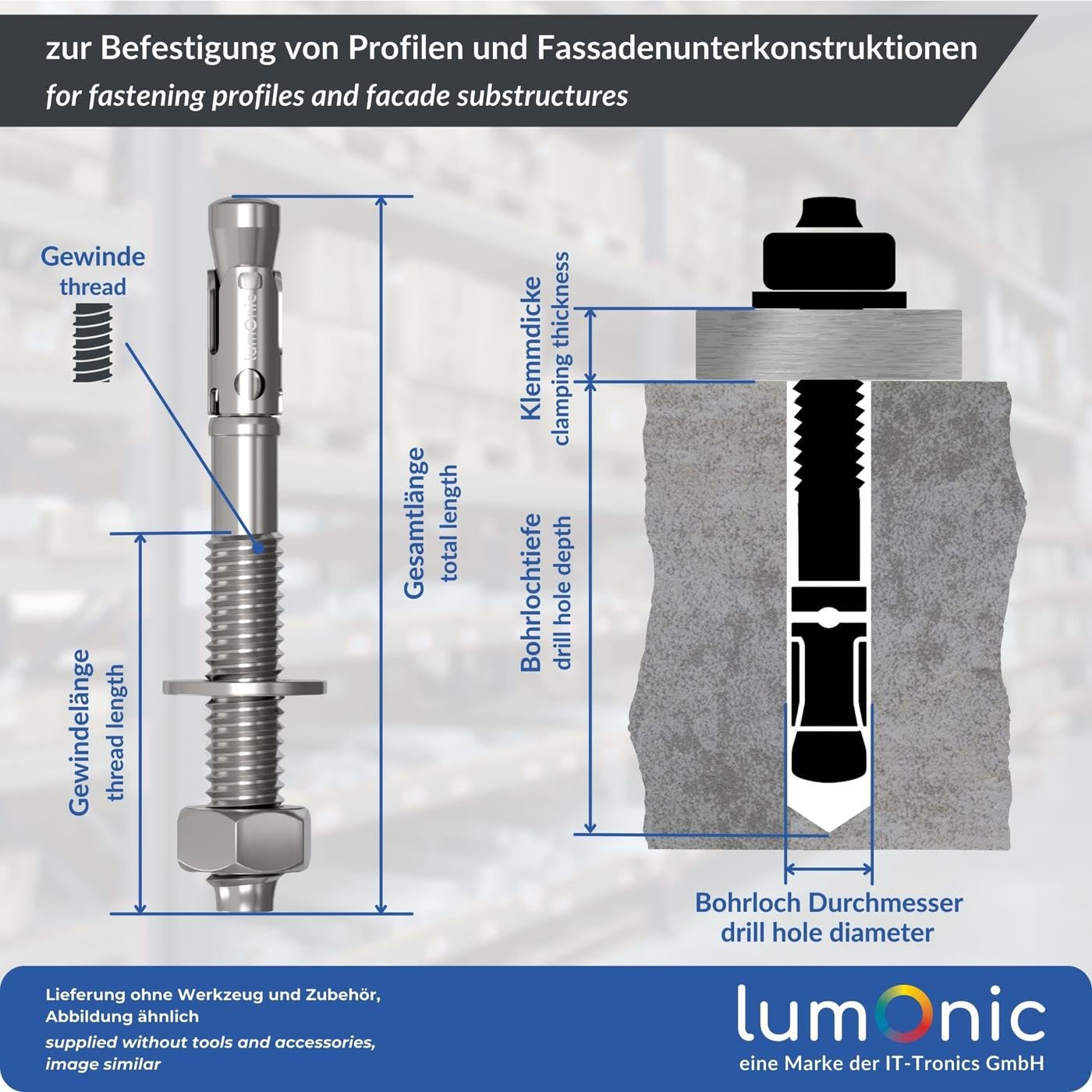

• DIMENSIONS: The total length of the M16 key anchor is 280mm, with a thread length of 120mm. The clamping thickness is 165 mm, the maximum torque is 100Nm. The diameter of the drill hole is 16mm and the length of the drill hole should be 110mm.

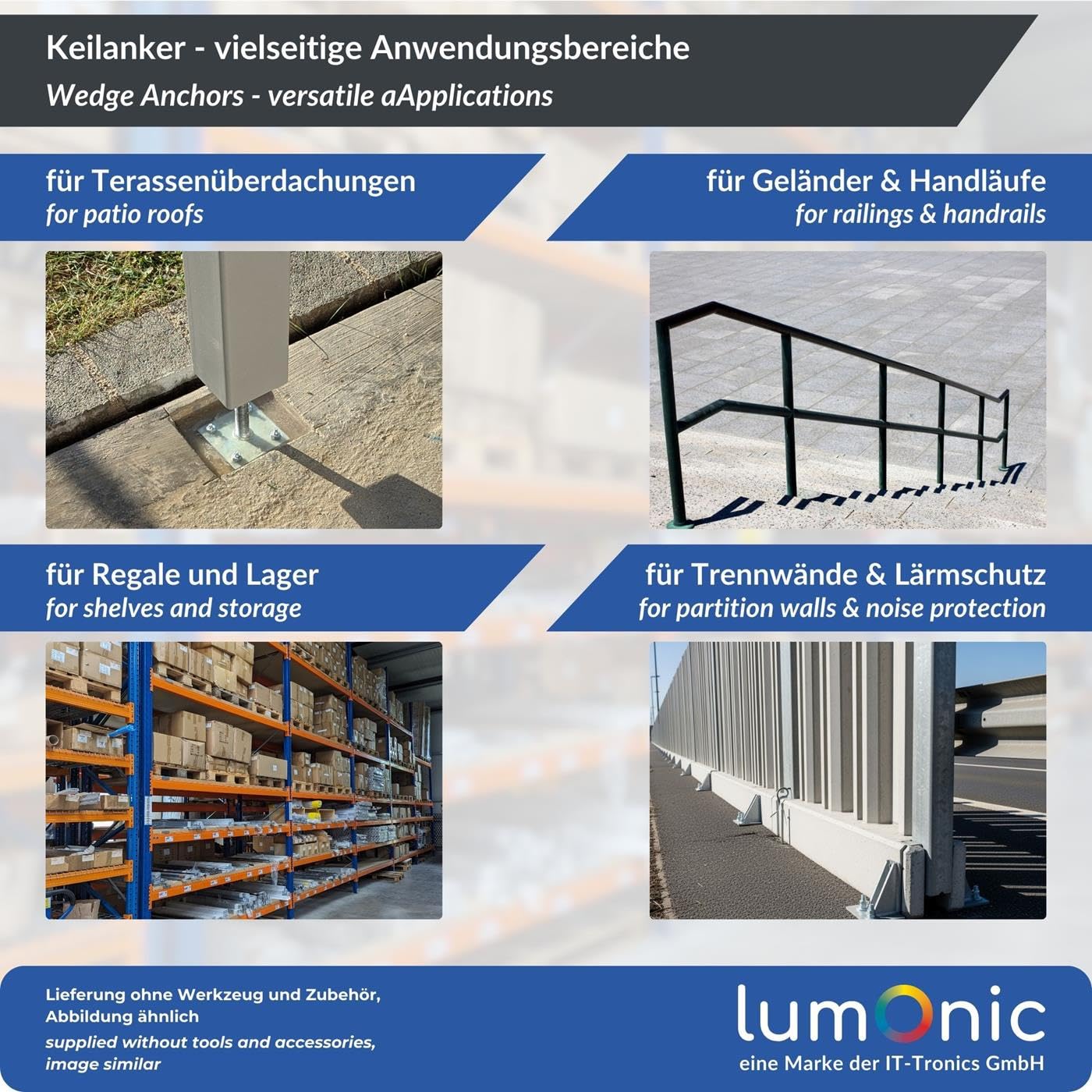

• APPLICATION: Heavy duty anchor is suitable for through mounting in building materials such as concrete and steel, among others for corner bars, rails, consoles, wooden beams and facade sub-constructions.
• PROPERTIES: Galvanized steel, deformation resistance up to 100 newton meters. Allows easy mounting, ideal for mounting through in different building materials. The mechanism reduces the installation effort.

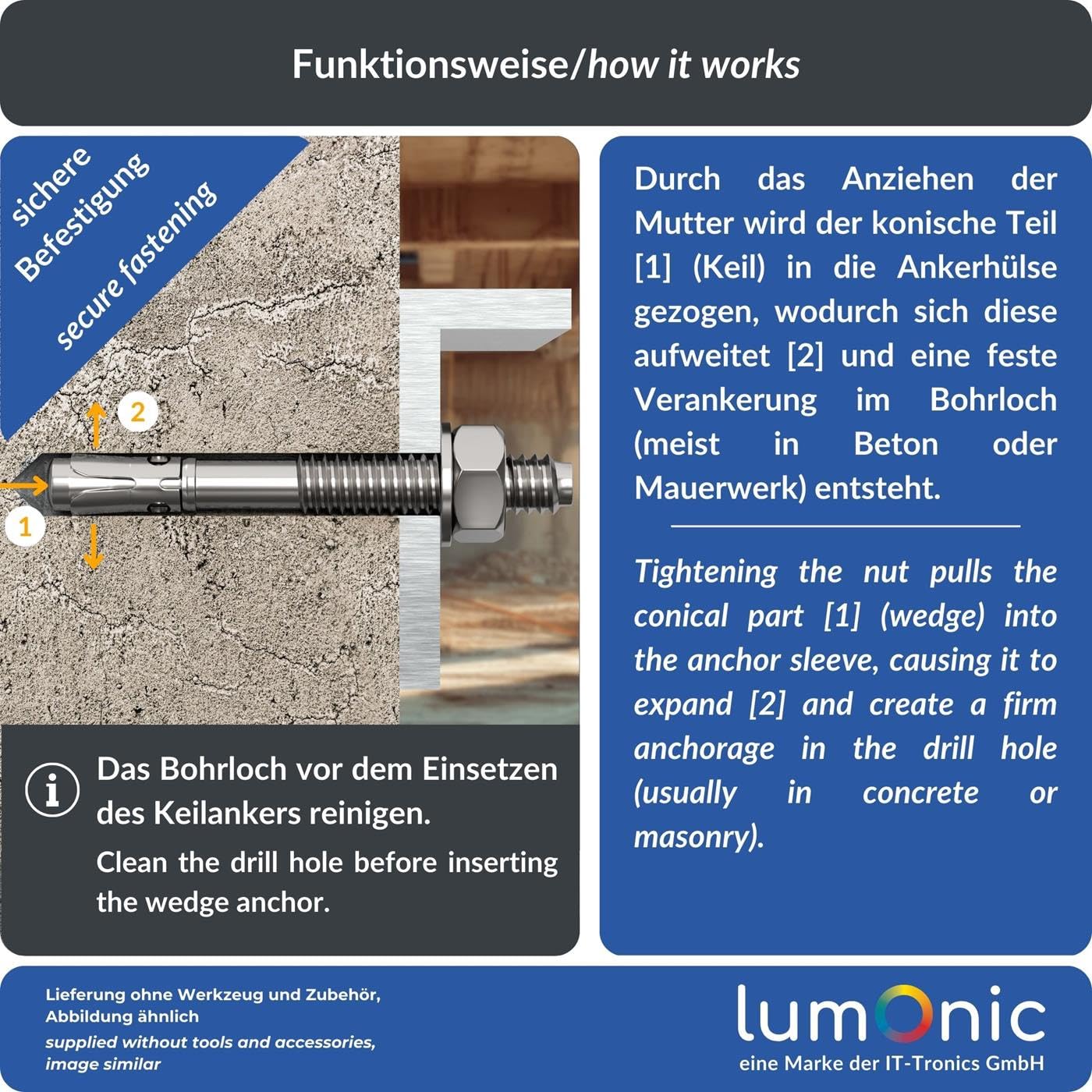

• FUNCTION: Drill the hole and then clean it. Push the key anchor into the borehole, the expansion clip resting by its own tension on the wall of the borehole. Clamping the nut compresses the expansion clip against the building material.

✔ Areas of application: Corner anchor is suitable for push installation for corner profiles, rails, supports, wooden beams and facade substructures, among others. ✔ Features: quick assembly, ideal for through hole mounting, low installation effort ✔ Operation mode: The wedge anchor is driven into the drilled hole, the expansion clip then being applied against the wall of the drilled hole due to internal stress. When the nut is tightened, the cone drives into the expansion clip, the Product: Metal Dowels Type: Heavy anchor Material: galvanised. Thread: M16 Total length: 280 mm Wire length: 120 Clamping thickness: 165 mm Torque: 100 Nm. Probe hole diameter: 16 mm. Probe Hole Length: 110mm
