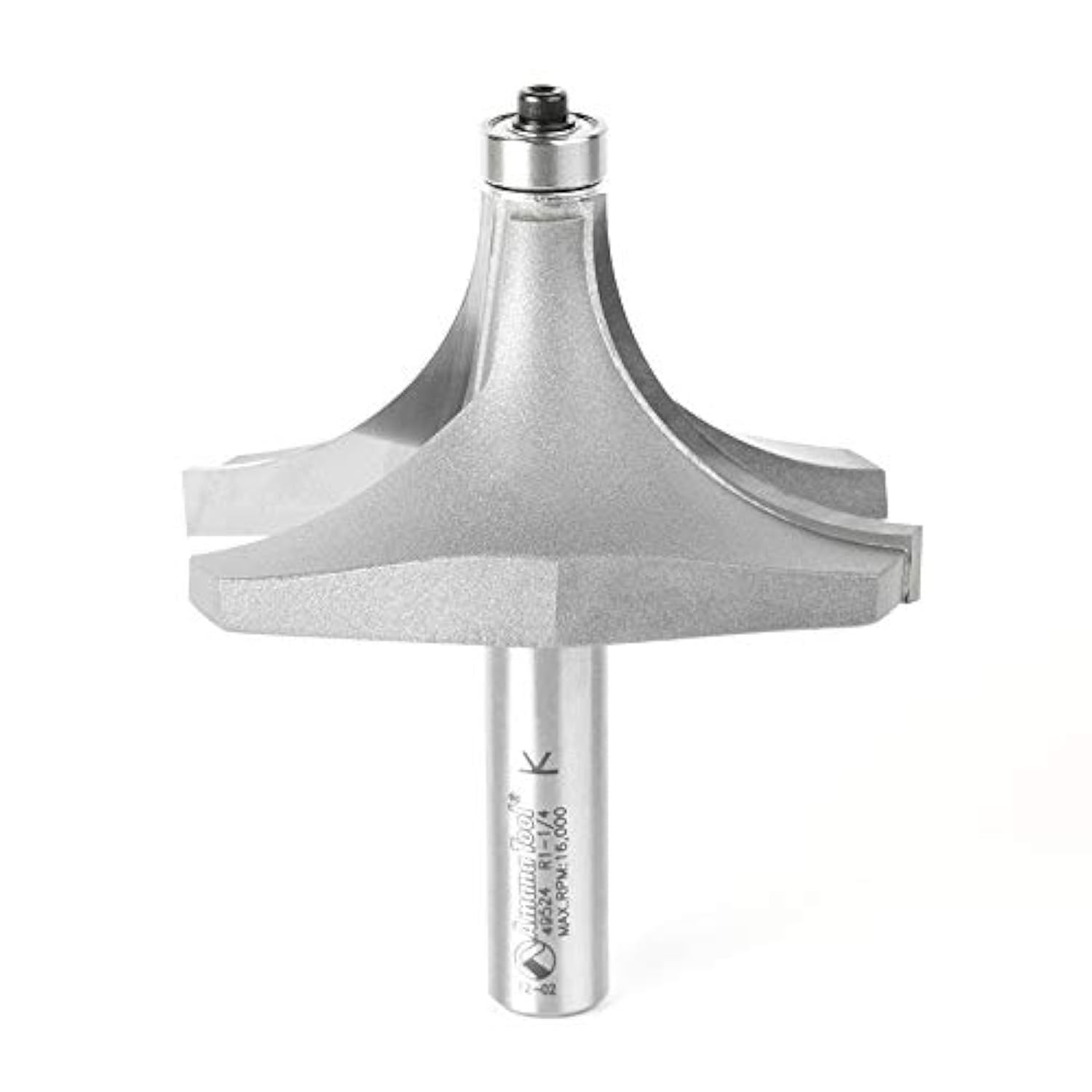

Amana Tool - 49524 Carbide Tipped Corner Round 1-1/4 Radius x 3" Dia x 1-1/2 x 1/2 Sha

• Diameter (D) 3
• Radius (R) 1-1/4
• Cutting height (B) 1-1/2
• Shank (D) 1/2
• Overall length (L) 3-1/4

The basic edge-forming bit, The Corner-Rounding bit rounds an edge to a given radius. The tool is shoulder to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as round over, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder Can be produced, in effect making the bit a beading Bit. Maximum RPM 16, 000. Use in a table-mounted router. Not for use in a handheld router! Not guaranteed due to extreme diameter and radius. For best results it is recommended to use a smaller radius bit or Chamfer The material prior to using these large radius tools. Tool life will be prolonged and a smoother finish will result., #49524 diameter (D) 3, radius (r) 1-1/4, cutting height (B) 1-1/2, Shank (D) 1/2, overall length (L) 3-D/4, replacement bearing 47706, flutes 2, D1 1/2, 49524 carbide Tipped corner round 1-1/4 Radius x 3 inch dia X 1-1/2 x 1/2 shank
