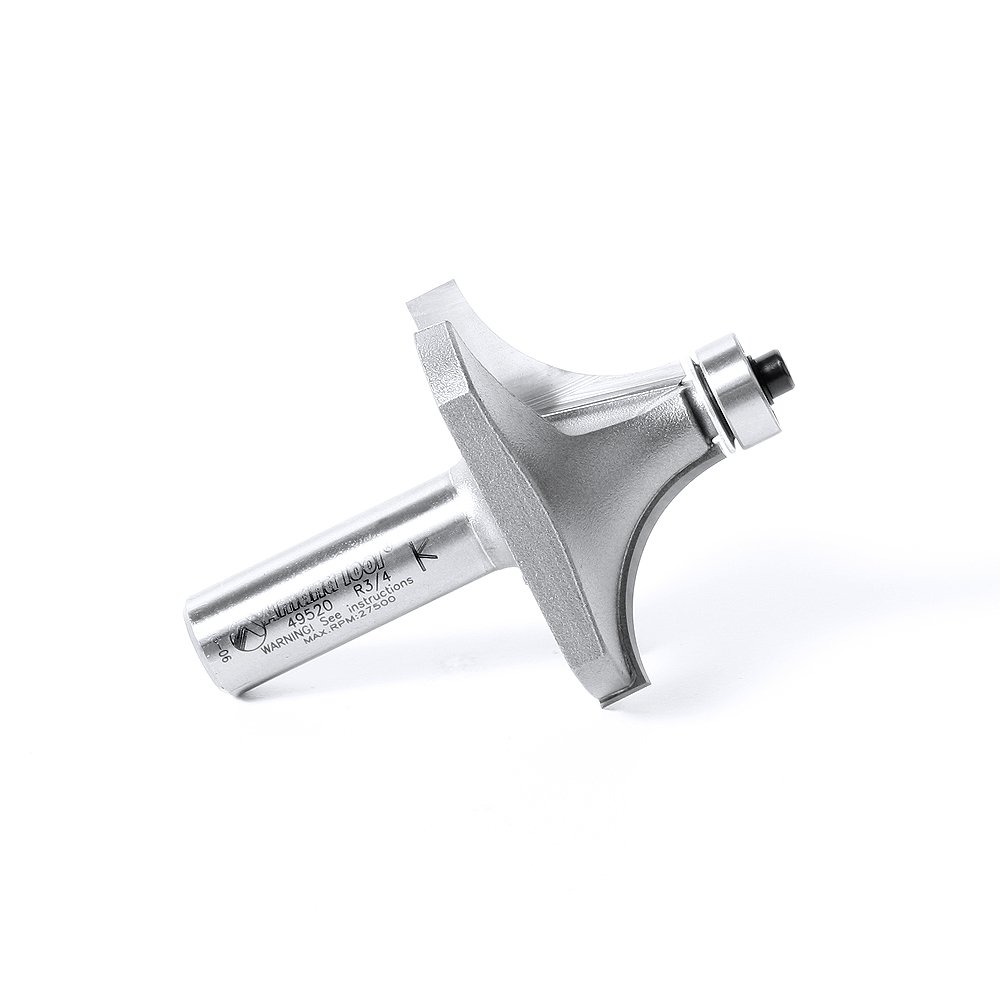

Amana Tool - 49520 Carbide Tipped Corner Round 3/4 Radius x 2" Dia x 1" 2 Shan

• Diameter (D) 2
• Radius (R) 3/4
• Cutting height (B) 1
• Shank (D) 1/2
• Overall length (L) 2-7/8

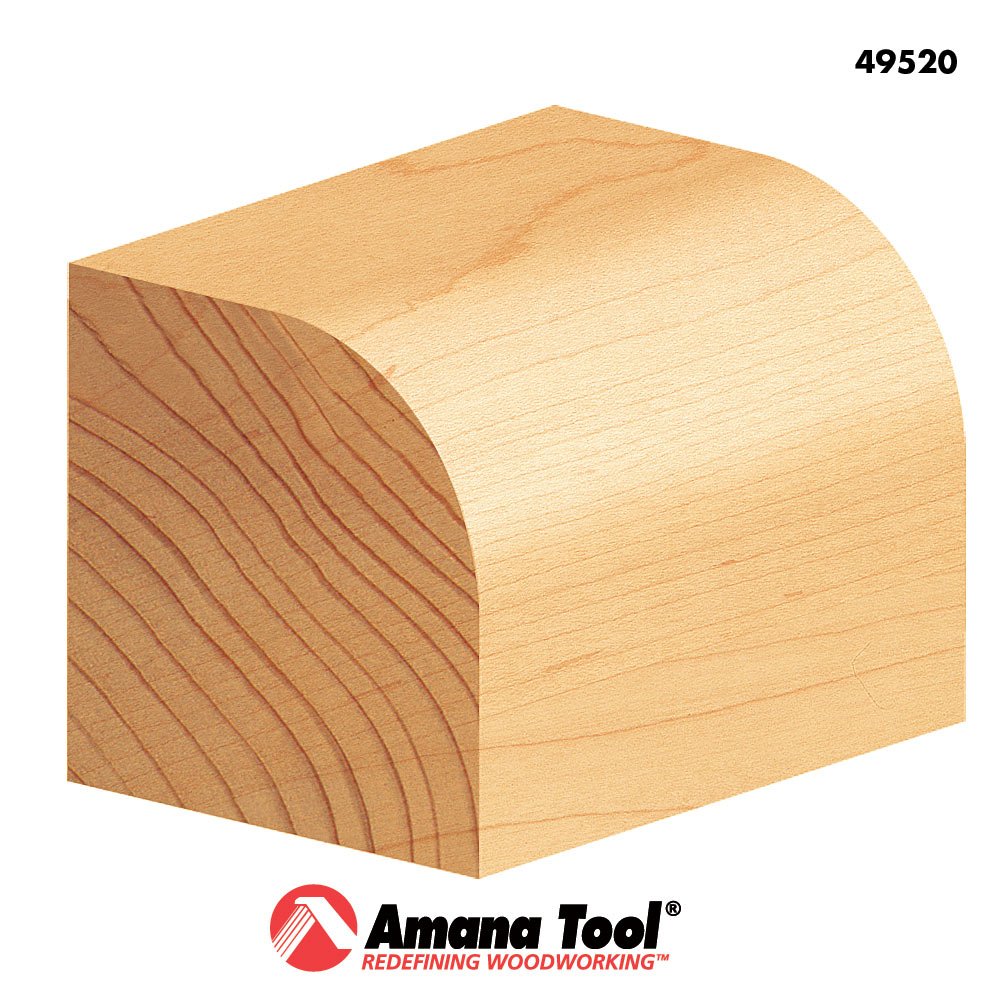

The basic edge-forming bit, The Corner-Rounding bit rounds an edge to a given radius. The tool is shoulder to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as round over, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder Can be produced, in effect making the bit a beading Bit. Maximum RPM 22, 000., #49520 diameter (D) 2, radius (r) 3/4, cutting Height (B) 1, shank (D) 1/2, overall length (L) 2-7/8, replacement bearing 47706, flutes 2, 49520 carbide Tipped corner round 3/4 radius x 2 inch dia X 1 inch x 1/2 shank
