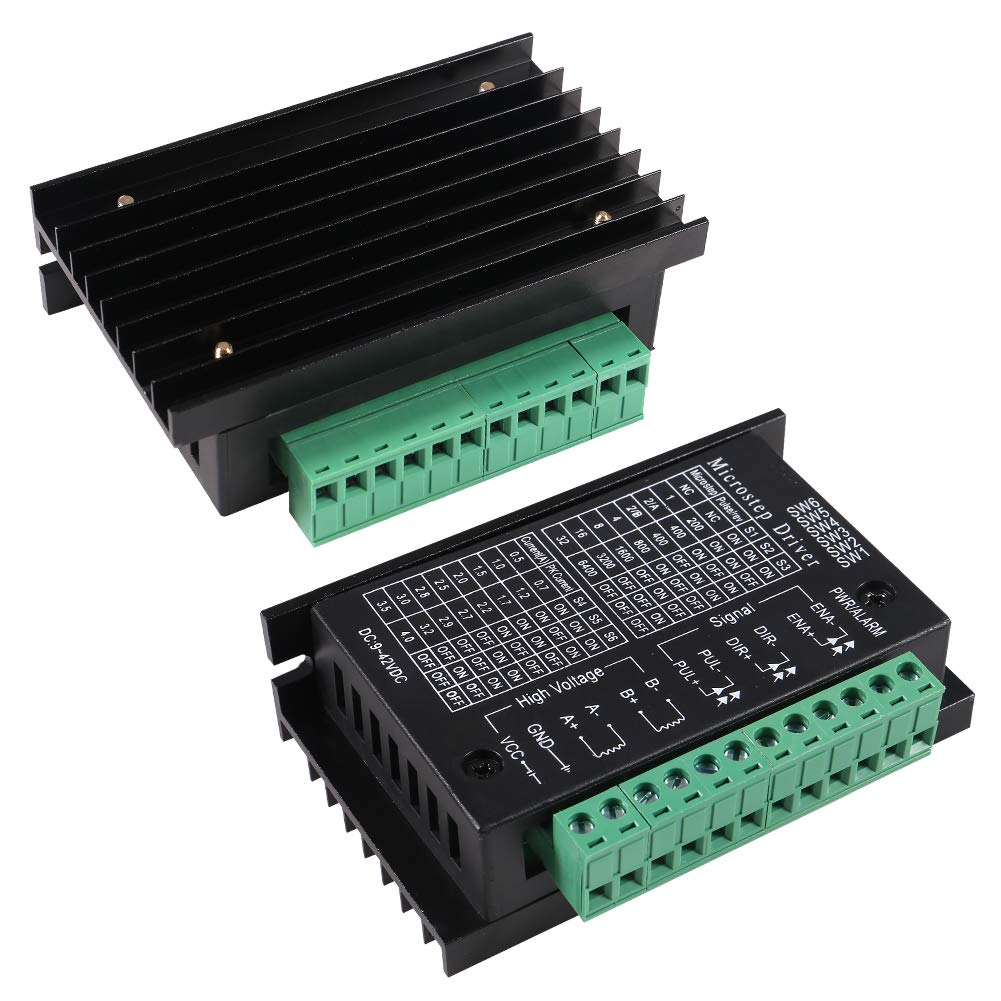

3PCS TB6600 4A 9-42V Stepper Motor Driver CNC Controller, Dealikee Nema 17/23 Stepper Motor Single Axes Two Phase Hybrid Stepper Motor

• Motor driver: 9V-42V DC power supply, H-bridges bipolar constant phase current drive. The maximum 4.0A of the eight types of output current.
• The largest 32 divisions of the 6 models are optional; Suitable for 4 wires, 6 wires and 8 wires stepper motor.
• Energy-saving semi-automatic current lock function, built-in temperature protection and over current protection.

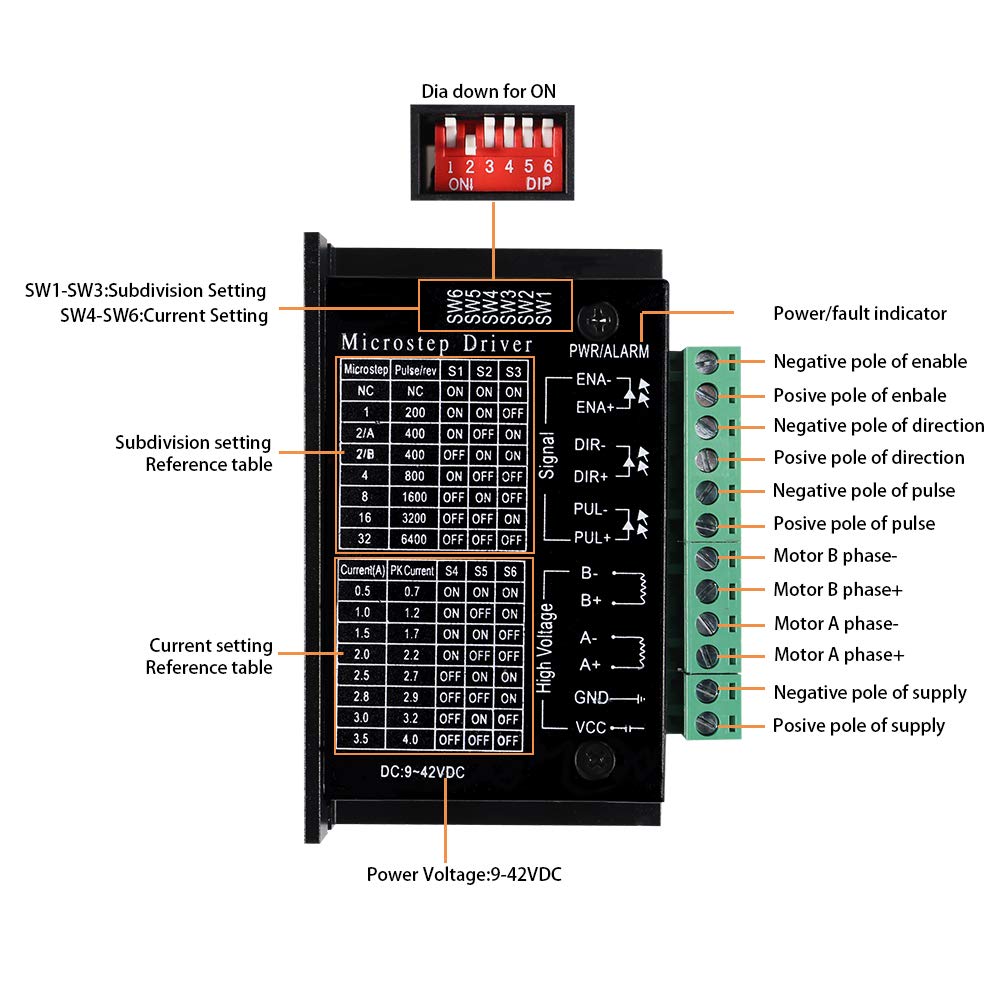

• Can control 2 phase stepper motor forward and reverse rotation, With 1-2, W1 -2 , 2W1 -2, 4W1 -2 phase excitation mode.
• Only the clock pulse signal can be driven two-phase bipolar stepper motor to achieve low vibration, high efficiency work.

Feature: PWM chopper type bipolar stepper motor driver IC. 1. 9V-42V DC power supply. 2. H bridge bipolar constant phase flow drive. 3. The maximum 4.0A of the eight kinds of output current. 4. The largest 32 subdivision of the 6 models are optional. 5. Input signal high speed photoelectric isolation. 6. Common-anodestandard single pulse interface. 7. Offline to maintain the function. 8. Semi closed enclosure can be adapted to a more stringent environment. 9. To provide energy-saving semi-automatic current lock function. 10. built-in temperature protection and over current protection. IC parameter: Single chip bipolar sine microstep stepper motor driver. The new BiCD 0.13 nm process. Up to 42V. Resistance (a +) = 0.4. The forward and reverse rotation control. 5 subdivision mode options (1/1, 1/2, 1/4, 1/8, 1/16,1/32). Output current: IOUT = 4.0A (peak, in 100ms). Rated output: IOUT = 3.5 A. Package: HZIP25 - 1.00F. Input port internal pull-down resistor: 100 K. Alarm output pin current:Ialert = 1mA. Monitoring output pin (MO): Imo= 1mA. With reset and enable pin. With standby function. Break through the traditional, single power supply. Built in overheating protection (TSD) circuit. Undervoltage protection, built-in (UVLO) circuit. Built-in overcurrent detection (ISD), circuit. Package Included: 3 x Motor Driver 1 x Retail package box
