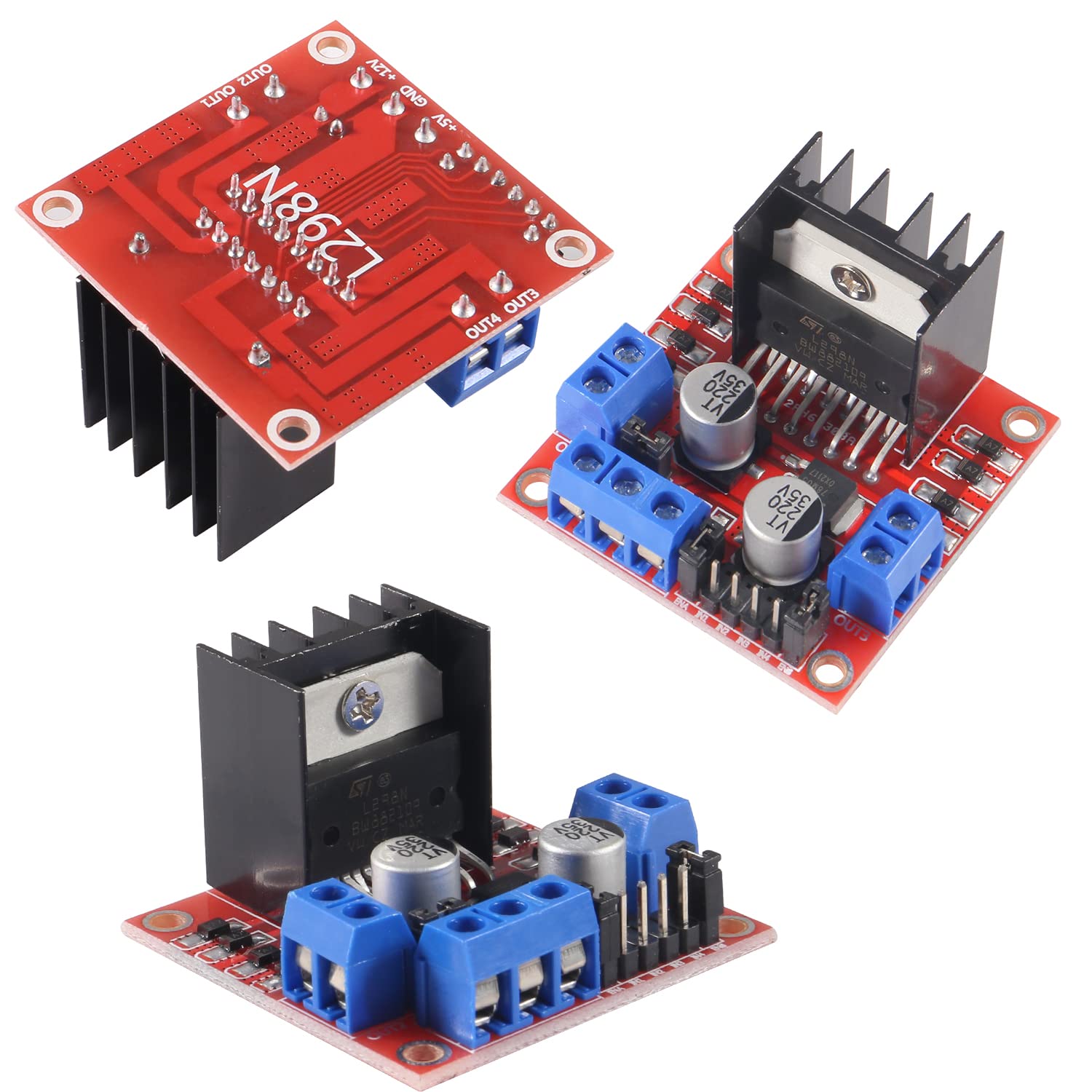

3PCS L298N Motor Drive Controller Board Dual H Bridge DC Robot Stepper Motor

• Dual-channel H-bridge driver working mode creates higher working efficiency,L298N as main chip, Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors.
• The L298N driver module, using L298N chip can directly drive two 3-30V DC motor, and provides a 5V output interface, you can chip circuitry to 5V power supply, support 3.3VMCU control, you can easily control the DC motor speed and direction, you can also control the 2-phase stepper motor, smart car essential.
• Terminal driver part of the supply area VMS: +5V ~ +35V;Drive part of the peak current Io: 2A / Bridge; Logical part of the terminal power supply range Vss :4.5-5 .5V;Logical part of the operating current range: 0 ~ 36mA; The control signal input voltage range: 4.5-5.5V low 0V high;Maximum power consumption: 20W
• To avoid damage the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage; High working power to 46v, large current can reach 3A MAX and continue current is 2A, power to 25w.
• Use large-capacity filter capacitors and diode with freewheeling protection function, increasing reliability, large capacity filter capacitance,afterflow protection diode, more stable and reliable.

Chip: L298N Logic voltage: 5V Logic current 0mA-36mA Maximum power: 25W Drive voltage: 5V-35V Drive current: 2A (for each DC motor) Operating mode: Dual H-bridge driver (can drive 2 DC motors) Wide Application: PChero L298N Motor Drive Controller Board Module is ideal for Ardu-ino, Smart Car, Power UNO, MEGA R3, Mega 2560 Package Included : 3 x L298N motor drive controller board module 10 X Female-Male dupont cables 10 X Female-Female dupont cables Note: This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available When ENA enable IN1 IN2 control OUT1 OUT2 When ENB enable IN3 IN4 control OUT3 OUT4
