TECNOIOT 2pcs L9110S H-Bridge Dual DC Stepper Motor Driver Controller Board L9110 Module

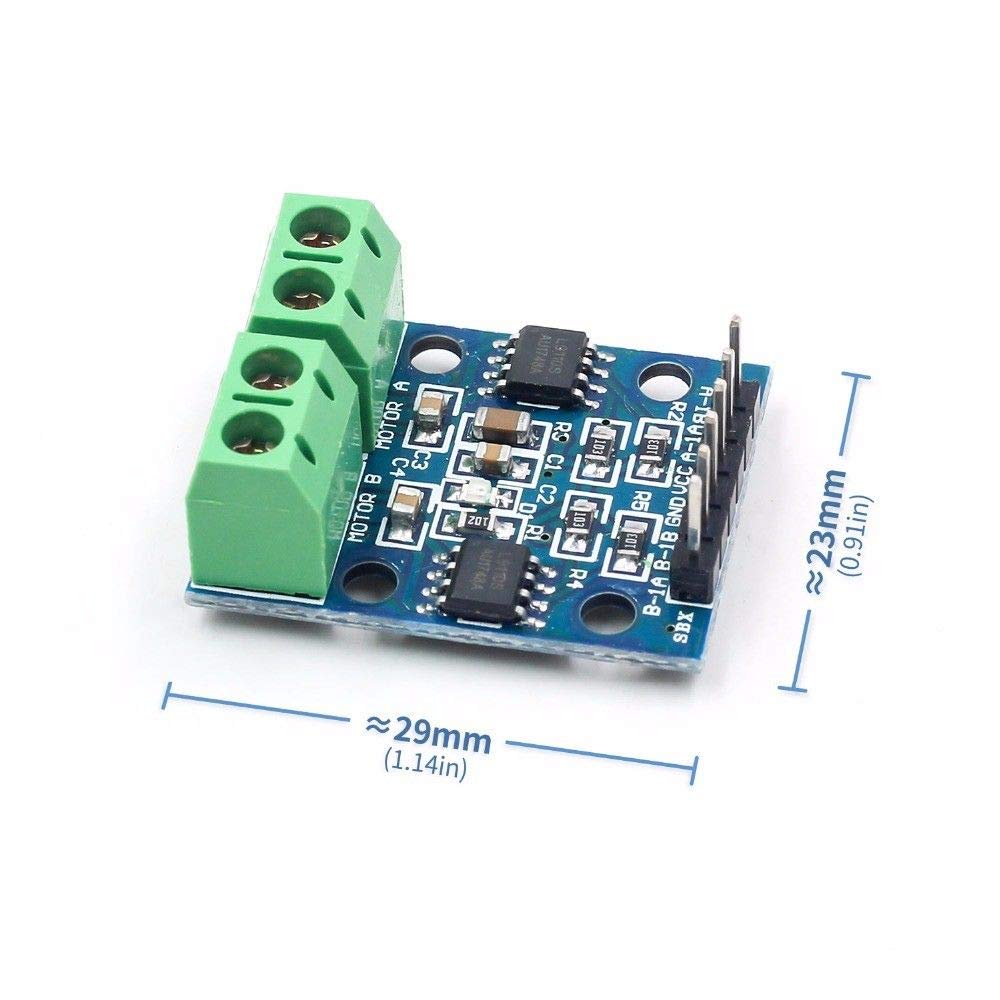

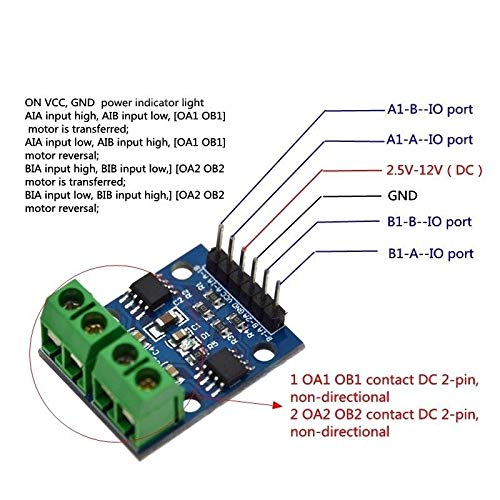

x2pcs L9110S H-bridge Dual DC Stepper Motor Driver Controller Board Module L9110 DESCRIPTION: On board two the L9110S motor control chip, the module can simultaneously drive two DC motors or a 4-wire 2-phase stepper motor. The module input voltage range is:2.5-12V, and the 800mA continuous current output capability per channel. Low static work current Power supply voltage: DC2.5-12V Each channel has 800mA continuous current output Low saturation pressure drop TTL/CMOS output level compatible, can be connected directly to the CPU Output built-in clamping diode, apply to the perceptual load Control and drive integrate in IC Have pin high pressure protection function Working temperature: 0-80 ° Size:29.2(mm)x23(mm) PACKET CONTAINS: 2pcs x L9110S DC Stepper Motor Driver Board
