2pcs L298N Driver Board L298 Stepper Motor Drive Controller Module Dual H Bridge

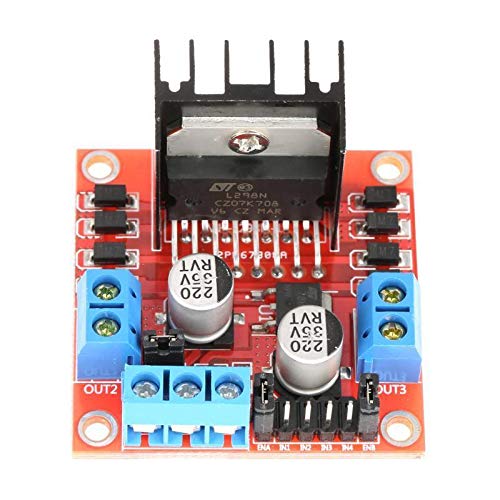

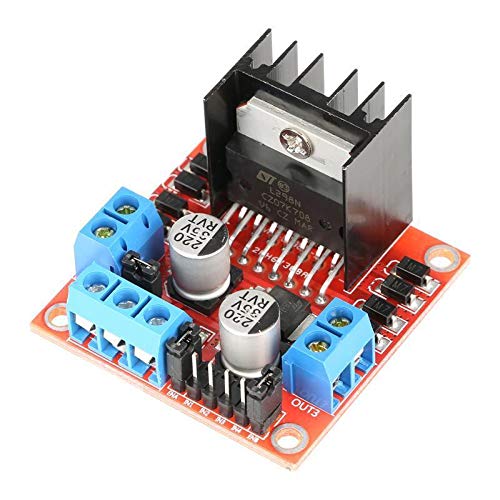

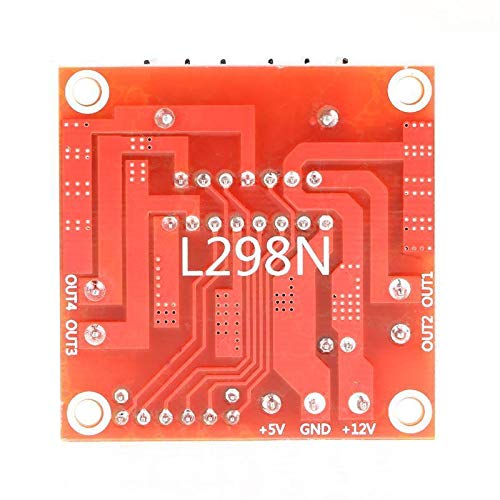

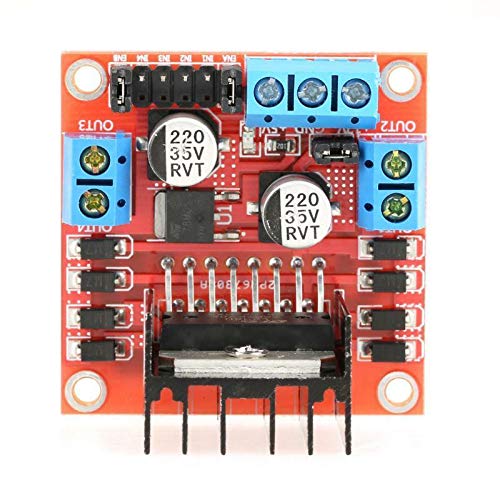

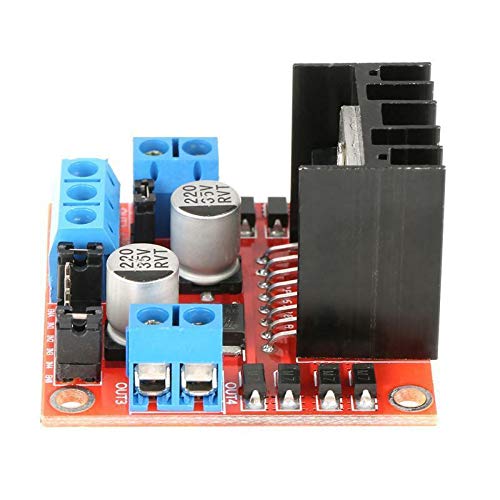

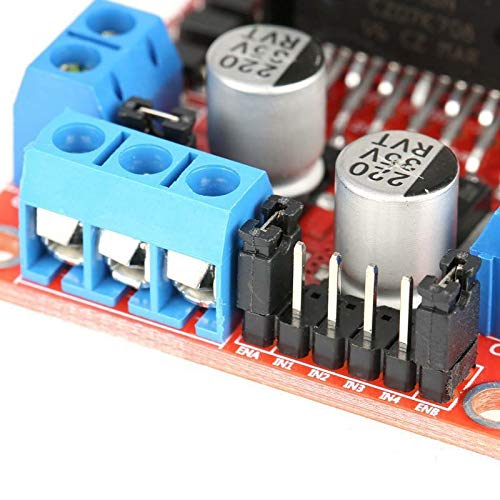

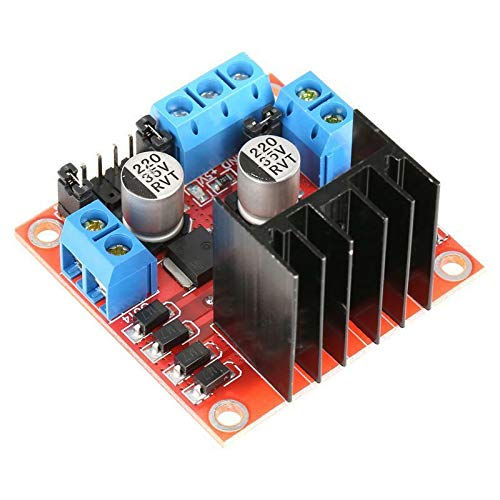

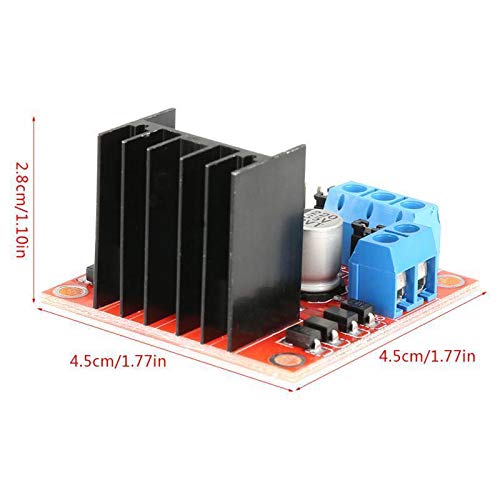

2pcs L298N Driver Board L298 Stepper Motor Drive Controller Module Dual H Bridge Features: This motor driver has strong driving ability, low heat, strong anti-interference ability. H-bridge dual channel type driver, drive voltage is 5V to 35V, drive current is 2A. There is a big heat sink on board for better heat dissipation. Convenient to use, designed with screw terminals for easy wiring. It is normally used for driving stepping motor on smart cars or robots. Specifications: Work Mode: H bridge drive (dual-channel) Main Control Chip: L298N. Logic Voltage: 5 V. Drive Voltage: 5V-35V. Logic current: 0mA-36mA. Drive current: 2A (MAX single-bridge). Storage temperature: -20° to +135°. Max. Power: 25 W. Size: 4.5 x 4.5 x 2.8 cm/1.7 x 1.7 x 1.1 inches. Note: 1. When driving voltage is 7V-12V, it can use on-board 5V logic voltage as power supply; when using on-board 5V as power supply, do not input voltage on the +5V terminal,however,it can lead to 5V voltage for external use. (this is a regular application) 2. When driving voltage is higher than 12V and less than or equal to 24V, for example, to drive motor with a rated voltage of 18V, first of all, you must pull out the jumper of on-board 5V output enable.Then connect 5V to the 5V output external port. 3. 5V enables a control signal with a 5V level; when the input signal is valid and power supply of motor drive module is normal, motor driver module outputs current. Otherwise, even if the power supply is normal, there is no current on motor. Package Contains: 2 x L298N Driver Boards.
