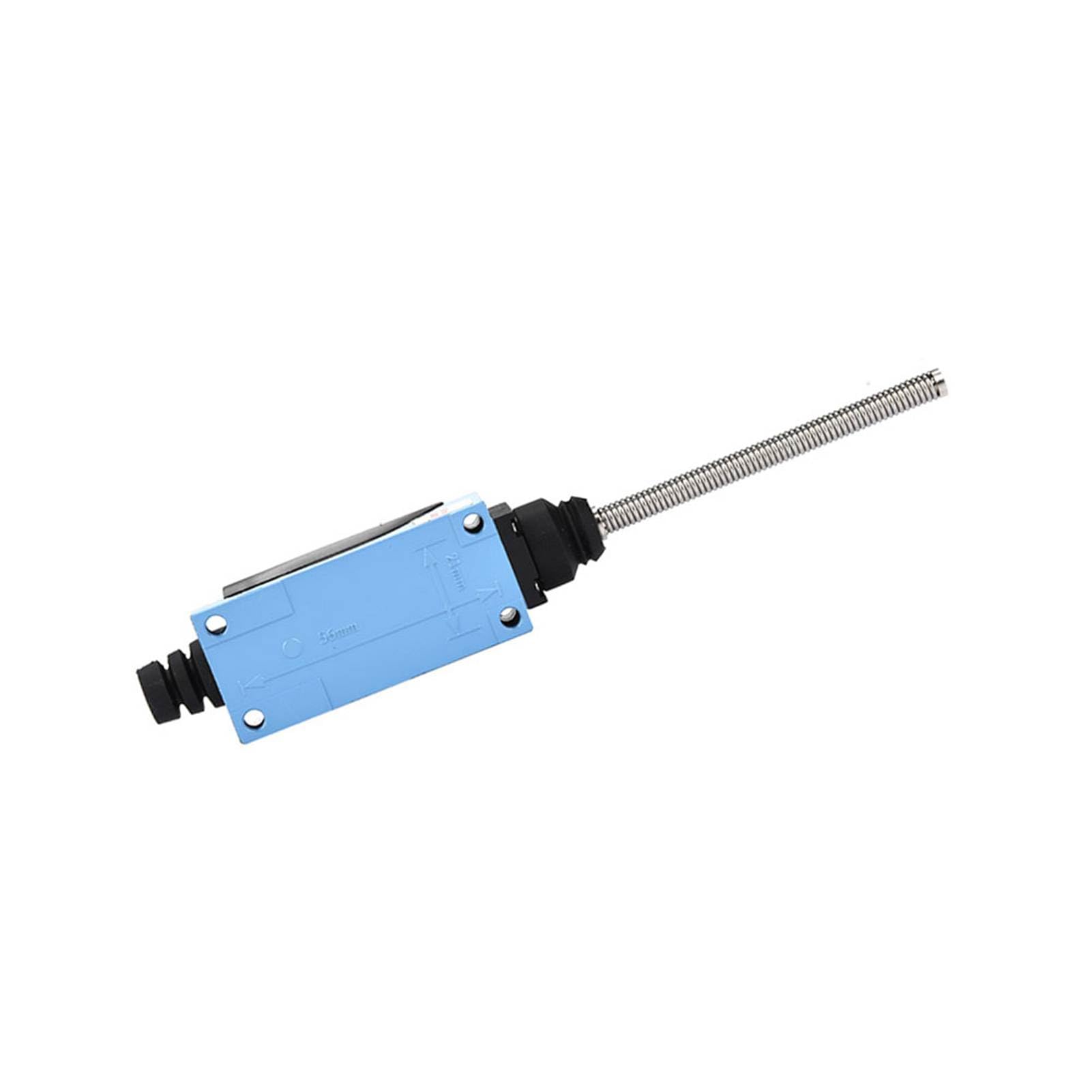

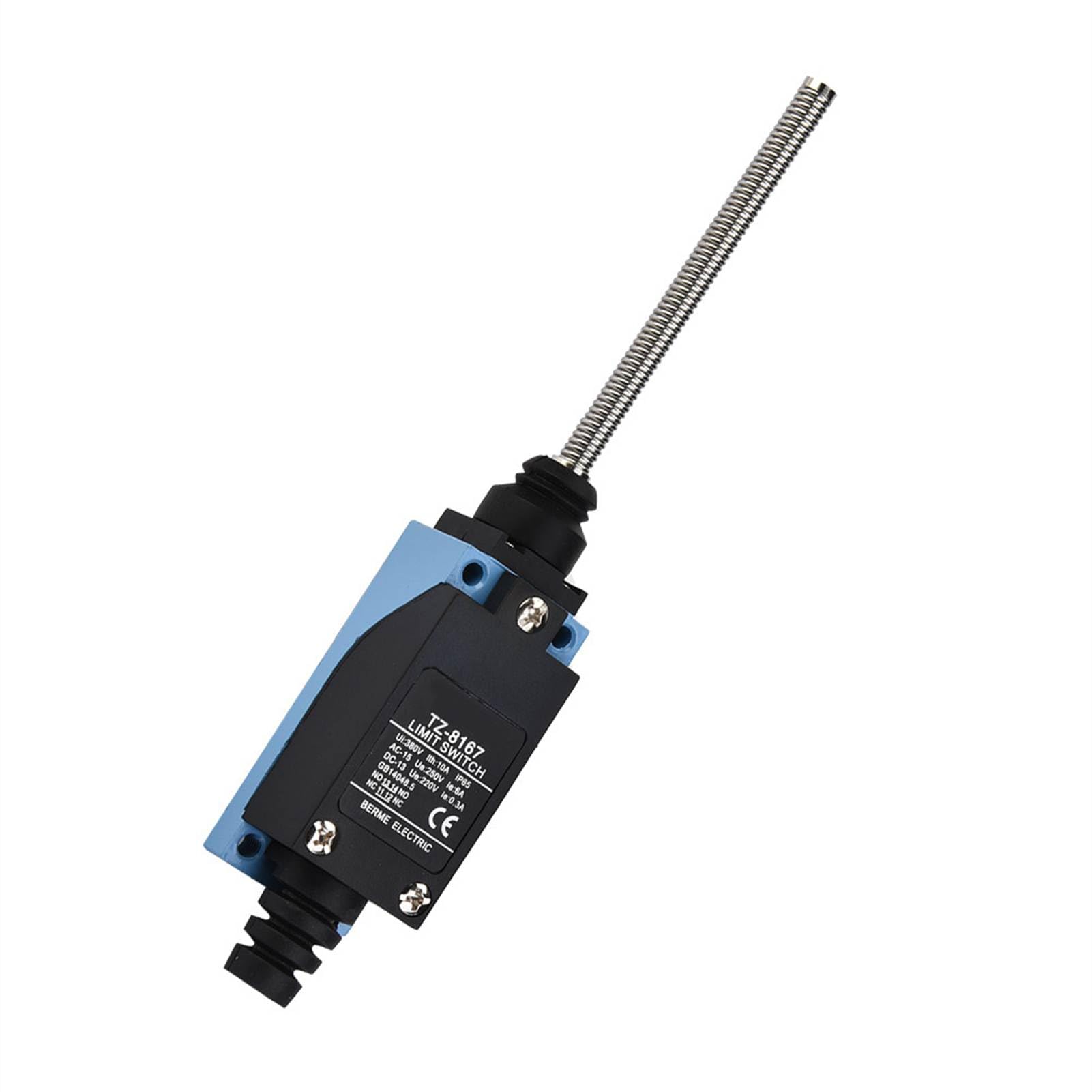

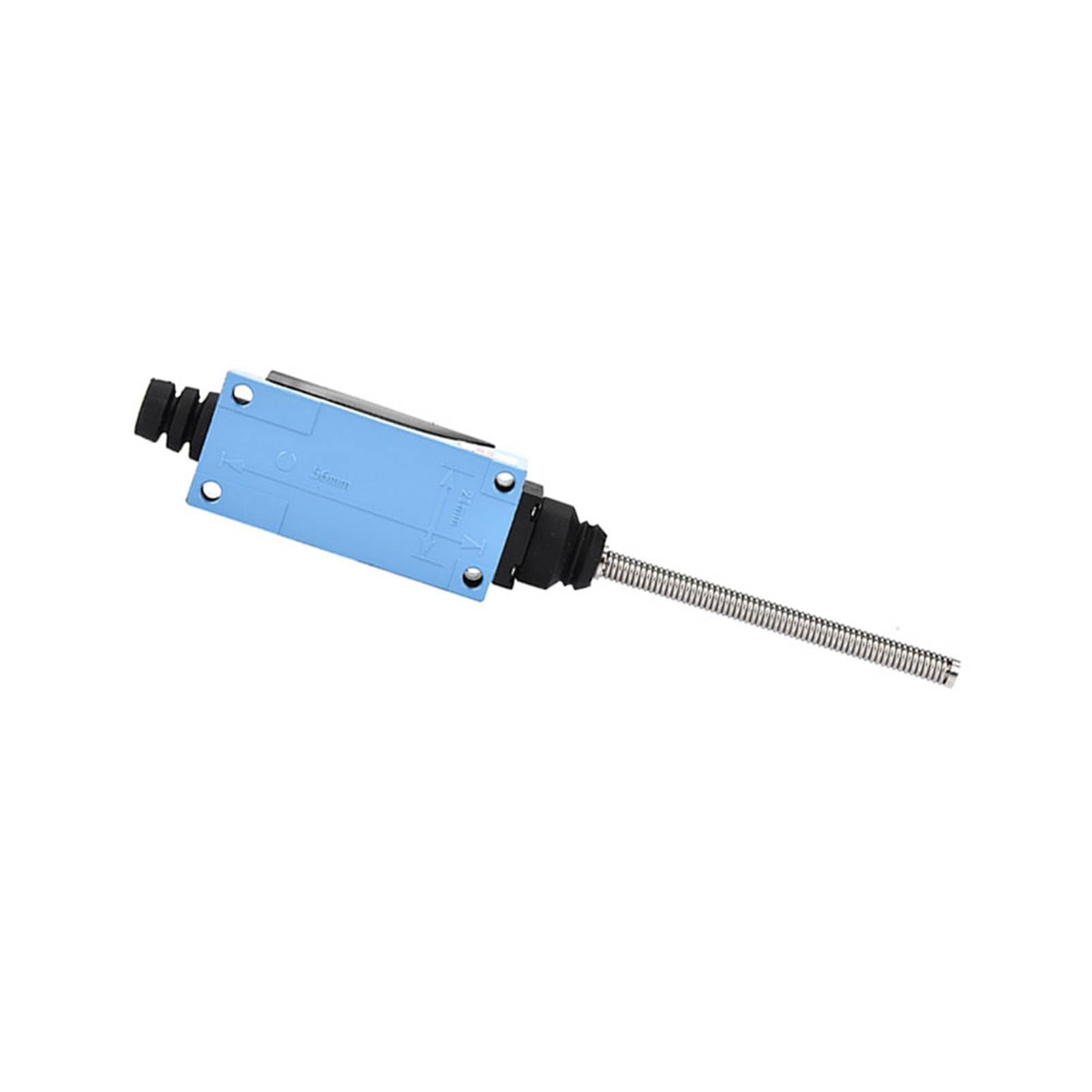

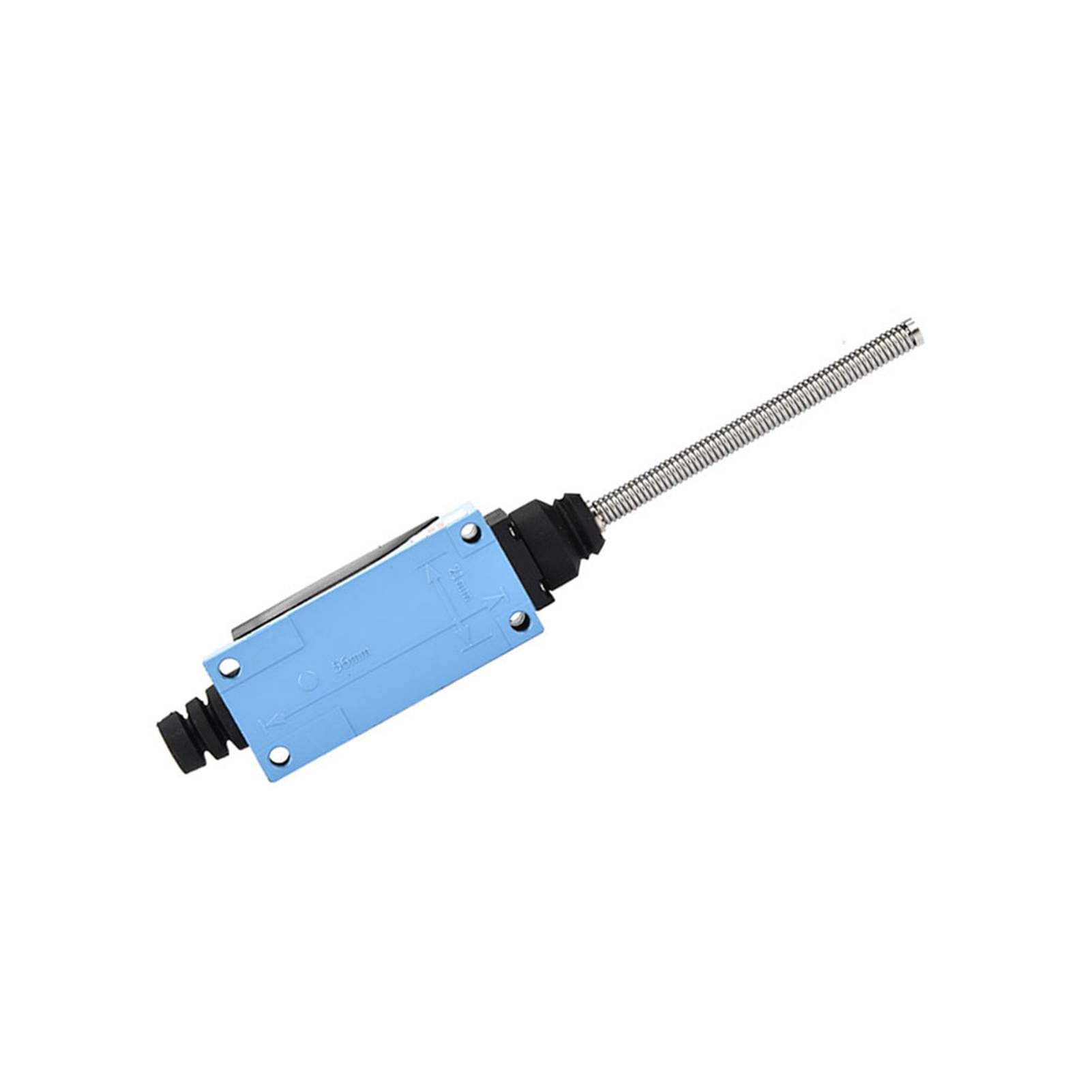

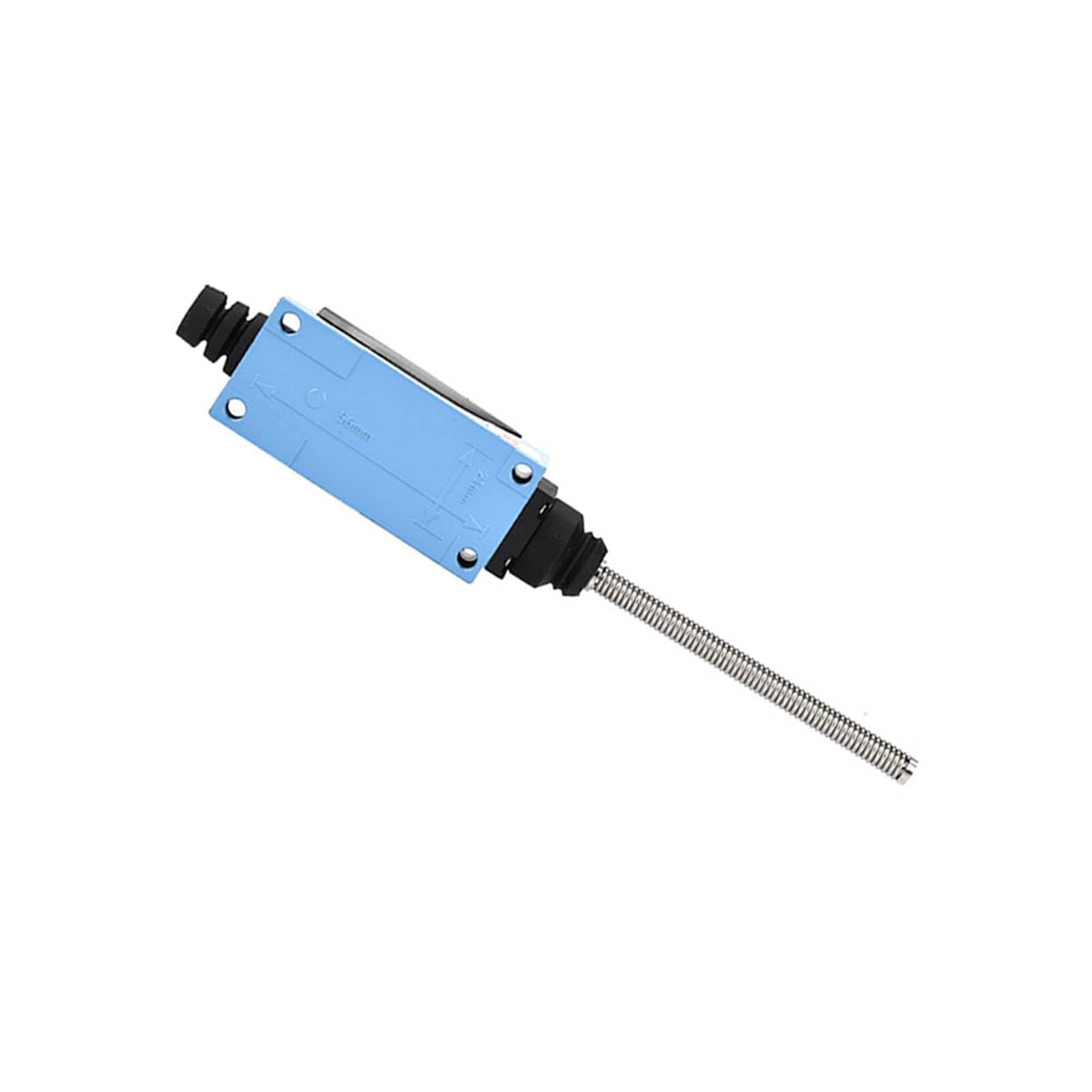

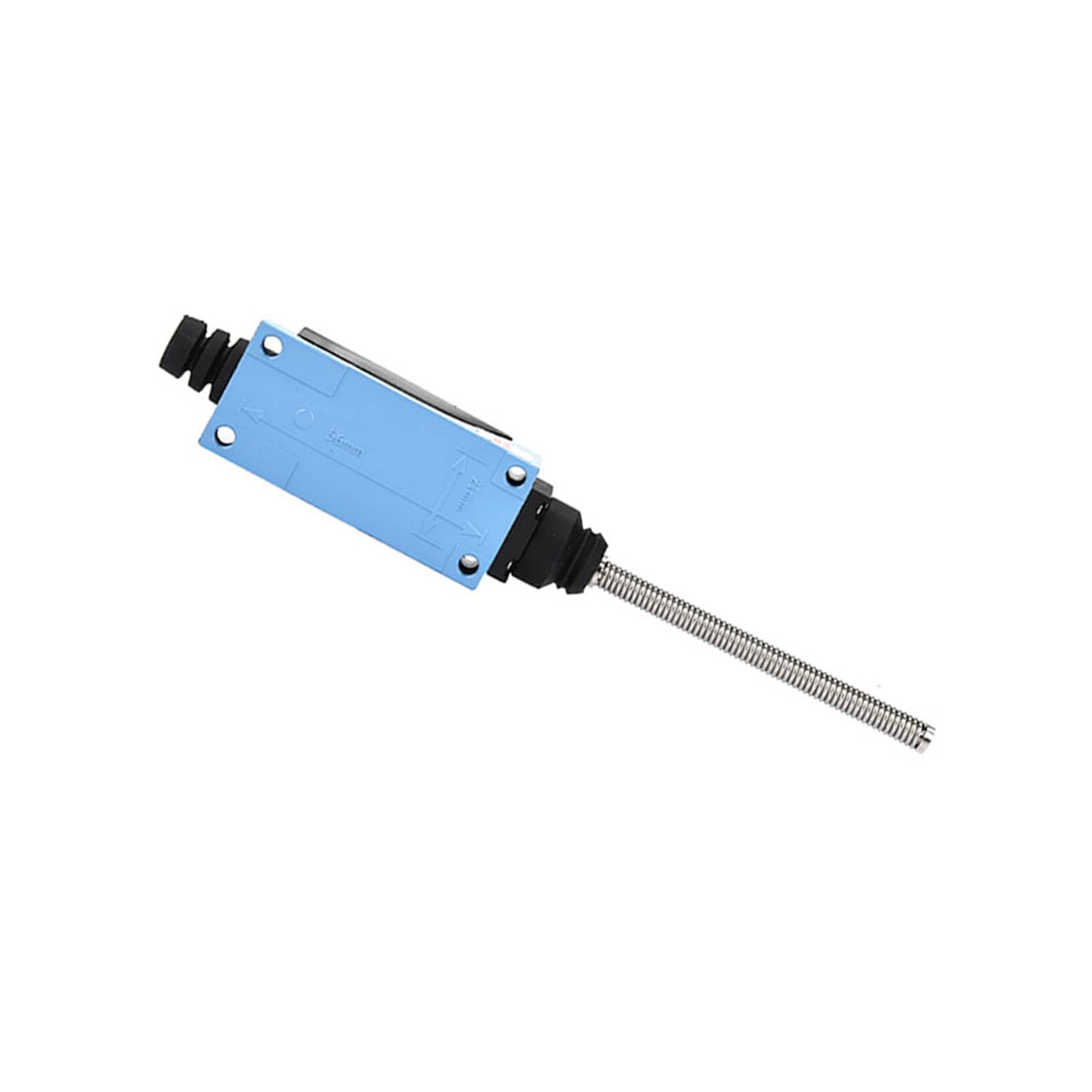

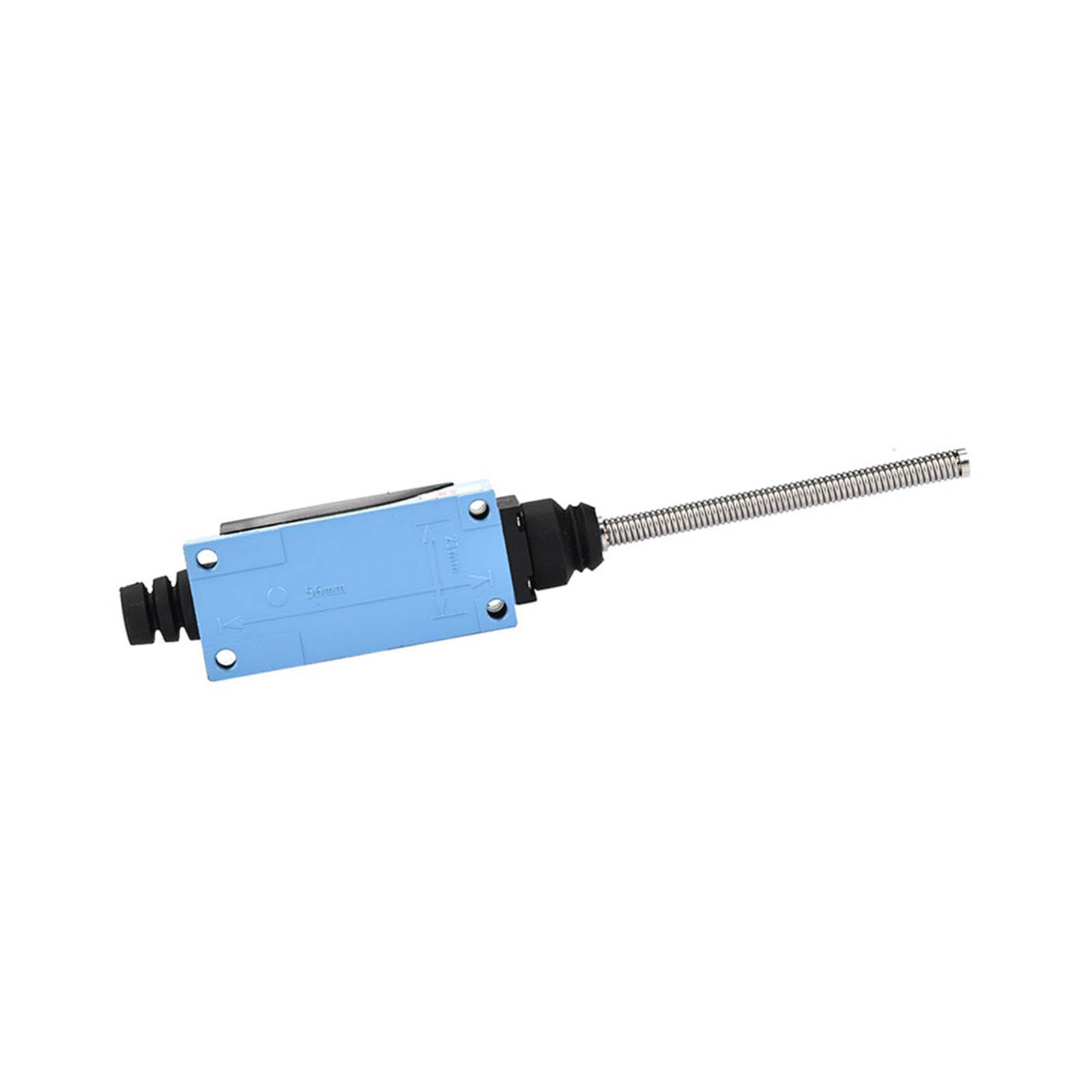

1Pc Limit Switch 1NO + 1NC Micro Switch Momentary Limit Switch Waterproof Auto Reset(BM-8167)

• PROTECTIVE EFFECT:Water splashing from any angle can achieve It is an electrical appliance used in special occasions and harsh environments .Increase the service life of the machine .
• FUNCTION:The role is to achieve sequence control ,positioning control and position status detection .Used to control the stroke and limit of mechanical equipment .Used to limit the position or stroke of mechanical movement
• APPLICATIONS:Painting equipment ,hydraulic equipment ,shield equipment ,rail transit ,open air equipment ,etc .require relatively high levels of equipment and high level occasions that require waterproof ,oil ,and dust resistance .
• NICE MATERIAL:Made of zinc alloy and reinforced plastic .Has high product quality .It has strong corrosion resistance ,good insulation ,radiation resistance ,high temperature resistance ,and good product quality ,so you can buy with confidence .
• PRINCIPLE:The collision of the moving parts of the production machinery is used to the contacts move to realize the connection or disconnection of the control circuit to achieve certain control purposes the moving machinery move according to a certain position .

Features: Double-loop type limit switch. Strong structure, composed of zinc alloy and reinforced plastic. Small size, waterproof and oil-proof. Built-in micro switch, with double spring mechanism, longer mechanical life. Specification: Model (Optional): BM-8166, BM-8167, BM-8169 Rated voltage: 250V Rated current: 6A Structure type: Direct acting Contact resistance: 25MΩ Insulation resistance:100MΩ Contact type: 1NO + 1NC Shell material: Zinc alloy + reinforced plastic Operation head material: metal Package weight: Approx. 133g/4.7oz Package list: 1 * Micro Switch 1 * Pack of Screws Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
