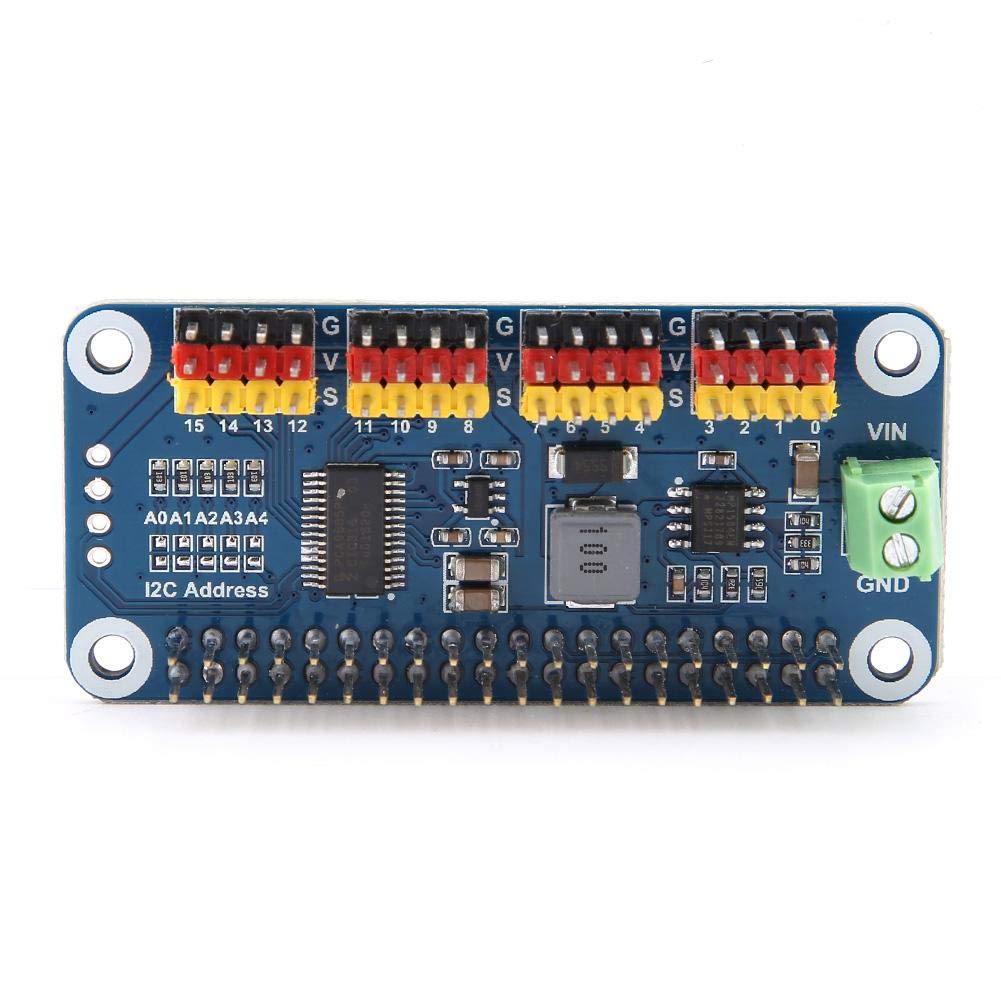

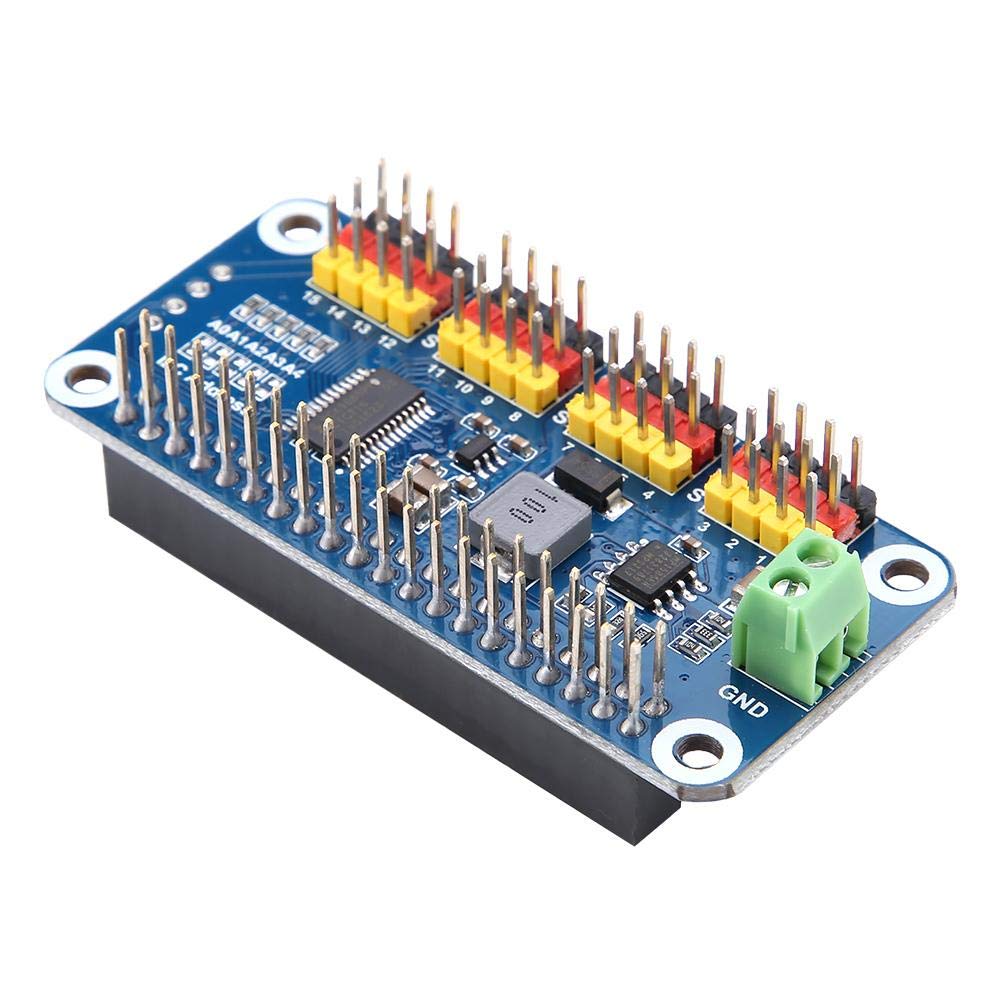

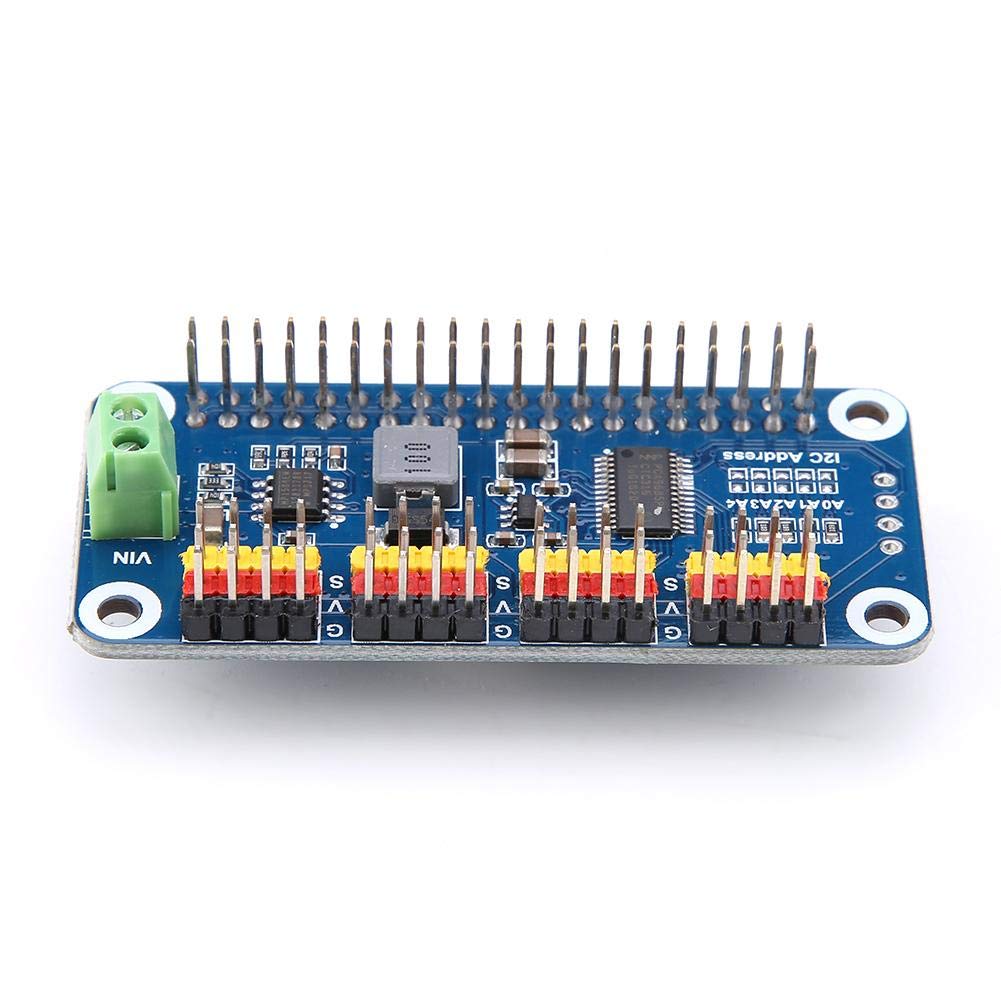

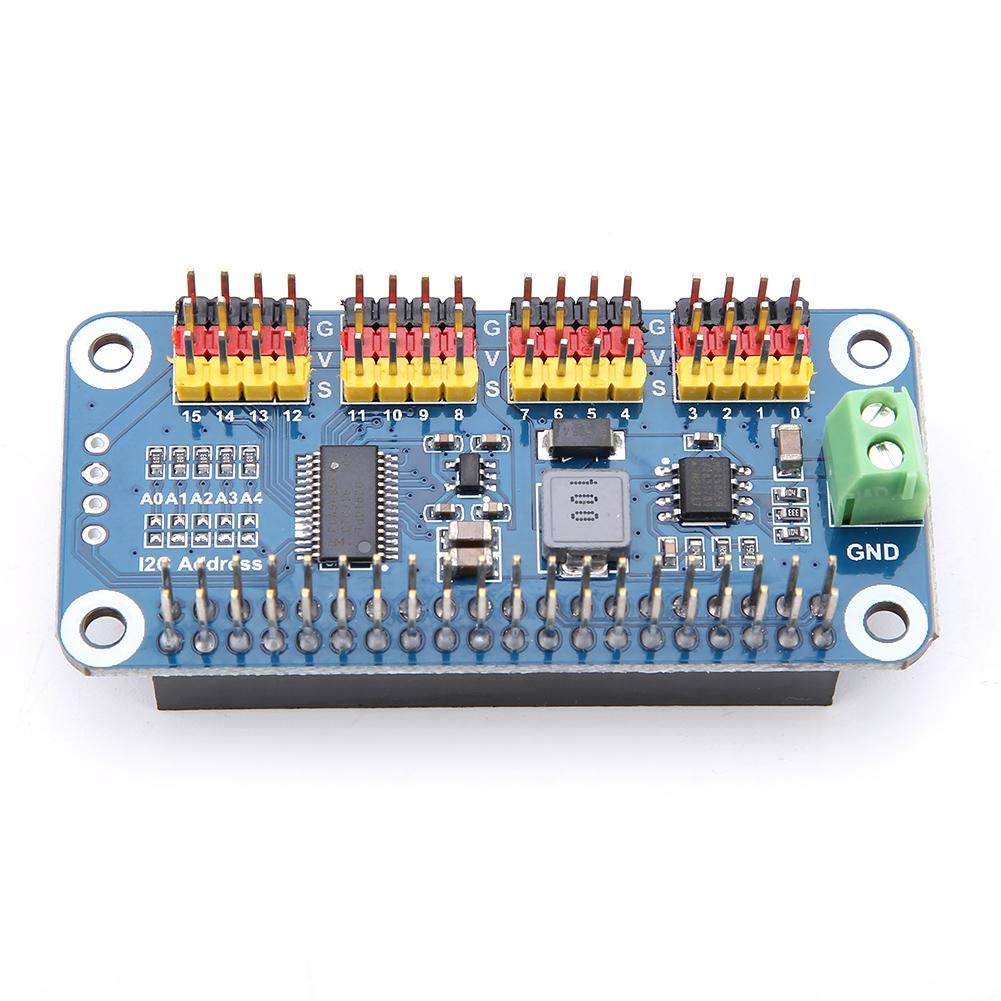

16 Channel 12-Bit PWM Servo Motor Driver Controller Board Module I2C Interface Control Steering Actuator Driver Board Steering Gear for,SG90,

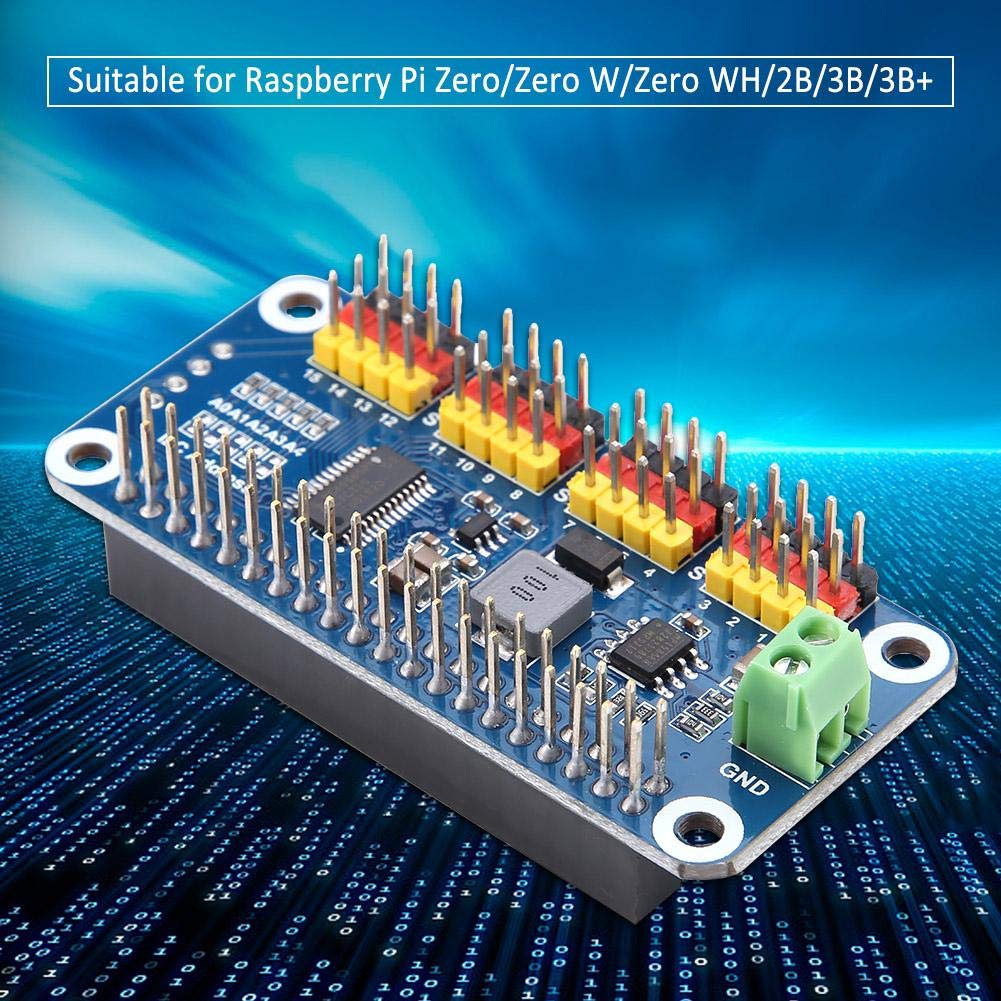

• Suitable for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
• I2C interface control, only 2 signal wires can be used to drive the steering gear
• Support up to 16 servo or PWM output, 12bit resolution per channel (level 4096)
• With 5V stabilized voltage chip on board, the output can reach 3A current, which can be connected to the battery for power supply through the VIN terminal
• Standard steering gear interface on board, which can connect SG90, and other common steering gear

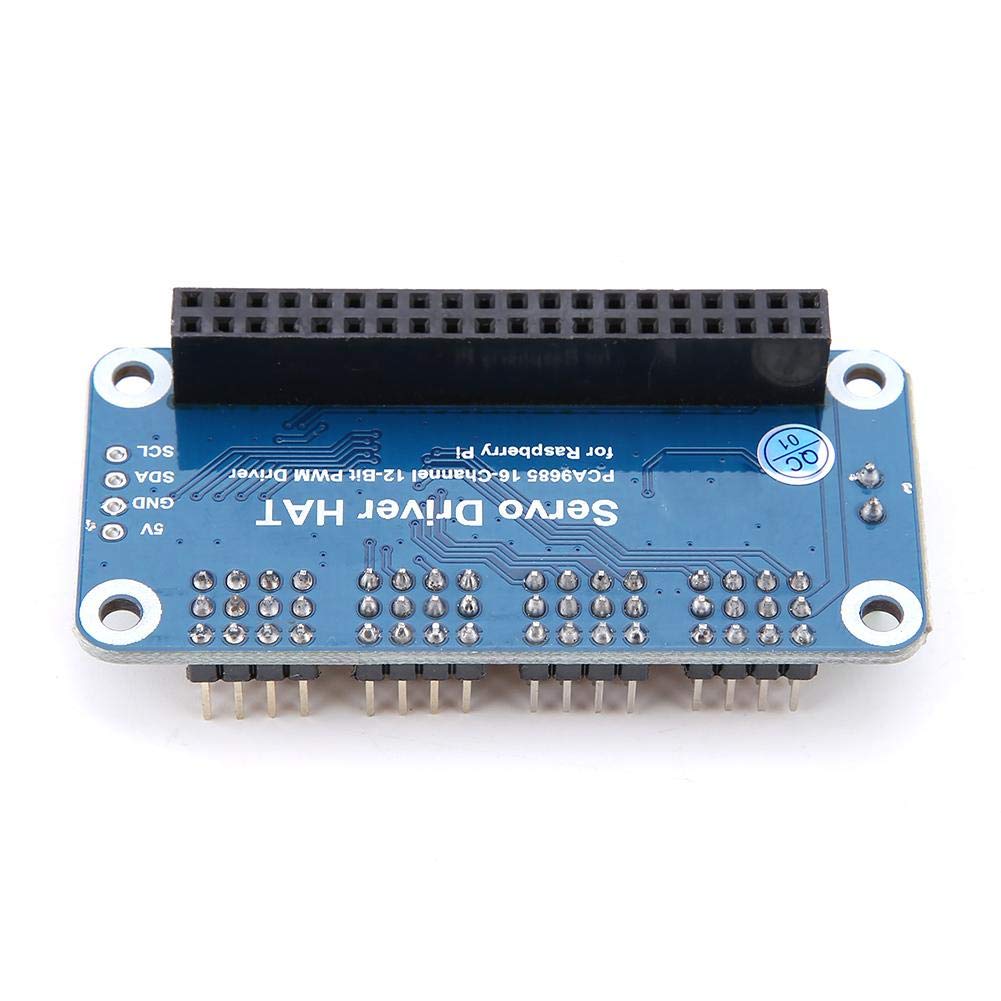

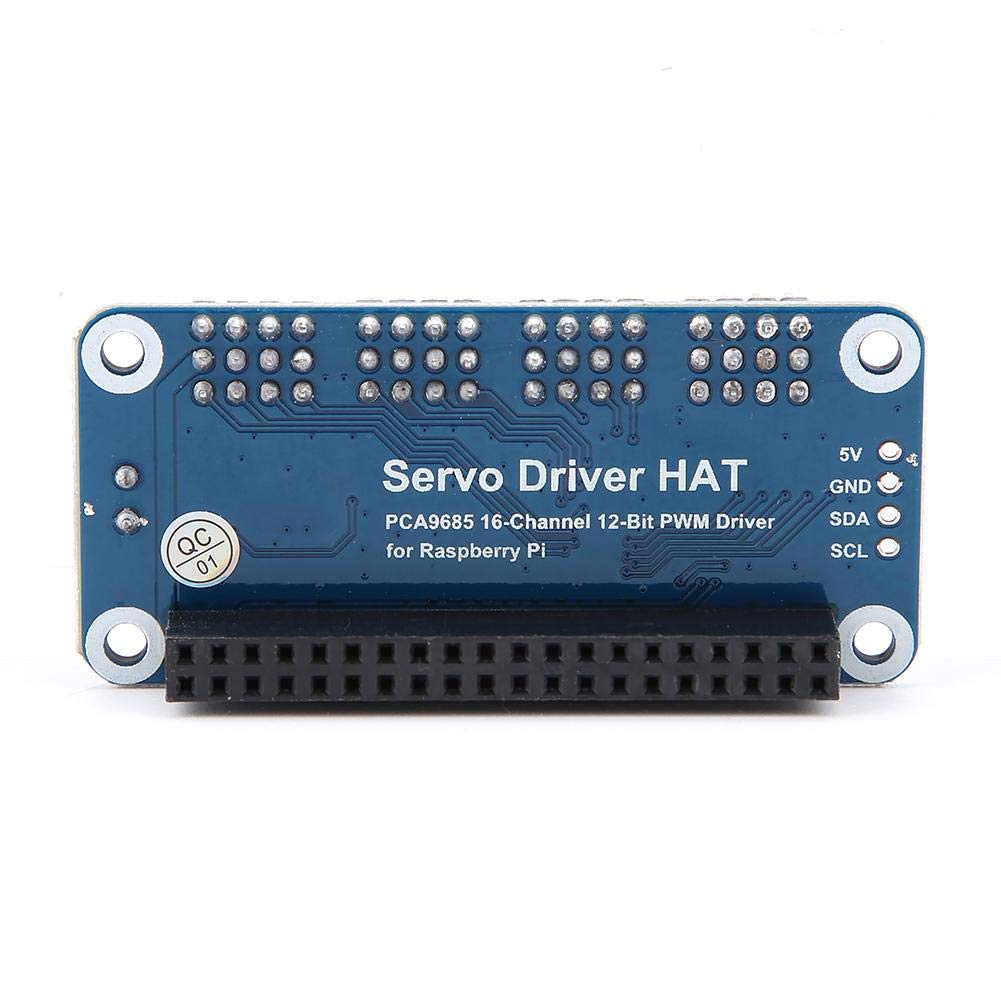

The servo drive plate specially designed for the e can control 16 servos via I2C, each of which has a resolution of 12 bits. It is suitable for driving robot servos such as mechanical arm Features: I2C control interface is reserved to facilitate access to other main control boards Provide complete supporting information manual (provide python routines/user manual such as bluetooth remote control, wifi remote control, etc.) Specification: Power supply voltage: 5V(for Raspberry Pi interface) or 6V~12V(VIN terminal) Servo voltage: 5V Logical voltage: 3.3v Driver chip: PCA9685 Control interface: I2C Compatible and directly accessible to the following products: SG90 Servo, Servo, Servo Weight: Approx.21g/0.7oz Package list: 1 x Steering Driver board 1 set x installation accessories
