12 Pcs LM2596 Buck Converter, Step Down Converter Module DIY Power Voltage Regulator Adjustable Power Supply Module

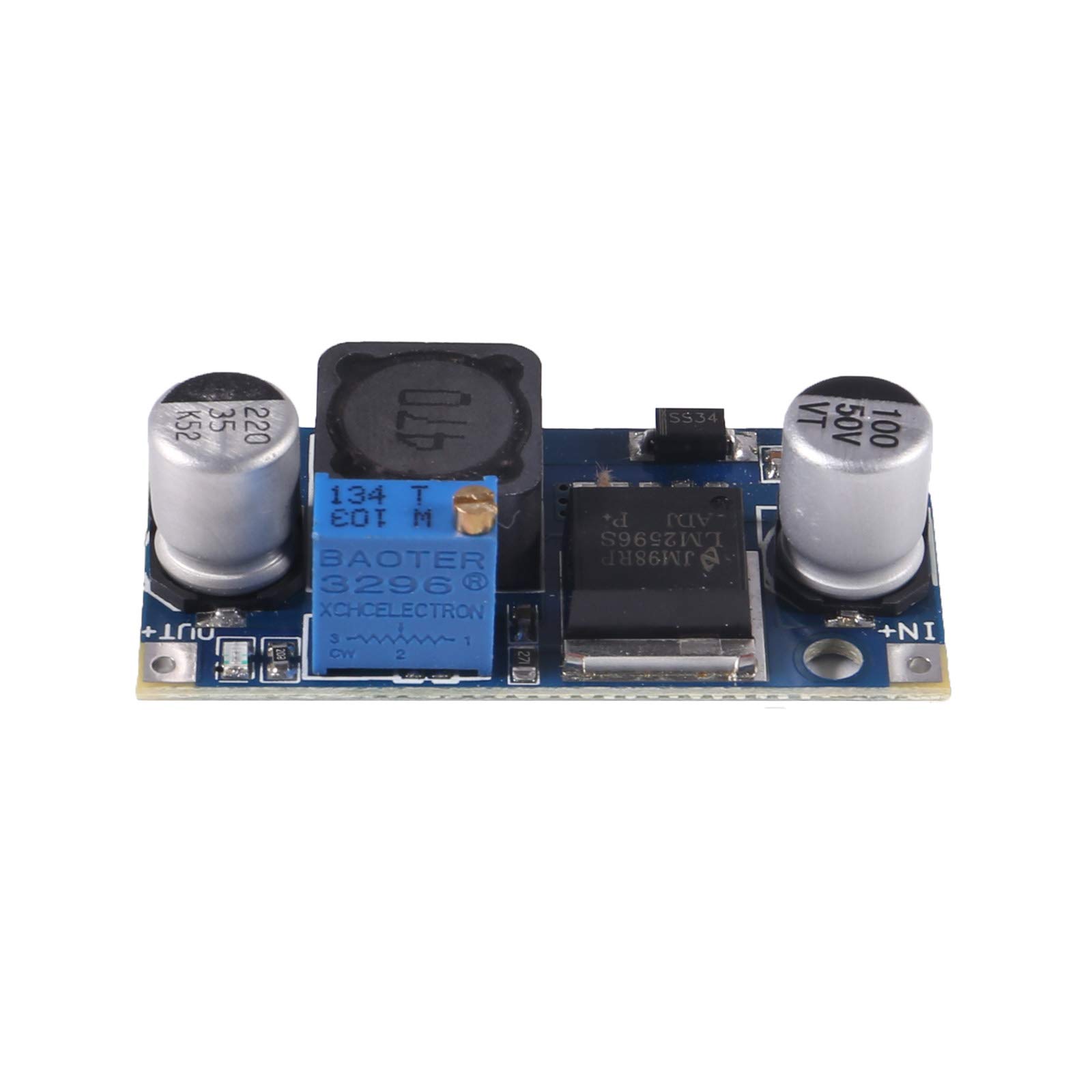

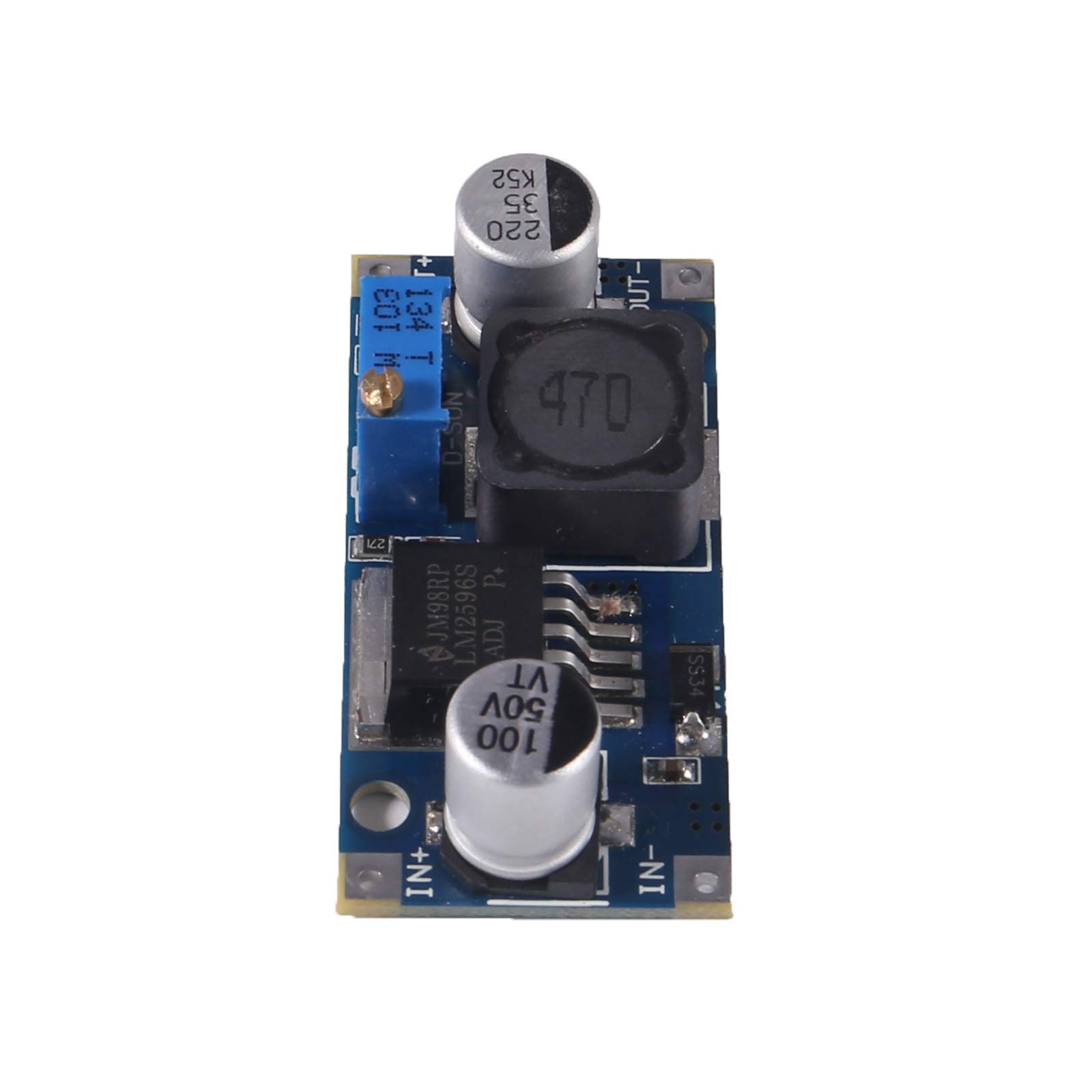

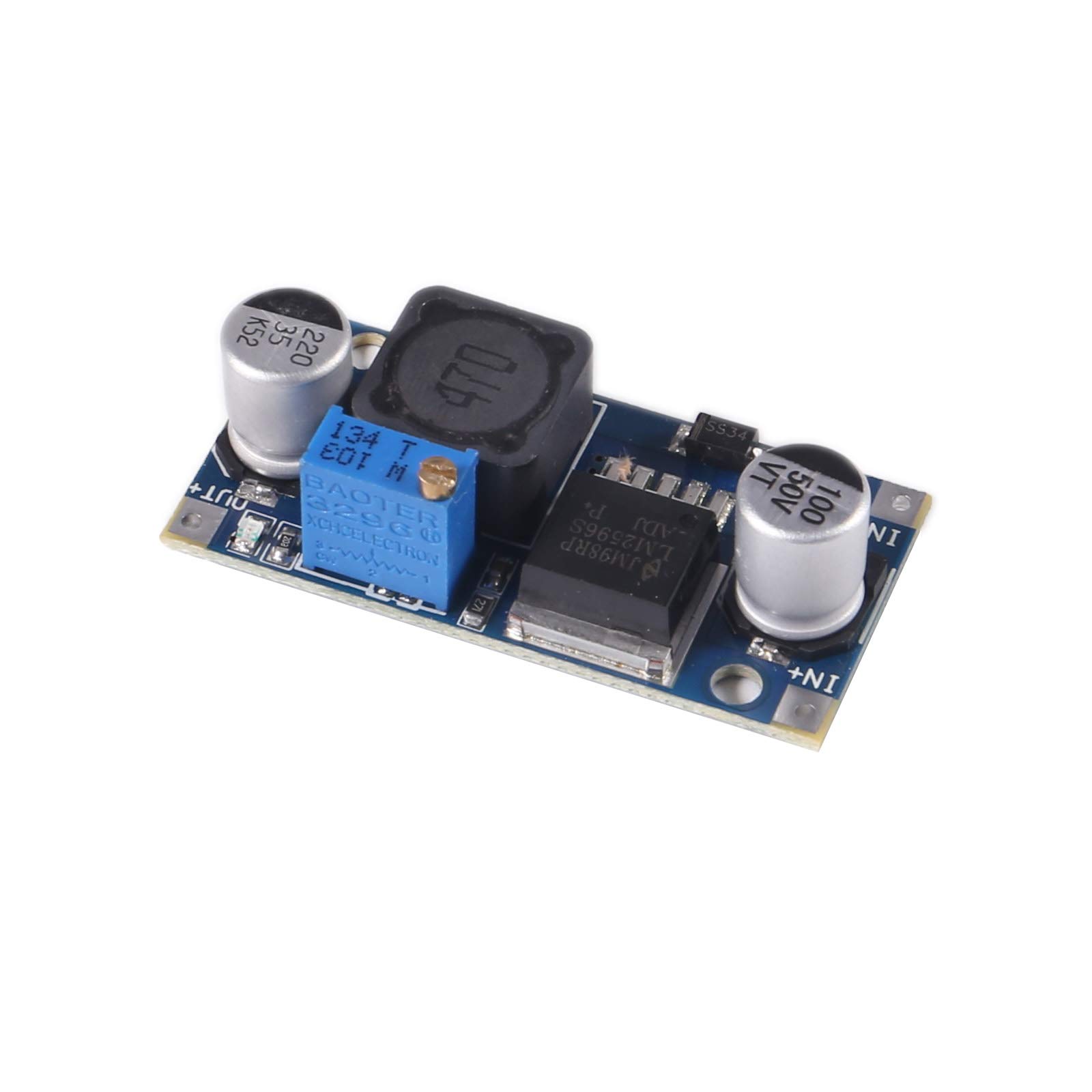

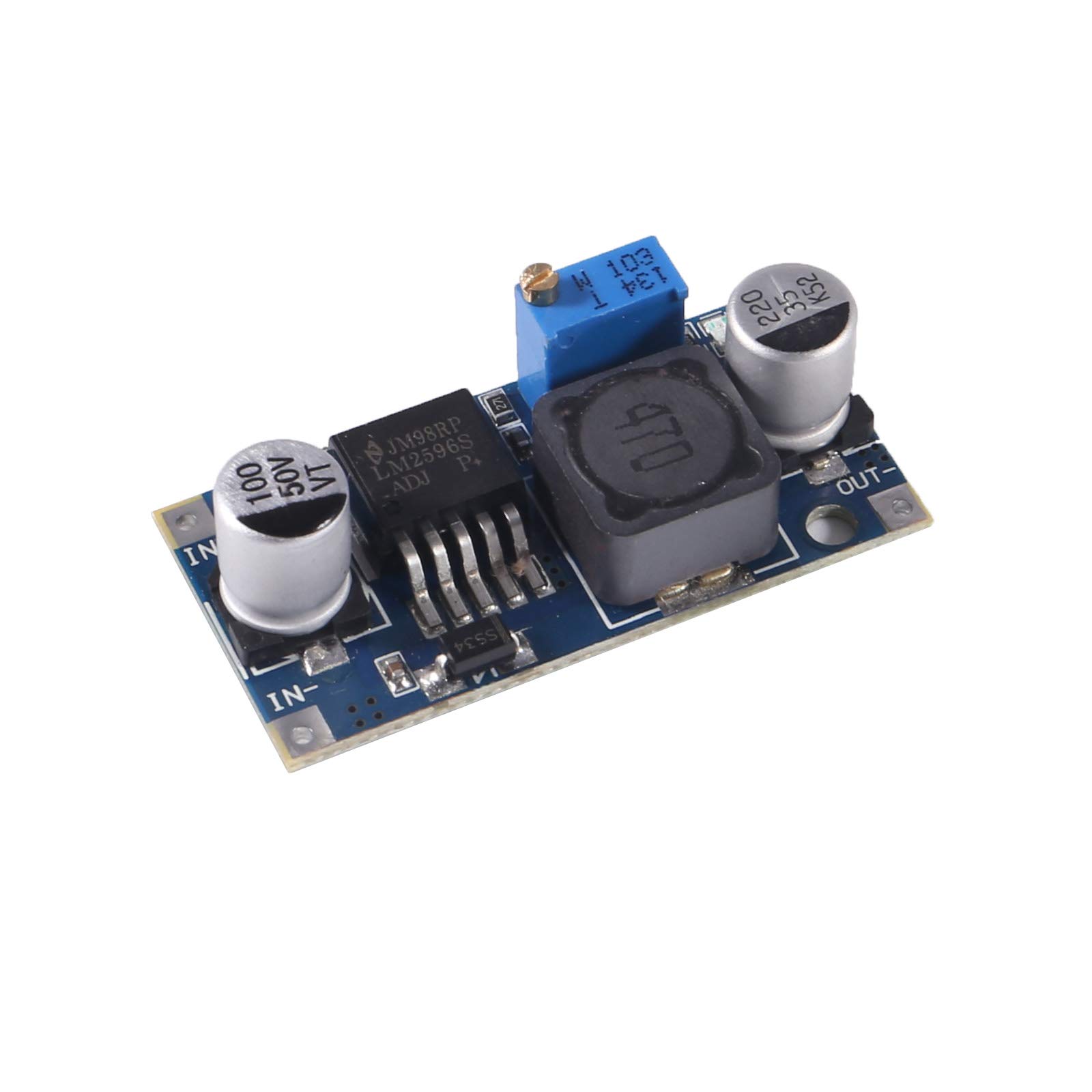

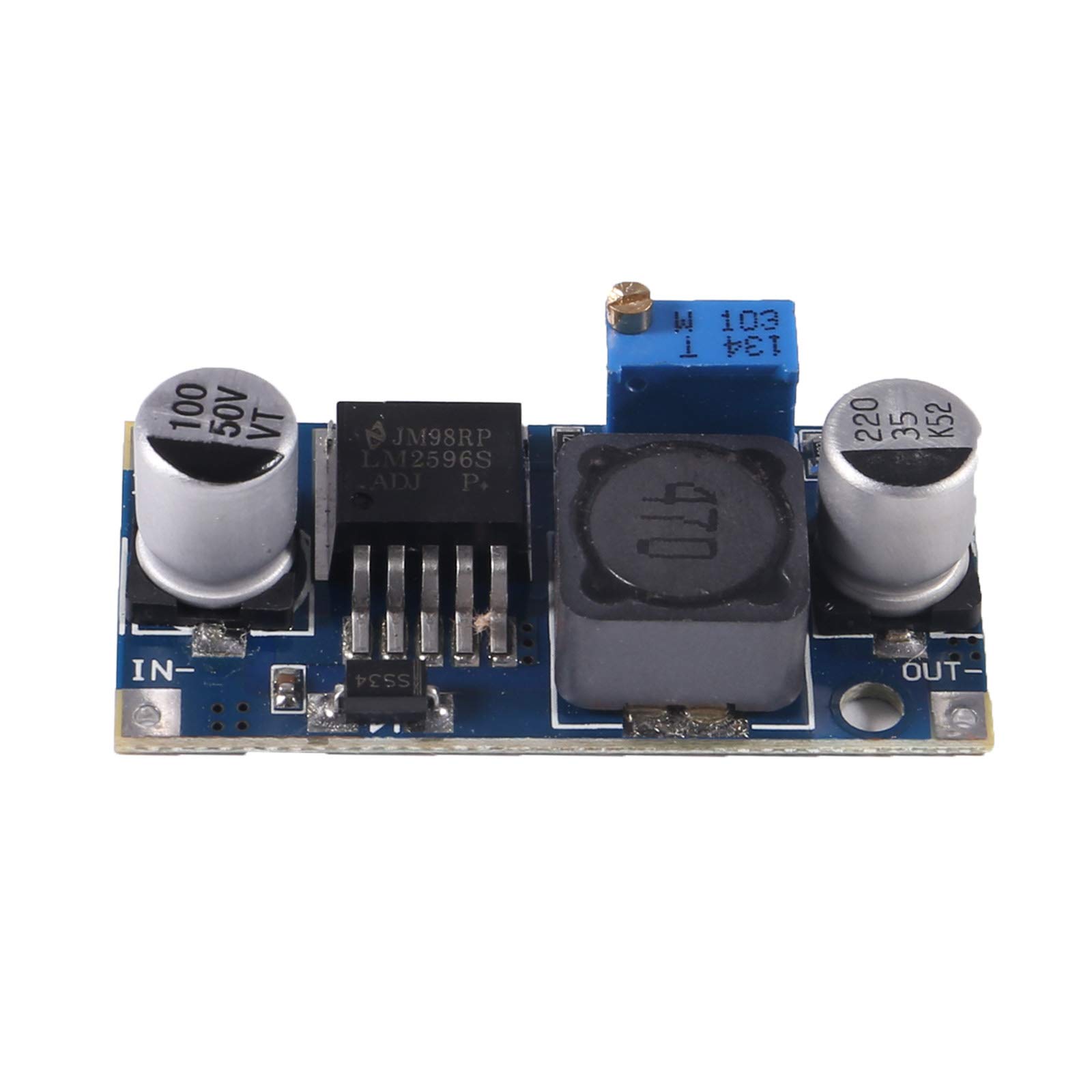

• The buck converter consists of 36U thickened circuit boards, high-Q inductance with output indicator, and superior solid-state capacitors that can effectively filter out high frequency noise.
• Connect to power source, adjust the swirl button on the blue potentiometer and monitor voltage with multimeter to get the needed voltage, clockwise to step up voltage and counterclockwise to voltage.
• The efficiency of the LM2596 up to 92%, power loss=amount of heating=100%-efficiency %, the heating power will be about 8% of the input power, much less than a resistive voltage dropper.
• This is an adjustable module. The input and output interface can not be reversed. The input voltage must be higher than the output voltage.The input and output interface can not be reversed.Keep it under 2.5 A and use the heat sink when working for long hours.
• These voltage converters can be used for camera, computer fans replacement, battery charging systems, prototyping project, 3D printer, and other devices powered by solar panel system.

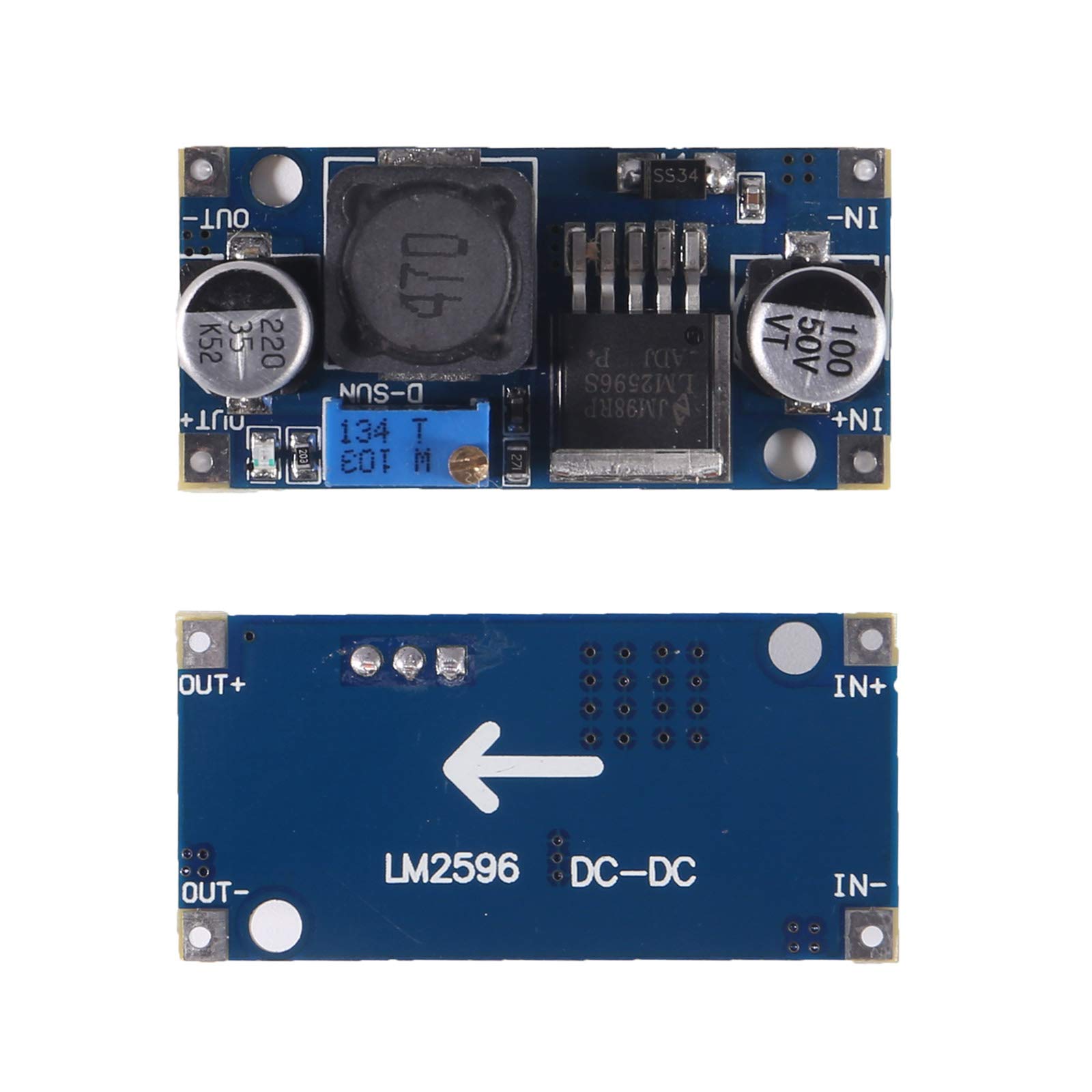

Specifications: Model: LM2596 Input voltage: DC 3V-40V Output Voltage: DC 1.5V-35V (adjustable)(Voltage is continuously adjustable, maximum output current is 3A) Output Current: 3A (max.) Conversion Efficiency: 92% (max.) Switching Frequency : 65KHz Output ripple <30mV Rectification: non-synchronous rectification Module property: non-isolated buck module Load Regulation: ± 0.5% Voltage Regulation: ± 2.5% IN- IN+: input Positive Input Negative Positive output: OUT+ OUT-: output negative Operating Temperature: -45℃ to +85℃ Note: Input voltage range: DC 3.2V to 40V (input voltage must be 1.5 V higher than the output voltage. Could not boost) Output Voltage Range: 1.25V to 35V DC voltage is continuously adjustable, high efficiency (up to 92%) the maximum output current of 3A, Measured 12V input, 5V output current is 1A load regulation rate of less than 1%. Package Includes: 12x Buck Converter Module
