Youmile Stepping Motor Drive Controller module Board Adjusting Speed Regulator PWM Pulse Signal Generator Module,with screwdriver Cable

• 【Module Description】: This module is a pulse generation module, supply the control signal to stepper driver. To control the stepper motor, it must be equipped with a drive.

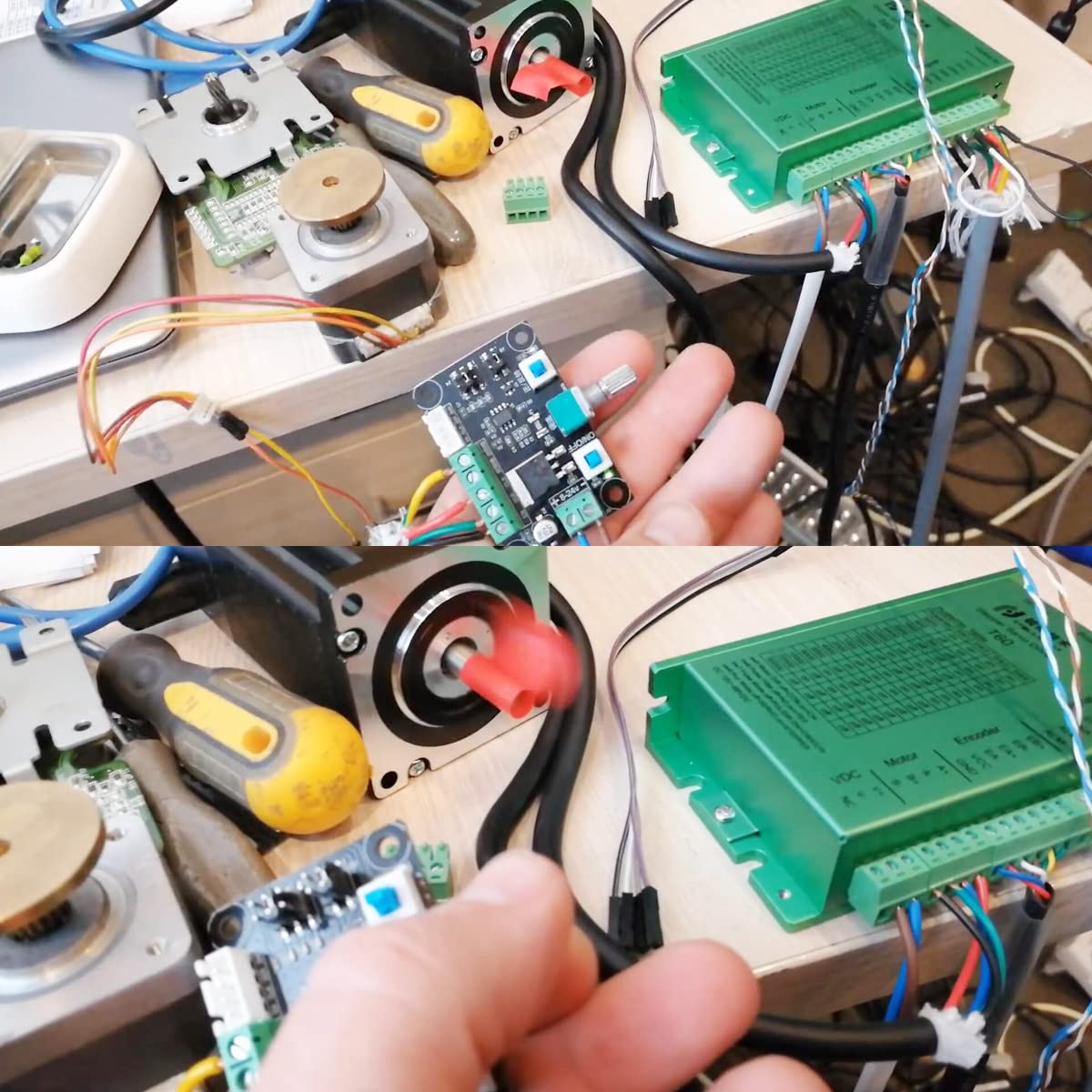

• 【Feature】: This simple controller + stepper driver + stepper motor + DC power supply can form a simple control platform.

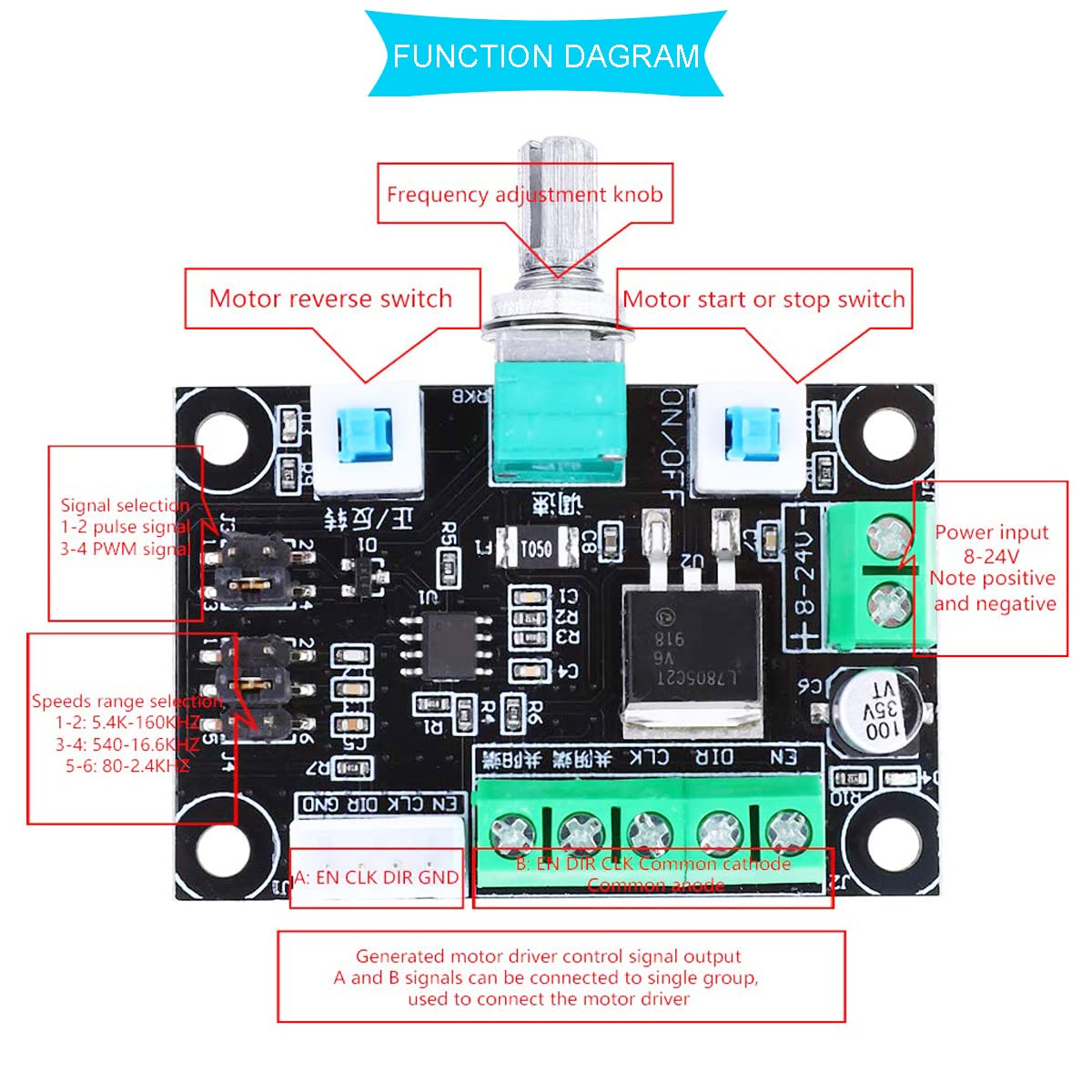

• 【Frequency signal】: The controller has a total of 3 kinds of frequency signals: high 5.4k-160khz, medium 540-16.6khz, low 80-2.4khz.

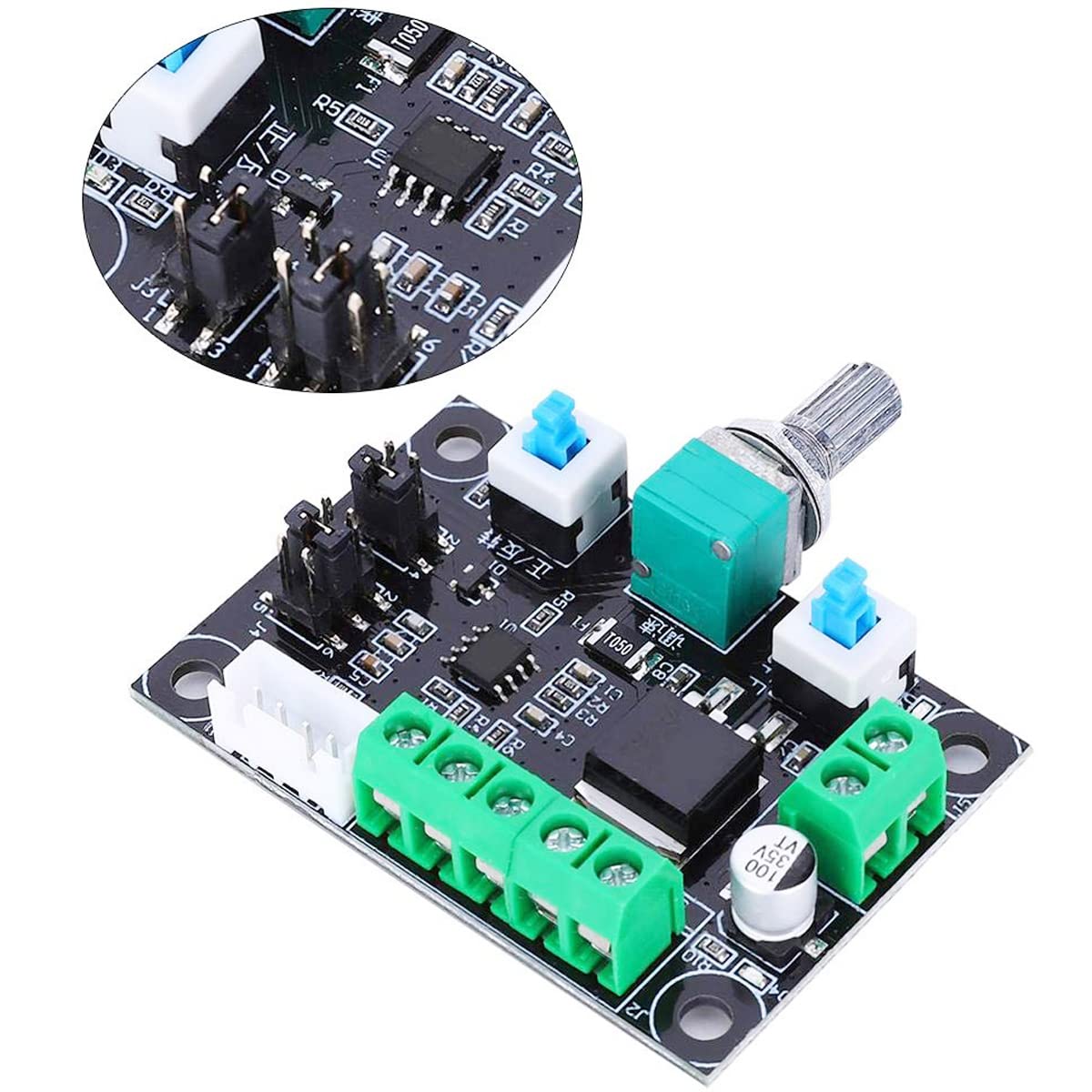

• 【PWM】: It can generate pulse signal and PWM signal, and can be selected by jumping.
• 【Frequency measurement】: Can measure PUL and common cathode (or common anode) two port.

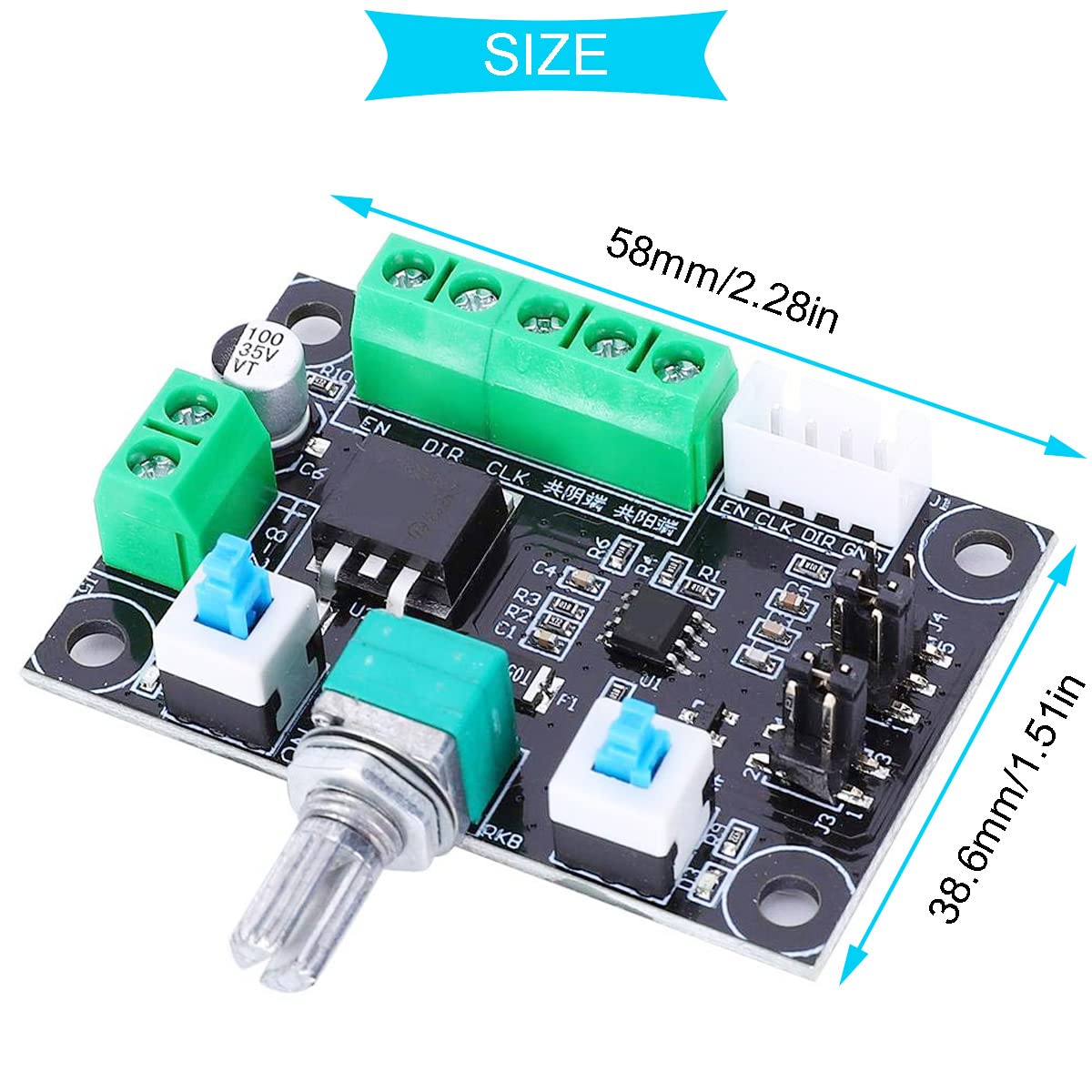

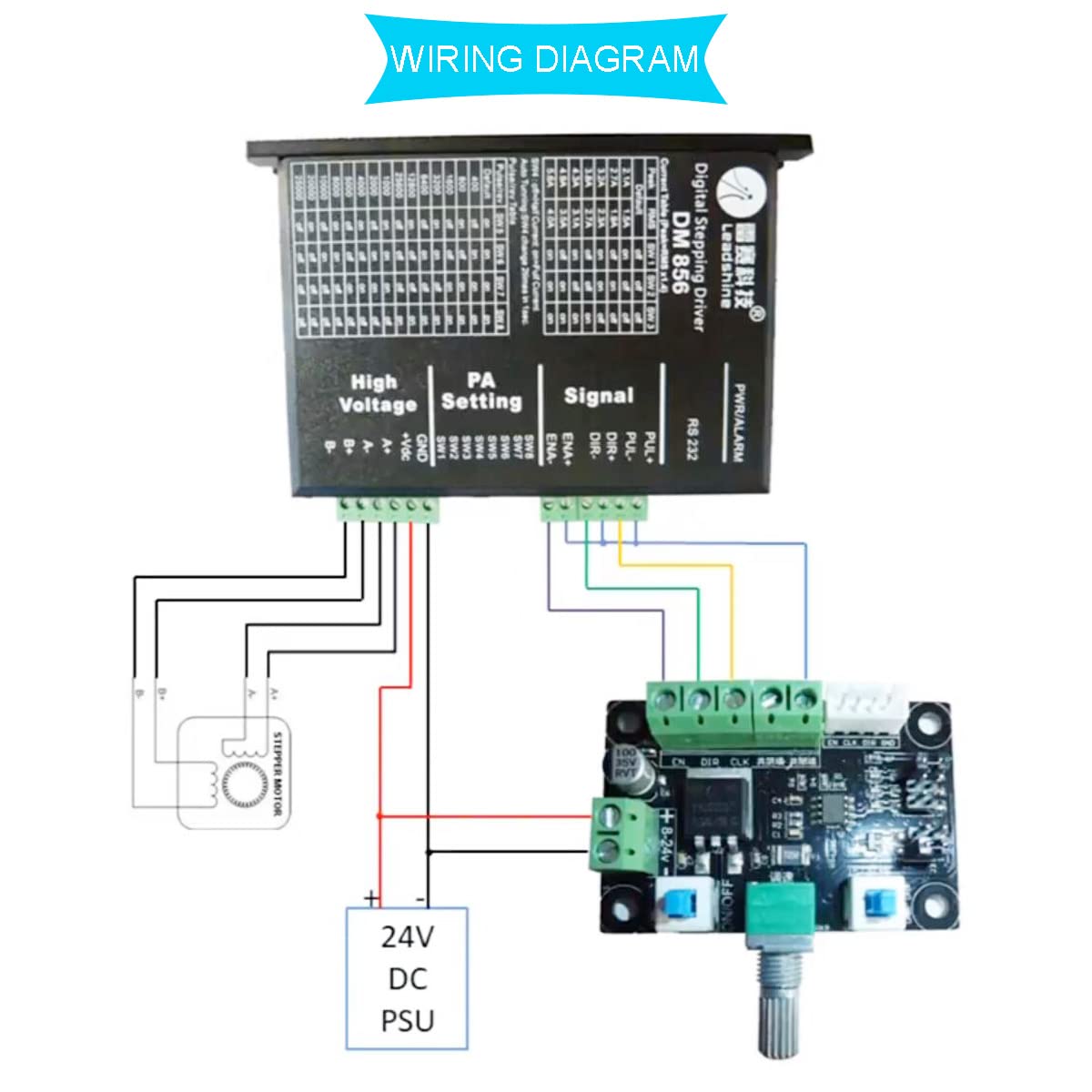

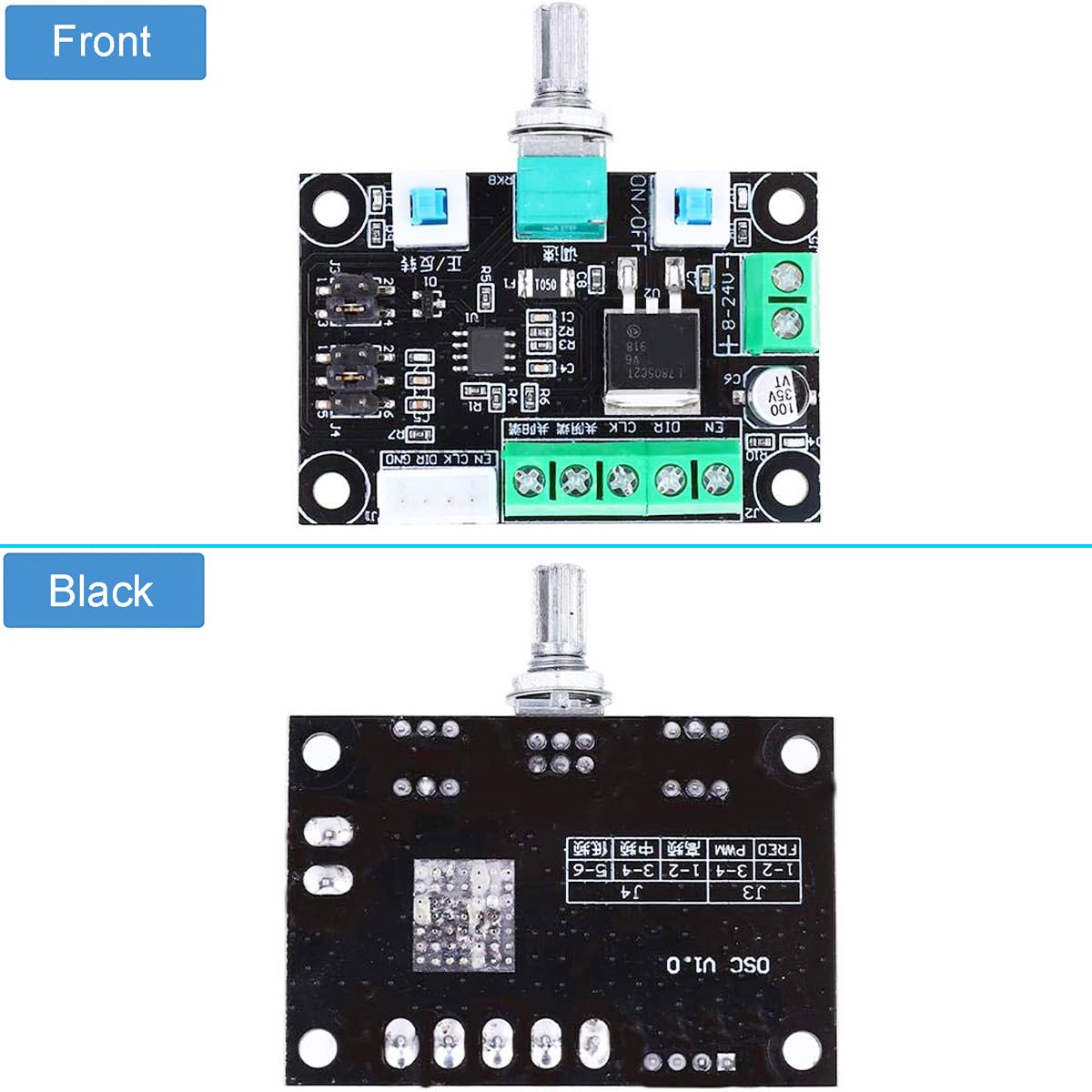

Product description Specification: Item Type: Stepping Motor Drive Controller Size: Approx. 38.6 x 58 mm / 1.5 x 2.3 in Different stepper motor drive port have different labels but the same function: EN=ENA=FREE Enable PUL=PULS=CLK Pulse DIR=CW=CWW Direction Common anode Connection method (B): EN+ PUL+DIR+ connect together to com+。 EN- connect EN PUL- connect CLK DIR- connect DIR Common cathode Connection method (B): EN- PUL-DIR- connect together to com-。 EN+ connect EN PUL+ connect CLK DIR+ connect DIR Package Includes: 1 x Control Board 1 x 5 pin Male and male cable 1 x Screwdriver 1 x Knob cover
