ALMOCN 8pcs DRV8833 Motor Drive Module 1.5A Dual H Bridge DC Gear Motor Driver Controller Board

• DRV8833 2 Channel Motor Driver Module 1.5A 3V-10V H-Bridge 4-Wire Step Motor
• Single H bridge output current: 1.5A, can drive 2 DC geared motors.
• Built-in overcurrent protection, short circuit protection, undervoltage lockout and overtemperature protection. With low power sleep mode.
• For DIY smart car robot, it can drive DC motors up to 1.5A and 4-wire stepper motors.

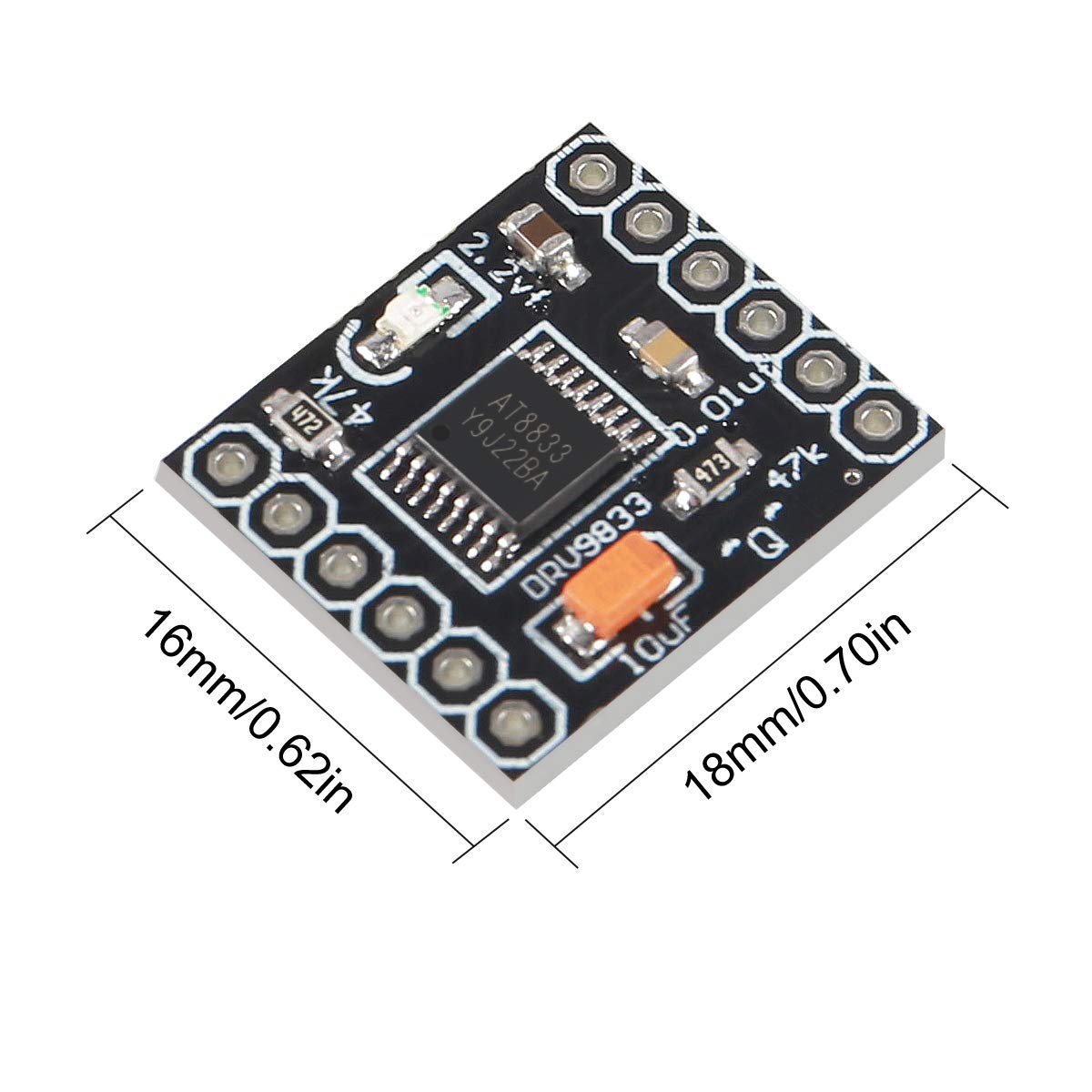

• Input voltage: 3-10V，Size: 18.5*16mm

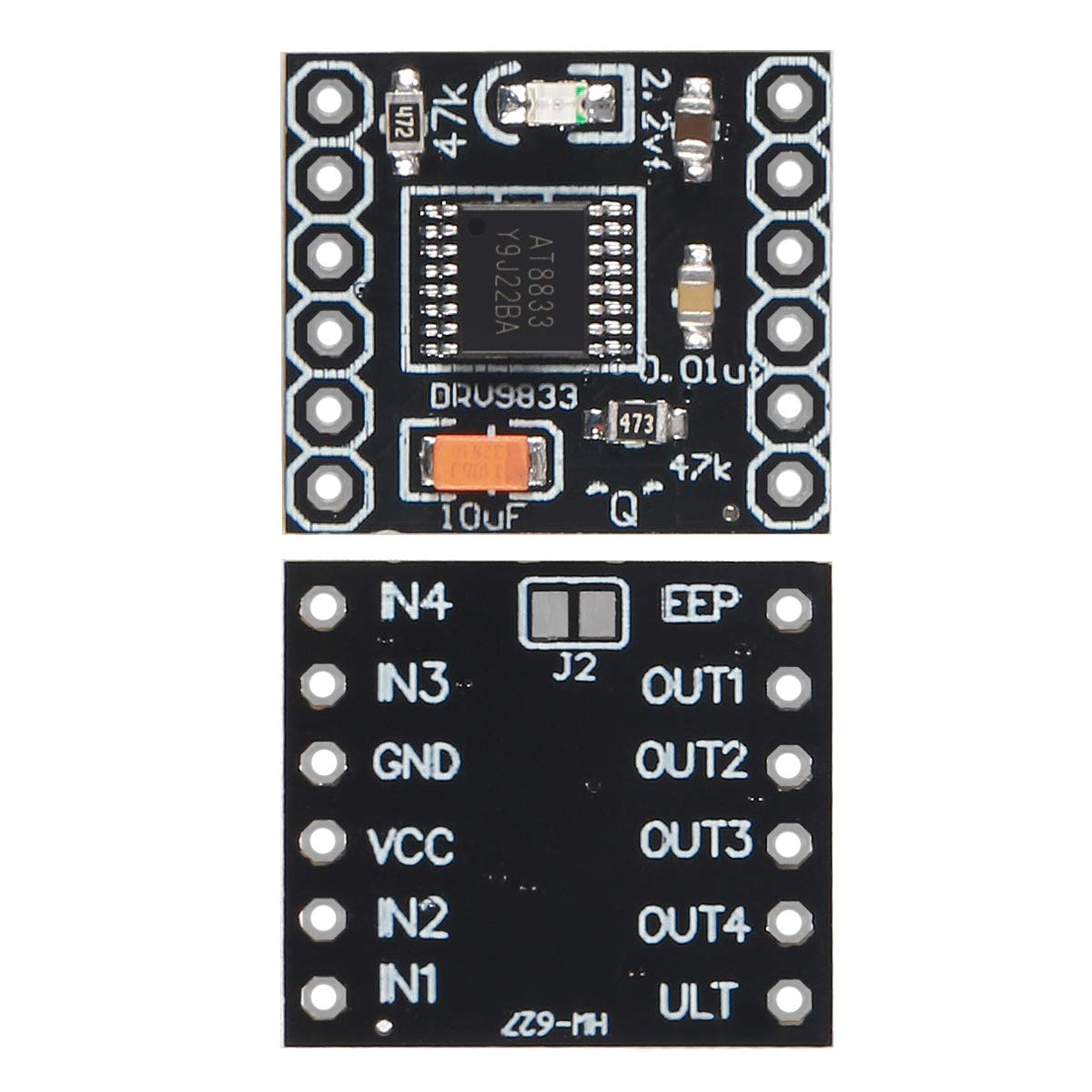

Features ULT PIN:Low level is sleep mode (need to disconnect the J2 short solder joint behind the module) OUT1,OUT2:1-channel H-bridge controlled by IN1/IN2 OUT3,OUT4:2-channel H-bridge controlled by IN3/IN4 EEP PIN:Output protection.Default no need to connect. VCC:3-10V GND is grounded Parameter 1. Size:18.5*16mm 2. Input voltage:3V-10V 3. Single H-Bridge output current:1.5A(It can drive two DC motor) 4. Overcurrent protection:YES 5. Short circuit protection:YES 6. Undervoltage lockout:YES 7. Overheating protection:YES 8. With a low-power sleep mode Application 1. DC motor which drive current is less then 1.5A 2. 4-wire step motor Package Including 8 * DRV8833 Motor Driver Modules
