Youmile PWM Motor Speed Controller ZK-BMG DC 12V 24V 60V 500W Adjustable ignal Generator Driver Module with Stepless Switch red and black cable

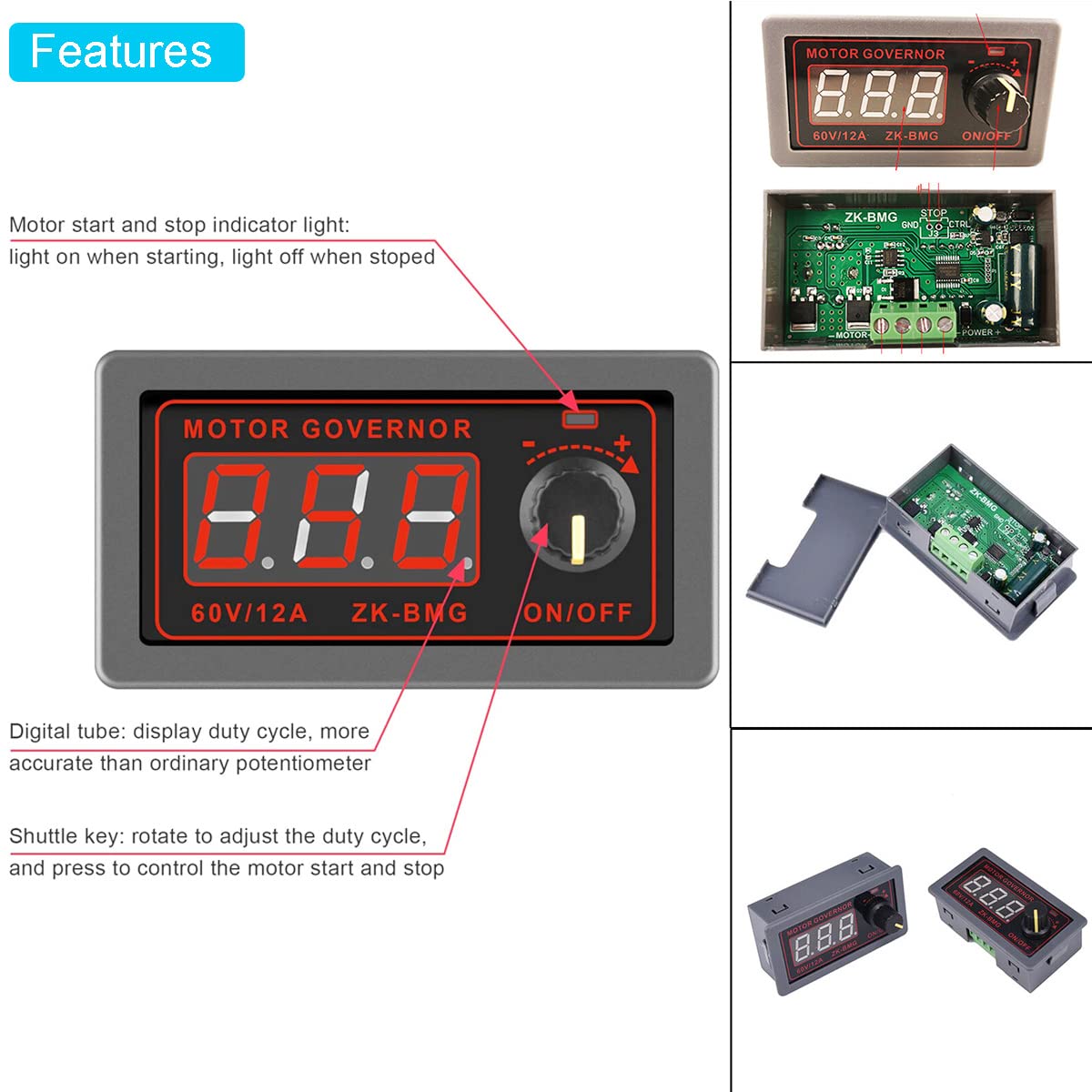

• 【Features】:LCD HD display. Can adjust the duty cycle, the upper and lower duty cycle limits and the operating frequency. Comes with start and stop button and can be controlled by external switch, to meet your control requirements.
• 【Soft-start protection】:The motor controller has a soft-start protection function that can effectively reduce the inrush current, protect the motor and prolong the life of the motor.
• 【Wide Input Voltage Range】:This PWM DC Motor Speed Controller supports a widely input voltage from DC 9V-60V, and it fits to 12V 24V 36V 48V power supply, at the same time the output current is 12A, power 500w, which ensures a widely application. You can use this Adjustable Motor Controller in different occasions upon different purposes.
• 【Digital Encoder Button】:The digital encoder knob can adjust the motor speed, which is more accurate and consistent to control the engine speed than ordinary potentiometers.
• 【Application】: Can be used for driving motors, brightness control, speed control, generators and other applications

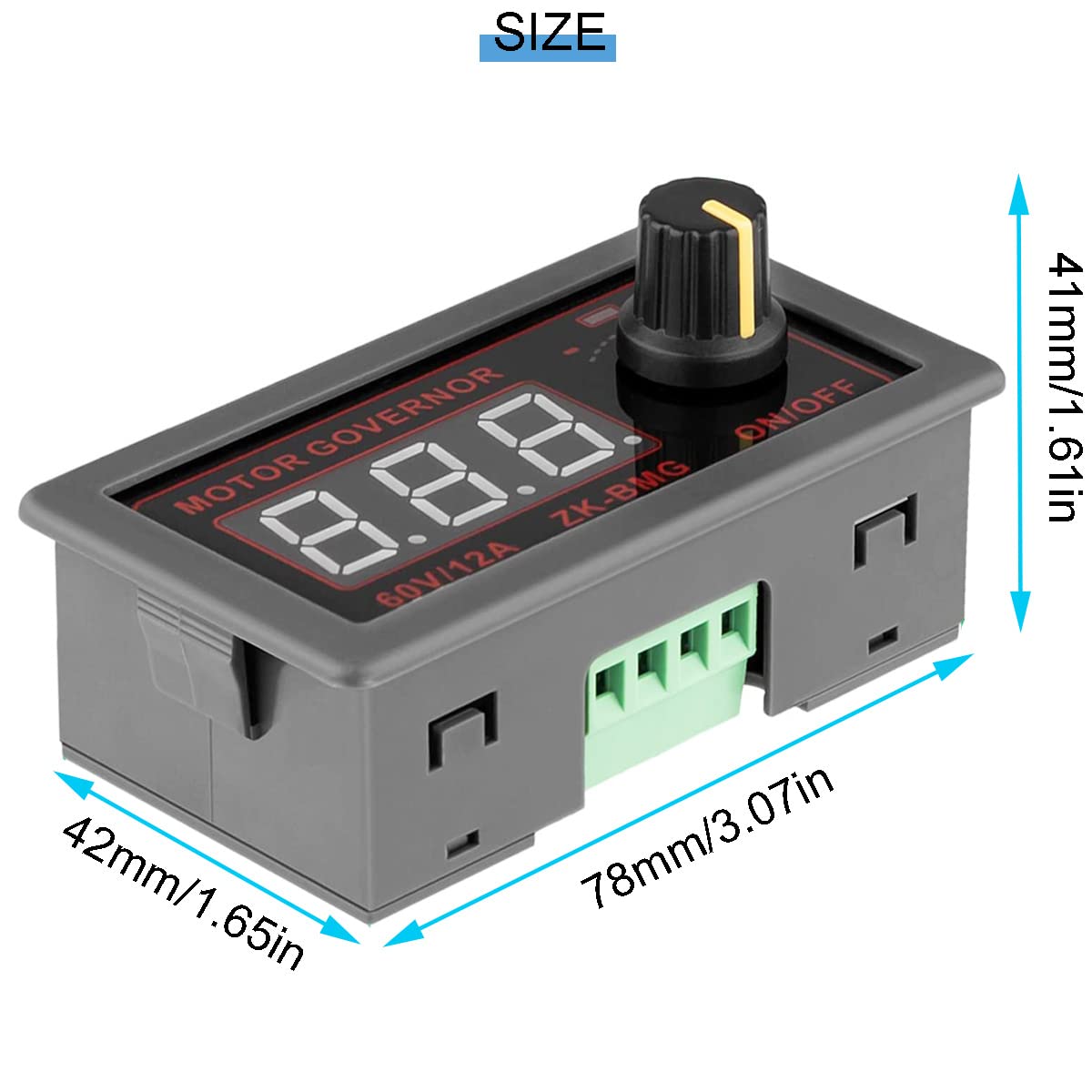

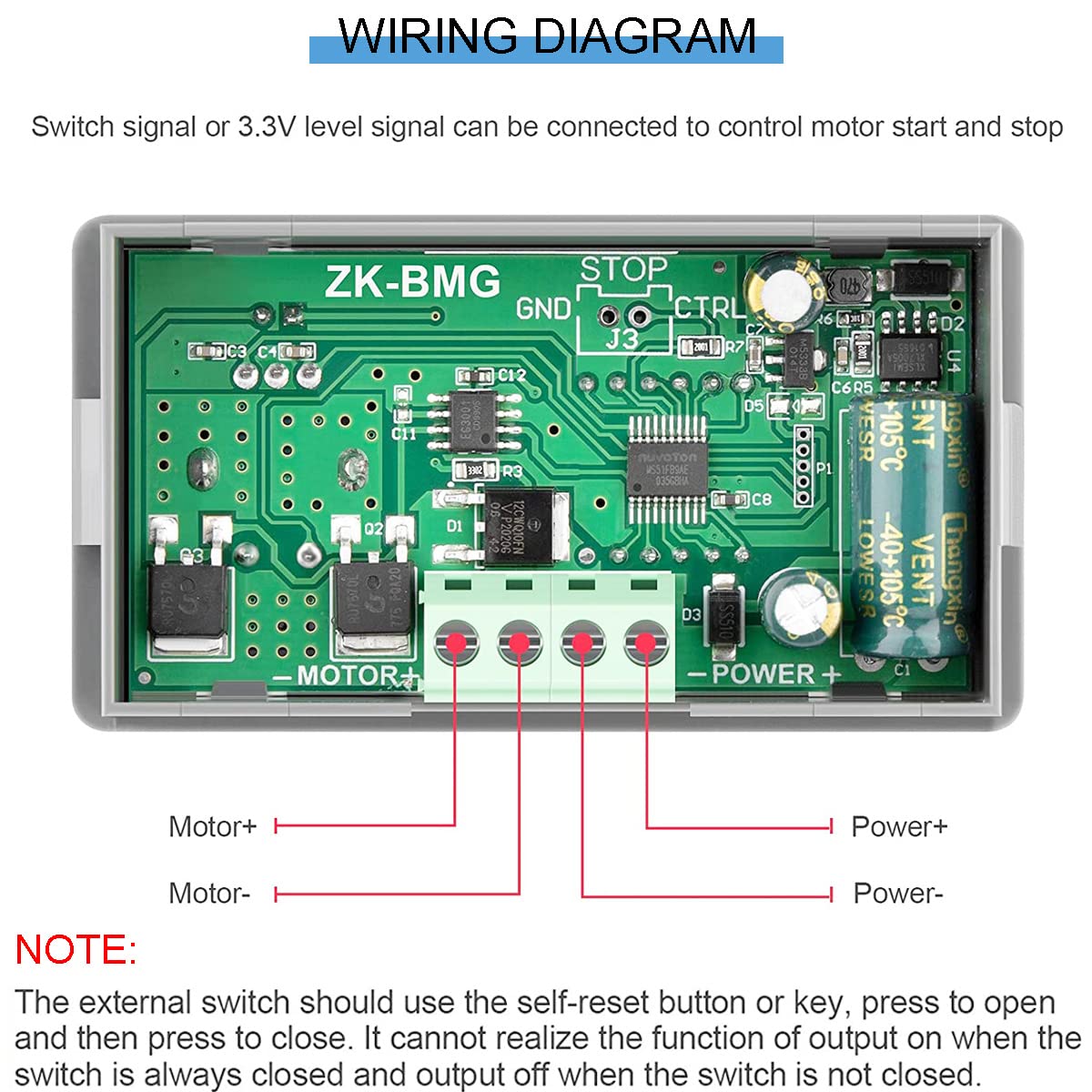

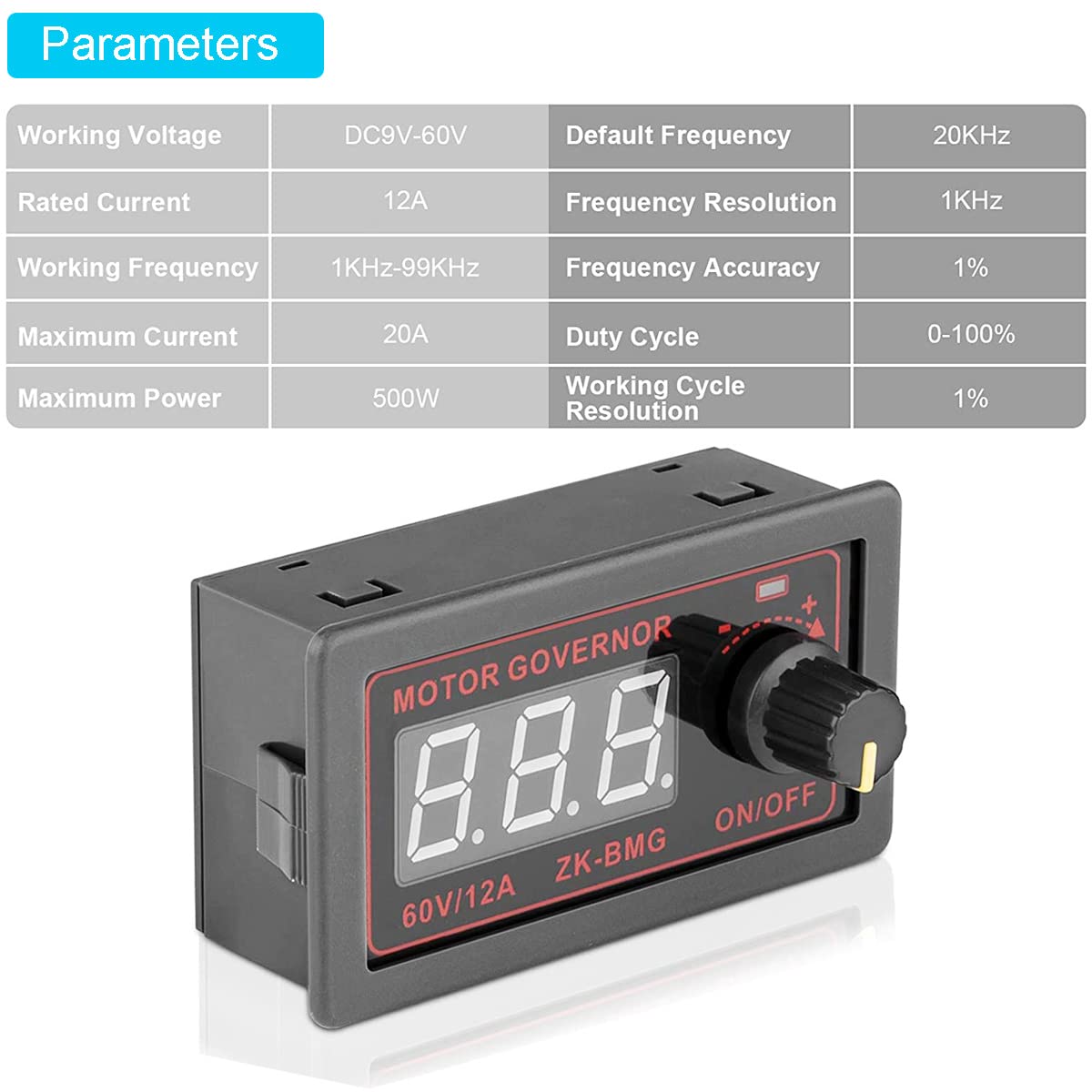

Product Description Properties: 1. Equipped with start-stop button, and can be external switch control, to meet various customer control requirements. (Note: The external switch should use the self-reset button or key, press to open and then press to close; it can't realize the function of opening output when it is closed all the time, and closing output when it is not closed.) 2. Motor soft start function. When starting the motor, the current increases slowly and there is no shock current, which can effectively protect the motor and prolong its service life. 3. Duty cycle, duty cycle upper and lower limits and working frequency can be set to facilitate customers to operate and use their motors according to their working characteristics. 4. Digital encoder knob adjusts motor speed, which is more accurate and consistent than ordinary potentiometer. 5. With standard 5135 instrument shell, convenient for customer installation. Parameters: Working voltage: DC 9 V-60 V. Rated current: 12A. Peak current: 20A. Power: 500W (max.) Working frequency: 1KHz-99KHz. Frequency Accuracy: 1% Frequency resolution: 1 kHz. Working cycle: 0%-100% Working cycle resolution: 1% Working Temperature: -40~85°C Working humidity: 0%-95%RH Size: 79 x 43 x 26 mm. Package includes: 1 x PWM Motor Speed Controller. 1 x red and black cable
