Youmile Capsule Slip Ring, V-groove Ring 12.5mm Signal Transmit Electrical CIRCUITSx2A 360° Rotary Joint 300Rpm 240VAC 6 Wires For Monitor Robotic Electrical Test Equipment Monitoring System

• [Smooth Rotation]: Each ring is designed with a 90-degree V-groove ring. Compared with competitive slip rings, it can reduce the contact wear rate of AWG Teflon wire and increase the service life of the product

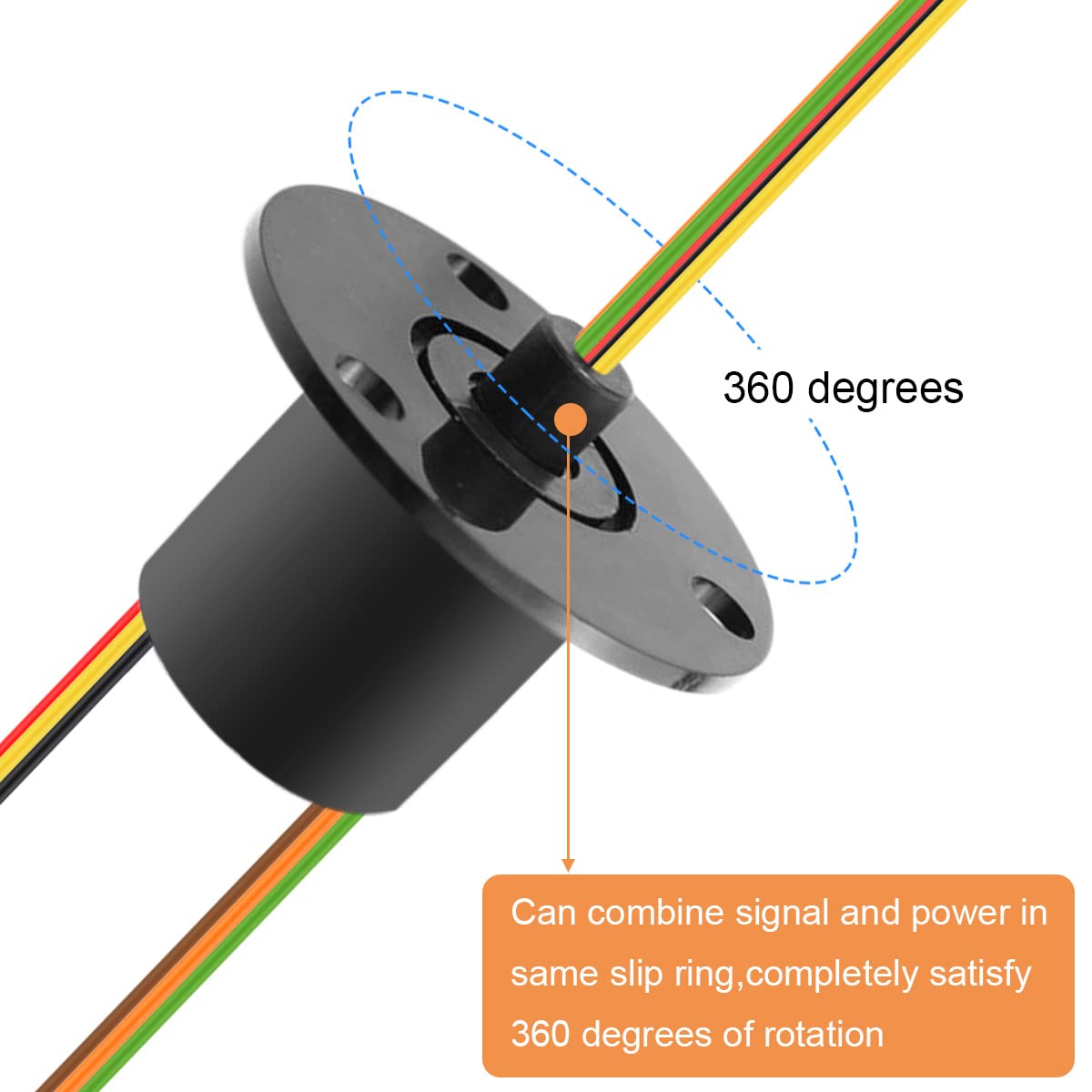

• [The Wires Are Not Easily Knotted]: The signal and power can be combined in the same slip ring to fully meet the 360-degree rotation requirements
• [Current And Voltage]: 240 VAC/DC,2A per circuits
• [Work Temp]: -40°~+80°
• [Package Content]: 1 pcs 6 wire Capsule Slip Ring

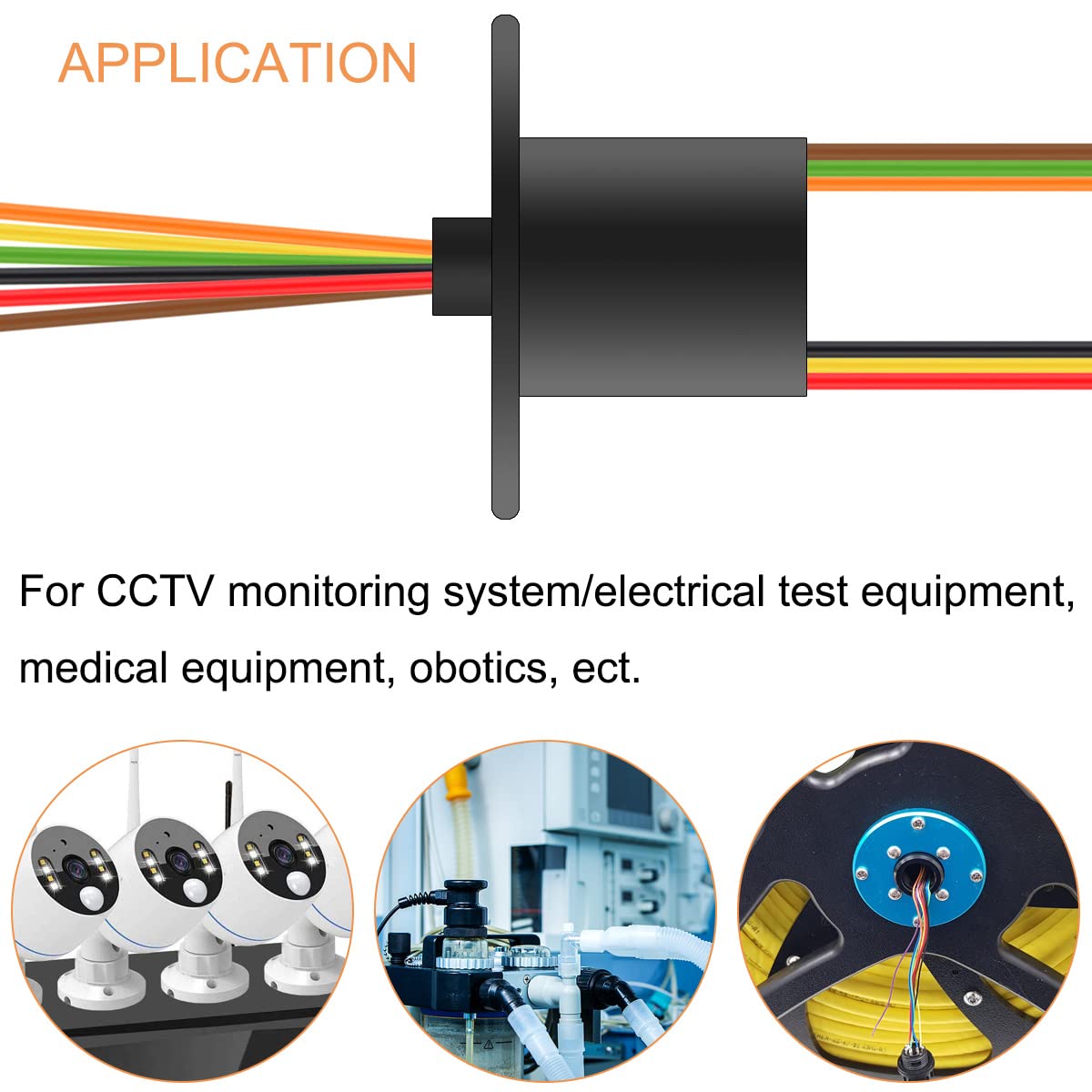

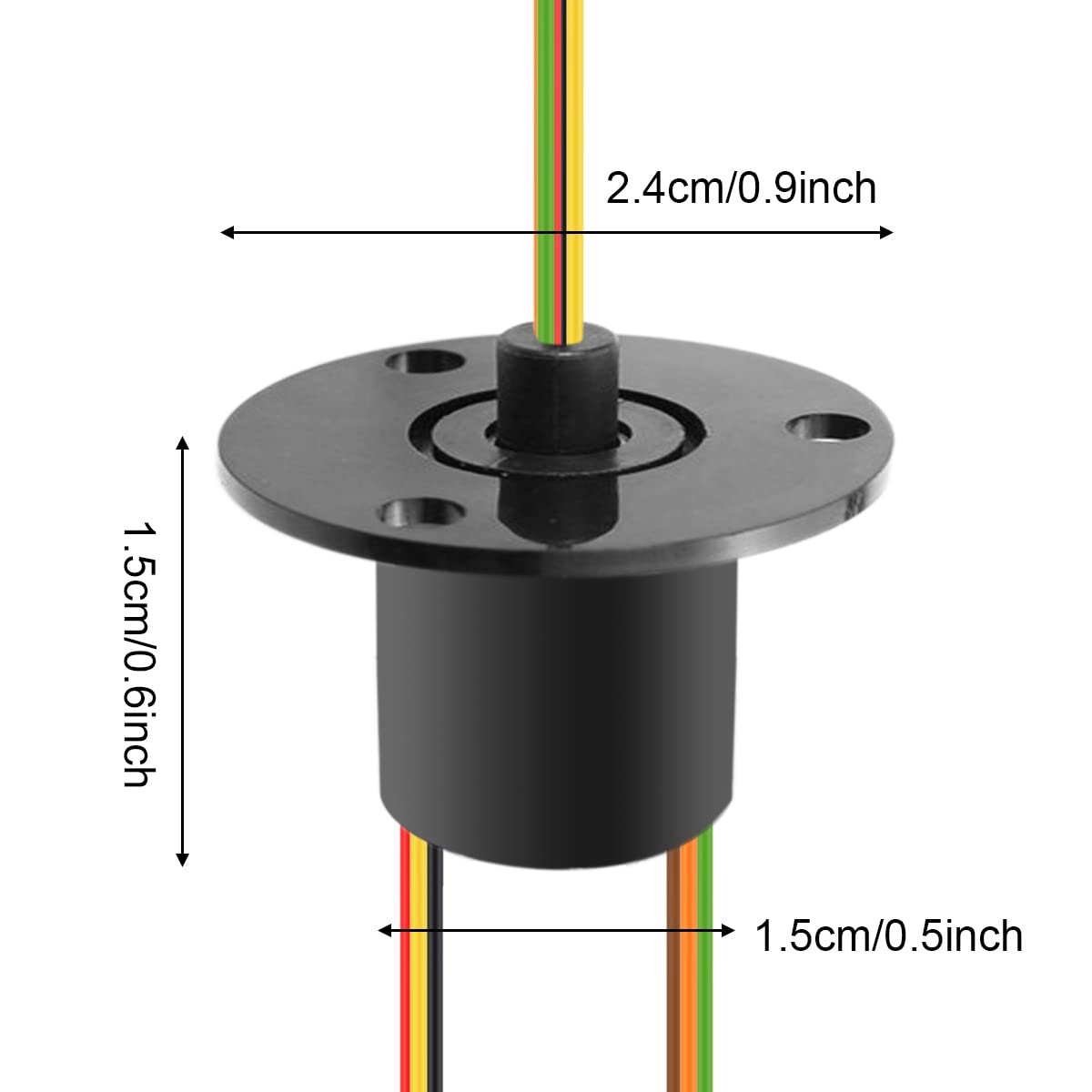

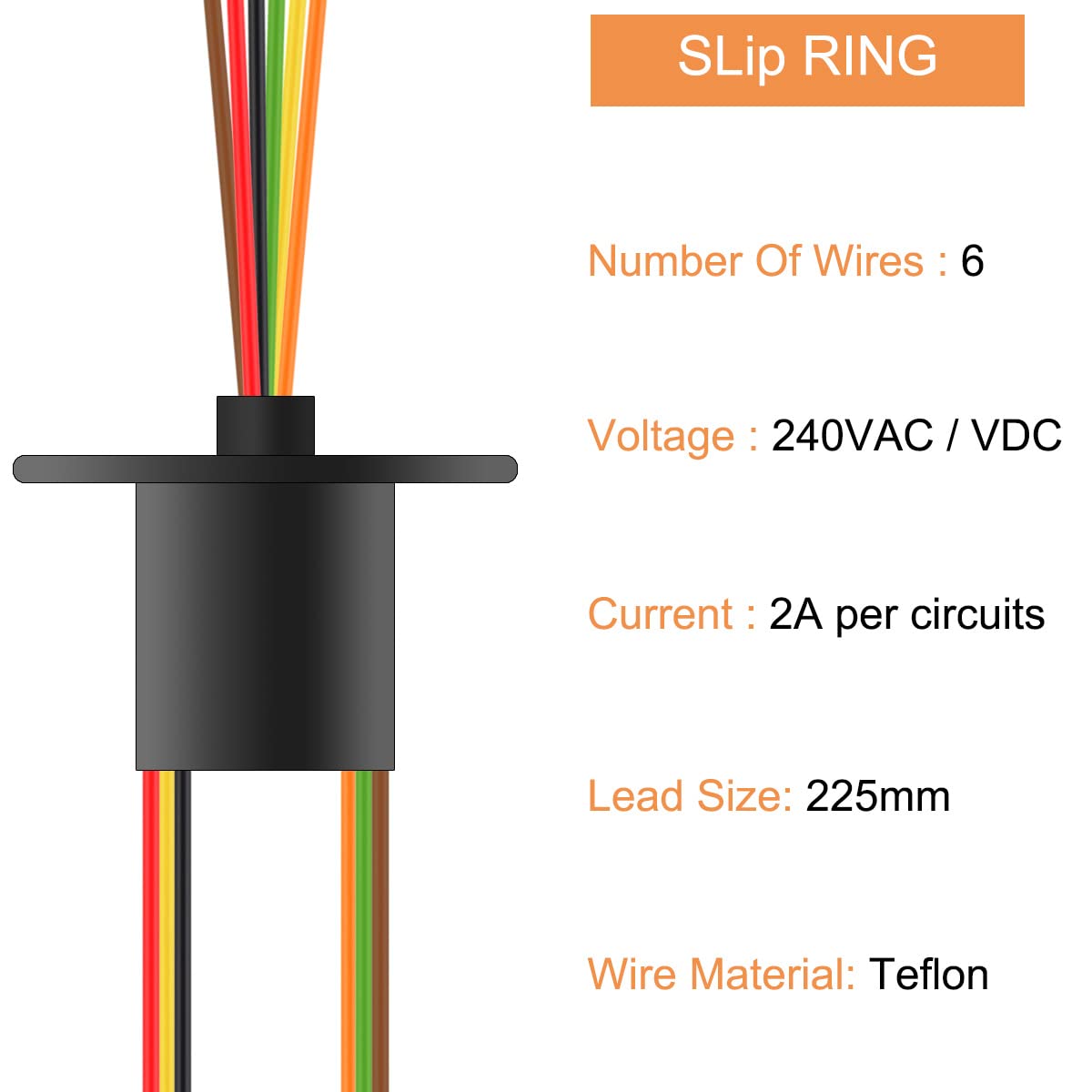

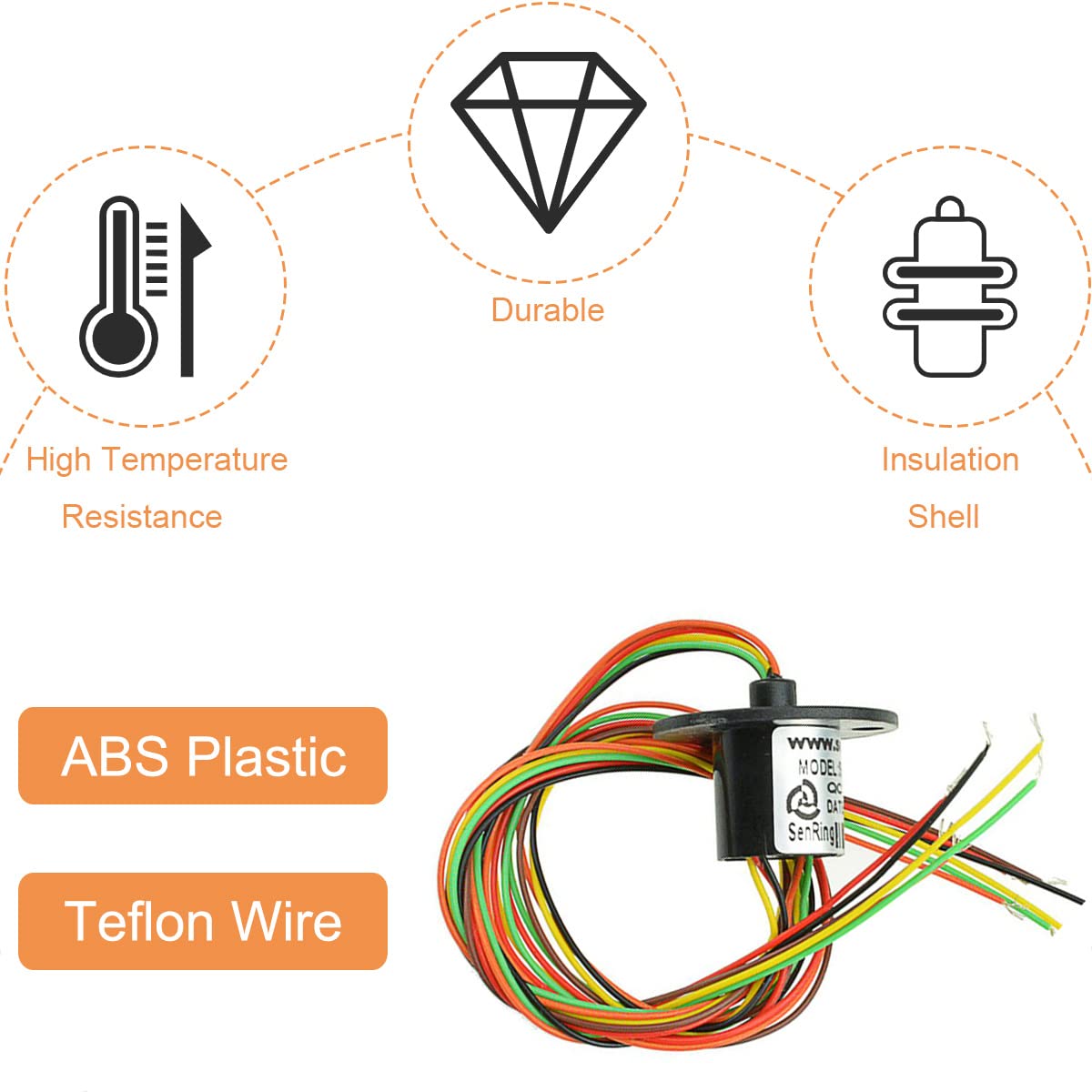

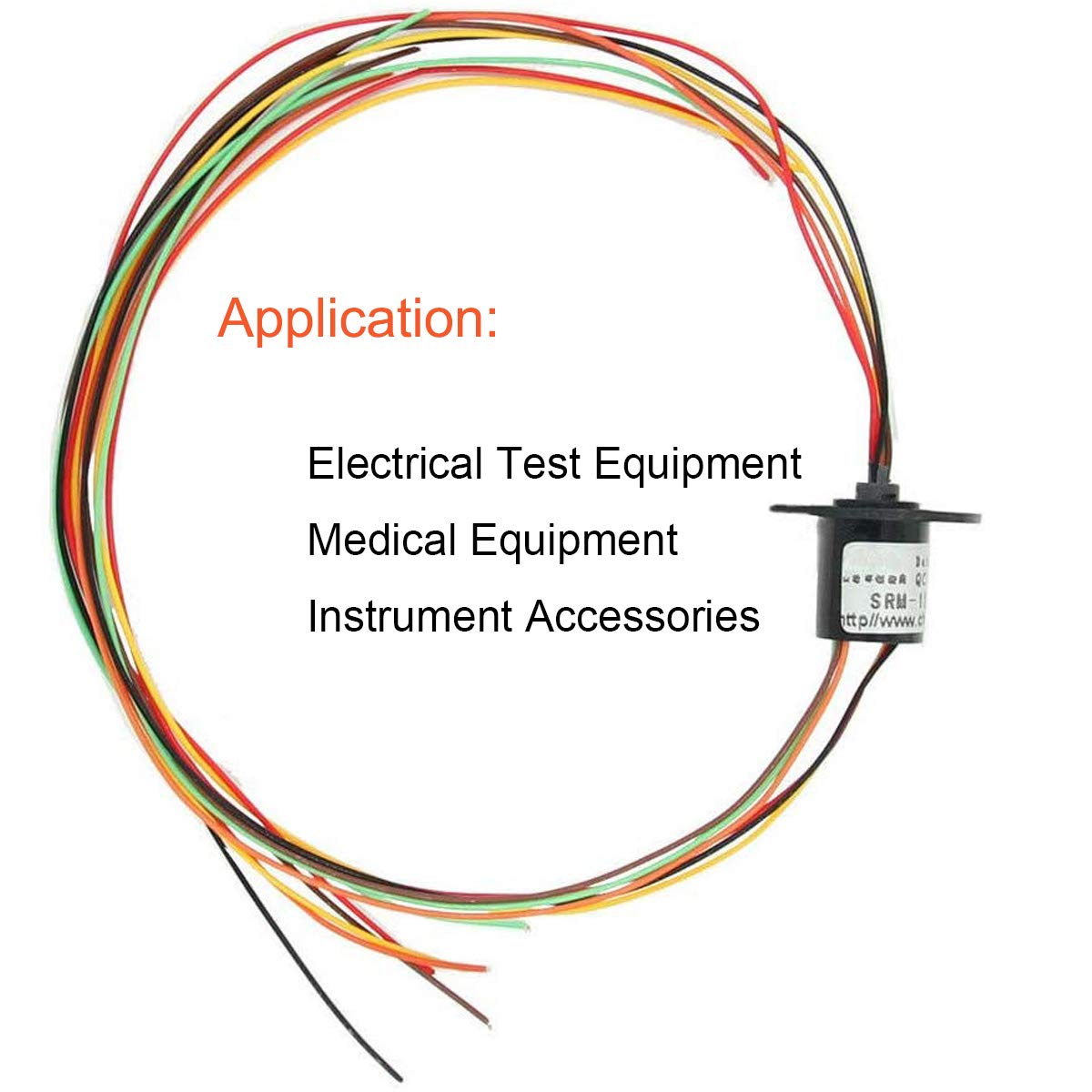

Voltage: 240 VAC/DC Current: 2A per circuits Speed: 0-300 Rpm Circuits: 6 Housing Material: Engineering Plastics Work Humidity: 60%RH or higher Work Temp.: -40℃~+80℃ Contact material: Gold plated ring-Gold plated brush nsulation resistance: 1000 Mω @ 500 VDC Lead size: 225mm 30# AWG Teflon wire Dielectric strength: Between each circuit and all other circuits,≥ 500 VAC @ 50Hz Electrical noise: ≤10mω Work life: Depending on speed and working environment, ≥50,000,000 runs ref Outside dia: 12.5mm(0.49inch) Flange dia.: 24mm(0.94inch) Length: 15mm(0.58inch) Applications:CCTV Monitoring System/Electrical test equipment/Medical equipment/obotics Package Includes: 1 X 6 wires Capsule Slip Ring
