Heschen DC Solenoid Electromagnet, Push Pull Type, HS-0530B, DC6V 3.4A, 10mm Stroke, Initial Force 0.5N, Max Keep Force 5N, Open Frame, Linear Motion

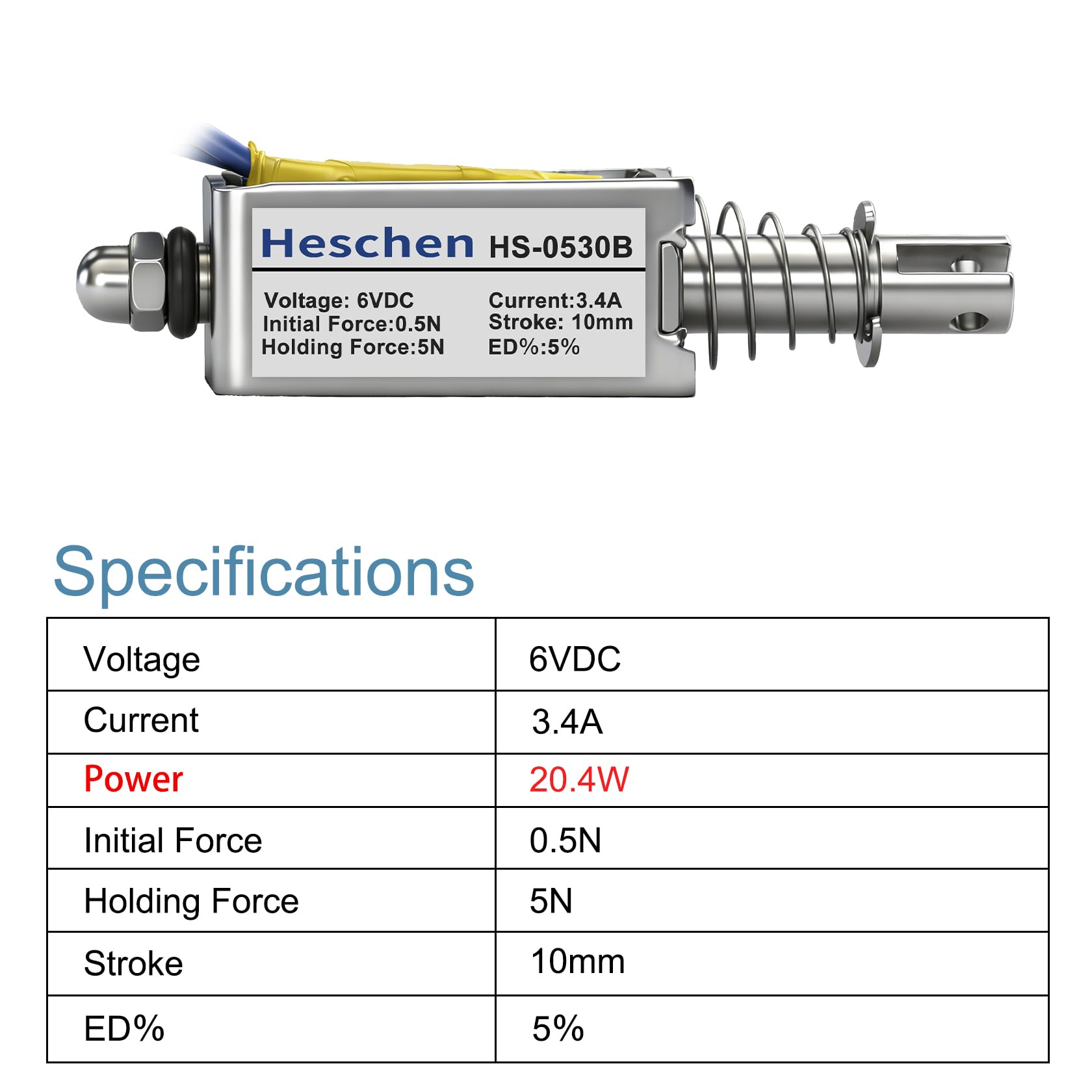

• Rated Voltage: DC6V; Rated Current: 3.4A; Stroke: 10mm; ED%=5%; Push Pull Type
• Initial Force: 0.5N; Max Keep Force: 5N (Only after the coil is attracted can a force of 5N be achieved.)

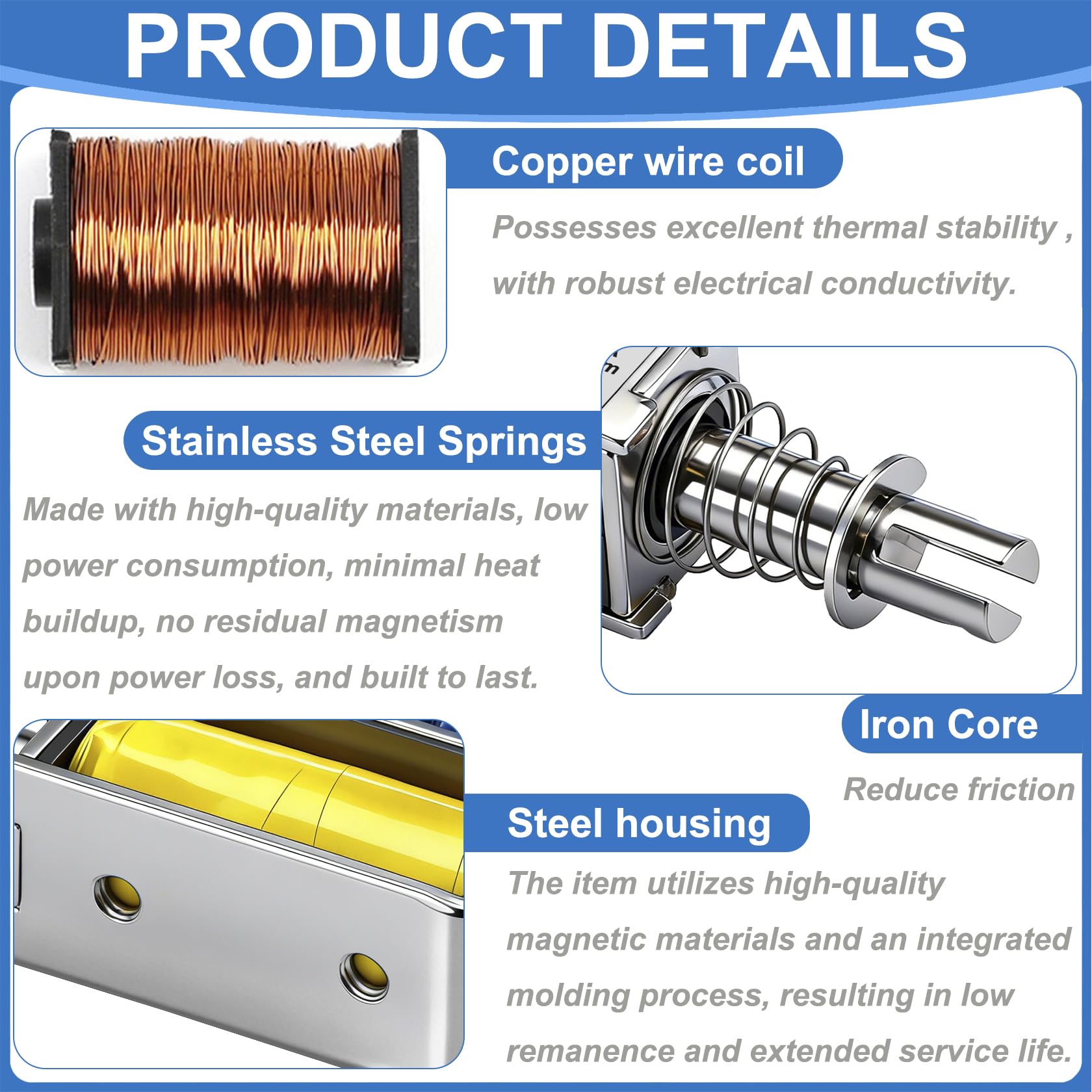

• The item is easy to install, use copper coil and operates stably.

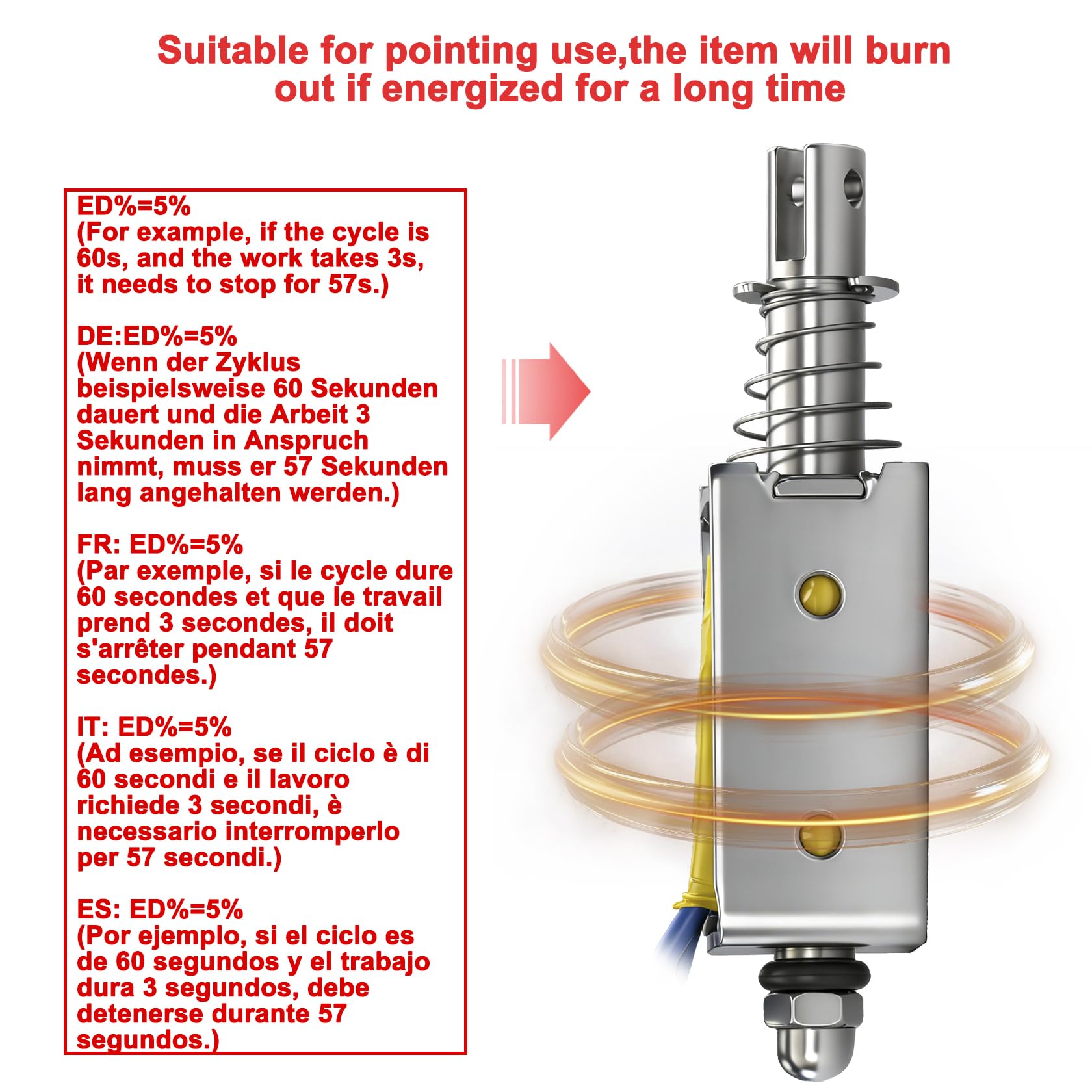

• Electromagnets heat up when energized, making them unsuitable for prolonged operation; they require periodic switching on and off of power.
• Push-pull electromagnets have high power consumption after operation, and power supplies with power lower than the item power may cause them to malfunction.

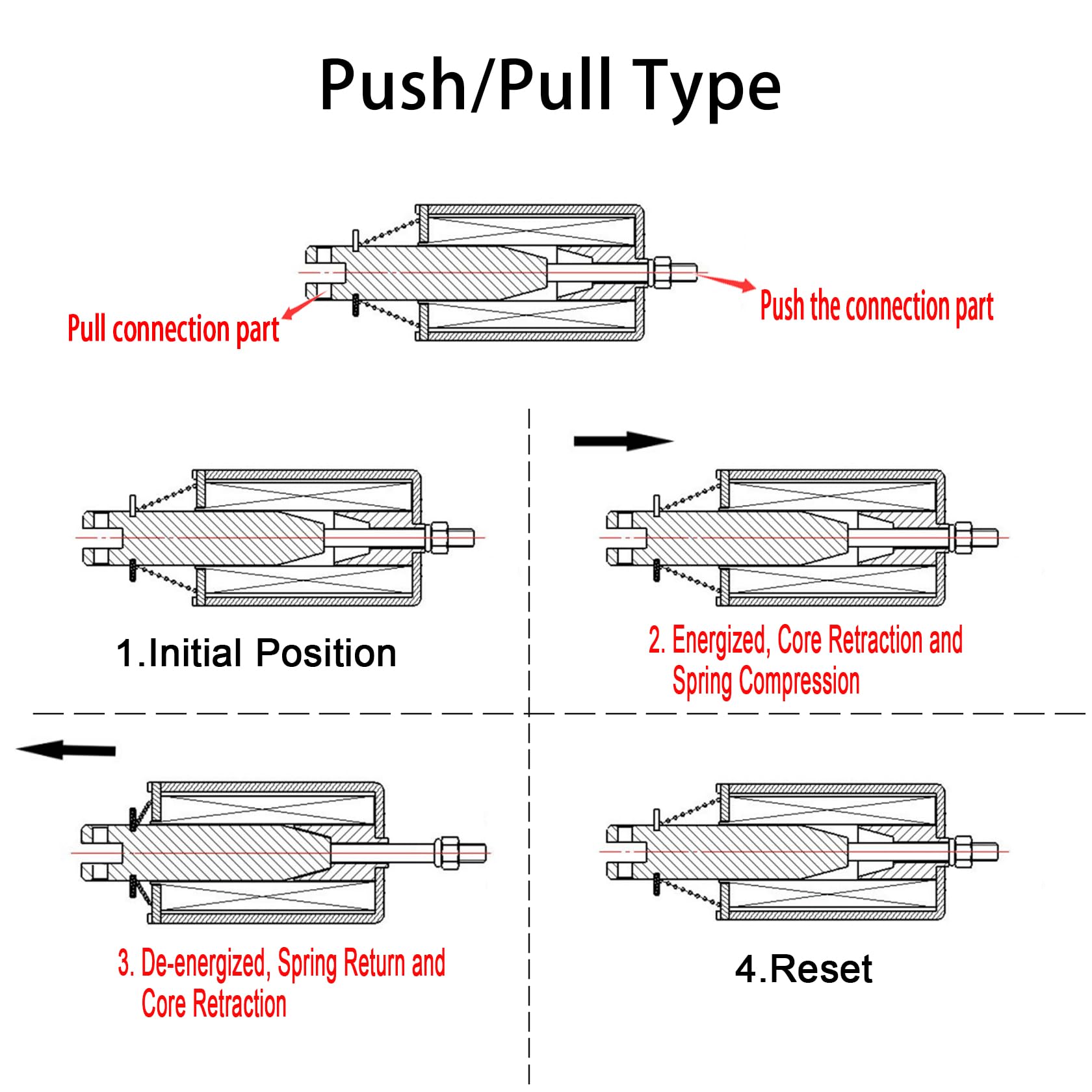

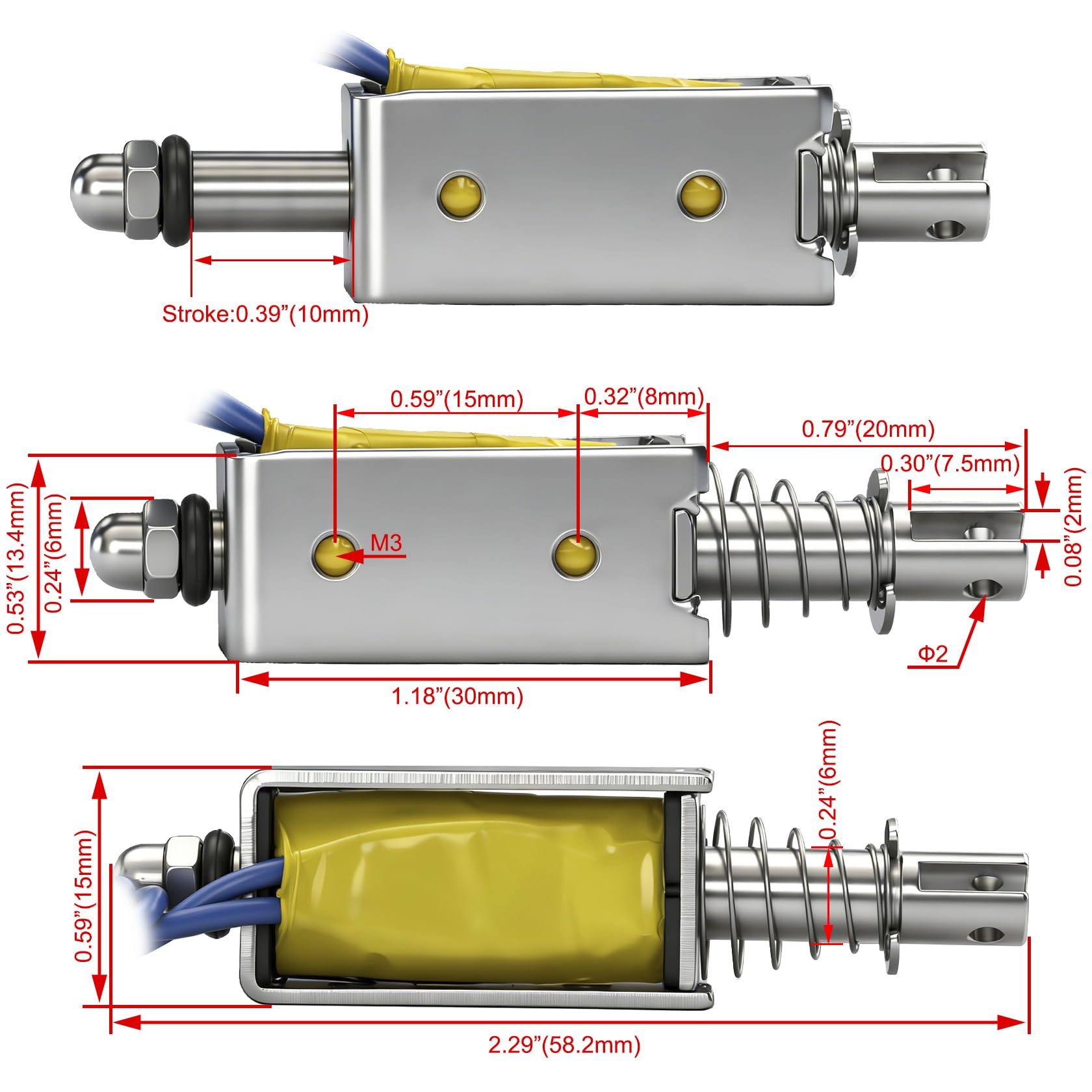

The Solenoid Electromagnet is used in vending machines, transport equipment, office facility household appliance, mechanical, etc. The Electromagnet has pull push type, linear motion, plunger return The Solenoid Electromagnet is working through pulling pushing in plunger joined object when energized The M3 threads make it easy to mount using commercially available coach screws
