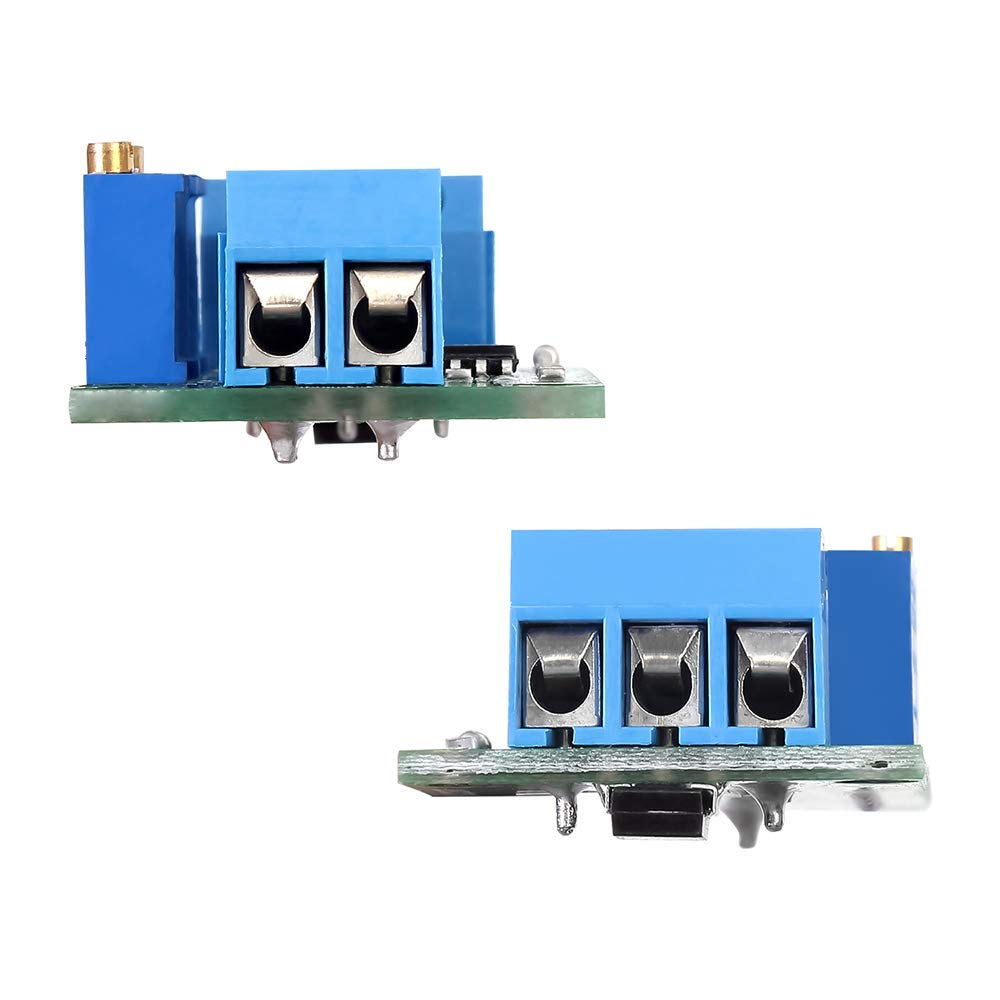

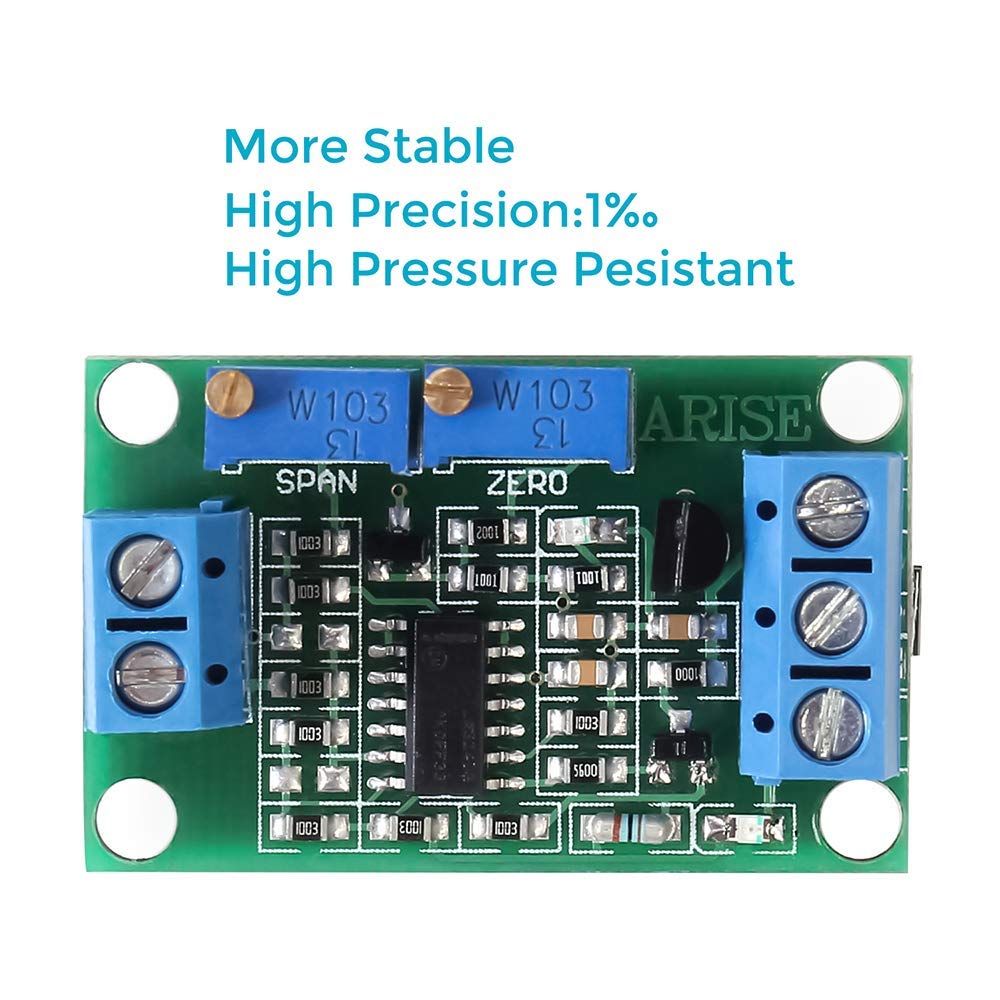

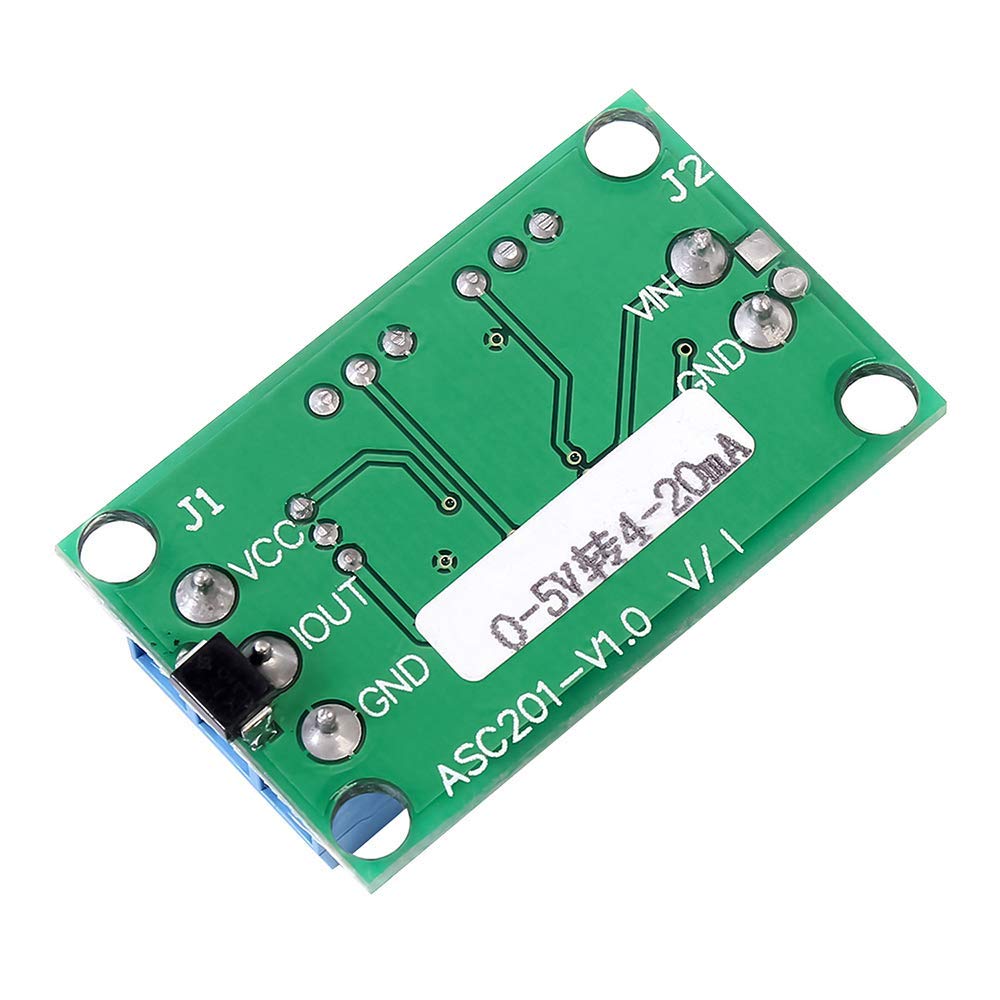

Youmile 2Pcs Voltage to Current Converter Module 0-5V to 4-20mA Voltage to Current Transmitter Signal Module Non-Isolated Current Converter Board DC7-30V with Jumper Wire

• Using single-chip embedded technology.
• Implement the industry standard voltage (0-10V) into an industry standard current (4-20mA).
• Drive capability MAX15mA, linear output, output signal can be directly connected to the AD converter.
• Can be connected with a microcontroller with AD function.
• Easy to operate, can be fine-tuned by potentiometer.

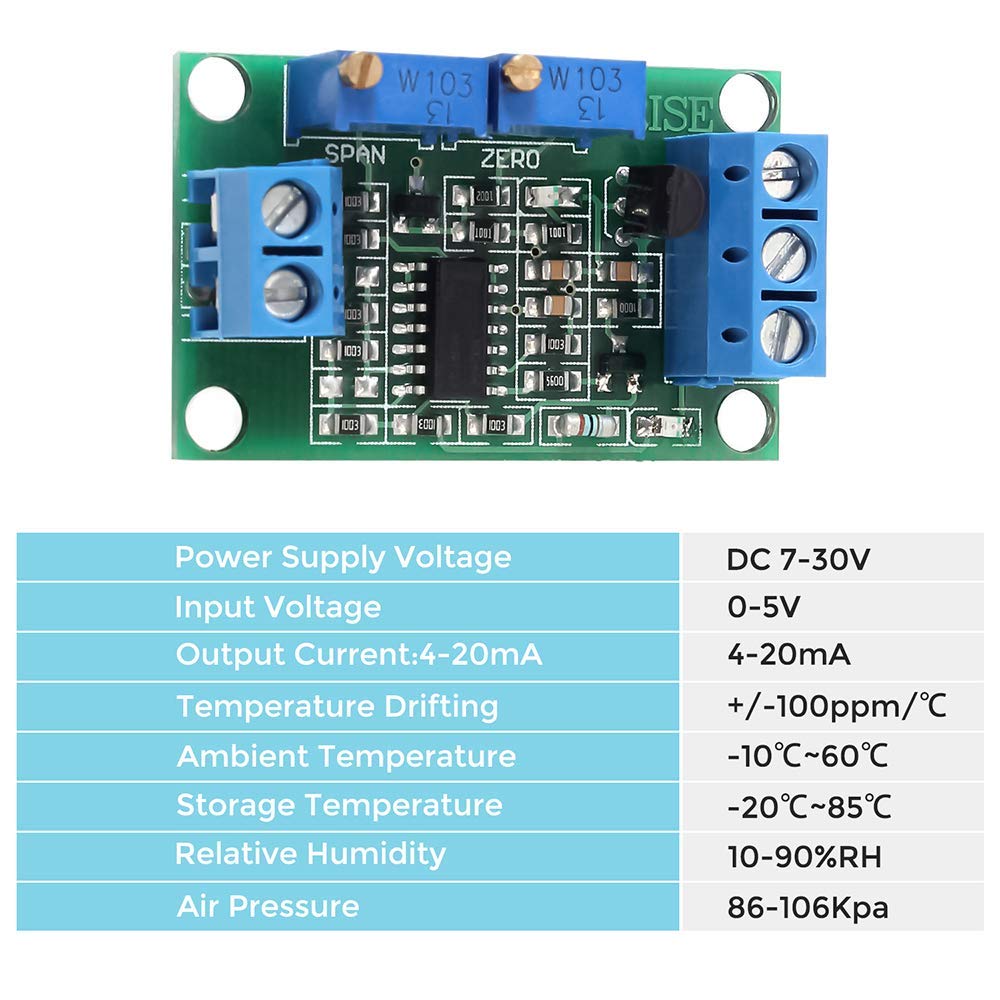

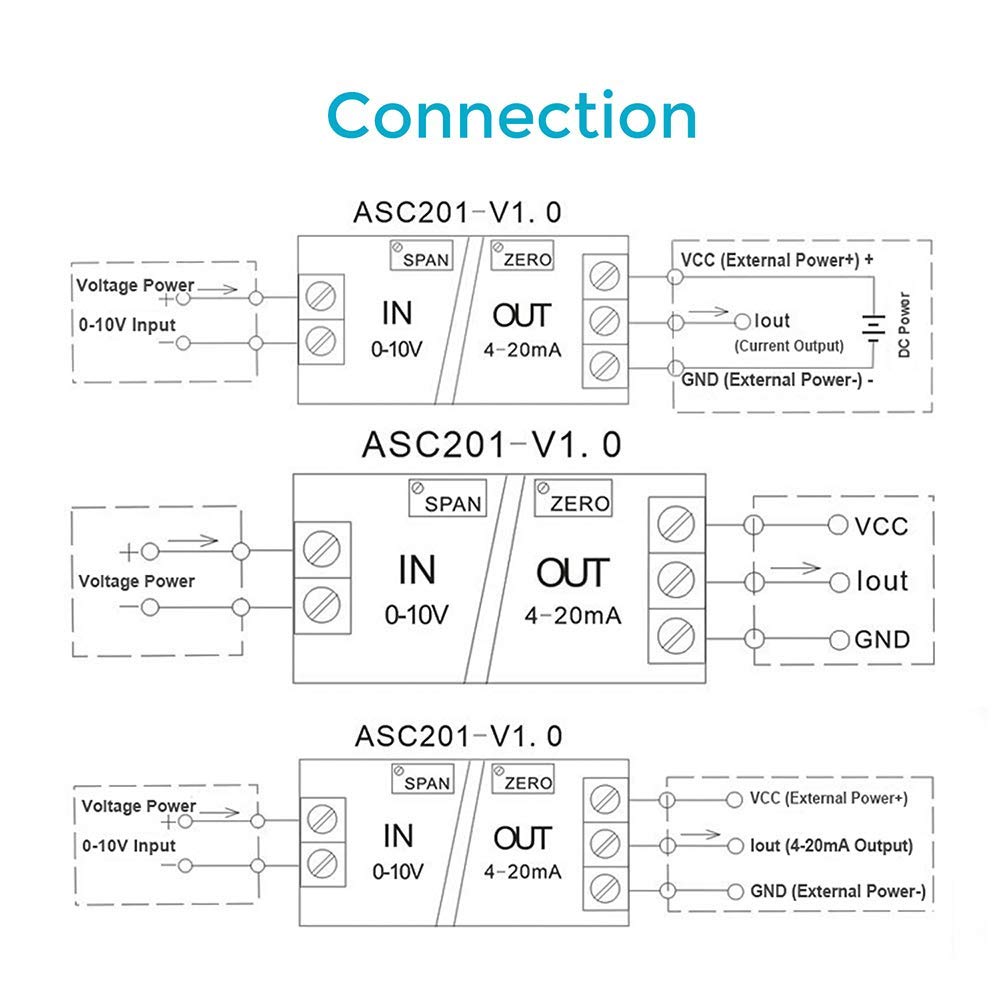

Description: Features: Using single-chip embedded technology. Implement the industry standard voltage (0-10V) into an industry standard current (4-20mA). Drive capability MAX15mA, linear output, output signal can be directly connected to the AD converter. Can be connected with a microcontroller with AD function. Easy to operate, can be fine-tuned by potentiometer. Specification: Power Supply Voltage: DC 7-30V Input Voltage: 0-5V Output Current: 4-20mA Temperature Drifting:+/-100ppm/℃ Ambient Temperature:-10℃~60℃ Storage Temperature:-20℃~85℃ Relative Humidity: 10-90%RH Air Pressure: 86-106Kpa Instructions: 1.The working voltage connected to V + and V-, cannot be reversed, so as not to damage the control panel and components. 2. In the VIN terminal control voltage, the range is 0-5V, there is a corresponding output at the output current. 3. The correspondence between voltage and current can be fine-tuned by adjusting the potentiometer. Package included: 2 x Voltage to Current Module 0-5V to 4-20mA 1 x 50cm/19.6inch 28AWG Power Wire
