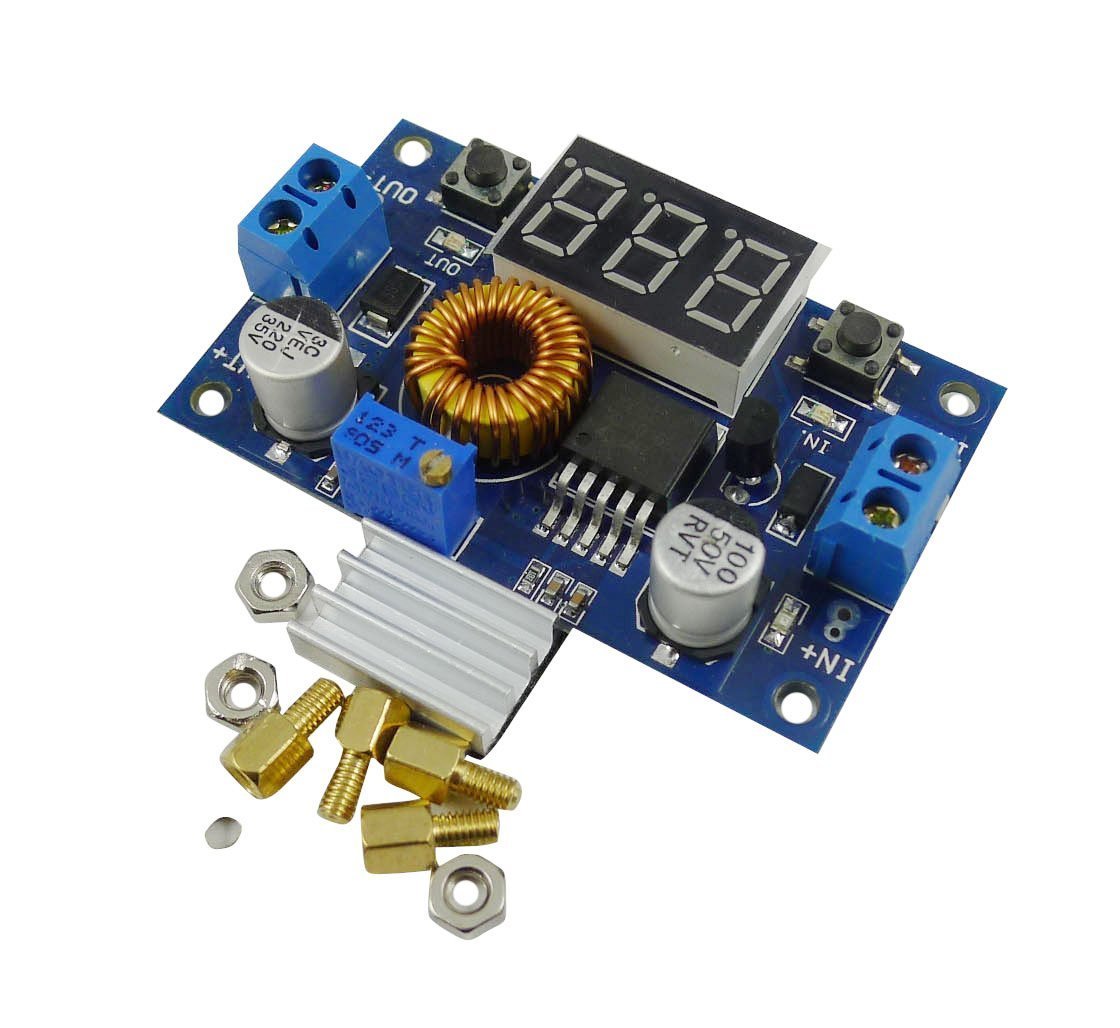

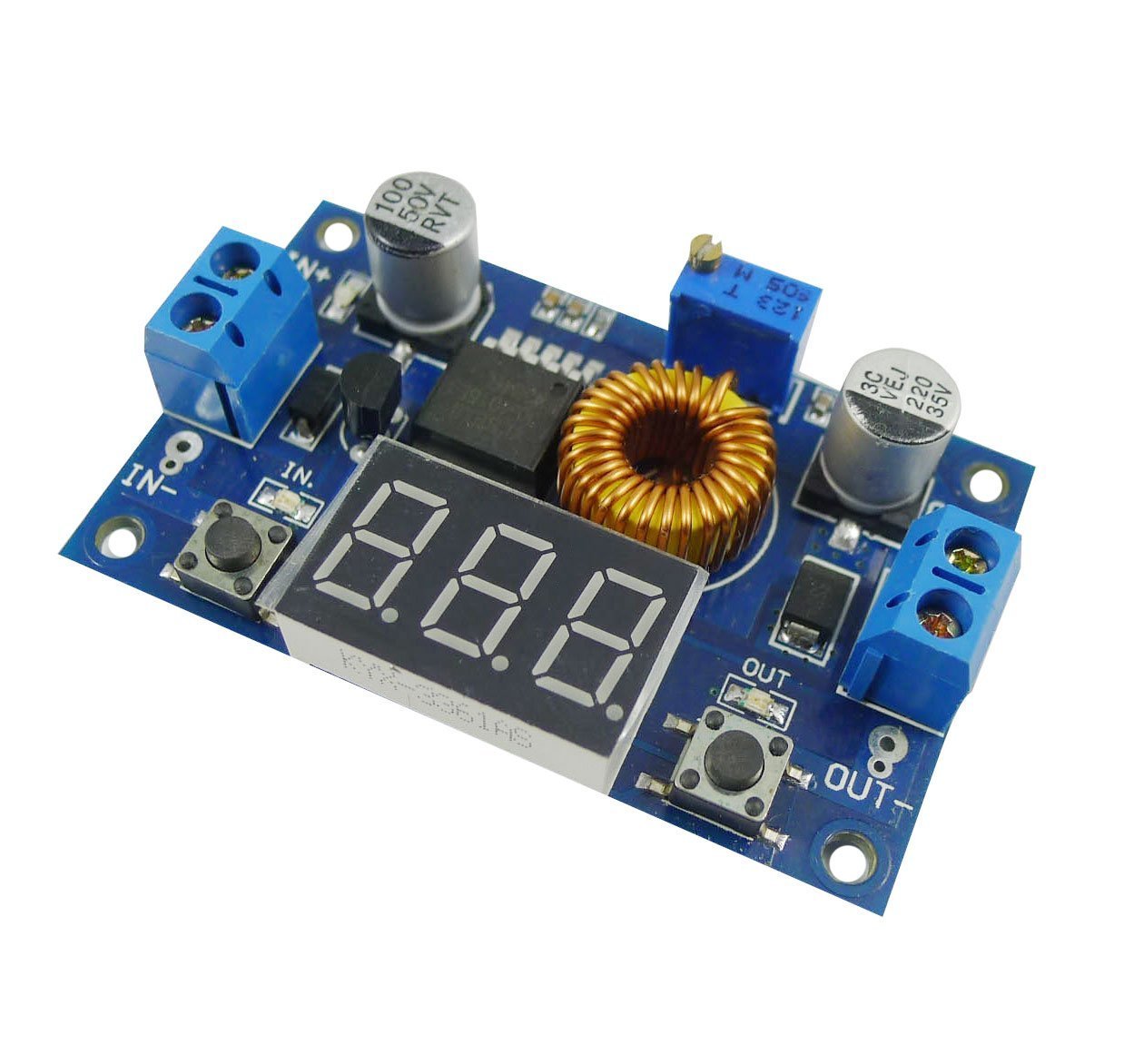

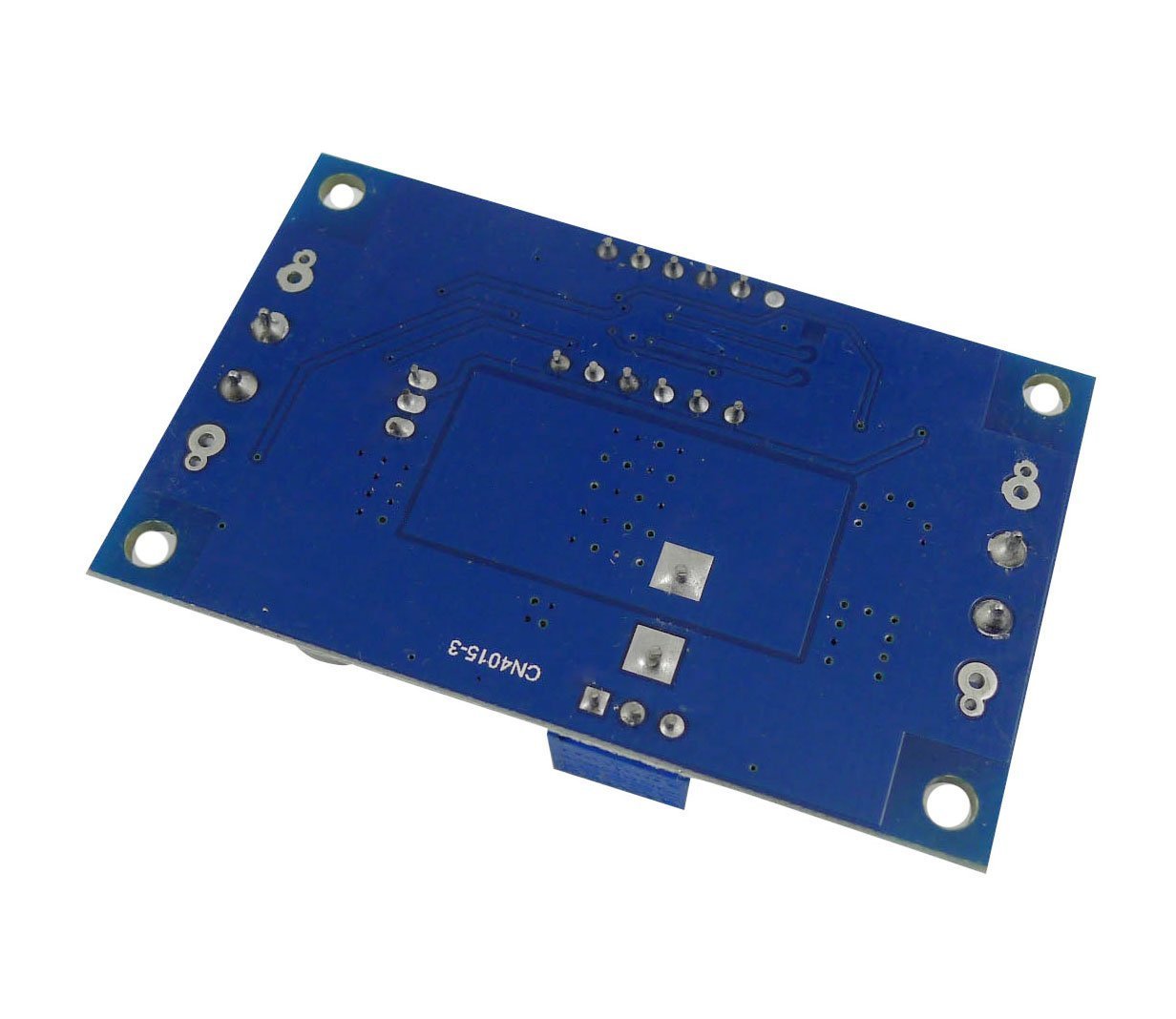

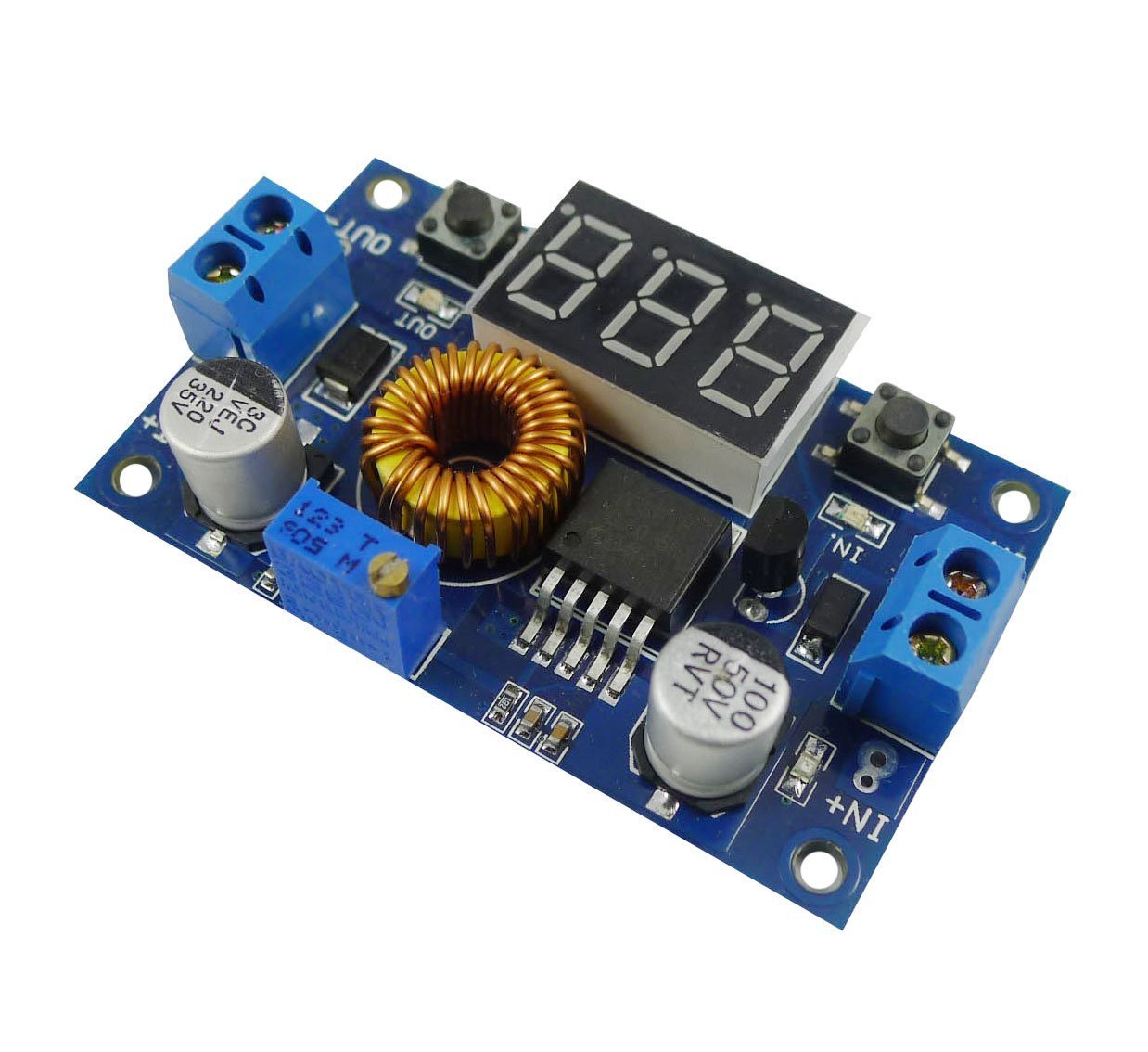

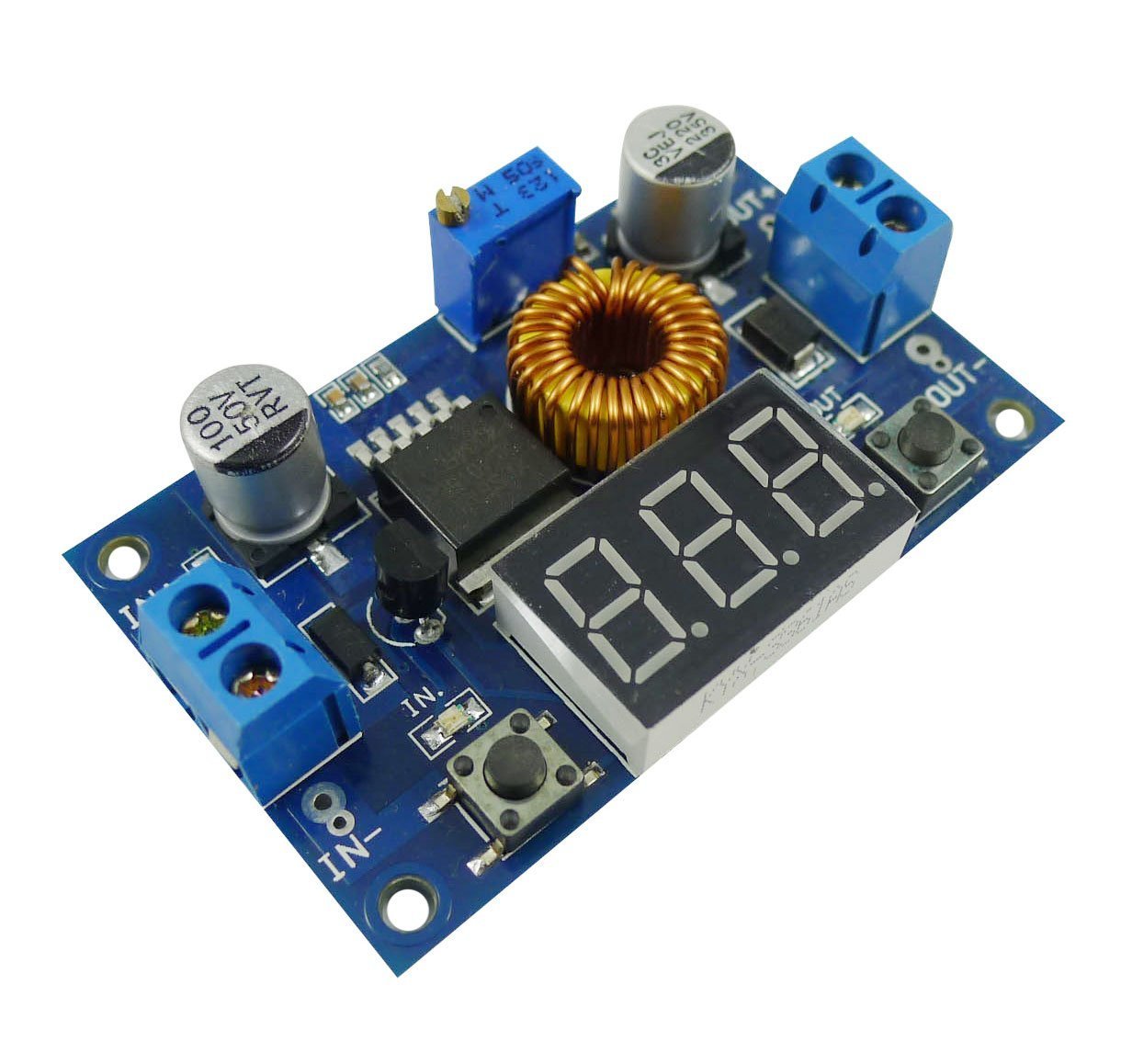

DollaTek Small DC Buck Voltage Converter Step Down Voltage Regulator Module Board 4-38V to 1.25-36V 5V/12V Adjustable Output Voltage Stabilizer Transformer

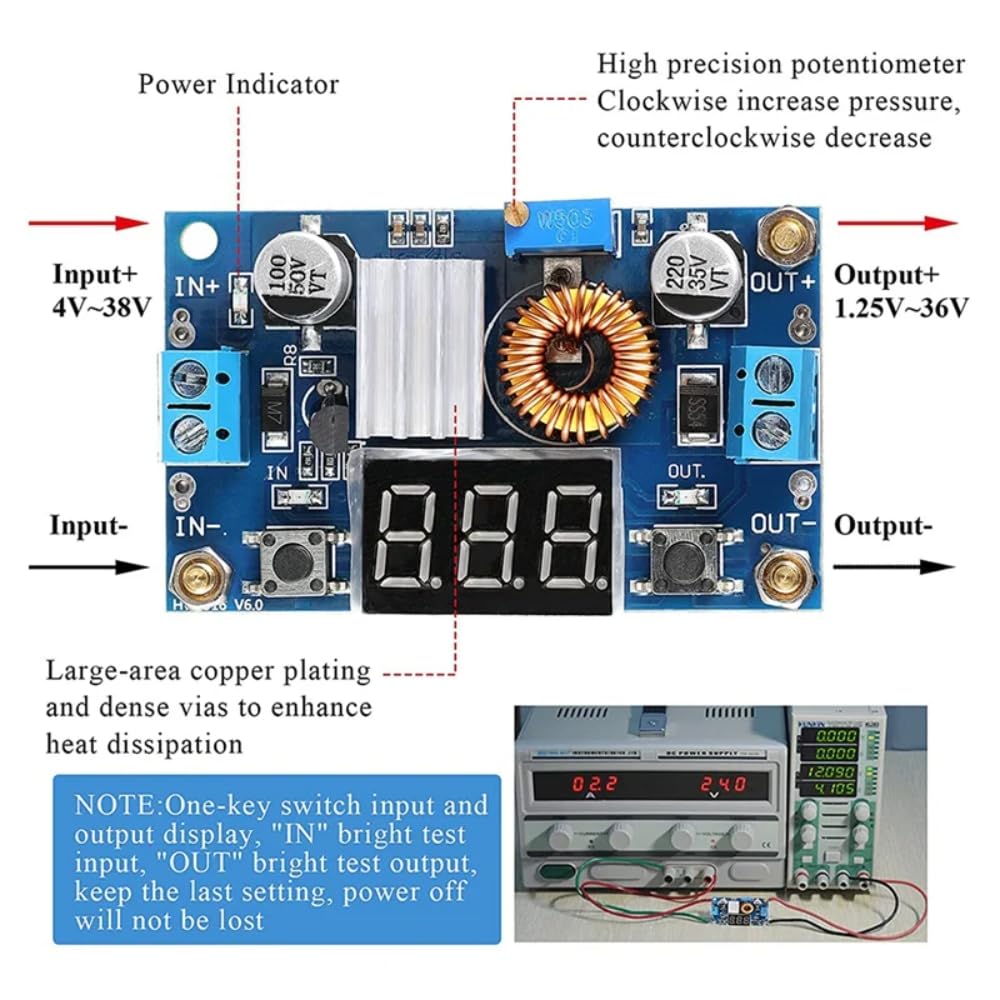

• With power supply green LED indicator and the mini voltmeter which can be calibrated by adjusting potentiometer
• High power of 5A and low ripple; has heatsink and copper pillar; Over-heating/short-circuit protection allows safe usage
• Press the switch button to choose testing input/output voltage; "IN"LED light when testing input voltage; "OUT" LED light when testing output voltage
• Press the left-side button to turn ON/OFF voltmeter; Wiring terminals makes convenient usage even without soldering iron
• Adjust the potentiometer in clockwise direction for output voltage increase and decreasing output voltage in counter-clockwise direction

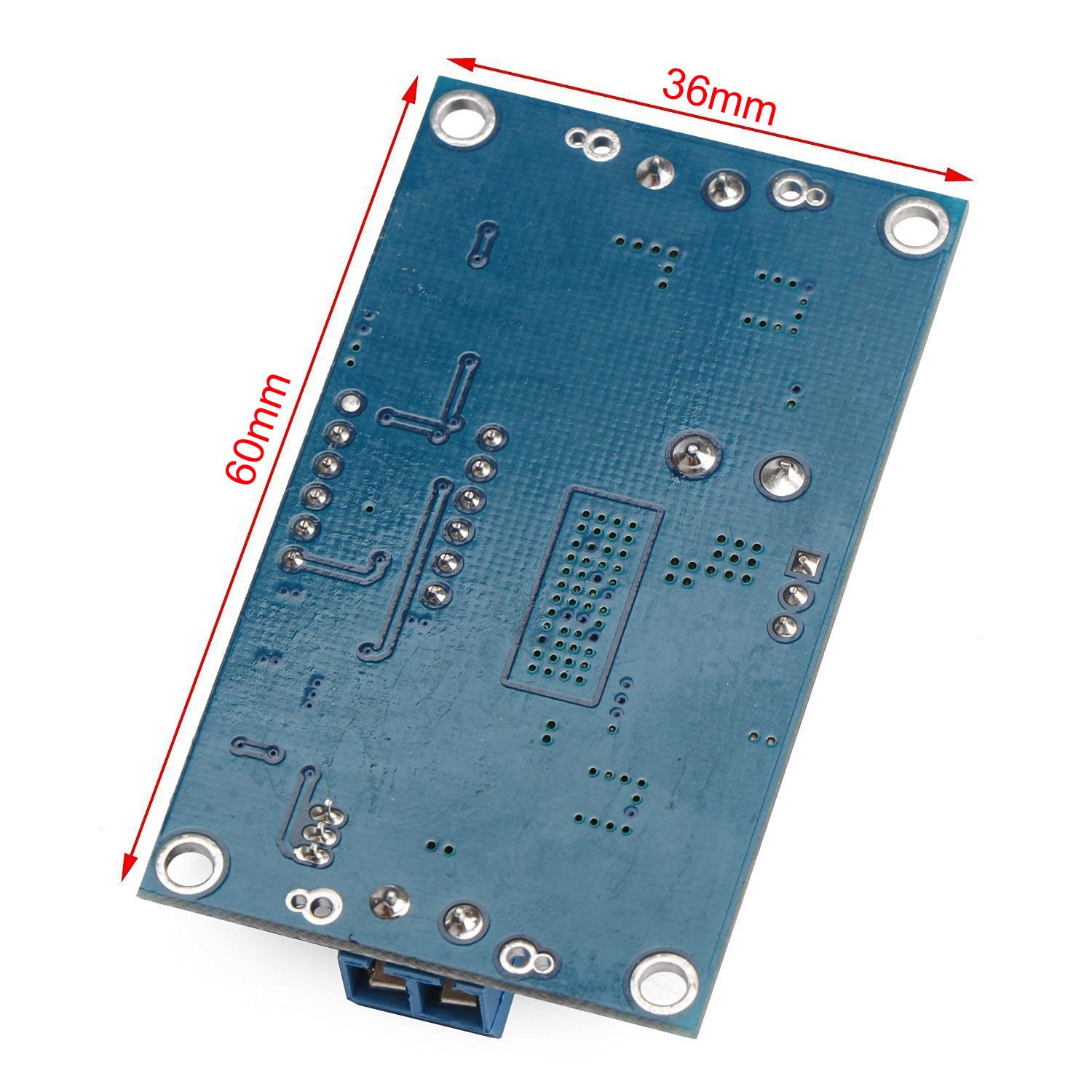

Features: Input voltage: DC 4.0 ~ 38V Output voltage: DC 1.25V ~ 36V continuously adjustable ( the input voltage must be higher than the output voltage 1.5V ) Output current: max 5A, recommended for use in the 4.5A. Output power: up to 75W, more than 50W, Please enhance heat dissipation Voltmeter error: +/- 0.05V Measure range: 0 ~ 40V ( please ensure that the input voltage is 4.5V or more) Conversion efficiency: up to 96% Load regulation: S (I) ≤ 0.8% Voltage Regulation: S (u) ≤ 0.8% With overheat protection and short circuit protection Dimensions: 6.6 * 3.9 * 1.8cm Package include: 1x DollaTek DC Step-down Module
