Yonico 12150 2-3/4-Inch Bevel Raised Panel with Back Cutter Router Bit 1/2-Inch Shank

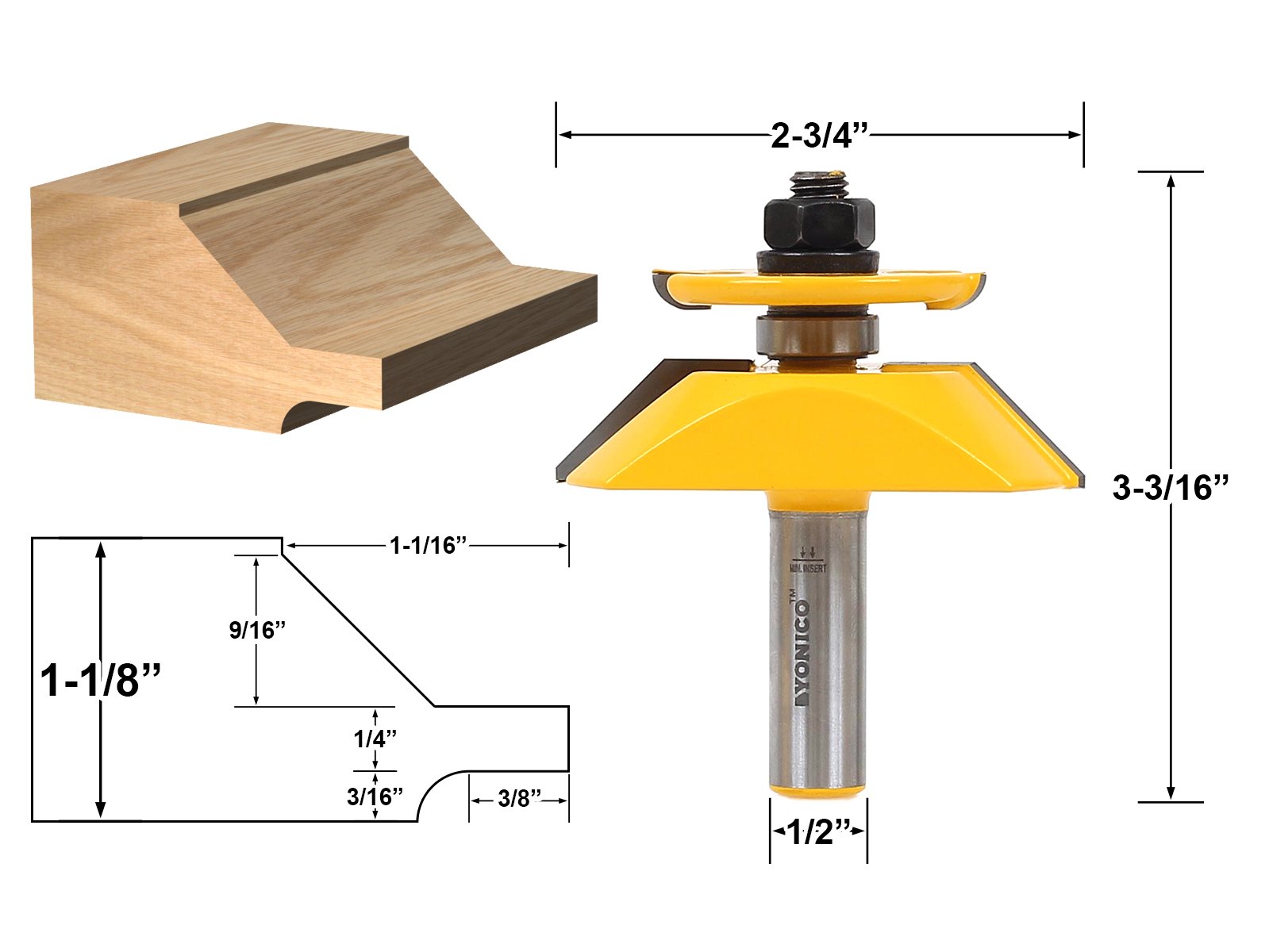

• This 2-3/4" bevel panel raiser has a cutting depth of 1-1/16" and a total cutting height of 1-1/8". This is a heavy duty bit with a 1/2" shank.
• Create center panels for standard rail and stile cabinet doors especially designed with a backcutter blade for thicker stock
• Premium C3 micro-grain tungsten carbide blades for a sharper & longer lasting edge
• For use on table mount router
• Silver induction brazing for maximum strength and durability

This bevel panel raiser has a cutting depth of 1-1/8" and can be used on stock up to 1-1/8" thick. The back cutter cuts 3/8" deep plus a 3/16" radius relief. The tongue will be 1/4" thick and can be inserted into a door frame with a slot of up to 3/8" deep. This is a heavy duty bit with a 1/2" shank. Like our standard raised panel bits, these bits create a beautiful profile for the centre panel of rail and stile doors while at the same time, cutting away the back surface of the stock to reduce its thickness even further. Install one of these bits in your high-powered table mounted router and route your panels face down. Raised panel router bits have a large diameter and remove a lot of material, so make sure you have a router with enough horsepower to handle this kind of work. All standard raised panel bits are fitted with radial bearings to make adjustment of the router table fence easy. Do not use these bits in handheld routers.
