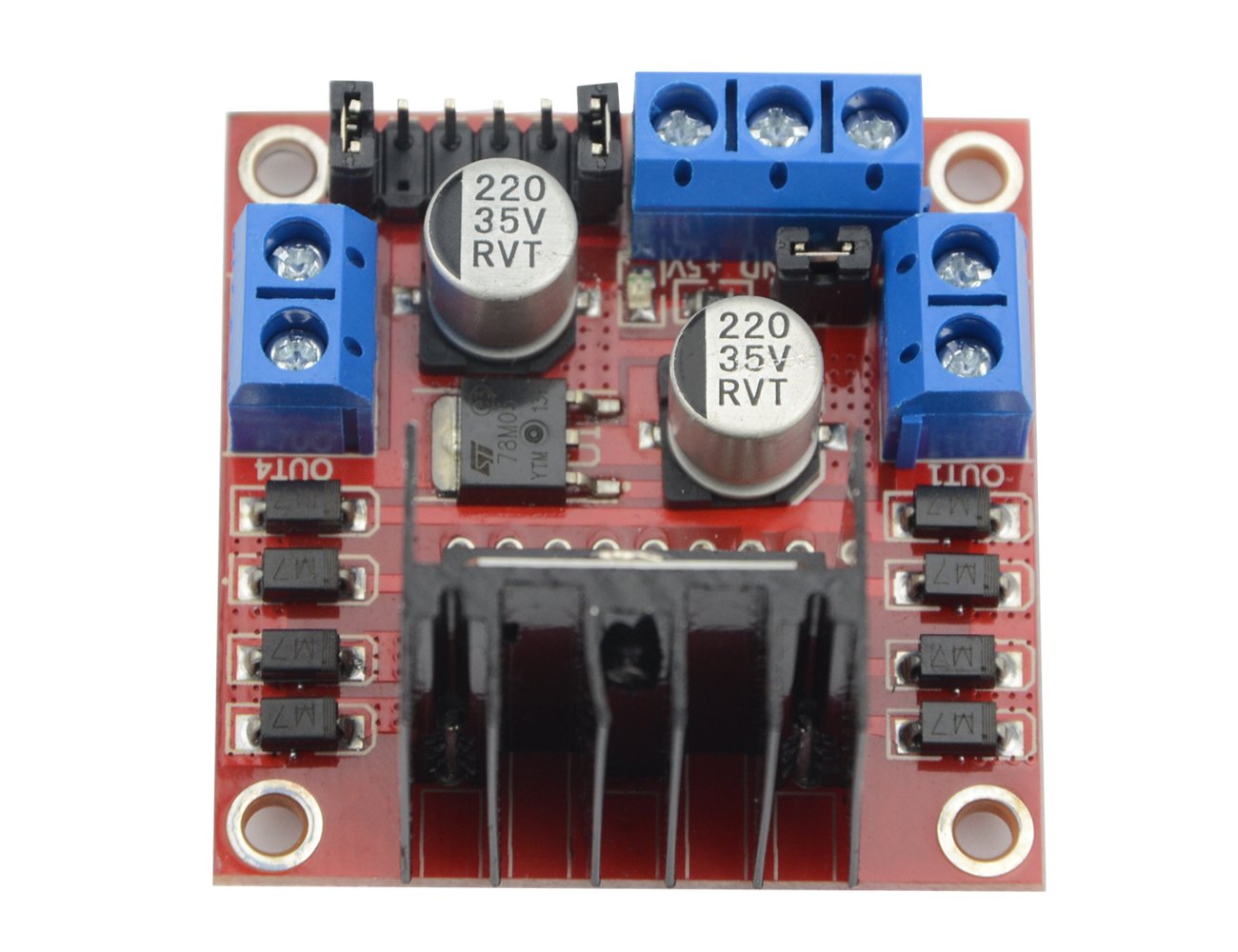

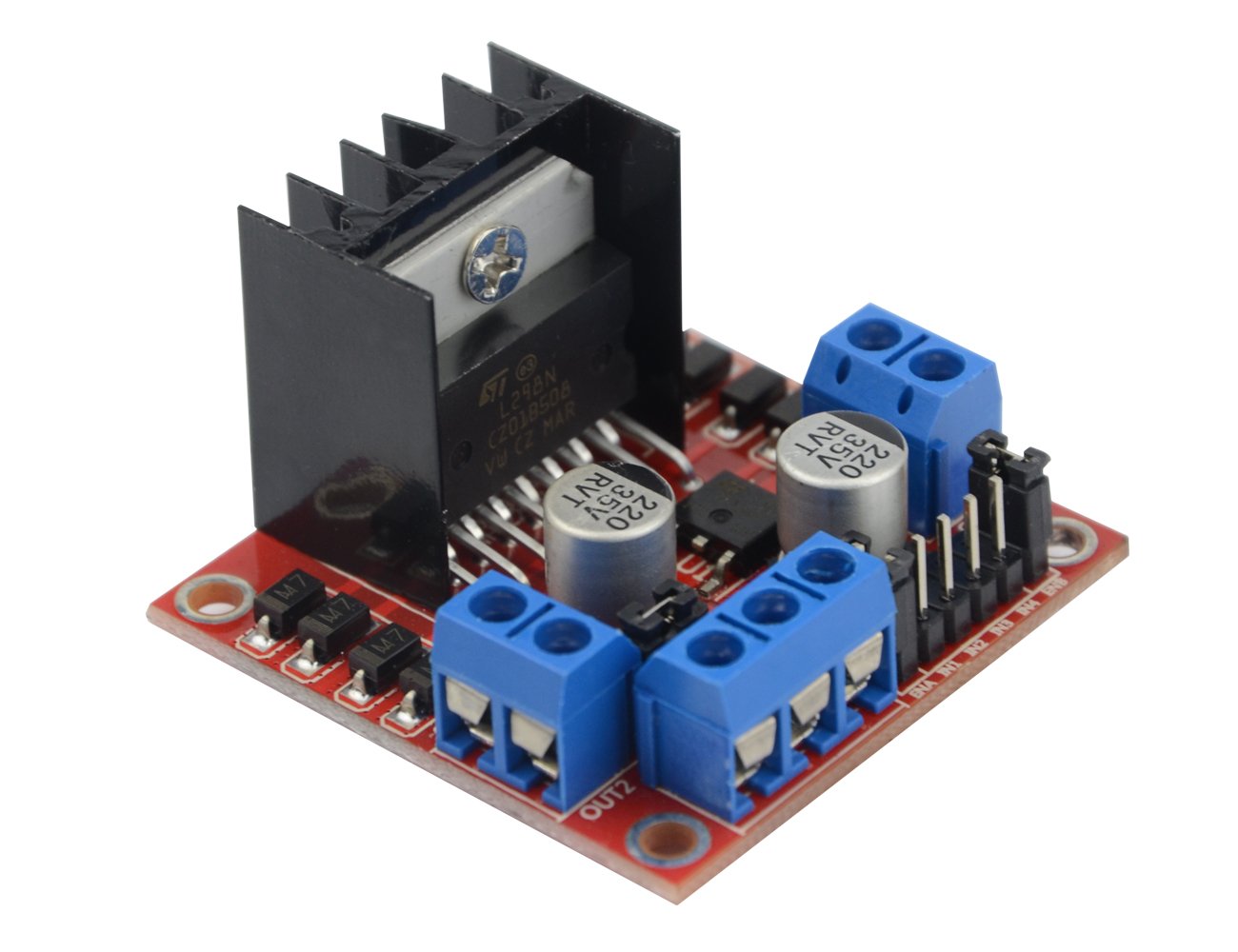

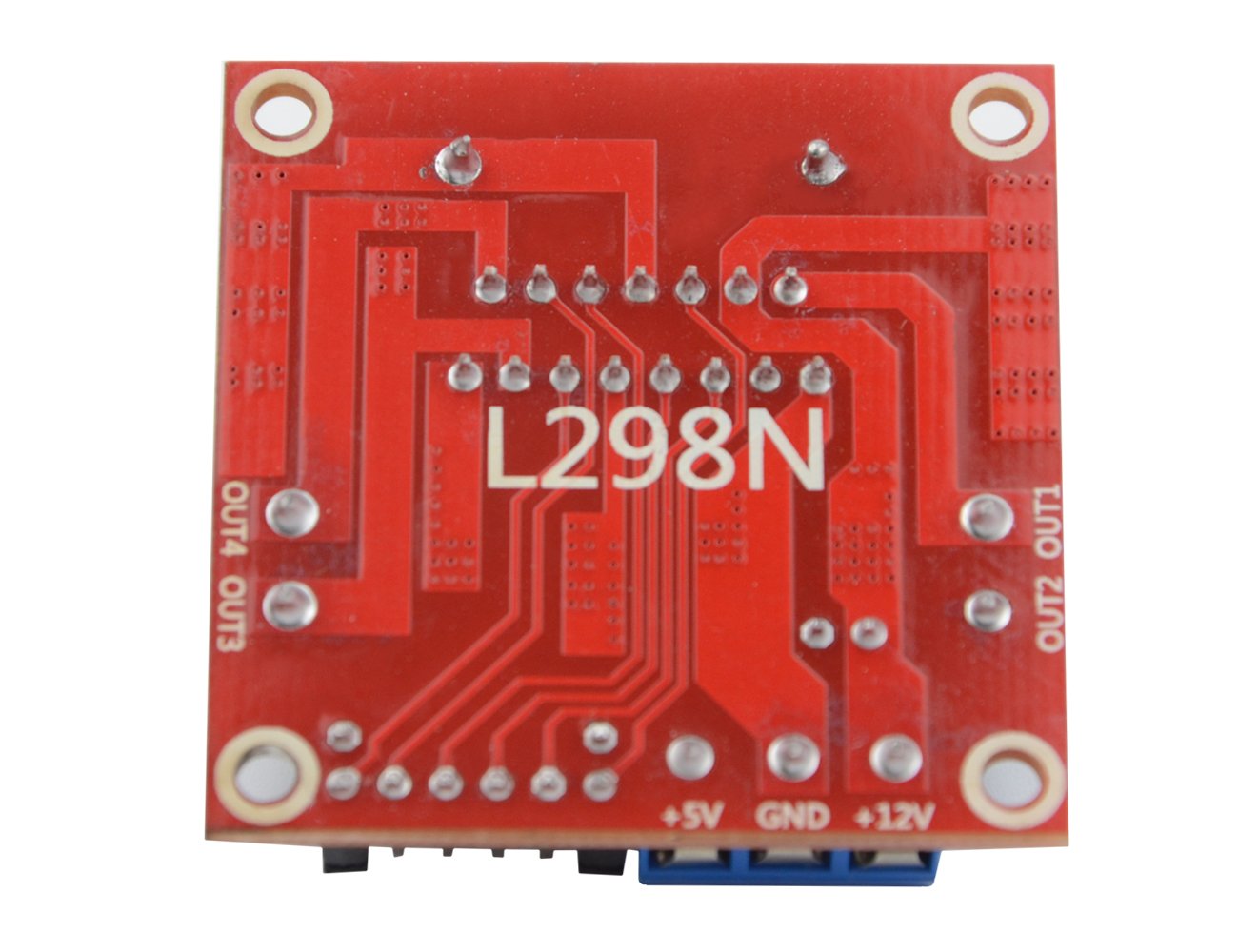

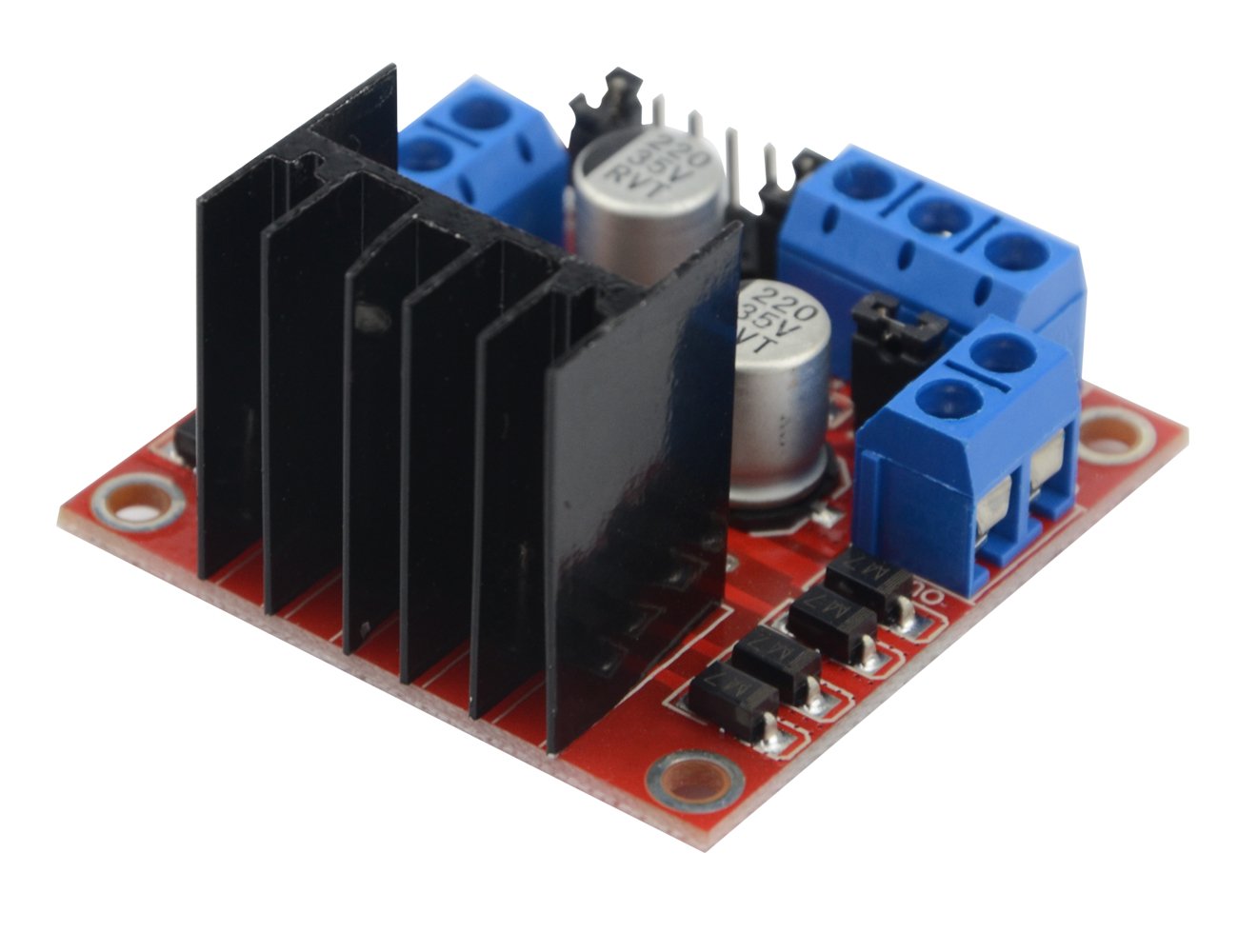

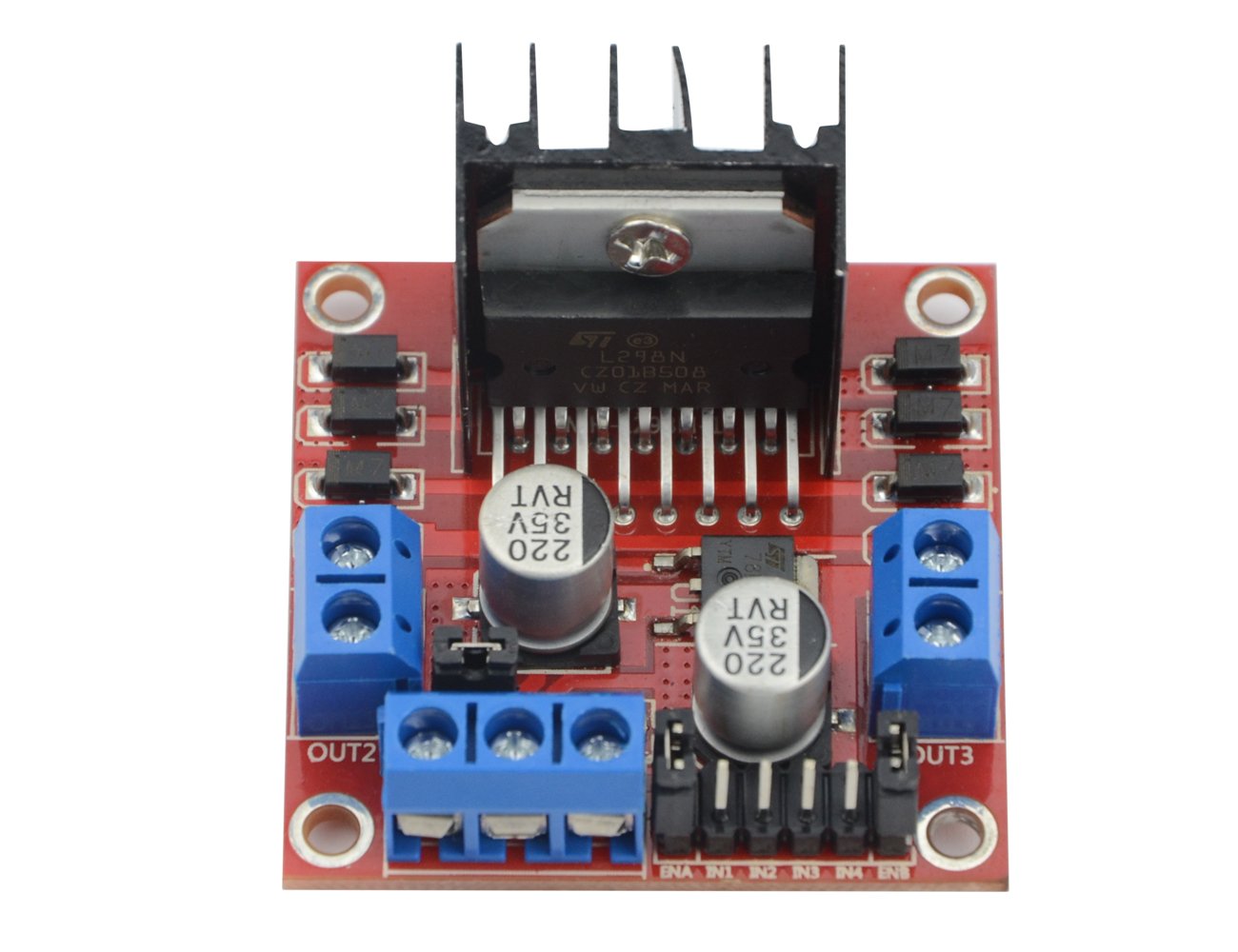

WMYCONGCONG 5 PCS L298N Motor Drive Controller Board Module Dual H Bridge DC Stepper Module

• L298N main driving chip, high drive ability, low calorific value, strong anti-interference capability.
• Dual H bridge DC stepper module, more stable and higher work efficiency.
• Size: 43 * 43 * 27 mm/1.69 * 1.49 * 1.06in.
• With built-in 78M05 to supply power, to avoid the damage of voltage regulator chip, when the driving voltage is greater than 12V, please use the external 5V logic power supply.
• Package: 5 pcs L298N motor controller board module.

Specification: Name: Dual H bridge motor driver module Working mode: H bridge driver (dual) Main control chip: L298N Logic voltage: 5 v The driving voltage: 5 v - 35 v Logic current : 0mA-36mA Drive current: 2 a (MAX single bridge) Storage temperature: - 20 °C to + 135 °C Max power: 25 w Weight: 30 g Size: 43 * 43 * 27 mm L298N motor controller board module, compatible with smart car power UNO MEGA R3 Mega2560 Package included: 5 pcs L298N Motor Controller Board Module
